Deep Scratches on Vintage Steel Bike.

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Deep Scratches on Vintage Steel Bike.

Reply

Old 04-15-19, 10:06 AM
  #1
asindc
Senior Member
Thread Starter

asindc's Avatar

Join Date: Jul 2006
Location: Hyattsville, MD
Posts: 138

Bikes: 1993 Trek Antelope 850 mountain bike; 2002 LeMond Alpe d'Huez; 2005 Orbea Onix TDF; 2015 Bianchi Infinito.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Deep Scratches on Vintage Steel Bike.

Yesterday, I scratched the top tube of my 2002 LeMond Alpe d'Huez in several spots. Some of the scratches look rather deep:



How do I go about getting these fixed and repainted?
__________________
1993 Trek Antelope 850 mountain bike. /// 2002 LeMond Alpe d'Huez. /// 2005 Orbea Onix Ultegra. /// 2015 Bianchi Infinito CV.
asindc is offline
Reply With Quote
Old 04-15-19, 10:44 AM
  #2
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 40,184

Bikes: 8

Mentioned: 176 Post(s)
Tagged: 0 Thread(s)
Quoted: 6335 Post(s)
strip it * and drop it off at a powder coater ..

* down to bare frame ...






...
fietsbob is offline
Reply With Quote
Old 04-15-19, 10:56 AM
  #3
jimc101
Senior Member

Join Date: Oct 2007
Location: West Yorkshire, United Kingdom
Posts: 5,403
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 274 Post(s)
Or stove enamel depends on how much you want to pay to re-paint it.

For a cheap option, nail polish, there will be a green similar from your favorite beauty supplier, If you don't fancy going to one, would look at auto touch ups, and either would be a much cheaper option to a full re-paint.

Lemond (under Trek) did nice bikes, but for the bike being vintage, it's a 2002, that's far too new to even be considered retro, decades away from being vintage, at present, all it is is a bit old.
jimc101 is offline
Reply With Quote
Old 04-15-19, 11:12 AM
  #4
asindc
Senior Member
Thread Starter

asindc's Avatar

Join Date: Jul 2006
Location: Hyattsville, MD
Posts: 138

Bikes: 1993 Trek Antelope 850 mountain bike; 2002 LeMond Alpe d'Huez; 2005 Orbea Onix TDF; 2015 Bianchi Infinito.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Originally Posted by jimc101 View Post
Or stove enamel depends on how much you want to pay to re-paint it.

For a cheap option, nail polish, there will be a green similar from your favorite beauty supplier, If you don't fancy going to one, would look at auto touch ups, and either would be a much cheaper option to a full re-paint.

Lemond (under Trek) did nice bikes, but for the bike being vintage, it's a 2002, that's far too new to even be considered retro, decades away from being vintage, at present, all it is is a bit old.
I've already put clear coat nail polish over the scratches as a temporary solution. I'm hoping that someone can point me to solutions that don't involve stripping the entire frame of paint and decals.
__________________
1993 Trek Antelope 850 mountain bike. /// 2002 LeMond Alpe d'Huez. /// 2005 Orbea Onix Ultegra. /// 2015 Bianchi Infinito CV.
asindc is offline
Reply With Quote
Old 04-15-19, 11:23 AM
  #5
coffeesnob
Senior Member

coffeesnob's Avatar

Join Date: Jan 2016
Location: Va
Posts: 435

Bikes: Trek DS 8.3 - cannondale M500

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 2407 Post(s)
is that bare rusty metal on the right?
coffeesnob is offline
Reply With Quote
Old 04-15-19, 11:25 AM
  #6
asindc
Senior Member
Thread Starter

asindc's Avatar

Join Date: Jul 2006
Location: Hyattsville, MD
Posts: 138

Bikes: 1993 Trek Antelope 850 mountain bike; 2002 LeMond Alpe d'Huez; 2005 Orbea Onix TDF; 2015 Bianchi Infinito.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Originally Posted by coffeesnob View Post
is that bare rusty metal on the right?
That's not rust, it's residue from being scratched on a brick wall.
__________________
1993 Trek Antelope 850 mountain bike. /// 2002 LeMond Alpe d'Huez. /// 2005 Orbea Onix Ultegra. /// 2015 Bianchi Infinito CV.
asindc is offline
Reply With Quote
Old 04-15-19, 11:29 AM
  #7
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 40,184

Bikes: 8

Mentioned: 176 Post(s)
Tagged: 0 Thread(s)
Quoted: 6335 Post(s)
then go find touch up paint..

in the bike shop we get small brush in cap bottles to quickly fix any minor accidental scratches in assembling bikes;
they come in the shipping carton with the new bikes , sometimes ..






...
fietsbob is offline
Reply With Quote
Old 04-15-19, 12:02 PM
  #8
skoda2
Senior Member

Join Date: Jul 2012
Location: Ocala, Florida
Posts: 241

Bikes: 74 Romic, 83 Basso, Lotto, 88 Condor, Prestige MTB, 12 Soma, Groove

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Testers model enamel works well for my bikes, with many colours available, inexpensive as well.
skoda2 is offline
Reply With Quote
Old 04-15-19, 12:04 PM
  #9
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,092

Bikes: old ones

Mentioned: 212 Post(s)
Tagged: 0 Thread(s)
Quoted: 13709 Post(s)

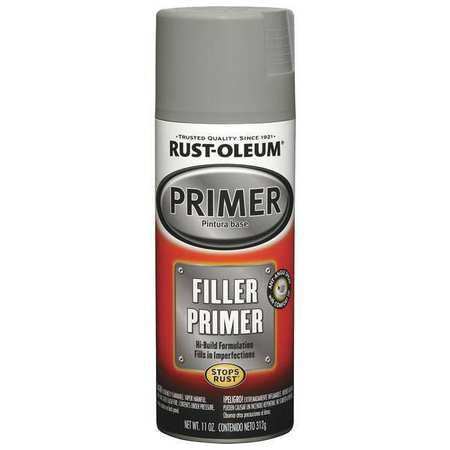

...they sell a grey auto primer that you can spray on to build up the low scratches (usually takes several coats to build up something that t deep. So you mask and spray the area, then sand it down so it's smooth, then you overspray that with whatever enamel you get as a color match, trying to feather it into the original paint on the edges.

It's usually difficult to get a good color match...that's the hardest part.

3alarmer is offline
Reply With Quote
Old 04-15-19, 12:44 PM
  #10
freeranger
Senior Member

freeranger's Avatar

Join Date: Jun 2005
Location: Kentucky
Posts: 1,105

Bikes: 06 Lemond Reno, 98 GT Timberline mtn.bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
You could: 1.Sand the scratches "clean" -2.use an epoxy such as JB Weld (let it sit up a while until it's kind of like putty-3.fill in the scratches with the epoxy and maybe use something like a putty knife to make sure the epoxy is fully into the scratches, and to remove excess expoxy-4.let epoxy dry, then sand smooth and to basic shape of tube-5.primer, sand, primer and sand again, then 5.apply final color coat of paint (and maybe a clear coat if you feel it's necessary). You may not need to do all this if the scratches aren't too deep. And, you could also see what a local auto body shop might want to fix it--probably get a decent job and might not be all that $$$. PS--JB Weld is HARD when it sets up, so if you go that route, be prepared to do a bit of sanding-and care should be taken not to sand the surrounding good paint, of course.

Last edited by freeranger; 04-15-19 at 12:48 PM.
freeranger is offline
Reply With Quote
Old 04-15-19, 01:22 PM
  #11
asindc
Senior Member
Thread Starter

asindc's Avatar

Join Date: Jul 2006
Location: Hyattsville, MD
Posts: 138

Bikes: 1993 Trek Antelope 850 mountain bike; 2002 LeMond Alpe d'Huez; 2005 Orbea Onix TDF; 2015 Bianchi Infinito.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Thanks for all the good suggestions so far. I hadn't thought of an auto body shop, but that sounds like a promising option IF I can find a willing and able shop.
__________________
1993 Trek Antelope 850 mountain bike. /// 2002 LeMond Alpe d'Huez. /// 2005 Orbea Onix Ultegra. /// 2015 Bianchi Infinito CV.
asindc is offline
Reply With Quote
Old 04-15-19, 01:36 PM
  #12
le mans
Steel is real

le mans's Avatar

Join Date: Dec 2014
Location: Australia
Posts: 586

Bikes: Cannondale Saeco Machhine De Caffe. Custom - Record Vortex 8 spd Nexus & Mistral Le Mans 3 spd Shimano. Upgraded Wheeler Crossline

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
You can go to any hardware store virtually that sells spray paint in cans, & auto accessory shops

black yeah? go for the one that meets your shade, semi gloss perhaps {satin**


and filling it with primer first - those deep scratches is a good idea, sand then respray if needed untill flush
le mans is offline
Reply With Quote
Old 04-15-19, 02:31 PM
  #13
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 1,642

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 561 Post(s)
That bike is a terrific one, but I'm not sure if its in the collectable sphere. If you want to ride it without looking at the scratchs I'd just sand it a little, use primer and then wet sand so that the primer is not over your current paint (or, use a brush for the primer). Then build with color-matched paint. Wet sand. Put a final coat on, then some clear coat. That's what I did with my 99 Zurich.
WizardOfBoz is offline
Reply With Quote
Old 04-15-19, 07:01 PM
  #14
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 4,784

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 571 Post(s)
Those little scratches. Find a good match of nail polish or testors.
dedhed is offline
Reply With Quote
Old 04-15-19, 07:06 PM
  #15
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,176

Bikes: I'd rather not count how many, thank you

Mentioned: 133 Post(s)
Tagged: 0 Thread(s)
Quoted: 952 Post(s)
This. Any older/vintage bike will have some scars, it's part of life.
Go to a honby shop and buy some Testor's dark green and a bottle of black. Put some of thr green on a ziploc and mix a little of the black in until you have a good match. Apply with a superfine brush, from the inside of the scratch out. After two or three coats it will be pretty much the same level as the existing paint job. Let dry, then thin coat of clear. Rubbing/polishing compound, wax, done.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Reply With Quote
Old 04-15-19, 07:07 PM
  #16
drlogik
Senior Member

drlogik's Avatar

Join Date: Mar 2016
Location: North Carolina
Posts: 1,014

Bikes: '87-ish Pinarello Montello; '89 Nishiki Ariel; '85 Raleigh Wyoming, '16 Wabi Special, '16 Wabi Classic, '14 Kona Cinder Cone

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 369 Post(s)
Considering the bike, I wouldn't use fingernail polish or Tester's paint. If it were mine I'd take it to an auto body shop and see if they can match you some touch-up paint. May cost $25 bucks or so but it's better than stripping the whole bike...especially if that's the original paint. Use a very fine-tipped artist brush to "dot-in" the scratches. Don't try to fill the scratches in one go or it will be very noticeable. A few light coats starting in the deepest part of the scratch, let dry then go again and patience will produce a fix that will be hard to see unless very close. Then lightly buff with polishing compound.


--

Last edited by drlogik; 04-15-19 at 07:15 PM.
drlogik is offline
Reply With Quote
Old 04-16-19, 07:27 AM
  #17
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 1,075

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
rccardr and drlogik use my approach to your paint. I would add I find building up the paint to above the original paint and then sanding it down, very carefully with finer grits, sometimes with a dot of paper glued to a pencil eraser, then polishing it out can look really good. As said the biggest issue can be color match.
easyupbug is offline
Reply With Quote
Old 04-16-19, 09:30 PM
  #18
xiaoman1
Senior Member

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angeles
Posts: 1,882

Bikes: Paramounts, PX-10s, Mondias, Motobecane Grand Record, Specialized Allez Carbon, and Nishiki Tri-A

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 297 Post(s)
OP
Why a repaint for such small scratches, do as some others have mentioned, find a good nail polish match and build up a little at a time let it dry.
Use 800 grit paper and a sanding block (wood) for first passes with 1000 to finish until smooth. Be careful not to cut too far beyond the repair area...polishing compound to finish.
BTW if it were my bike with scratches that small I would, and have used clear nail polish to stop the rust and forgot about it...too small to obsess about.
JMHO Ben
__________________
Paramount, Mondia, Px-10, Moto
xiaoman1 is offline
Reply With Quote
