Sugino Crankset w/ Hatta Bearing Retainer... removeable?

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Sugino Crankset w/ Hatta Bearing Retainer... removeable?

Old 04-21-19, 04:19 PM
  #1
prairiepedaler
Senior Member
Thread Starter

Join Date: Aug 2016
Posts: 576

Bikes: BRC Explorer 43lb'er, Raleigh Elkhorn, Cannondale SM600, LeeWorld Mountain Sport Frame, Maruishi MT18 Frame

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Sugino Crankset w/ Hatta Bearing Retainer... removeable?

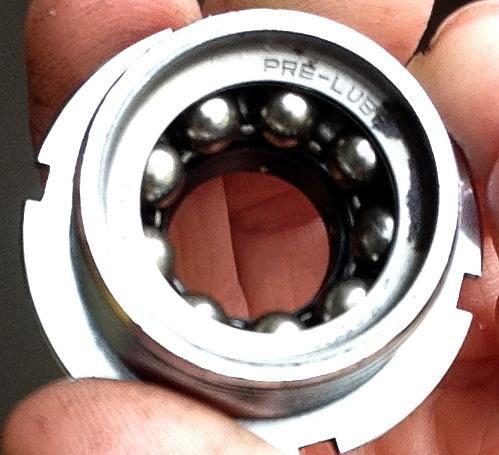

Hi, as shown I have an adjustable cup with cage bearings. I haven't seen this arrangement before yet it's probably common; it appears there is a press fit retainer that seats into the cup and which prevents the bearing set from being removed. It's made of steel and states "pre-lubed" on it as well as "Hatta" (the brand I guess). This thing looks pryable. Anyone remove one of these retainers before? I want to clean things in there a little more thoroughly before repacking.

prairiepedaler is offline
Old 04-21-19, 06:53 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,469

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1678 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Remove with no regrets or issues. The pressed in steel retainer is just for assembly purposes, it's faster if the balls don't need loading at the bike assembly line. Feel free to use loose balls (not in their "fingered" retainer ring") and go to 11 balls. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 04-22-19, 04:09 PM
  #3
prairiepedaler
Senior Member
Thread Starter

Join Date: Aug 2016
Posts: 576

Bikes: BRC Explorer 43lb'er, Raleigh Elkhorn, Cannondale SM600, LeeWorld Mountain Sport Frame, Maruishi MT18 Frame

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Ok, thanks Andy. They just stuck that thing in there to make it simpler for assembly line packing? The bottom bracket is from a barely used bike yet the race on one end of the axle has a couple small noticeable divets in the bearing path. With new grease and all the old crap out of there (you know the stuff, like the consistency of ear wax) and properly tightened in, the spin on the crank is not all that easy compared to a new cartridge style or even other adjustables I'd done before. I'm going to end swapping it out with a modern one in the future and for now I'll just run it into the ground.
prairiepedaler is offline
