1954 Schwinn Hornet takes on water after a rain?

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

1954 Schwinn Hornet takes on water after a rain?

Old 05-01-19, 12:26 AM
  #1
Rollfast
What happened?
Thread Starter

Rollfast's Avatar

Join Date: Jun 2007
Location: Around here somewhere
Posts: 7,569

Bikes: 3 Rollfasts, 3 Schwinns, a Shelby and a Higgins Flightliner in a pear tree!

Mentioned: 48 Post(s)
Tagged: 1 Thread(s)
Quoted: 1570 Post(s)
Liked 73 Times in 68 Posts
1954 Schwinn Hornet takes on water after a rain?

I've found this out after turning it over a couple times. Not something that happens with my other bikes that sit outside. Why?

I have to take it to the shop for BB bearings, might as well fix this too. She's 65 and has a double jointed kickstand as it is.
__________________

Marcia Brady rode a ROLLFAST!
Rollfast is offline
Old 05-01-19, 05:44 AM
  #2
mixteup
Senior Member

mixteup's Avatar

Join Date: Oct 2017
Location: NW Florida
Posts: 368

Bikes: A Few

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 148 Post(s)
Liked 23 Times in 16 Posts
It's getting in from somewhere - Seat tube, head tube, or bottom bracket.
Some folks use silicone caulking at the seat post exit, etc.
For the bottom bracket, about the best you can do is to grease it well with waterproof boat trailer grease.
__________________
We are confronted by insurmountable opportunities ........
Pogo
mixteup is offline
Old 05-01-19, 06:40 AM
  #3
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,712

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1778 Post(s)
Liked 64 Times in 49 Posts
During the BB work ask the shop to drill a shell drain hole.

Water gets into just about anything given time and motivation. We often see drips coming out of bikes during working on them. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 05-01-19, 07:12 AM
  #4
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 31,511

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1159 Post(s)
Likes: 0
Liked 31 Times in 28 Posts
Does it have an open top seatpost with a wrap-around saddle clamp? That could be the water's entry point.
HillRider is offline
Old 05-02-19, 12:11 AM
  #5
Rollfast
What happened?
Thread Starter

Rollfast's Avatar

Join Date: Jun 2007
Location: Around here somewhere
Posts: 7,569

Bikes: 3 Rollfasts, 3 Schwinns, a Shelby and a Higgins Flightliner in a pear tree!

Mentioned: 48 Post(s)
Tagged: 1 Thread(s)
Quoted: 1570 Post(s)
Liked 73 Times in 68 Posts

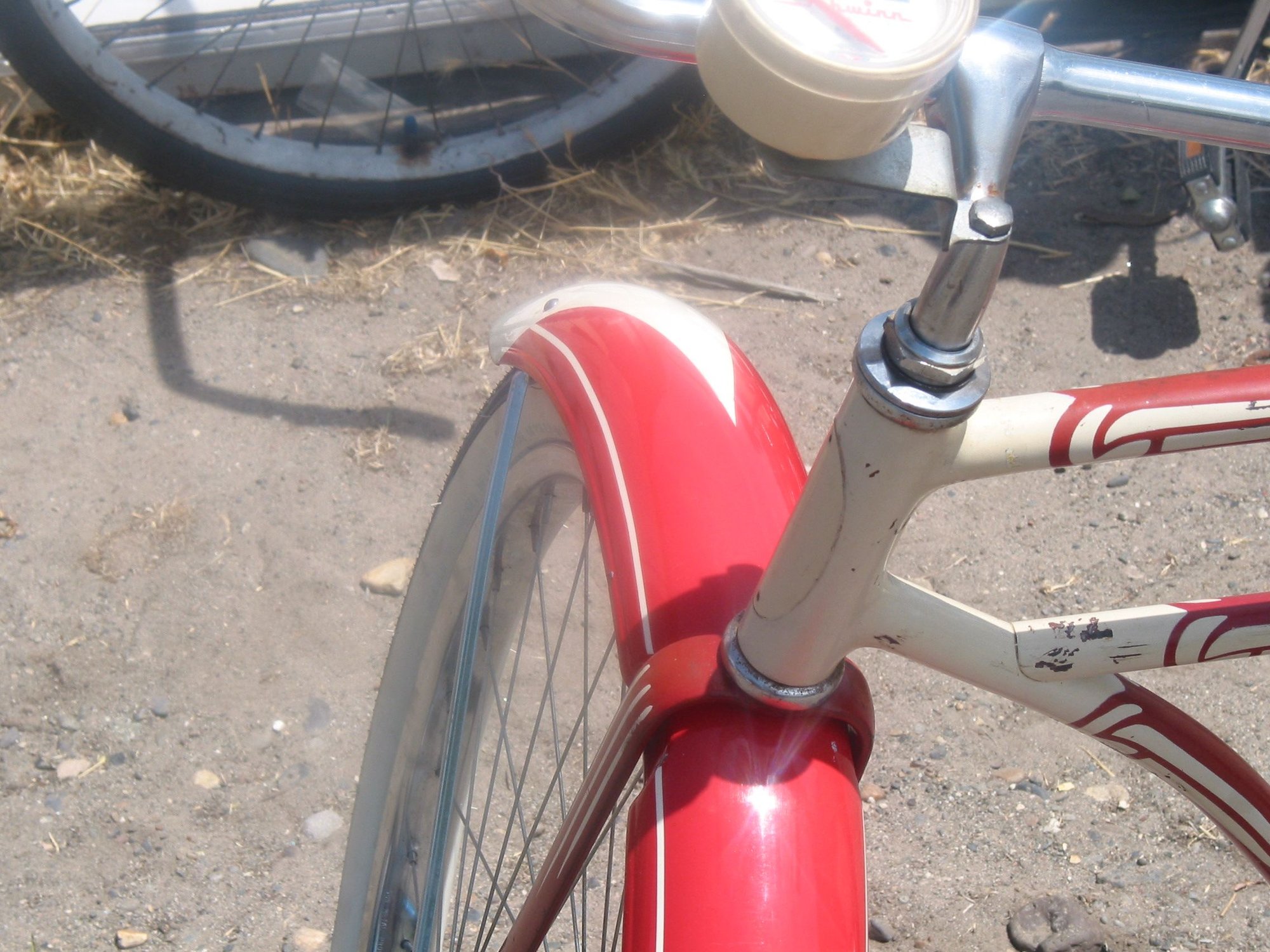

You tell me.


__________________

Marcia Brady rode a ROLLFAST!
Rollfast is offline
Old 05-02-19, 12:12 AM
  #6
Rollfast
What happened?
Thread Starter

Rollfast's Avatar

Join Date: Jun 2007
Location: Around here somewhere
Posts: 7,569

Bikes: 3 Rollfasts, 3 Schwinns, a Shelby and a Higgins Flightliner in a pear tree!

Mentioned: 48 Post(s)
Tagged: 1 Thread(s)
Quoted: 1570 Post(s)
Liked 73 Times in 68 Posts
I really don't intend to drill a drain hole in this bike.
__________________

Marcia Brady rode a ROLLFAST!
Rollfast is offline
Old 05-02-19, 05:47 AM
  #7
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 31,511

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1159 Post(s)
Likes: 0
Liked 31 Times in 28 Posts
Yes, it seems to have an open top seatpost and, if you are unwilling to drill a drain hole, expect water and rust, in that frame. It's lasted 65 years so far but the water will see to it it doesn't last another 65.
HillRider is offline
Old 05-02-19, 01:24 PM
  #8
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,286
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 548 Post(s)
Liked 24 Times in 21 Posts
Originally Posted by Rollfast View Post
I really don't intend to drill a drain hole in this bike.
That's up to you, but I wouldn't hesitate to do it. If water is getting in, it's best if it has a way to get out.
Dan Burkhart is offline
Old 05-02-19, 03:29 PM
  #9
Rollfast
What happened?
Thread Starter

Rollfast's Avatar

Join Date: Jun 2007
Location: Around here somewhere
Posts: 7,569

Bikes: 3 Rollfasts, 3 Schwinns, a Shelby and a Higgins Flightliner in a pear tree!

Mentioned: 48 Post(s)
Tagged: 1 Thread(s)
Quoted: 1570 Post(s)
Liked 73 Times in 68 Posts
What do you mean by 'open top seat post'? It's no different than any other bike I have ever owned. I don't have any such problems with my Rollfasts...I think it's missing a seal in the head tube or something as it didn't start happening until the stem and fork separated earlier this year and I had it in for repairs. I've owned this bike for nearly two years.
__________________

Marcia Brady rode a ROLLFAST!
Rollfast is offline
Old 05-03-19, 05:32 AM
  #10
hokiefyd
Senior Member

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 2,228

Bikes: 2018 Redline Zander, 2018 Giant Roam 2, 2015 Trek Verve 3, 1997 Trek 750, 1969 Peugeot PO-18

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 754 Post(s)
Liked 52 Times in 47 Posts
Originally Posted by Rollfast View Post
What do you mean by 'open top seat post'? It's no different than any other bike I have ever owned. I don't have any such problems with my Rollfasts...I think it's missing a seal in the head tube or something as it didn't start happening until the stem and fork separated earlier this year and I had it in for repairs. I've owned this bike for nearly two years.
An open top seat post is essentially a hollow tube. Most modern seat posts are closed at the top, with the seat rail clamp integral to the seat post itself. By the design of your seat (wide, hangs low), it's probably not likely that water is entering here.

Headsets don't typically have "seals". Some of them do, but I don't think you Schwinn's would by design. That's not to say you couldn't put a little sillycone somewhere up there, if you knew where water was getting in.

I think you really have three choices, to keep this frame in the good shape it's in now:
  1. Store the bike inside, or covered.
  2. Drill a drain hole in the bottom bracket.
  3. Try to seal the point of entry (could be many places).

I don't think #3 will be very effective, at least not long term. #s 1 and 2 are probably your best best. #1 will save the rest of the bike as well (chrome, paint, etc) from the elements. #2 will at least let the water get out, after it's found its way in.
hokiefyd is offline
Old 05-03-19, 06:19 AM
  #11
bakerjw
Senior Member

Join Date: Sep 2008
Location: NE Tennessee
Posts: 839

Bikes: Giant TCR/Surly Karate Monkey/Foundry FireTower/Curtlo Tandem

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 141 Post(s)
Liked 63 Times in 45 Posts
One other thing that I would recommend is to treat the internal frame with some of the rust preventative treatments that are out there on the market. I treat all of my steel frames with them to ensure that they last as long as possible.
FWIW. I would never store a gem like that bike in the direct elements.
bakerjw is offline
Old 05-03-19, 07:57 AM
  #12
Rajflyboy
Senior Member

Join Date: Oct 2018
Posts: 534
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 261 Post(s)
Likes: 0
Liked 32 Times in 29 Posts
Beautiful bicycle ��
Rajflyboy is offline
Old 05-04-19, 01:56 AM
  #13
Rollfast
What happened?
Thread Starter

Rollfast's Avatar

Join Date: Jun 2007
Location: Around here somewhere
Posts: 7,569

Bikes: 3 Rollfasts, 3 Schwinns, a Shelby and a Higgins Flightliner in a pear tree!

Mentioned: 48 Post(s)
Tagged: 1 Thread(s)
Quoted: 1570 Post(s)
Liked 73 Times in 68 Posts
Originally Posted by bakerjw View Post
One other thing that I would recommend is to treat the internal frame with some of the rust preventative treatments that are out there on the market. I treat all of my steel frames with them to ensure that they last as long as possible.
FWIW. I would never store a gem like that bike in the direct elements.
My house is tiny and I have four others out there, soon to be seven others. My avatar has been outside for maybe 12 years now. I don't think the housing inspector would like me to keep 3 Schwinns, 3 Rollfasts, a Shelby and a J.C. Higgins in the house...and they are all daily drivers.

It's not crazy like the guru who had 92 Rolls Royces...too many enablers in togas for him, I build these to ride. If I could build a roof over them from the side of my shed I would but that's really not happening, and I doubt Darla was stored any different before me except for being in Arizona.
__________________

Marcia Brady rode a ROLLFAST!
Rollfast is offline
Old 05-04-19, 02:20 AM
  #14
Rollfast
What happened?
Thread Starter

Rollfast's Avatar

Join Date: Jun 2007
Location: Around here somewhere
Posts: 7,569

Bikes: 3 Rollfasts, 3 Schwinns, a Shelby and a Higgins Flightliner in a pear tree!

Mentioned: 48 Post(s)
Tagged: 1 Thread(s)
Quoted: 1570 Post(s)
Liked 73 Times in 68 Posts
PS The question had nothing to do with draining the water, it was why it's there in the first place and that's a brand new one on me after 45 years.
__________________

Marcia Brady rode a ROLLFAST!
Rollfast is offline
Old 05-04-19, 07:57 AM
  #15
Deal4Fuji
Friction Fan

Deal4Fuji's Avatar

Join Date: Mar 2014
Location: North Carolina
Posts: 1,019

Bikes: '82 Fuji Supreme, '84 Team Fuji, '83 Raleigh Olympian, '87 Lotus Excelle, '85 Centurion Ironman, '12 Trek Alpha 1.1, '77 Schwinn Speedster, Schwinn Trailway, Ross Central Park

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 591 Post(s)
Liked 90 Times in 69 Posts
Originally Posted by HillRider View Post
Yes, it seems to have an open top seatpost and, if you are unwilling to drill a drain hole, expect water and rust, in that frame. It's lasted 65 years so far but the water will see to it it doesn't last another 65.
I have a couple of older bikes with open seat posts like this Raleigh Olympian. I also like cut-out saddles so It's imperative I have some type of cover to keep water out when the bike is in the rain. A pretty simple method is to get a large headed plastic screw from Lowes or HD and glue it over the seat post hole.

Deal4Fuji is offline
Old 05-04-19, 01:42 PM
  #16
FiftySix
where's the gas tank?

FiftySix's Avatar

Join Date: Apr 2019
Location: S.E. Texas
Posts: 595

Bikes: Norco CityGlide, Schwinn Willy

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 272 Post(s)
Liked 128 Times in 100 Posts
Originally Posted by Rollfast View Post
I think it's missing a seal in the head tube or something as it didn't start happening until the stem and fork separated earlier this year and I had it in for repairs. I've owned this bike for nearly two years.
Originally Posted by Rollfast View Post
You tell me.

Is that bike supposed to have a washer above the top bearing race, but under the locknut on the headset?

I was looking at my bike with a threaded fork and if that washer would be missing, water would funnel in past the inner I.D. of the bearing race even with the locknut present.

Scroll down to mid-page in first link
https://custommotoredbicycles.com/stems_goose_neck_threadless_headsets_1inch1_18_inch

https://www.ebay.com/itm/1-Bicycle-H...-/110939208460

On second thought, I think all that would happen is the steer tube threads would get rusted.

Last edited by FiftySix; 05-04-19 at 02:00 PM.
FiftySix is offline
Old 05-05-19, 08:26 PM
  #17
Rollfast
What happened?
Thread Starter

Rollfast's Avatar

Join Date: Jun 2007
Location: Around here somewhere
Posts: 7,569

Bikes: 3 Rollfasts, 3 Schwinns, a Shelby and a Higgins Flightliner in a pear tree!

Mentioned: 48 Post(s)
Tagged: 1 Thread(s)
Quoted: 1570 Post(s)
Liked 73 Times in 68 Posts
Originally Posted by Rajflyboy View Post
Beautiful bicycle ��
Ah, somebody got it.
__________________

Marcia Brady rode a ROLLFAST!
Rollfast is offline
Old 05-05-19, 08:28 PM
  #18
Rollfast
What happened?
Thread Starter

Rollfast's Avatar

Join Date: Jun 2007
Location: Around here somewhere
Posts: 7,569

Bikes: 3 Rollfasts, 3 Schwinns, a Shelby and a Higgins Flightliner in a pear tree!

Mentioned: 48 Post(s)
Tagged: 1 Thread(s)
Quoted: 1570 Post(s)
Liked 73 Times in 68 Posts
Originally Posted by FiftySix View Post
Is that bike supposed to have a washer above the top bearing race, but under the locknut on the headset?

I was looking at my bike with a threaded fork and if that washer would be missing, water would funnel in past the inner I.D. of the bearing race even with the locknut present.

Scroll down to mid-page in first link
https://custommotoredbicycles.com/stems_goose_neck_threadless_headsets_1inch1_18_inch

https://www.ebay.com/itm/1-Bicycle-H...-/110939208460

On second thought, I think all that would happen is the steer tube threads would get rusted.
You're on the right track. It's in the shop now so money has been thrown, it will work out.
__________________

Marcia Brady rode a ROLLFAST!
Rollfast is offline
Old 05-06-19, 12:21 PM
  #19
Delmarva
Senior Member

Delmarva's Avatar

Join Date: Jan 2012
Location: Virginia, USA
Posts: 550
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Rollfast View Post
I really don't intend to drill a drain hole in this bike.
If it's a collectible bike that you want to keep original then the solution would seem to be storing it inside.
Delmarva is offline
Old 05-09-19, 10:09 PM
  #20
Rollfast
What happened?
Thread Starter

Rollfast's Avatar

Join Date: Jun 2007
Location: Around here somewhere
Posts: 7,569

Bikes: 3 Rollfasts, 3 Schwinns, a Shelby and a Higgins Flightliner in a pear tree!

Mentioned: 48 Post(s)
Tagged: 1 Thread(s)
Quoted: 1570 Post(s)
Liked 73 Times in 68 Posts
If the next owner wants it that way after I die, that's up to them. The fenders were from a '48 and repainted, the rack is a repro from Bicyclebones and the tank I'm preparing had battery damage below the horn. I'm not a museum, and this small house is already chock full o' stuff. The housing authority won't stand for it either, and I have EIGHT bikes.

But thanks for all of your concerns. We've had rains all year and this was a new problem that surfaced after I had the stem and fork rejoined.
__________________

Marcia Brady rode a ROLLFAST!
Rollfast is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
jdon
Foo
29
06-23-14 01:08 AM
thewalrus
Road Cycling
0
01-21-06 12:16 AM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
