flangeless pedal spindle

Old 05-17-19, 10:14 PM
  #1
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,811
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 2827 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
flangeless pedal spindle

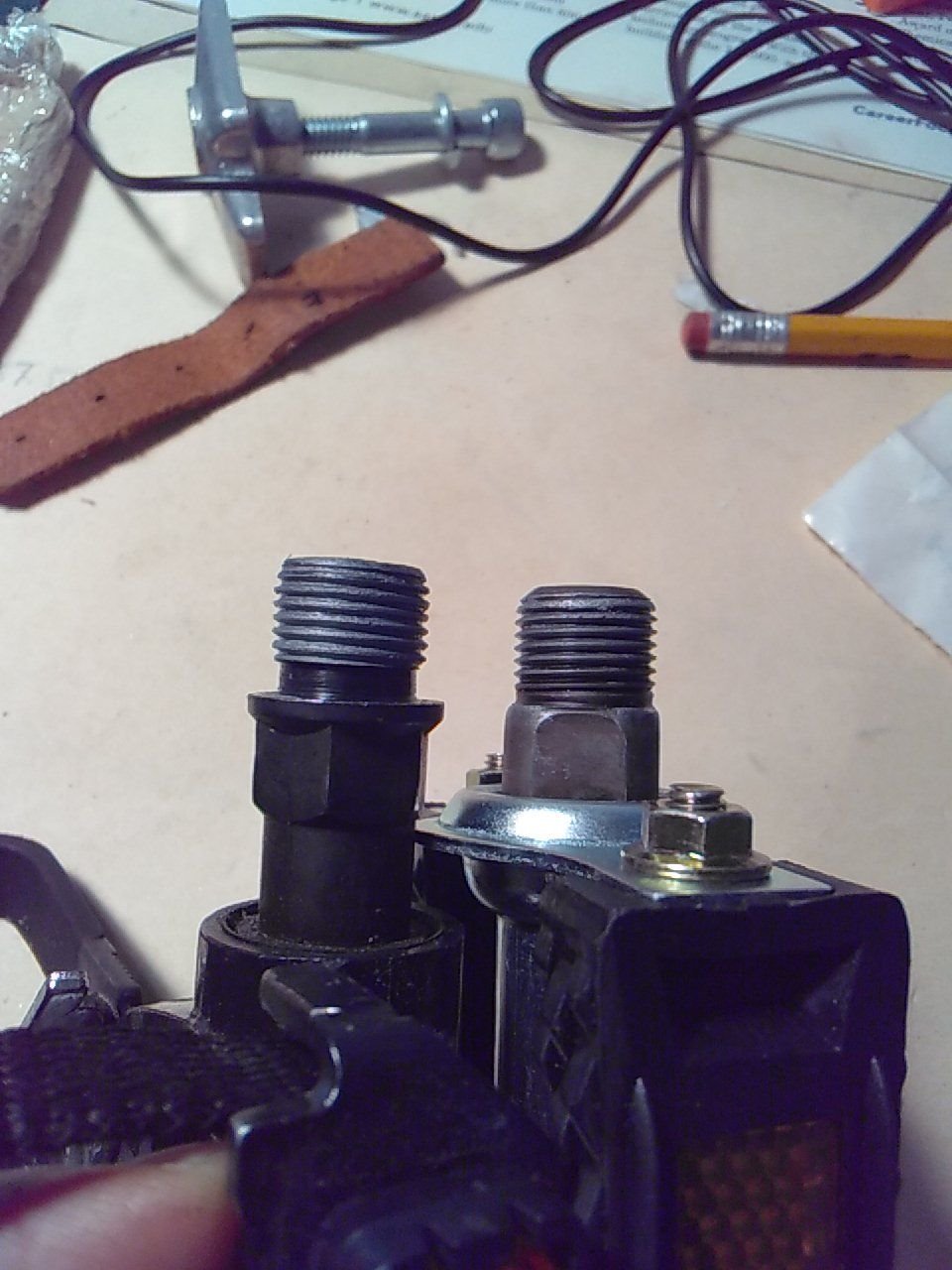

see pic...the left one is old pedal...has a big flange.

the right one is new pedal...no flange.

will lack of flange damage the crank thread (aluminum roadbike crank) when i tighten the pedal?


Last edited by mtb_addict; 05-17-19 at 10:18 PM.
mtb_addict is offline
Old 05-17-19, 11:12 PM
  #2
davidad
Senior Member

Join Date: Feb 2009
Posts: 5,738
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 278 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
The right one is meant for steel Ashtabula cranks.
davidad is offline
Old 05-18-19, 02:06 AM
  #3
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 22,110
Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 8193 Post(s)
Likes: 0
Liked 15 Times in 13 Posts
Originally Posted by davidad View Post
The right one is meant for steel Ashtabula cranks.
Are those the ones that use 1/2" pedal spindles?

But, yes, I was wondering about steel cranks.

It is hard to see the details, but that also appears to be quite a cheap pedal set.
CliffordK is offline
Old 05-18-19, 03:38 AM
  #4
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,811
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 2827 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
Originally Posted by CliffordK View Post
Are those the ones that use 1/2" pedal spindles?
no. both pedals are 9/16.

Last edited by mtb_addict; 05-18-19 at 10:19 AM.
mtb_addict is offline
Old 05-18-19, 07:26 AM
  #5
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 40,893

Bikes: 8

Mentioned: 182 Post(s)
Tagged: 0 Thread(s)
Quoted: 6549 Post(s)
Likes: 0
Liked 62 Times in 56 Posts
Originally Posted by CliffordK View Post

It is hard to see the details, but that also appears to be quite a cheap pedal set.
OP picking from bottom of cost options has been a pattern..


Not 'flangeless' just less pronounced.. if a concern seek out Pedal Washers....
fietsbob is offline
Old 05-18-19, 08:22 AM
  #6
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,811
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 2827 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
Originally Posted by fietsbob View Post
OP picking from bottom of cost options has been a pattern..

...
i want block peddles for commuting.

Last edited by mtb_addict; 05-18-19 at 10:04 AM.
mtb_addict is offline
Old 05-18-19, 08:55 AM
  #7
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 40,893

Bikes: 8

Mentioned: 182 Post(s)
Tagged: 0 Thread(s)
Quoted: 6549 Post(s)
Likes: 0
Liked 62 Times in 56 Posts
Typical Pedal Washers .
fietsbob is offline
Old 05-18-19, 09:54 AM
  #8
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,811
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 2827 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
Originally Posted by davidad View Post
The right one is meant for steel Ashtabula cranks.
i happen to have another bike with Ashtabula crank. below is the peddle from this bike. as u see, it also has a big flange.

mtb_addict is offline
Old 05-18-19, 09:58 AM
  #9
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,811
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 2827 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
Originally Posted by fietsbob View Post
Typical Pedal Washers .
i would really hate to have to incresae the Q. Washer will add a few mm.

i might just look for another peddle with big flange. looks like these were either poorly designed or intended for some some different type of crank.

Last edited by mtb_addict; 05-18-19 at 10:02 AM.
mtb_addict is offline
Old 05-18-19, 10:00 AM
  #10
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,811
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 2827 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
Originally Posted by CliffordK View Post
It is hard to see the details, but that also appears to be quite a cheap pedal set.
The right one is a touring block peddle.
mtb_addict is offline
Old 05-18-19, 10:02 AM
  #11
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 40,893

Bikes: 8

Mentioned: 182 Post(s)
Tagged: 0 Thread(s)
Quoted: 6549 Post(s)
Likes: 0
Liked 62 Times in 56 Posts
So? then get the MKS 3000R pedals ..

fietsbob is offline
Old 05-18-19, 10:15 AM
  #12
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,811
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 2827 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
ok. so i put this "flangeless" pedal on the crank.

i can feel it is digging into the soft aluminum crank. and i am scared to tighten it too much.

now i am starting to think the flangelessness is actually a designed innovation. i am thinking...by digging into the aluminum, it is wegding itself tight w/o alot of torque, that prevent pedal from coming loose.

Last edited by mtb_addict; 05-18-19 at 11:36 AM.
mtb_addict is offline
Old 05-18-19, 10:29 AM
  #13
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 1,689
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 355 Post(s)
Liked 5 Times in 4 Posts
Originally Posted by mtb_addict View Post
now i am starting to think the flangelessness is a design feature. i am thinking...by digging into the aluminum, this is acting like a lock that prevents pedal from coming loose.
Doubtful. Block pedals coexisted with steel cranks for decades. Nothing about your block pedal was designed with aluminum cranks in mind. Digging into the aluminum sounds like a good way to start a crack at a bad location.
Trakhak is offline
Old 05-18-19, 10:38 AM
  #14
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 40,893

Bikes: 8

Mentioned: 182 Post(s)
Tagged: 0 Thread(s)
Quoted: 6549 Post(s)
Likes: 0
Liked 62 Times in 56 Posts
i would really hate to have to increase the Q. Washer will add a few mm.

Ever read 'the Princess and the Pea'? It's 1.5mm thick and you are that sensitive ?
fietsbob is offline
Likes For fietsbob:
Old 05-18-19, 01:25 PM
  #15
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,230

Bikes: Several, mostly not name brands.

Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 1616 Post(s)
Liked 10 Times in 9 Posts
Originally Posted by mtb_addict View Post
i would really hate to have to incresae the Q. Washer will add a few mm.
Originally Posted by Trakhak View Post
Doubtful. Block pedals coexisted with steel cranks for decades. Nothing about your block pedal was designed with aluminum cranks in mind. Digging into the aluminum sounds like a good way to start a crack at a bad location.
That's why a pedal washer is a good idea. A 1mm washer on each pedal adds 2mm to the overall Q-factor. If you can consistently place your foot on a block pedal within 2mm of accuracy and/or feel a 2mm change in Q-factor you're a far more sensitive rider than I am.
JohnDThompson is offline
Old 05-18-19, 03:54 PM
  #16
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,811
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 2827 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
i have a medical problem with knee pain. i find lower Q alleviate the pain.
i always put my foot as close to crank as possible, and i frequently look down ti check. i already using a shortened BB . i dontvknow if 2mm would make difference, but i try to do my best.

Last edited by mtb_addict; 05-18-19 at 04:08 PM.
mtb_addict is offline
Old 05-18-19, 05:42 PM
  #17
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 31,405

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1109 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by mtb_addict View Post
i can feel it is digging into the soft aluminum crank. and i am scared to tighten it too much.
There is no need to install any pedal using gorilla torque. Just tighten them firmly and no more. They will not loosen while pedaling.
HillRider is online now
