how to imobilize crank 4 pedal removal

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

how to imobilize crank 4 pedal removal

Old 05-18-19, 10:38 AM
  #1
mtb_addict
Senior Member
Thread Starter

Join Date: Jun 2011
Posts: 3,984
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 2967 Post(s)
Liked 24 Times in 21 Posts
how to imobilize crank 4 pedal removal

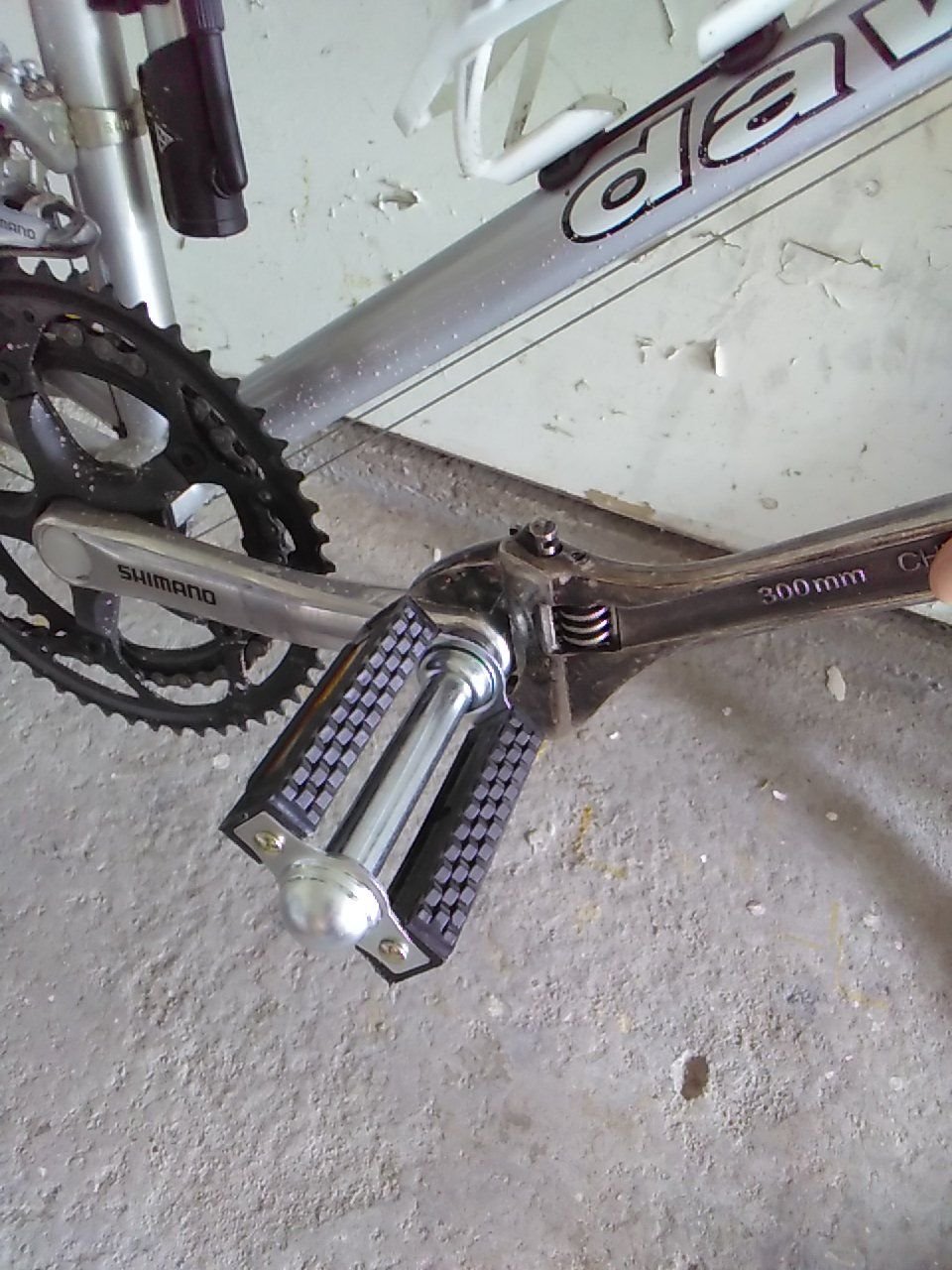

i always use a large adjustable wrench.

most my bikes have steel crank with square profile, so it is fine


but this aluminum road bike crank has () profile...so the adjustable wrench dig into the aluminum and scratches it.

how am i suppose ti hold the crank w/o scratching it?

thankie!


Last edited by mtb_addict; 05-18-19 at 10:43 AM.
mtb_addict is offline
Old 05-18-19, 10:38 AM
  #2
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,587

Bikes: 8

Mentioned: 183 Post(s)
Tagged: 0 Thread(s)
Quoted: 6746 Post(s)
Likes: 0
Liked 160 Times in 136 Posts
Call a Friend ?..* Buy a proper pedal wrench.!. they're 1/8" thick..
Shop Go To tool : https://www.parktool.com/product/pro...category=Pedal

though perhaps this will do https://www.parktool.com/product/pro...category=Pedal


* End of the summer.. I box up bikes, in shop, for those who rode across the country, to ship them back ,
with really stuck pedals its a 4 handed job..
we have a 'cheater pipe' that fits over the round handle of the shop pedal wrench too..








...

Last edited by fietsbob; 05-18-19 at 11:50 AM.
fietsbob is online now
Old 05-18-19, 10:44 AM
  #3
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 4,978

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 651 Post(s)
Liked 40 Times in 33 Posts
I just use some scrap lumber between the arm and chain stay
dedhed is online now
Old 05-18-19, 11:06 AM
  #4
Aubergine
Bad example

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,948
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 771 Post(s)
Liked 16 Times in 13 Posts
Point the crank arm forward. Point the wrench toward the back of the bike. That usually solves the problem.
__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Old 05-18-19, 11:08 AM
  #5
mtb_addict
Senior Member
Thread Starter

Join Date: Jun 2011
Posts: 3,984
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 2967 Post(s)
Liked 24 Times in 21 Posts
Originally Posted by Aubergine View Post
Point the crank arm forward. Point the wrench toward the back of the bike. That usually solves the problem.
most of time, the nut wont line up the way you describe.

Last edited by mtb_addict; 05-18-19 at 11:20 AM.
mtb_addict is offline
Old 05-18-19, 11:20 AM
  #6
Aubergine
Bad example

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,948
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 771 Post(s)
Liked 16 Times in 13 Posts
Originally Posted by mtb_addict View Post
most of time, the nut wontline up the way you describe.
That is why pedal wrenches have a couple different angles for the nut. But in any case, from the pic you posted, you will be able to turn the wrench to the back and give it a try.
__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Old 05-18-19, 11:32 AM
  #7
mtb_addict
Senior Member
Thread Starter

Join Date: Jun 2011
Posts: 3,984
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 2967 Post(s)
Liked 24 Times in 21 Posts
Originally Posted by Aubergine View Post
That is why pedal wrenches have a couple different angles for the nut.
oh thats very clever.
mtb_addict is offline
Old 05-18-19, 11:41 AM
  #8
ramzilla
Senior Member

ramzilla's Avatar

Join Date: Dec 2014
Location: 10% Atlanta GA 90% Fernandina FL
Posts: 2,449

Bikes: Vintage Japanese Bicycles

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 393 Post(s)
Likes: 0
Liked 5 Times in 4 Posts
Pedals stuck on crank arms is a pretty common problem. Sometimes you just have to take the crank arm off the axle. Then, lay the crank arm flat on a workbench for support. And, I've actually had to disassemble & pull the pedal off to expose the pedal axle and use a pipe wrench to remove the pedal axle.
ramzilla is offline
Old 05-18-19, 02:04 PM
  #9
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,579

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1708 Post(s)
Likes: 0
Liked 29 Times in 25 Posts
The common first way to stabilize the cranks to allow for greater force when loosening pedals is to position the other crank arm at it's chainstay and wrap a toe clip strap 2 or 3 times around the stay and arm. This works very well. If this isn't enough then remove the arm from the BB and clamp in a bench vice. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 05-18-19, 04:05 PM
  #10
berner
Senior Member

Join Date: May 2010
Location: Bristol, R. I.
Posts: 3,369

Bikes: Specialized Secteur, old Peugeot

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 280 Post(s)
Liked 18 Times in 14 Posts
I have a 15# dumbell that can be situated between the crank arm and the floor. Then with one of those thin Park Tool wrenches as shown in post #2 , a few light taps with a hammer and the pedal comes right off.
berner is offline
Old 05-18-19, 08:14 PM
  #11
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 5,164

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Pink Klein MTB, Phil Wood VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1157 Post(s)
Liked 26 Times in 21 Posts
There is a good reason people make the right tools for the job. Adjustable wrenches are great for certain things but are terrible for more precision jobs or jobs that require tighter tolerances. Nothing takes off pedals like a pedal wrench. Yes you can continue being extra cheap it always ends well and by well I mean stripped and damaged parts so not at all well.
veganbikes is offline
Old 05-19-19, 01:51 AM
  #12
krecik
Senior Member

krecik's Avatar

Join Date: Jun 2018
Location: Tredegar, Wales
Posts: 190

Bikes: coastie

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Liked 20 Times in 12 Posts
I just stand on it with one foot, or hold the other crank with my hand while the bike is upside down. If your pedals are seized, you might consider some anti-seize before reinstalling.

Kret
krecik is offline
Old 05-19-19, 05:57 AM
  #13
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 4,978

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 651 Post(s)
Liked 40 Times in 33 Posts
Originally Posted by veganbikes View Post
There is a good reason people make the right tools for the job. Adjustable wrenches are great for certain things but are terrible for more precision jobs or jobs that require tighter tolerances. Nothing takes off pedals like a pedal wrench. Yes you can continue being extra cheap it always ends well and by well I mean stripped and damaged parts so not at all well.
He's using the adjustable wrench to hold the crank arm, not remove the pedal (at least according to the picture). OP never says what he's using for the pedal.
dedhed is online now
Likes For dedhed:
Old 05-19-19, 06:49 AM
  #14
krecik
Senior Member

krecik's Avatar

Join Date: Jun 2018
Location: Tredegar, Wales
Posts: 190

Bikes: coastie

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Liked 20 Times in 12 Posts
Originally Posted by dedhed View Post
He's using the adjustable wrench to hold the crank arm, not remove the pedal (at least according to the picture). OP never says what he's using for the pedal.
Well spotted, but even if he were, what's the issue with that? I use my bahco 8" wide jaw for pretty much any hex on my bike and I never bust any nut heads. It's all about technique imo, if you're a gorilla, you'll break anything, even park stuff.

Not attacking you btw, I just quoted your post to get in on the discussion.

Kret
krecik is offline
Old 05-19-19, 07:01 AM
  #15
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 29,266

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1148 Post(s)
Liked 21 Times in 16 Posts
A little off topic but, if you put your chain onto the big chainring first, you'll injure yourself a lot less when that crescent wrench breaks loose.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Likes For Retro Grouch:
Old 05-19-19, 09:58 AM
  #16
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO, Scottsdale, AZ
Posts: 1,501

Bikes: 2016 Fuji Tread, 1983 Trek 620

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 214 Post(s)
Likes: 0
Liked 12 Times in 11 Posts
Originally Posted by Aubergine View Post
Point the crank arm forward. Point the wrench toward the back of the bike. That usually solves the problem.
What makes this method truly elegant is that it works equally well for both sides!

Once in a while a tap with a mallet helps.
andrewclaus is offline
Likes For andrewclaus:
Old 05-20-19, 02:10 PM
  #17
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 5,164

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Pink Klein MTB, Phil Wood VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1157 Post(s)
Liked 26 Times in 21 Posts
Originally Posted by dedhed View Post
He's using the adjustable wrench to hold the crank arm, not remove the pedal (at least according to the picture). OP never says what he's using for the pedal.
Still a poor idea. Adjustable wrenches really don't have a lot of place on a bike when actual properly sized tools exist. If I absolutely needed to keep the crank arm from moving and didn't have a second person I would use an old toe strap or something similar to that.
veganbikes is offline
Old 05-20-19, 03:20 PM
  #18
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 1,233

Bikes: Many, and the list changes frequently

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 314 Post(s)
Liked 20 Times in 12 Posts
Originally Posted by Aubergine View Post
Point the crank arm forward. Point the wrench toward the back of the bike. That usually solves the problem.
This is the way it's done. If your wrench won't line up right it's either because you haven't tried or you need a better pedal wrench. I've removed hundreds and hundreds of pedals and have never had to hold the crank with a wrench. That's crazy.

Is there a bike co-op local to your area? If so, I think you would find a lot of benefit.

Last edited by Moe Zhoost; 05-20-19 at 03:31 PM.
Moe Zhoost is offline
Old 05-20-19, 03:42 PM
  #19
berner
Senior Member

Join Date: May 2010
Location: Bristol, R. I.
Posts: 3,369

Bikes: Specialized Secteur, old Peugeot

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 280 Post(s)
Liked 18 Times in 14 Posts
An adjustable wrench in my day was called a knuckle buster. I only use one if I'm planning to injure myself.
berner is offline
Old 05-20-19, 03:56 PM
  #20
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 6,811

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 1597 Post(s)
Likes: 0
Liked 37 Times in 30 Posts
Maybe this got said already. Stand the bike on the floor, leaning against a table. (Something to keep the bike from moving forward can help.) Crank forward. Wrench back. One hand (or hammer, etc.) on the wrench, one of the pedal.

And once you get it off - when you put it or another pedal back on, use plenty of good grease on the threads and just snug up with the wrench. No great force is required. Pedals self tighten through the action of pedaling. For those pedals that have allen key sockets, a small allen key works just fine. That same torque with the big pedal wrench means almost no hand force. The only reason pedal wrenches are that long and hefty is so mechanics can remove pedals installed improperly; either by too much force or not enough quality grease or both.

Ben
79pmooney is offline
Old 05-20-19, 04:04 PM
  #21
Iride01
Senior Member

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 2,245

Bikes: '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 829 Post(s)
Liked 20 Times in 17 Posts
I guess I don't tighten my pedals as much as others. I usually can find a position where I can hold the pedal or crank with one hand while turning the wrench with the other. Rarely do I have to use something to cheat it with or lock against the chain with the wheel on the ground.

Not everything has to be tightened as tight as you can get it, nor even to the highest recommended torque when a range is given.
Iride01 is offline
Old 05-20-19, 04:26 PM
  #22
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 1,785

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 617 Post(s)
Liked 9 Times in 8 Posts
Originally Posted by dedhed View Post
He's using the adjustable wrench to hold the crank arm, not remove the pedal (at least according to the picture). OP never says what he's using for the pedal.
If this is the case, stop. You only need one wrench, for the pedal, and no other tool.

Originally Posted by Aubergine View Post
Point the crank arm forward. Point the wrench toward the back of the bike. That usually solves the problem.
This is indeed "how its done" and is really important, and really easy. If you line up the wrench and the crank arm in the proper way, when you press on the wrench the force is directly aligned with the center of the BB. You are putting no torque on the crank, and there's and no need to immobilize anything. If you have a long pedal wrench and push down on the end of it so that your force is not transmitted directly through the center of the bottom bracket, there is a limited amount of torque. Easily handled by pushing down on the pedal, too. But if you get things oriented right, you need much less force on the pedal. You can reverse the setup to take pedals off.

Worked for me for the several thousand pairs of pedals I've installed and removed.

Originally Posted by berner View Post
An adjustable wrench in my day was called a knuckle buster. I only use one if I'm planning to injure myself.
And this. Get a proper pedal wrench. Or at least use a good quality open-ended (fixed) wrench.

See here, too:


Last edited by WizardOfBoz; 05-20-19 at 04:39 PM.
WizardOfBoz is offline
Old 05-21-19, 04:41 PM
  #23
speedevil
I never finish anyth

speedevil's Avatar

Join Date: Jul 2010
Location: Western KY
Posts: 973

Bikes: 2008 Merckx LXM, 2003 Giant XTC mtb, 2001 Lemond Alpe d'Huez, 1997 Lemond Zurich, 1989 Cannondale ST, 198? Masi Nuovo Strada, 1984 Pinarello Turismo

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 230 Post(s)
Likes: 0
Liked 7 Times in 7 Posts
I use a block of wood, just a little shorter than the BB center to floor distance. Position the pedal you want to remove forward, put the block of wood under the crankarm and position the pedal wrench wrench or allen wrench towards the rear wheel and push down. Pedal comes loose without too much drama. Note that this works for both sides. To tighten, the crank and block are in the same position, but the wrench is positioned toward the front wheel.
__________________
Dale, NL4T
speedevil is offline
Likes For speedevil:
Old 05-21-19, 05:15 PM
  #24
redlude97
Senior Member

Join Date: Sep 2011
Posts: 4,125
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1635 Post(s)
Liked 16 Times in 12 Posts
I often use a door frame on the opposite crank arm
redlude97 is offline
Old 05-21-19, 05:27 PM
  #25
drlogik
Senior Member

drlogik's Avatar

Join Date: Mar 2016
Location: North Carolina
Posts: 1,053

Bikes: '87-ish Pinarello Montello; '89 Nishiki Ariel; '85 Raleigh Wyoming, '16 Wabi Special, '16 Wabi Classic, '14 Kona Cinder Cone

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 391 Post(s)
Likes: 0
Liked 15 Times in 9 Posts
I point crank forward also but a stack of bricks or 2x4 blocks under the pedal on the other side also works.
drlogik is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
