Carbon Frame Repair

Helping a friend repair.

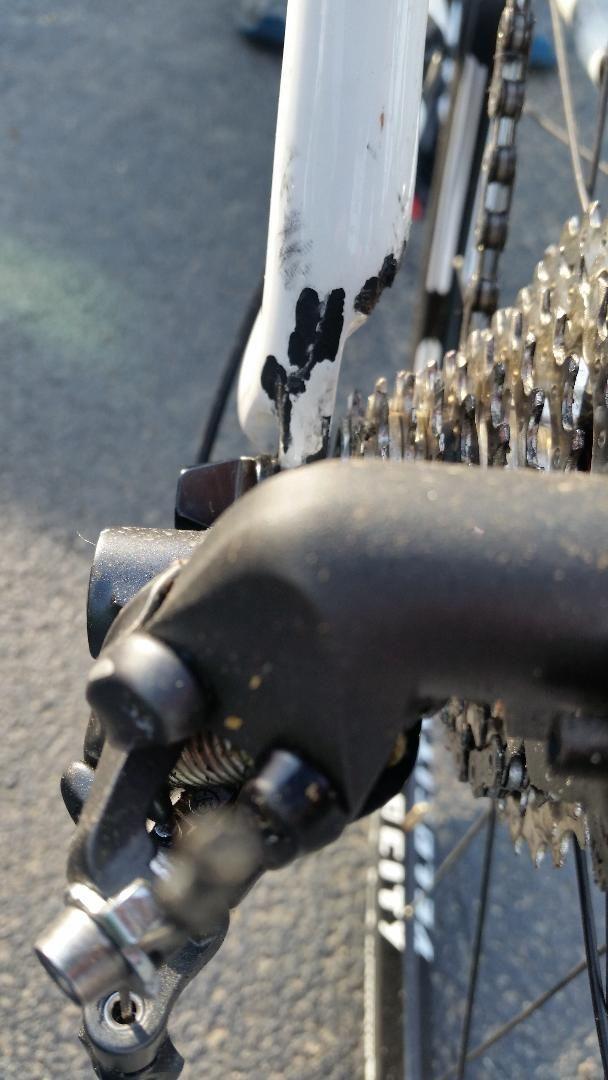

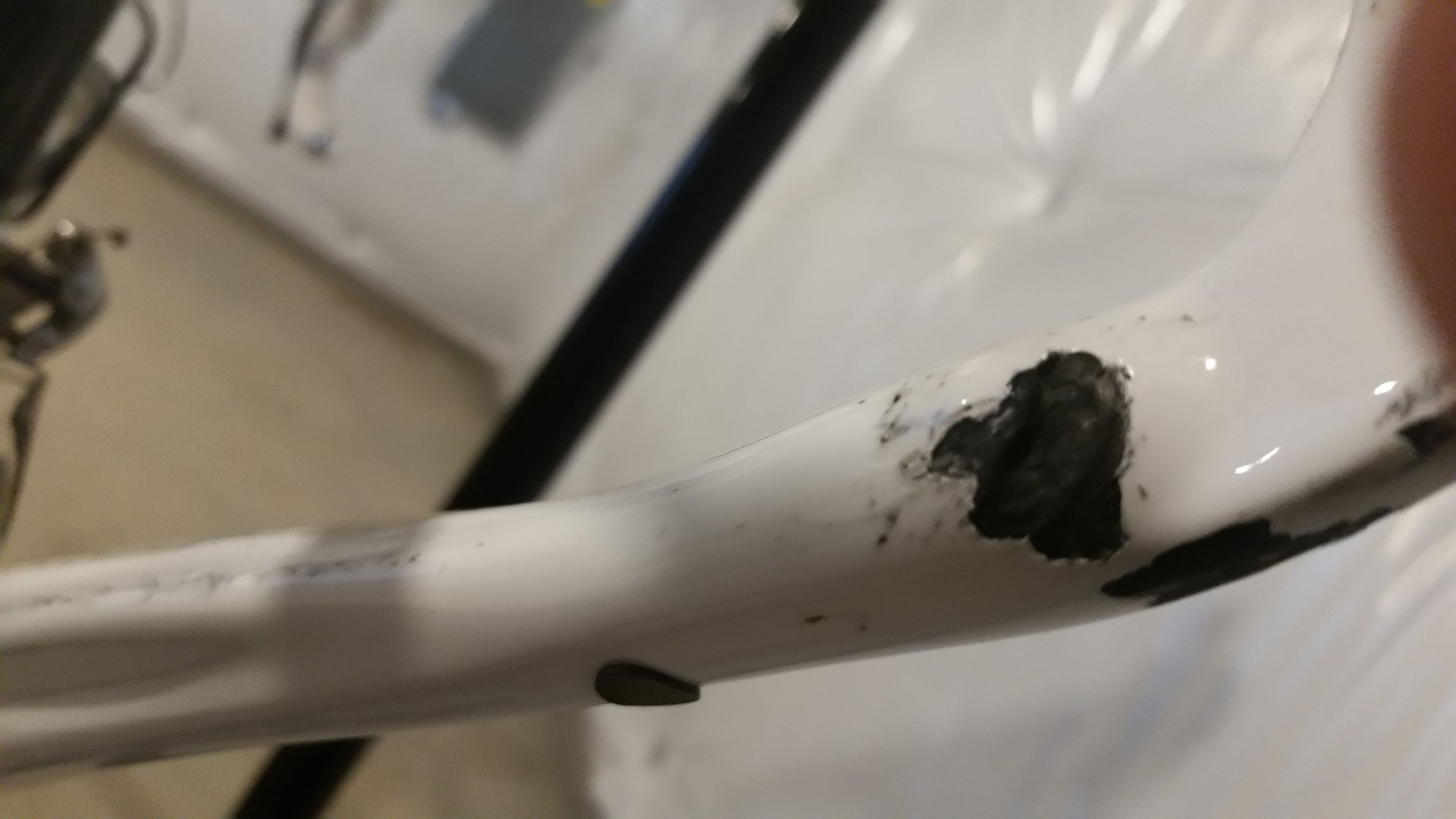

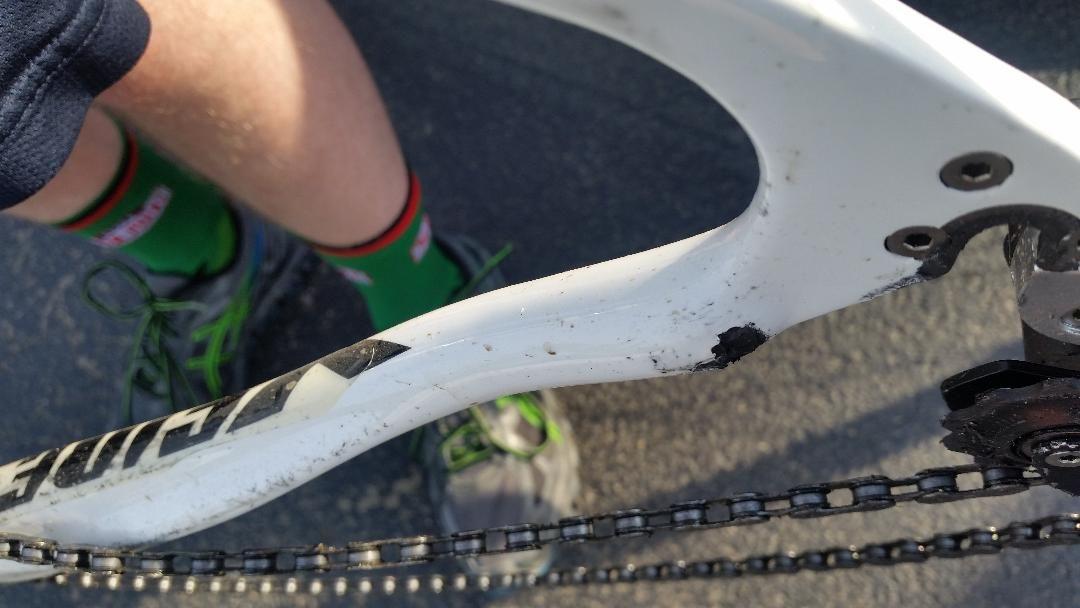

2014 RIDLEY X-Fire CX Bike Chainstay damaged taking wheel on & off.

Tips or links on how to repair properly? Use Carbon Matt kit? Simply fill in with epoxy?

Moving forward after repair any ideas on how to help prevent damage in future (besides "being careful"). My idea was to wrap small cassette rings with electric tape,,,thinking about it, it may get weird with chain going on small rings when installing rear wheel.

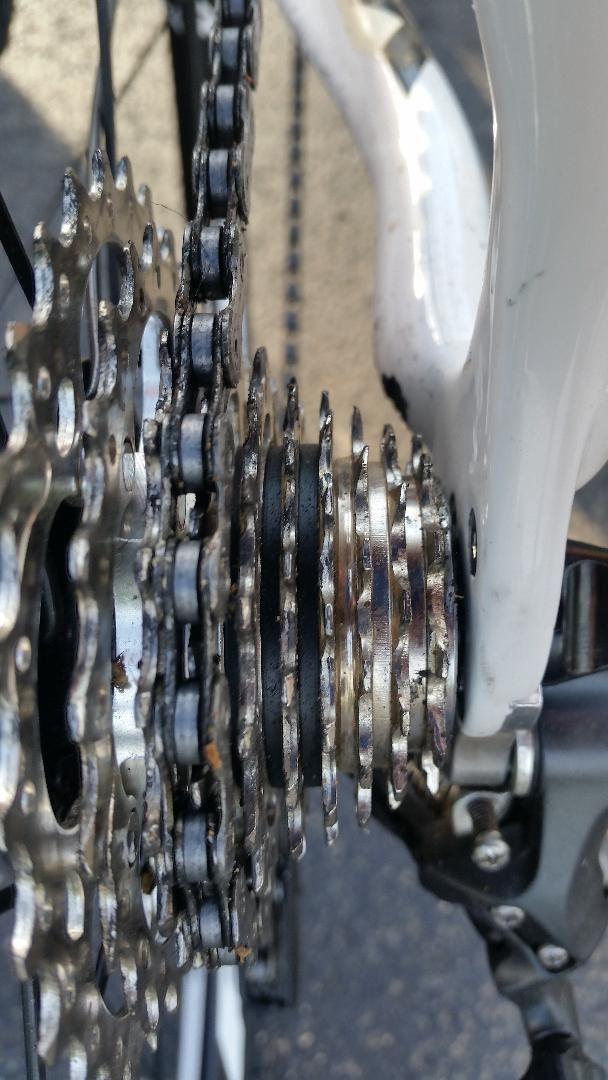

The chainstay is really wide (none of my other bikes are that wide, including my 2010 Ridley X-Fire) to the inside of where rear wheel mounts up - between trying to line up disc in caliper and getting wheel into dropout its pretty challenging. I couldn't see doing wheel replacement quickly in a CX race with out damaging frame again.



scottz123 is offline
Old 05-25-19, 10:07 AM
  #2
woodcraft
Senior Member

woodcraft's Avatar

Join Date: Apr 2012
Location: Nor Cal
Posts: 4,219
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1021 Post(s)
Likes: 0
Liked 33 Times in 19 Posts
I can't see that happening from taking the wheel on & off.

Chainsuck or the RD hitting something & being forced upward are my guesses.

Clean up & add some epoxy IMO.
woodcraft is offline
Old 05-25-19, 11:26 AM
  #3
Canker
Senior Member

Join Date: Aug 2005
Posts: 1,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 166 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
https://www.amazon.com/3M-Scotch-Tape/dp/B0772YNDF4
That is what I use on my mtn bike on areas that take a lot of abuse.
Canker is offline
Old 05-25-19, 11:30 AM
  #4
pressed001
glorified 5954

pressed001's Avatar

Join Date: Dec 2014
Location: Zurich, Switzerland
Posts: 652
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
I think you're cool here with some 2 part epoxy and then some white touch-up paint.

I'd hate to see the bike after you remove the BB!
pressed001 is offline
Old 05-25-19, 11:39 AM
  #5
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,398

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6839 Post(s)
Likes: 0
Liked 218 Times in 181 Posts
JB weld is Epoxy with aluminum powder in the resin,

+ you can also mix in a white pigment powder in the resin , then stir in the catalyst....
then it will be the touch up color

maybe affix a piece of metal there?

.....
fietsbob is offline
Old 05-25-19, 07:00 PM
  #6
scottz123
Member
Thread Starter

Join Date: Nov 2013
Posts: 28
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by pressed001 View Post
I think you're cool here with some 2 part epoxy and then some white touch-up paint.

I'd hate to see the bike after you remove the BB!
What's your concern about removing the BB?
