Need help with 26" tires

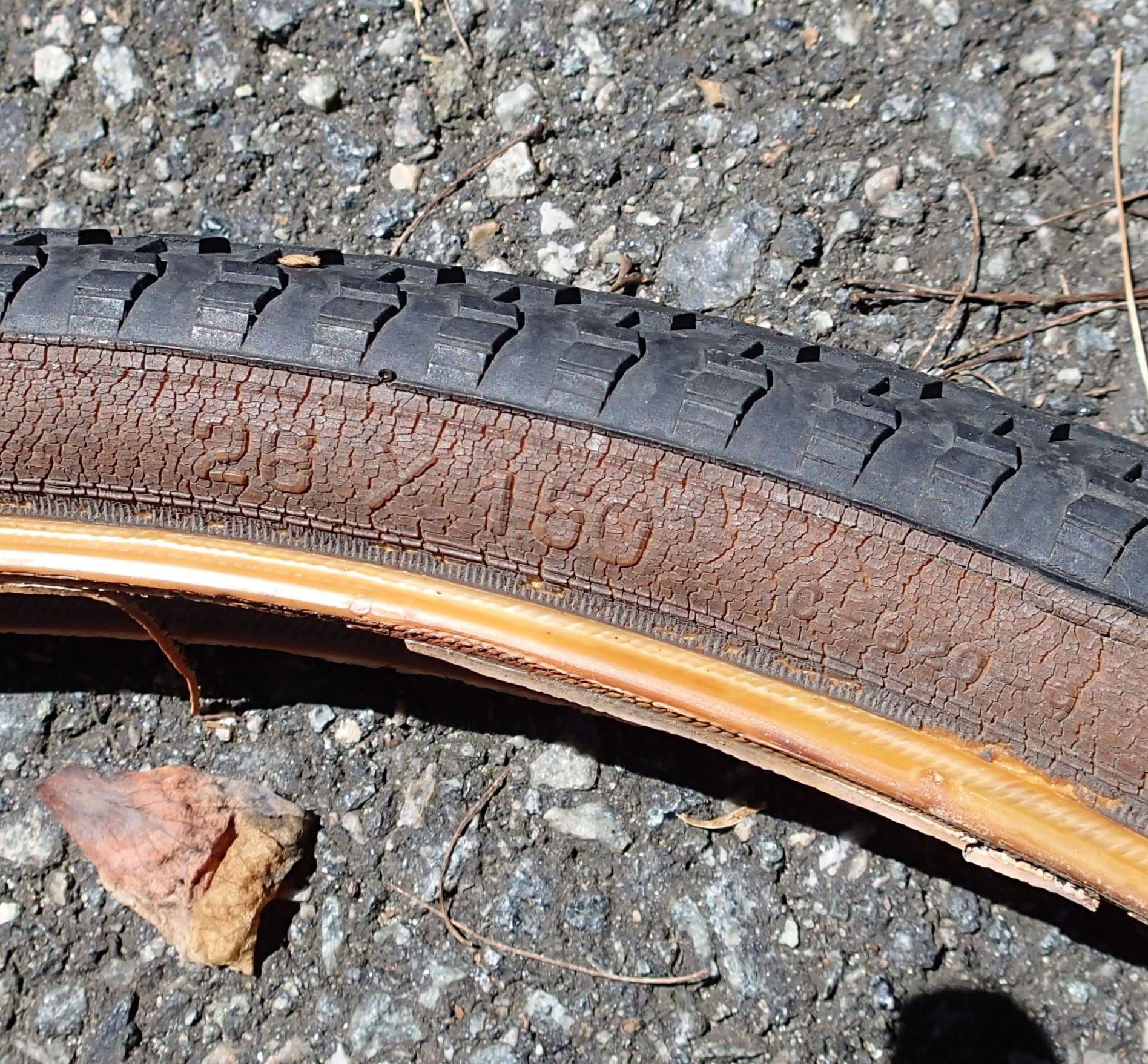

I am trying to replace the tires on a Schwinn 1990 Mesa Runner with something more street than knobby. But I understand there are several types of 26" tire. The current tires are 26x1.5 "mountain bike" tires.

Any info/help appreciated.



kross57 is offline
Old 06-11-19, 03:52 PM
  #2
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 6,223

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 658 Post(s)
Likes: 0
Liked 50 Times in 46 Posts
There should be a number on the sidewall something like 559 x 37 or 37 x 559. The 37 might be 35 or 40, but something close. This is the ERTRO sizing for the common 26" MTB tire and it avoids the confusion of using the many other sizing systems. In the very unlikely event you have a different ERTRO size, buy that size.

These links may help:
https://www.sheldonbrown.com/tire-sizing.html#decimal
https://www.sheldonbrown.com/26.html
dsbrantjr is offline
Old 06-11-19, 04:57 PM
  #4
FiftySix
where's the gas tank?

FiftySix's Avatar

Join Date: Apr 2019
Location: S.E. Texas
Posts: 488

Bikes: Norco Cityglide, Schwinn Jaguar, Schwinn Willy

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 231 Post(s)
Liked 101 Times in 78 Posts
BTW, I can see why the trend in "mocha" colored sidewalls now. They replicate the color of aged gumwalls.
FiftySix is offline
Old 06-11-19, 06:39 PM
  #5
Iride01
Senior Member

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 2,307

Bikes: '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 868 Post(s)
Liked 29 Times in 25 Posts
It's also possible there is a number on the rim that will also tell you the width of the rim and the important number for you, the BSD (bead seat diameter). It'll look similar to what an ISO tire size looks like.

Once you know the BSD number, finding a tire that will fit is a cinch.

Sadly, mfrs' cling to those big numbers you show in the picture, but they don't help unless you want to get that same make and model tire, or get lucky.
Iride01 is offline
Old 06-11-19, 08:59 PM
  #6
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 6,223

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 658 Post(s)
Likes: 0
Liked 50 Times in 46 Posts
OP: Looking closer at your photos, it looks like your front brake cable housing is a little short, the rear less so; note the sharp bend it makes when it enters the cable hanger. A longer housing would allow a more gradual curve which might improve the front brake performance and more importantly minimize inner wire wear/fraying. Lowering the straddle cables may be helpful as well, but would probably require longer inner wires.
Did you by chance put on higher-rise bars while keeping the housing the same?
dsbrantjr is offline
Old 06-11-19, 09:30 PM
  #7
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 18,424

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 2029 Post(s)
Liked 99 Times in 82 Posts
Compass/Rene Herse "Naches Pass" are among the best "street" tires you can get for that size. What's your budget?
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 06-11-19, 10:27 PM
  #8
Ironfish653
Senior Member

Join Date: Oct 2015
Location: Virginia Beach
Posts: 922

Bikes: 1997 Cannondale, 1976 Bridgestone, 1998 Softride

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 305 Post(s)
Liked 23 Times in 16 Posts
Originally Posted by kross57 View Post
But I understand there are several types of 26" tire. The current tires are 26x1.5 "mountain bike" tires.

Any info/help appreciated.
If you go to any major vendor, BikeTiresDirect is a good one, Look under the 26" Urban/Touring/Semi-Slick tires.

Anything with a decimal size, like 26X1.95 is the "MTB" 26" tire. This is what you usually find when you look up 26" tires at most vendors.
You want these.

A tire with a fractional size, like 26x1-5/8 is the 'classic cruiser' size from the 1950s-60s. These are harder to find, usually you have to search them out on purpose; but something like Amazn, where the product isn't curated, you may run across these mixed in with the modern '559' 26" tires.
Ironfish653 is offline
Old 06-12-19, 03:14 AM
  #9
kross57
Senior Member
Thread Starter

Join Date: Aug 2018
Location: north NJ
Posts: 288

Bikes: Miyata 710, Team Fuji, Schwinn World Sport

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Thanks to all. Exactly the info I needed.
kross57 is offline
Old 06-12-19, 07:39 AM
  #10
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,398

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6839 Post(s)
Likes: 0
Liked 218 Times in 181 Posts
559-40 is the 1.5" width, 47 is 1.75" , in mtb wheel 26"

Brands ? Schwalbe and Continental, Suomi- Nokian and what Trek labeled their tires

before hiring K. Bontrager and using his name .... have all worked..






....
