Does this cransket have a crack?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Does this cransket have a crack?

Old 06-30-19, 03:19 PM
  #1
noobinsf
Senior Member
Thread Starter

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 2,593

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 813 Post(s)
Liked 614 Times in 403 Posts
Does this cransket have a crack?

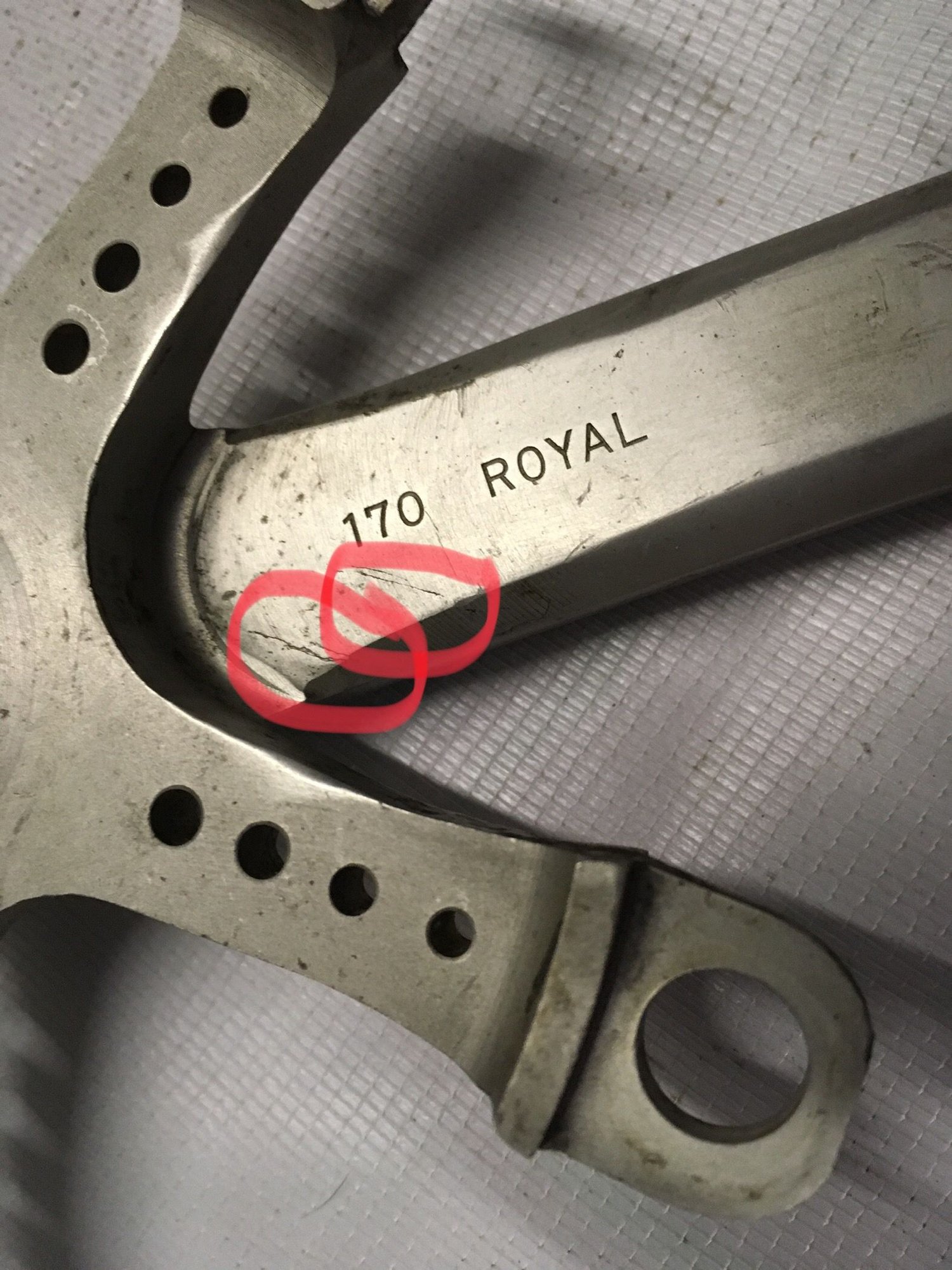

This is a SR Royal crank from the early 70ís with unknown mileage (came on a used bike, Iíve never used it). I noticed what I worry is a crack, or maybe even two. Is this a common area for a crack to develop? Or is it possibly just a scratch? I ran my fingernail over it, and it definitely catches, so itís not just a discoloration or blemish.


noobinsf is online now
Old 06-30-19, 04:29 PM
  #2
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,689

Bikes: Schwinn Varsity

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1804 Post(s)
Liked 583 Times in 344 Posts
Sure looks like it... or a bad forging that's been that way for years.
Take a file to it... see how far it goes.
trailangel is offline
Likes For trailangel:
Old 06-30-19, 04:44 PM
  #3
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,767

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1369 Post(s)
Liked 597 Times in 446 Posts
Or a light grinder.
My guess is it's just a surface defect(s)
Bill Kapaun is offline
Old 06-30-19, 05:49 PM
  #4
sdmc530
Heft On Wheels

sdmc530's Avatar

Join Date: Nov 2014
Location: South Dakota
Posts: 2,893

Bikes: Specialized,Cannondale,Argon 18

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 790 Post(s)
Liked 393 Times in 262 Posts
Does the one closest to the center have a radial crack? does it go around the bend? Looks like a crack but might have been from not great quality control and probably not from damage.

I would do what already stated, file it a bit and see if its deep or just a light imperfection. If its been ridden like that for however many years I doubt it will be an issue now.
sdmc530 is offline
Old 06-30-19, 09:21 PM
  #5
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,169

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3011 Post(s)
Liked 1,335 Times in 934 Posts
Scratch a line at the end of the "cracks" 90* to the "crack". Monitor and note if the "crack" continues past your scribed line.

I will say that while I have seen quite a few cracked/broken crank arms (I have a Campy NR arm end in my desk 3ft away right now) I also have seen many crank arms with infant cracks which never have grown. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 07-01-19, 01:49 PM
  #6
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,509
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 525 Post(s)
Likes: 0
Liked 130 Times in 110 Posts
I would file or grind to good metal. If it's shallow I would ride with it. If not, replace it.
davidad is offline
Old 07-01-19, 03:18 PM
  #7
Brocephus
Professional amateur

Brocephus's Avatar

Join Date: May 2018
Location: Ga.
Posts: 629

Bikes: Does a Big Wheel count ?

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 286 Post(s)
Liked 116 Times in 77 Posts
The ones in the upper right circle look more like scratches, to my eye. But the bigger one in the lower left circle, really does look like a crack. Also, the one that runs off the "0" in the "170" looks like it may be some kinda stress fracture, as well.
I concur with the tests and remedies suggested above.
Brocephus is offline
Old 07-01-19, 03:31 PM
  #8
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,767

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1369 Post(s)
Liked 597 Times in 446 Posts

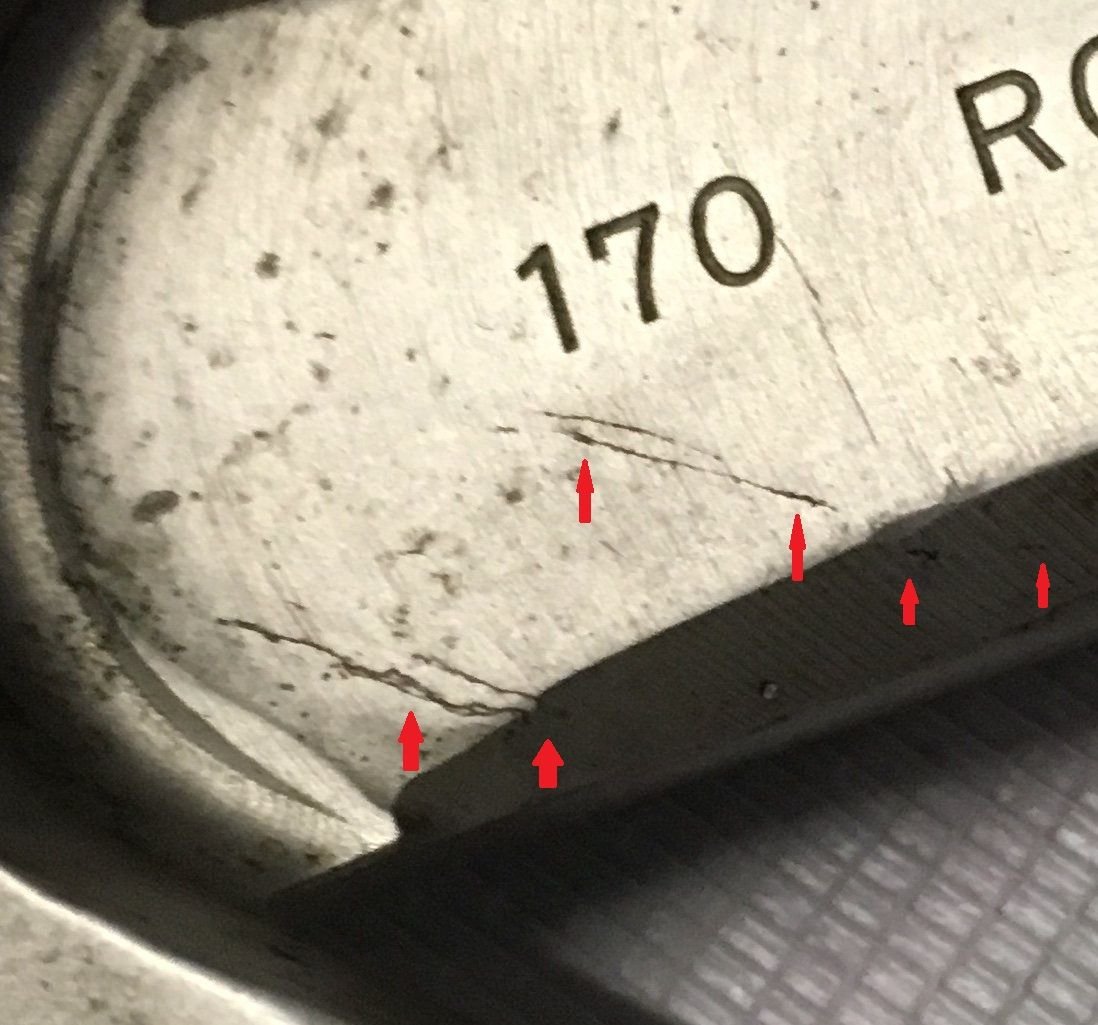

Looking closer, it looks like you might have "fracture planes"???
Bill Kapaun is offline
Old 07-01-19, 05:04 PM
  #9
FiftySix
I'm the anecdote.

Join Date: Apr 2019
Location: S.E. Texas
Posts: 1,822

Bikes: '12 Schwinn, '13 Norco

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1109 Post(s)
Liked 1,171 Times in 793 Posts
Originally Posted by trailangel View Post
Sure looks like it... or a bad forging that's been that way for years.
Take a file to it... see how far it goes.
That's what it looks like to me, too.

I'd probably use it as is.
FiftySix is offline
Old 07-01-19, 05:21 PM
  #10
noobinsf
Senior Member
Thread Starter

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 2,593

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 813 Post(s)
Liked 614 Times in 403 Posts
I really appreciate everyone's advice. I've decided to sell it with full disclosure on the uncertain imperfections -- it's posted in the C/V sales forum with a link to this thread. I've priced the entire crankset to reflect that this drive side arm is essentially an extra, and I will let the potential next owner decide whether s/he wants to use it as is.
noobinsf is online now
Old 07-01-19, 05:23 PM
  #11
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,904

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1698 Post(s)
Liked 1,343 Times in 867 Posts
https://www.amazon.com/Dye-Penetrant.../dp/B00XLW4BRC
dedhed is offline
Old 07-01-19, 06:15 PM
  #12
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,767

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1369 Post(s)
Liked 597 Times in 446 Posts
You have to have a smooth surface to use dye penetrant. Those "indications" would pool the dye and show gross bleed through, proving nothing.
DP just shows an indication of a crack/porosity. The OP already has "indications".
Bill Kapaun is offline
Old 07-01-19, 06:29 PM
  #13
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,040
Mentioned: 209 Post(s)
Tagged: 0 Thread(s)
Quoted: 14386 Post(s)
Liked 2,400 Times in 1,788 Posts
Looking at the closeups, I think it is at least about 1/8" deep. But hard to tell if it is deeper.

Any engine (classic building) shop should be able to do the dye test, probably pretty cheaply if you can get them interested in helping you.

As mentioned, what appears to be a crack is deep enough that the dye test would likely fail, so probably not telling you much.

Crack or not, it would be a point where a fracture could originate.

I've been watching Forged by Fire a bit. A different field, but any small forging defect propagates, and gets big very quickly causing critical failures.
CliffordK is offline
Old 07-01-19, 09:46 PM
  #14
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,321 Times in 831 Posts
polish, file/sand it until you no longer see a crack .. to confirm its not a crack..
fietsbob is offline
Old 07-03-19, 10:56 PM
  #15
TireLever-07
Senior Member

Join Date: Sep 2005
Location: Malden, MA.
Posts: 402

Bikes: 2009 Masi, 2014 Specialized Crossroads 1975 Schwinn Unicycle

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
If you have the skills to remove the BB Bracket & cranks, do it. It used to be easier,114MM ? Wide BB shell & only needed the crank remover, And a 3/8 " drive socket set with a few Metric Sockets. And a chain tool to replace the drivetrain. And be back on the road, taking another pounding. But if the as old as this crankset. Try a bike co-op. But if you're riding enough now. You might want a better lighter bike soon. Th drive rain takes a beating, lot of dirt hanging low to the pavement. Chains stretch Cog & Crankset teeth break.
TireLever-07 is offline
Old 07-04-19, 07:59 AM
  #16
rollalongnow
Member

Join Date: Jan 2019
Posts: 31
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 1 Time in 1 Post
If I were buying it I’d find something else. If it’s not a crack, it sure as heck looks like some stressing of the metal as a minimum. Especially given there are two close together in parallel.
