Can someone demystify cassette "back" spacers?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Can someone demystify cassette "back" spacers?

Old 08-09-19, 08:23 AM
  #1
davei1980
Very Slow Rider
Thread Starter

davei1980's Avatar

Join Date: Jul 2017
Location: E Wa
Posts: 1,206

Bikes: Jones Plus LWB, 1983 Centurion Japanese CrMo bike

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 474 Post(s)
Liked 120 Times in 93 Posts
Can someone demystify cassette "back" spacers?

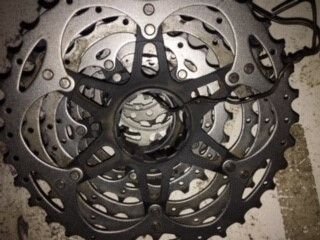

I have an older Ultegra hub with a Deore 10 speed cassette that I'll soon be switching out.

I only recently learned that these hubs sometimes require a 1mm "back spacer" behind the cassette to take up the slack caused by the narrower 10sp cassette compared to 9 speed.

I never knew this, was I doing something wrong? I would think that if there was 1mm extra space I wouldn't be able to tighten the cassette to the freehub body with the lock ring without there being obvious slack.

When I get a new (used) cassette, will I need a spacer or will it be obvious? I would think I would notice it rattling around back there! Here are pics of my current components, I can probably get part numbers later today:


davei1980 is offline
Old 08-09-19, 08:48 AM
  #2
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 29,936

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1450 Post(s)
Liked 357 Times in 219 Posts
Sometimes I feel like an analogue man whose been trapped in a digital universe.

If it fits, it fits.

When you are trying on shoes, if the size that you think should fit doesn't, do you buy then anyway because they are the "right" size or do you try a different size?
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Old 08-09-19, 09:11 AM
  #3
davei1980
Very Slow Rider
Thread Starter

davei1980's Avatar

Join Date: Jul 2017
Location: E Wa
Posts: 1,206

Bikes: Jones Plus LWB, 1983 Centurion Japanese CrMo bike

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 474 Post(s)
Liked 120 Times in 93 Posts
Originally Posted by Retro Grouch View Post
Sometimes I feel like an analogue man whose been trapped in a digital universe.

If it fits, it fits.

When you are trying on shoes, if the size that you think should fit doesn't, do you buy then anyway because they are the "right" size or do you try a different size?
Let me paraphrase you:

"wait, wait - let me overthink this!"
davei1980 is offline
Old 08-09-19, 09:16 AM
  #4
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,573

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1159 Post(s)
Liked 550 Times in 396 Posts
Put the cassette onto the hub and ensure that it overhangs the end of the hub by a couple of millimeters so that the lock ring can clamp it securely; if it is flush or recessed you need a spacer.
dsbrantjr is offline
Old 08-09-19, 09:27 AM
  #5
terrymorse
climber has-been

terrymorse's Avatar

Join Date: Dec 2004
Location: Palo Alto, CA
Posts: 3,517

Bikes: Scott Addict R1

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 332 Post(s)
Liked 166 Times in 123 Posts
That Ultegra hub has a "Shimano 9/10-speed" freehub body. So...

With a Shimano 10-speed cassette, use a 1 mm spacer.

With a SRAM 10-speed cassette, no spacer is needed.

If you're installing an 11-speed cassette, stop what you're doing and get a Shimano 11-speed freehub.

More information on freehub sizes and spacers on slowtwitch.com
__________________
Ride, Rest, Repeat
terrymorse is offline
Old 08-09-19, 10:39 AM
  #6
AlmostTrick
Tortoise Wins by a Hare!

AlmostTrick's Avatar

Join Date: Feb 2006
Location: Looney Tunes, IL
Posts: 7,045

Bikes: Wabi Special FG, Raleigh Roper, Nashbar AL-1, Miyata One Hundred, '70 Schwinn Lemonator and More!!

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1385 Post(s)
Liked 568 Times in 317 Posts
Great write up on hub driver spacing and how it came to be.

https://www.slowtwitch.com/Tech/Cass...rt_2_3257.html
AlmostTrick is offline
Old 08-09-19, 10:52 AM
  #7
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,924

Bikes: old ones

Mentioned: 259 Post(s)
Tagged: 0 Thread(s)
Quoted: 18688 Post(s)
Liked 2,214 Times in 1,625 Posts
Originally Posted by terrymorse View Post

More information on freehub sizes and spacers on slowtwitch.com
...thanks for the link. It confirmed for me what I already suspected about me being prehistoric.
3alarmer is offline
Old 08-09-19, 01:19 PM
  #8
davei1980
Very Slow Rider
Thread Starter

davei1980's Avatar

Join Date: Jul 2017
Location: E Wa
Posts: 1,206

Bikes: Jones Plus LWB, 1983 Centurion Japanese CrMo bike

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 474 Post(s)
Liked 120 Times in 93 Posts
Originally Posted by terrymorse View Post
That Ultegra hub has a "Shimano 9/10-speed" freehub body. So...

With a Shimano 10-speed cassette, use a 1 mm spacer.

With a SRAM 10-speed cassette, no spacer is needed.

If you're installing an 11-speed cassette, stop what you're doing and get a Shimano 11-speed freehub.

More information on freehub sizes and spacers on slowtwitch.com
I at least know enough to not attempt an 11sp on a 9/10 freehub body! I AM; however, new to shifters/derailleurs/cassettes.

I posted this because I realized I am NOT using a spacer but the 10 sp shimano cassette doesn't seem to rattle around back there and seems to be held tight by the lockring so who knows...
davei1980 is offline
Old 08-09-19, 01:21 PM
  #9
davei1980
Very Slow Rider
Thread Starter

davei1980's Avatar

Join Date: Jul 2017
Location: E Wa
Posts: 1,206

Bikes: Jones Plus LWB, 1983 Centurion Japanese CrMo bike

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 474 Post(s)
Liked 120 Times in 93 Posts
Originally Posted by dsbrantjr View Post
Put the cassette onto the hub and ensure that it overhangs the end of the hub by a couple of millimeters so that the lock ring can clamp it securely; if it is flush or recessed you need a spacer.
Makes perfect sense! Just like if your QR axle sticks out to the ends of your dropouts, it's too long and not being held by the skewer!
davei1980 is offline
Old 08-09-19, 01:29 PM
  #10
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 29,936

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1450 Post(s)
Liked 357 Times in 219 Posts
Originally Posted by 3alarmer View Post
...thanks for the link. It confirmed for me what I already suspected about me being prehistoric.
You say "prehistoric" like it's a bad thing.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Old 08-09-19, 01:32 PM
  #11
mr_bill
Senior Member

Join Date: Sep 2013
Location: Massachusetts
Posts: 4,234
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1912 Post(s)
Liked 384 Times in 286 Posts
To remystify slightly, the Shimano HG-800 11-34 cassette requires a 1.85 mm spacer to mount on an 11 speed road freehub.

(Slowtwitch article is road-centric, and predates the HG-800.)

-mr. bill
mr_bill is offline
Old 08-09-19, 02:07 PM
  #12
Brocephus
Professional amateur

Brocephus's Avatar

Join Date: May 2018
Location: Ga.
Posts: 629

Bikes: Does a Big Wheel count ?

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 286 Post(s)
Liked 115 Times in 76 Posts
I was looking into this exact question, last night, and I'm still a bit confused (no jokes, please ). So I'm supposed to be using a spacer, with a 10-spd cassette, on my 10-spd hubs ?
I need to check to be sure, but I'm thinking I'm running without a spacer, right now.

Last edited by Brocephus; 08-09-19 at 04:51 PM.
Brocephus is offline
Old 08-09-19, 04:00 PM
  #13
Metaluna
Senior Member

Join Date: Aug 2005
Location: New Hampshire
Posts: 1,221

Bikes: Niner RLT 9 RDO, Gunnar Sport, Soma Saga, Workswell WCBR-146

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 114 Post(s)
Liked 18 Times in 18 Posts
Originally Posted by mr_bill View Post
To remystify slightly, the Shimano HG-800 11-34 cassette requires a 1.85 mm spacer to mount on an 11 speed road freehub.

(Slowtwitch article is road-centric, and predates the HG-800.)

-mr. bill
That's because the HG-800 (and the new 105 variety) is basically an 11 speed MTB cassette, and there is no special 11 speed freehub for shimano MTB wheels. It all still works with the old 9/10 speed freehub. I think they're introducing something new for 12 speed though. So you need the spacer to make those cassettes work on an 11sp road hub. I bet those cassettes also won't fit on the old 7800 10sp freehub, where all this confusion stems from. Because the 7800 freehub standard was dead by the time Shimano came out with the 10 and 11 speed MTB groups, so they never bothered to support it.

Last edited by Metaluna; 08-09-19 at 04:04 PM.
Metaluna is offline
Old 08-09-19, 04:55 PM
  #14
Metaluna
Senior Member

Join Date: Aug 2005
Location: New Hampshire
Posts: 1,221

Bikes: Niner RLT 9 RDO, Gunnar Sport, Soma Saga, Workswell WCBR-146

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 114 Post(s)
Liked 18 Times in 18 Posts
Originally Posted by Brocephus View Post
I was looking into this exact question, last night, and I'm still a bit confused (no jokes, please ). My bike is a 10-spd. Last year I got some aftermarket wheels, that came with a relatively thick spacer. Then I just got another set of ( used) wheels with another 10-spd hub, and that freehub had a much thinner spacer on it (that wheelset hasn't had a cassette installed yet).
So what's the deal with these two spacers ? Any idea?
Were those aftermarket wheels 11 speed compatible by any chance? If so, that spacer is probably 1.85mm thick, which is needed to adapt "normal" 8,9, and 10 speed cassettes to 11 speed freehubs.

To squeeze in the 11th cog, Shimano had to make the cassette, and therefore the 11sp freehub body, a little bit longer than the classic 8/9/10 speed freehub body. So, "normal" 8/9/10 speed cassettes need a 1.85mm spacer to push them outward a little bit so they can make solid contact with the lockring and be tightened down.

However some (maybe all?) Shimano 10 speed road cassettes aren't normal. They're actually 1mm thinner than other cassettes. To use them on a conventional 8/9/10 speed freehub you need a 1mm spacer. The reasons for this are explained in the Slowtwitch article. The spacer that came with your used 10 speed wheels is probably that 1mm "thinner" spacer. These are usually included with the cassettes that need them, but sometimes they come with the hubs too.

Other manufactures, like SRAM, make their 10 speed cassettes the same thickness as 9 speed cassettes, and so when mounting them on 9/10 speed freehub bodies they don't need the 1mm spacer.

However, when mounting a 8/9/10 speed cassette on an 11 speed road freehub, *everybody* needs the 1.85mm spacer. So those aforementioned Shimano cassettes actually need *both* spacers for a total of 2.85mm of extra extension.
Metaluna is offline
Likes For Metaluna:
Old 08-09-19, 05:28 PM
  #15
Brocephus
Professional amateur

Brocephus's Avatar

Join Date: May 2018
Location: Ga.
Posts: 629

Bikes: Does a Big Wheel count ?

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 286 Post(s)
Liked 115 Times in 76 Posts
Originally Posted by Metaluna View Post
Were those aftermarket wheels 11 speed compatible by any chance? If so, that spacer is probably 1.85mm thick, which is needed to adapt "normal" 8,9, and 10 speed cassettes to 11 speed freehubs.
.
The wheels came from a pretty well known wheelbuilding operation, but was a closeout wheelset built on 105 hubs, and all the closeout wheels were advertised as being "8-9-10-spd"compatible, but I couldn't swear that some wires weren't crossed somewhere, and it's actually 11-spd (they sell them too, so it's conceivable).
Anyway, thanks for the outstanding (clear and detailed) explanation !

Last edited by Brocephus; 08-09-19 at 06:37 PM.
Brocephus is offline
Old 08-09-19, 11:33 PM
  #16
mr_bill
Senior Member

Join Date: Sep 2013
Location: Massachusetts
Posts: 4,234
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1912 Post(s)
Liked 384 Times in 286 Posts
Originally Posted by Metaluna View Post
That's because the HG-800 (and the new 105 variety) is basically an 11 speed MTB cassette, and there is no special 11 speed freehub for shimano MTB wheels.
And to demystify why, the inboard sprocket is cantilevered over the spider on mountain bikes because the inner sprocket is large enough to clear the spokes.

-mr. bill
mr_bill is offline
