Is the fork cracked and rendered useless or is this nothing to be concerned?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Is the fork cracked and rendered useless or is this nothing to be concerned?

Old 08-16-19, 12:27 AM
  #1
RMoudatir
Senior Member
Thread Starter

Join Date: May 2016
Location: Corona, CA
Posts: 221

Bikes: Otso Warakin, 2014 Fuji Sportif 1.4 disc

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked 11 Times in 7 Posts
Is the fork cracked and rendered useless or is this nothing to be concerned?

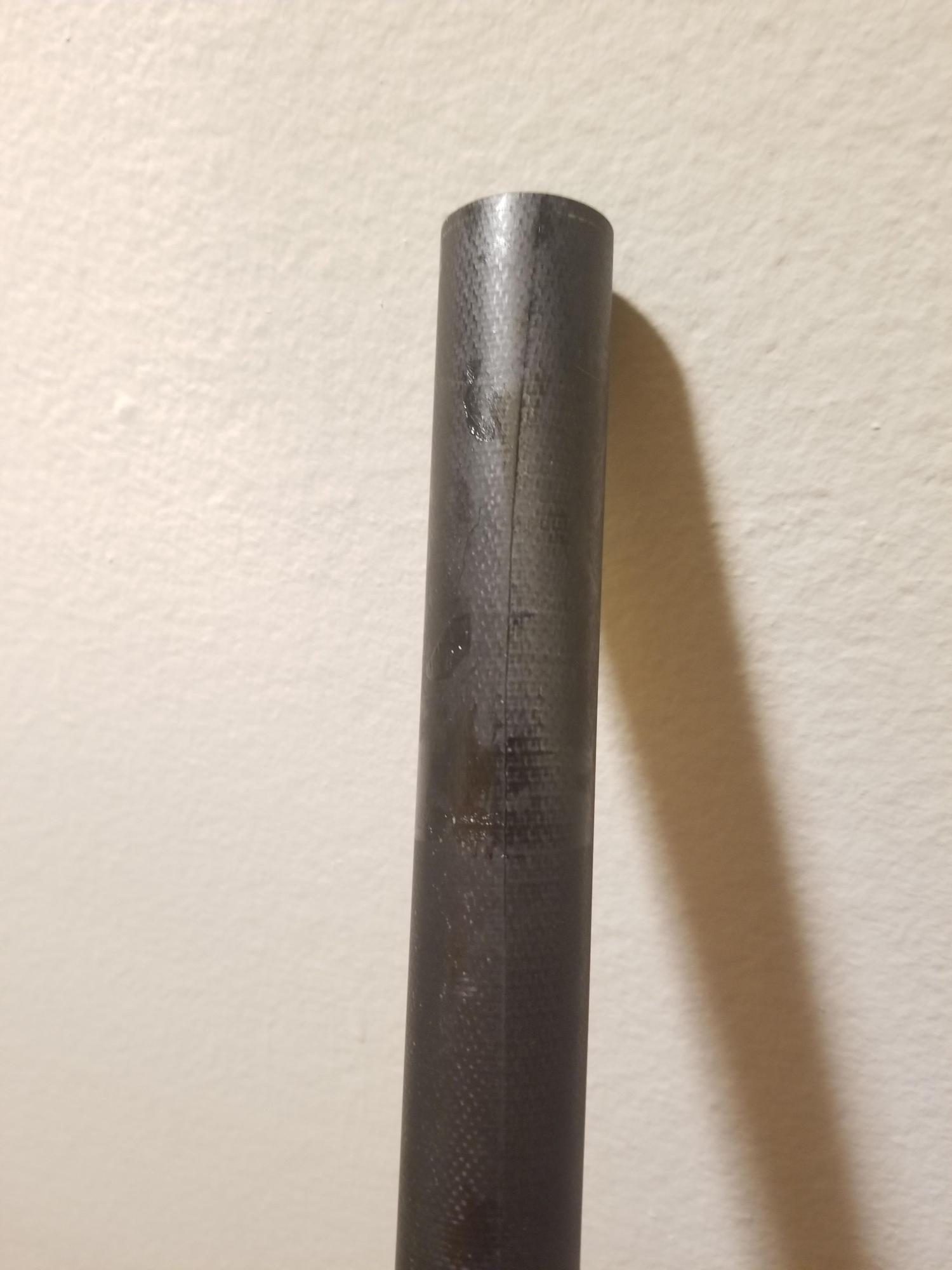

I had gotten a frame set off Otso last December that included a Lithic Hiili fork, I just started building it recently. I cut the fork with a 32 tpi hacksaw and it cut cleanly. After I installed the fork and stem and tighten the pinch bolts to 6 nm , I found that I needed to cut a few millimeter lower so I removed the fork and upon inspection I find this long line that curves slightly going from the top to bottom of the steerer tube. I find that the piece that was cut off earlier had the identical matching line when I stacked it back on top. The thing is hat I don't even feel anything on it, it is smooth to the touch and inside the tube there is nothing abnormally visible. I hadn't even completed my bike build and now it's cracked? I thought carbon fiber wasn't that fragile if taken care of.

Last edited by RMoudatir; 08-16-19 at 12:33 AM.
RMoudatir is offline
Old 08-16-19, 02:07 AM
  #2
AnkleWork
Senior Member

Join Date: Jan 2013
Location: Llano Estacado
Posts: 3,702

Bikes: old clunker

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 684 Post(s)
Likes: 0
Liked 103 Times in 81 Posts
Originally Posted by RMoudatir View Post
I had gotten a frame set off Otso last December that included a Lithic Hiili fork, I just started building it recently. I cut the fork with a 32 tpi hacksaw and it cut cleanly. After I installed the fork and stem and tighten the pinch bolts to 6 nm , I found that I needed to cut a few millimeter lower so I removed the fork and upon inspection I find this long line that curves slightly going from the top to bottom of the steerer tube. I find that the piece that was cut off earlier had the identical matching line when I stacked it back on top. The thing is hat I don't even feel anything on it, it is smooth to the touch and inside the tube there is nothing abnormally visible. I hadn't even completed my bike build and now it's cracked? I thought carbon fiber wasn't that fragile if taken care of.
Not sure what you really want. If you really want to know if it's a crack you could examine the steerer closely, maybe non-destructively test it, maybe destructively test the piece you cut off. If you really want to know if it's a manufacturing artifact maybe ask the people who made it. Nobody in this forum knows. Or is this just an ego thread?
AnkleWork is offline
Old 08-16-19, 02:35 AM
  #3
RMoudatir
Senior Member
Thread Starter

Join Date: May 2016
Location: Corona, CA
Posts: 221

Bikes: Otso Warakin, 2014 Fuji Sportif 1.4 disc

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by AnkleWork View Post
Not sure what you really want. If you really want to know if it's a crack you could examine the steerer closely, maybe non-destructively test it, maybe destructively test the piece you cut off. If you really want to know if it's a manufacturing artifact maybe ask the people who made it. Nobody in this forum knows. Or is this just an ego thread?
Ego thread? I just noticed this thing on the fork and I'm sure there are many people with good knowledge about these things here, I am just a noob who has no experience with carbon steering tubes and have heard a lot of warnings about them with over tightening them and having it stacked wrongly.
RMoudatir is offline
Likes For RMoudatir:
Old 08-16-19, 03:41 AM
  #4
dsaul
Senior Member

Join Date: Jan 2013
Location: South Jersey
Posts: 2,169
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 674 Post(s)
Liked 685 Times in 417 Posts
Looks fine to me. That just looks like a line from the overlapping carbon fiber cloth.
dsaul is offline
Old 08-16-19, 04:38 AM
  #5
bakerjw
Senior Member

Join Date: Sep 2008
Location: NE Tennessee
Posts: 917

Bikes: Giant TCR/Surly Karate Monkey/Foundry FireTower/Curtlo Tandem

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 169 Post(s)
Liked 83 Times in 61 Posts
As mentioned, contact the manufacturer if you know who it is. That is one bad thing about chicom carbon. There is no accountability on their end.

Take the piece that you cut off and lightly sand it and then get it wet to see what the underlying weave looks like. You can also take the cut off piece and work it with some pliers in a vise to see if it delaminates near the crack.

It looks like a manufacturing artifact to me. BUT... I am not a qualified expert.
bakerjw is offline
Likes For bakerjw:
Old 08-16-19, 07:16 AM
  #6
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 2,335

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 466 Post(s)
Liked 415 Times in 305 Posts
A steerer failure of some kind is not a risk I would take as I think the consequences could be very serious. There should be a carbon "shop" that builds/repairs carbon not too far from Carona that could render an opinion upon inspection, too difficult from that photo. Properly fabricated carbon is not fragile when used as intended but the strength is directional and is very unforgiving with point loading.
easyupbug is offline
Old 08-16-19, 07:33 AM
  #7
leob1
Senior Member

Join Date: Jul 2006
Location: Middle of the road, NJ
Posts: 3,137
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 292 Post(s)
Liked 102 Times in 66 Posts
Originally Posted by dsaul View Post
Looks fine to me. That just looks like a line from the overlapping carbon fiber cloth.
Originally Posted by easyupbug View Post
A steerer failure of some kind is not a risk I would take as I think the consequences could be very serious. There should be a carbon "shop" that builds/repairs carbon not too far from Carona that could render an opinion upon inspection, too difficult from that photo. Properly fabricated carbon is not fragile when used as intended but the strength is directional and is very unforgiving with point loading.
It looks like the overlap or seam of the carbon cloth, the manufacturer won't spend time and money polishing the steerer tube that won't be seen. It saves them a few pennies per fork.
If it really bothers you, take it to a few shops and ask them to have a look at it and render an opinion. Don't forget to buy something and/or tip the wrench.
leob1 is offline
Old 08-16-19, 08:33 AM
  #8
zacster
Senior Member

Join Date: Jul 2004
Location: Brooklyn NY
Posts: 7,456

Bikes: Kuota Kredo/Chorus, Trek 7000 commuter, Trek 8000 MTB and a few others

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 349 Times in 274 Posts
That could just be a surface scratch from insertion.
zacster is offline
Old 08-16-19, 09:24 AM
  #9
2old
Senior Member

Join Date: Jul 2014
Location: socal
Posts: 3,674
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 739 Post(s)
Liked 577 Times in 436 Posts
Appears cosmetic especially if the clear coat isn't affected. However, considering the ramifications, I wouldn't proceed without consulting Otso, the fork manufacturer or sending it for analysis by an expert like Craig Calafee.
2old is offline
