How to remove mudflap rivets on Planet Bike fenders?

The mudflap on front fender broke off after thousands of miles and getting kicked by my toe a few times (toe overlap).

I bought replacement mudflap from Planet Bike, and it comes with snap-on plastic "rivets." But to install the replacement, I first have to remove the steel rivets holding the husk of the original mudflap to the fender.

Is there any way to pop the original rivets apart (e.g., with a flathead screwdriver), or do I just need to use power tools (dremel or drill) to remove?

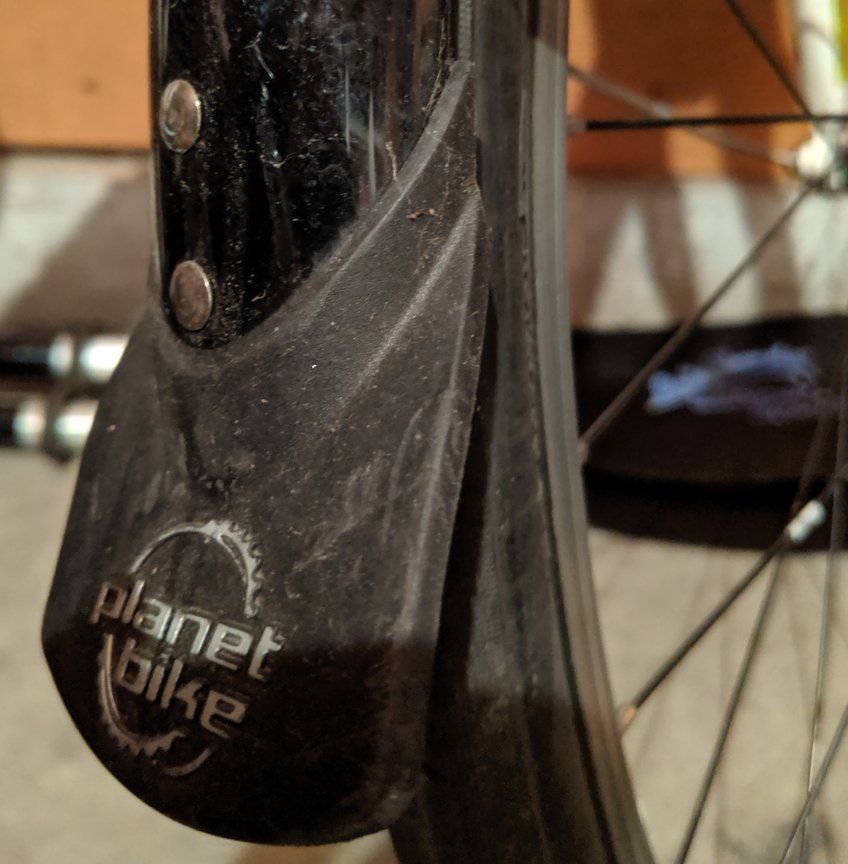

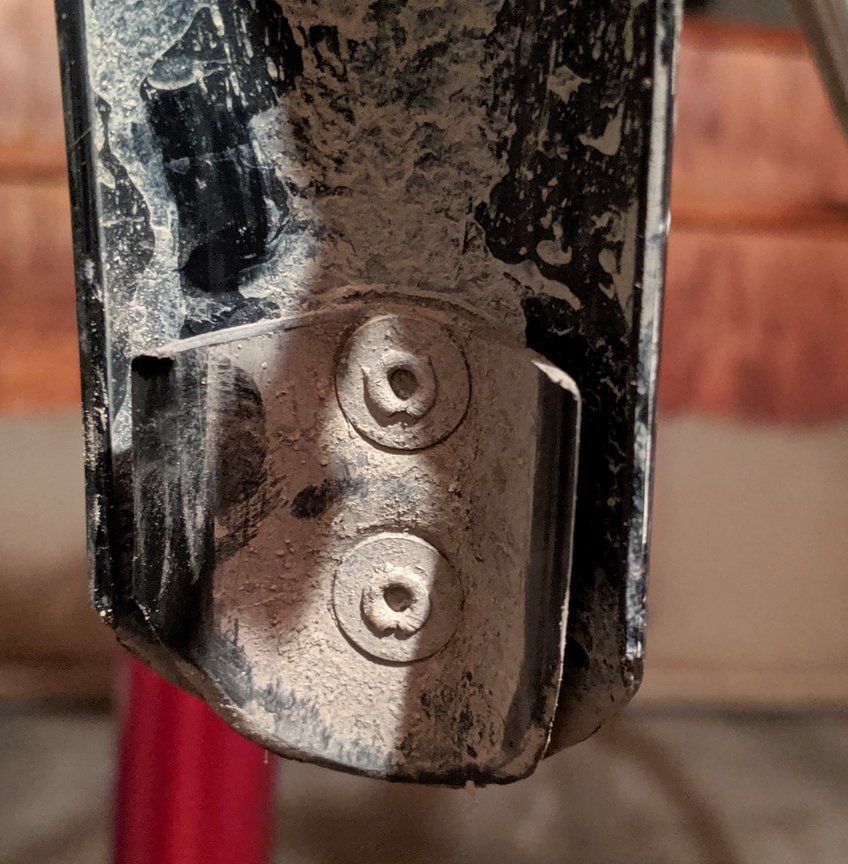

Pictures show rivets from both sides: on the inside of the fender where most of the mudflap broke off, and on the outside in an older photo.
TallRider is offline
Old 08-22-19, 03:54 PM
  #2
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,521

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1954 Post(s)
Likes: 0
Liked 950 Times in 662 Posts
You could grind off the mushroomed "flanges" of the rivets from inside the fender and push the remaining stubs out. It could also be drilled out from inside but might be difficult to keep the rivet from spinning with the drill bit. I think trying to pry the rivets apart would do more harm than the power tool approach.
HillRider is offline
Old 08-22-19, 04:07 PM
  #3
79pmooney
Senior Member

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 11,258

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 3842 Post(s)
Liked 2,703 Times in 1,766 Posts
I second the power tool approach. I use a drill larger than the rivet and drill to the washer. Yes, the rivet spinning can ve an issue but it has never stopped me. I go #8 or #10 screws for the replacement. Now, I drill the rivets out on the fenders when new because every Planet Bike fender I've purchased has had a toy flap; nowhere near as deep as it should be. Install my homemade flaps with the screws so future replacement is easy.

Ben
79pmooney is offline
Old 08-22-19, 04:10 PM
  #4
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,301

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1427 Post(s)
Liked 1,061 Times in 709 Posts
I'd grind off the flared section, as advised.
dsbrantjr is offline
Likes For dsbrantjr:
Old 08-22-19, 06:26 PM
  #5
TallRider
Senior Member
Thread Starter

TallRider's Avatar

Join Date: Oct 2005
Location: Fresno, CA
Posts: 4,454
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Likes: 0
Liked 12 Times in 10 Posts
Thanks for the feedback, everyone. I'll use a dremel or drill next time I'm in Seattle. Or maybe my fiance will do it before then.

Originally Posted by 79pmooney View Post
I drill the rivets out on the fenders when new because every Planet Bike fender I've purchased has had a toy flap; nowhere near as deep as it should be. Install my homemade flaps with the screws so future replacement is easy.

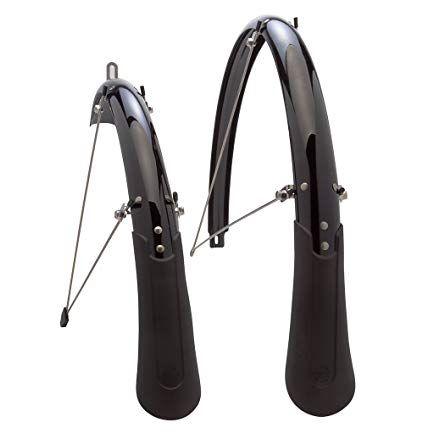

Yeah Ben, the base-level Planet Bike "Hardcore" fenders have short mudflaps that don't accomplish much. I ordered a pair of mudflaps for the higher-model Cascadia fenders (pictured, with much longer mudflaps), and will install on the front of my bike (where mudflap broke off) and on front of my fiance's commuter (which has new fenders but could really use a longer mudflap for Seattle commuting. Rear less important since neither of these bikes get used in pacelines.
