Go Back  Bike Forums > Bike Forums > Bicycle Mechanics
Reload this Page >

What Crank Removal Tool Do I Need?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

What Crank Removal Tool Do I Need?

Old 10-11-19, 02:17 PM
  #1
UKFan4Sure
Senior Member
Thread Starter

Join Date: Jun 2015
Posts: 357
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Liked 5 Times in 3 Posts
What Crank Removal Tool Do I Need?

SOLVED! SO READ ONLY AS INFO. THANKS!!

I have a vintage 1986 Schwinn with Stronglite cranks. I need to remove the bottom bracket, and therefore the cranks to repack the bearings. They are extremely dry.

I have a standard tool I've used on Shimano square taper before, but it doesn't seem to fit this one. Can anyone tell me what tools I need to purchase?

Thanks to all in advance!




__________________
2013 Schwinn Paramount Series 8, 2015 Specialized Roubaix Competition, 2008 Trek Portland, 1986 Schwinn LeTour, 1985 Peugeot PGN-10, 1982 Peugeot P8

Last edited by UKFan4Sure; 10-12-19 at 09:29 AM.
UKFan4Sure is offline
Old 10-11-19, 02:21 PM
  #2
Bigbus
Senior Member

Bigbus's Avatar

Join Date: Mar 2018
Location: Central West Coast
Posts: 353

Bikes: In Flux

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked 23 Times in 16 Posts
When you say it doesn't fit, I'm assuming you mean the larger internal thread pattern on the crank itself is different from your 'standard' tool and not the threads on the square tapered shaft?
Bigbus is offline
Old 10-11-19, 02:36 PM
  #3
UKFan4Sure
Senior Member
Thread Starter

Join Date: Jun 2015
Posts: 357
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Liked 5 Times in 3 Posts
Originally Posted by Bigbus View Post
When you say it doesn't fit, I'm assuming you mean the larger internal thread pattern on the crank itself is different from your 'standard' tool and not the threads on the square tapered shaft?
Yeah, the internal threads on the crank. Either that, or the Shimano tool is slightly larger and won't fit in the hole. There was a nut on the square taper shaft; each end. There is no bolt like on Shimano. External BB shaft threads vs internal....
__________________
2013 Schwinn Paramount Series 8, 2015 Specialized Roubaix Competition, 2008 Trek Portland, 1986 Schwinn LeTour, 1985 Peugeot PGN-10, 1982 Peugeot P8
UKFan4Sure is offline
Old 10-11-19, 05:26 PM
  #4
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 6,447

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 752 Post(s)
Likes: 0
Liked 96 Times in 82 Posts
TA and Stronglight have slightly different-sized threads from the standard and each other so you need a specific tool for each.
Stein Tools make one: https://www.steintool.com/portfolio-...nk-extractors/ Their products are top-notch.
You could also drive them off with a pair of Jacobs chuck wedges, #3 size IIRC: http://www.jacobschuck.com/accessories/wedge-set
Edit: Here's a TA/Stronglight combo tool: https://www.ebay.com/itm/2in1-Strong...-/222325878325 I doubt that the quality is up to the Stein tools but may be good enough.

Last edited by dsbrantjr; 10-11-19 at 05:34 PM.
dsbrantjr is offline
Old 10-11-19, 05:51 PM
  #5
UKFan4Sure
Senior Member
Thread Starter

Join Date: Jun 2015
Posts: 357
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Liked 5 Times in 3 Posts
Originally Posted by dsbrantjr View Post
TA and Stronglight have slightly different-sized threads from the standard and each other so you need a specific tool for each.
Stein Tools make one: https://www.steintool.com/portfolio-...nk-extractors/ Their products are top-notch.
You could also drive them off with a pair of Jacobs chuck wedges, #3 size IIRC: http://www.jacobschuck.com/accessories/wedge-set
Edit: Here's a TA/Stronglight combo tool: https://www.ebay.com/itm/2in1-Strong...-/222325878325 I doubt that the quality is up to the Stein tools but may be good enough.
Thank you, Sir! You are a blessing!
__________________
2013 Schwinn Paramount Series 8, 2015 Specialized Roubaix Competition, 2008 Trek Portland, 1986 Schwinn LeTour, 1985 Peugeot PGN-10, 1982 Peugeot P8
UKFan4Sure is offline
Old 10-11-19, 06:02 PM
  #6
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 12,028

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1886 Post(s)
Liked 109 Times in 83 Posts

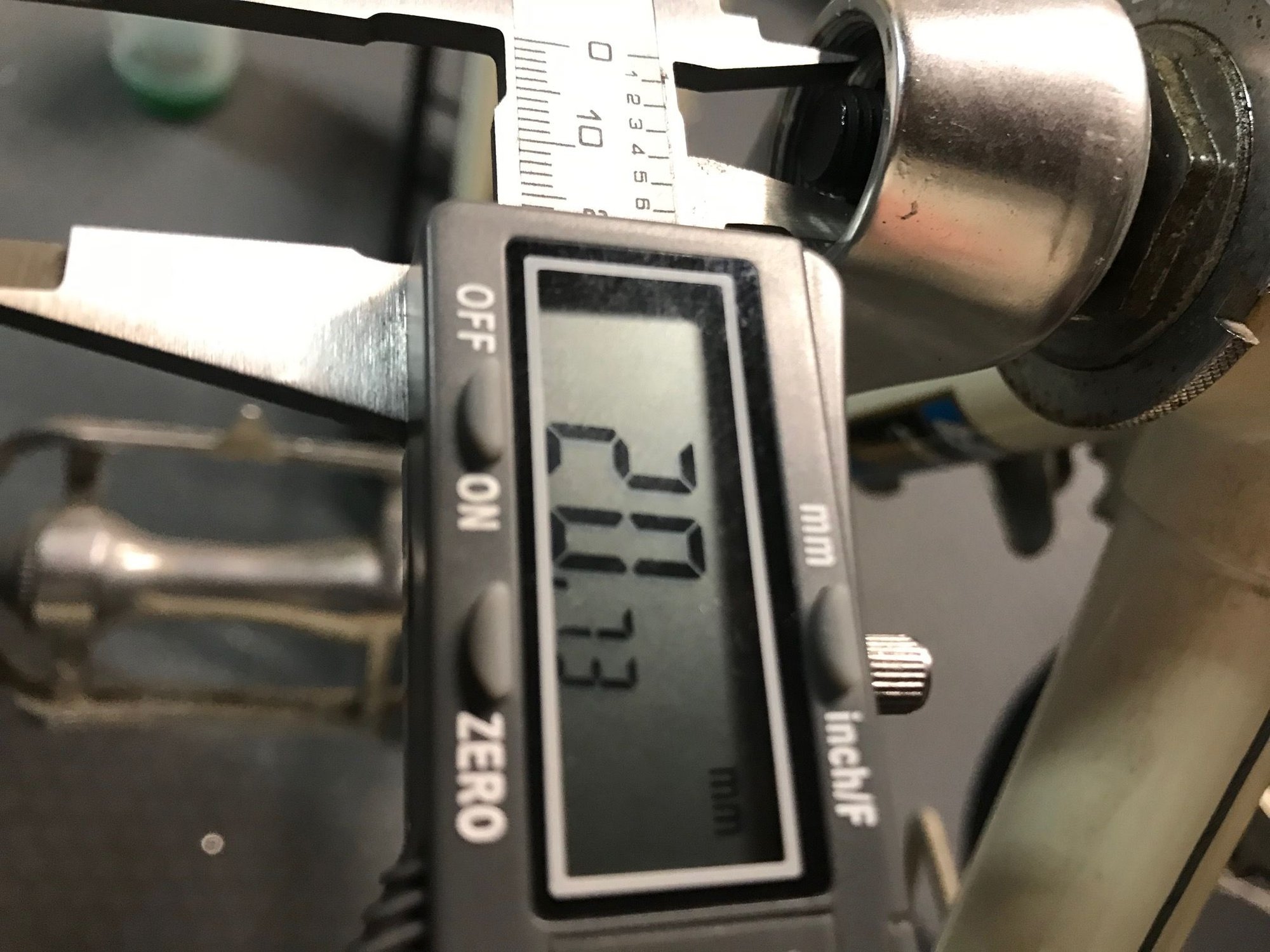

IIRC Stronglight moved from their older extractor threads of a 23.35mm diameter to the JIS standard of 22mm diameter in 1982 (or that's what my Sutherlands just confirmed). TA use to be 23mm in diameter, what they use currently I don't know. The logo on the crank arm in the photo sure looks to be the more recent version, suggesting the 22mm threading.

First thing I would do is make sure there's gas in the tank... or in this case the extractor plunger is unthreaded enough to allow the axle's stud to enter the extractor as the extractor is threaded into the arm. Next up is to try another extractor. It's quite possible that the arm's threads are not cut well, or that the tap was dull and the threads are not as deeply formed as should be. If this bike were to be brought into the shop I work at and all we had to do was pull the arms (and we had no problems doing so) the cost would be a pretty token amount. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 10-12-19, 12:36 AM
  #7
UKFan4Sure
Senior Member
Thread Starter

Join Date: Jun 2015
Posts: 357
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Liked 5 Times in 3 Posts
Originally Posted by Andrew R Stewart View Post
IIRC Stronglight moved from their older extractor threads of a 23.35mm diameter to the JIS standard of 22mm diameter in 1982 (or that's what my Sutherlands just confirmed). TA use to be 23mm in diameter, what they use currently I don't know. The logo on the crank arm in the photo sure looks to be the more recent version, suggesting the 22mm threading.

First thing I would do is make sure there's gas in the tank... or in this case the extractor plunger is unthreaded enough to allow the axle's stud to enter the extractor as the extractor is threaded into the arm. Next up is to try another extractor. It's quite possible that the arm's threads are not cut well, or that the tap was dull and the threads are not as deeply formed as should be. If this bike were to be brought into the shop I work at and all we had to do was pull the arms (and we had no problems doing so) the cost would be a pretty token amount. Andy
Thanks, I'll check that out. You may very well be on to something.
__________________
2013 Schwinn Paramount Series 8, 2015 Specialized Roubaix Competition, 2008 Trek Portland, 1986 Schwinn LeTour, 1985 Peugeot PGN-10, 1982 Peugeot P8
UKFan4Sure is offline
Old 10-12-19, 05:50 AM
  #8
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,620

Bikes: Several, mostly not name brands.

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 1804 Post(s)
Liked 133 Times in 98 Posts
Originally Posted by dsbrantjr View Post
TA and Stronglight have slightly different-sized threads from the standard and each other so you need a specific tool for each.
The OP's crank is a post-1982 Stronglight and should have standard 22mm extractor thread.

I do note that the spindle is a male-type (nutted) spindle which may work better with a Maxy-type extractor:

JohnDThompson is offline
Likes For JohnDThompson:
Old 10-12-19, 09:28 AM
  #9
UKFan4Sure
Senior Member
Thread Starter

Join Date: Jun 2015
Posts: 357
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Liked 5 Times in 3 Posts
I would like to thank everyone for their input into my problem.

Andrew and John were correct, this is the standard JIS threaded crank.

I tried again with my tool and got the threads to start on both sides. On the non-drive side, the tool ate a bit of the aluminum threads (which worried me horribly), but it did re-thread again after removing it and blowing out the very, very small shavings. Iwas careful to make sure it wasn't cross threaded. I turned the crank when it was seated and there was no wobble in the end of the removal screw shaft. When I did the crank side, it was a little more compliant, with little effort to start and screw on, so I know the tool was the correct one.

Concerning the posting of this thread, the non-drive side was the first side I tried, so when I couldn't easily get it going, I was thinking I had some weird threads or something. I'm no bike mechanic, but have wrenched on plenty of other stuff. I know that headset threads can often be very slightly off from one another, depending on the country of origin. That was what had me worried.

Again, thanks to all!!
__________________
2013 Schwinn Paramount Series 8, 2015 Specialized Roubaix Competition, 2008 Trek Portland, 1986 Schwinn LeTour, 1985 Peugeot PGN-10, 1982 Peugeot P8

Last edited by UKFan4Sure; 10-12-19 at 09:32 AM.
UKFan4Sure is offline
Old 10-12-19, 09:58 AM
  #10
Bigbus
Senior Member

Bigbus's Avatar

Join Date: Mar 2018
Location: Central West Coast
Posts: 353

Bikes: In Flux

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked 23 Times in 16 Posts
Glad you got it figured out and can get on with business
Bigbus is offline
Likes For Bigbus:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
