New Bike. Loud Freehub. Can't Unscrew it.

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

New Bike. Loud Freehub. Can't Unscrew it.

Old 01-17-20, 09:06 AM
  #1
sjanzeir
Keeling over.
Thread Starter

Join Date: Apr 2016
Location: Jeddah, Saudi Arabia
Posts: 665

Bikes: 1990 Raleigh Flyer (size 21"); 2014 Trek 7.6 FX (size 15"); 2014 Trek 7.6 FX (size 17.5"); 2019 Dahon Mu D9; 2020 Dahon Hemingway D9

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 279 Post(s)
Liked 200 Times in 87 Posts
New Bike. Loud Freehub. Can't Unscrew it.

So, my brand new Dahon's freehub is loud AF, so I wanted to take it off, disassemble and repack it with new grease (I had a similar issue with another freehub that became whisper-quiet after I repacked it.) Problem is, I just can't get it off of the hub. My entire body weight on a 16-inch breaker bar with another person holding the wheel firm wasn't enough. I even tried some brute force with a composite sledge hammer onto the breaker bar - in both directions - but it just won't budge. Please help!

sjanzeir is offline
Old 01-17-20, 09:46 AM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,054

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2973 Post(s)
Liked 1,261 Times in 883 Posts
Are you sure of the correct direction to turn the wrench? The way the photo is laid out suggests you might have been tightening the FH body, if the direction of the hammer and wrench indicate the actual arrangement.

I assume you know why FHs and freewheels are note intended to be greased? (Not that this stopped many including me from trying it at least once). I only use a heavy oil these days and this can be dripped onto and in time seep into the body. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 01-17-20, 09:54 AM
  #3
sjanzeir
Keeling over.
Thread Starter

Join Date: Apr 2016
Location: Jeddah, Saudi Arabia
Posts: 665

Bikes: 1990 Raleigh Flyer (size 21"); 2014 Trek 7.6 FX (size 15"); 2014 Trek 7.6 FX (size 17.5"); 2019 Dahon Mu D9; 2020 Dahon Hemingway D9

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 279 Post(s)
Liked 200 Times in 87 Posts
The first picture is laid out wrong - sorry about that. I was trying counterclockwise, like so:




That said, I did try a few blows clockwise - you know, the "tighten to loosen" method - which didn't help at all.
sjanzeir is offline
Old 01-17-20, 10:13 AM
  #4
Wilfred Laurier
Señor Member

Wilfred Laurier's Avatar

Join Date: Feb 2013
Posts: 5,051
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 633 Post(s)
Liked 278 Times in 203 Posts
Is that a Shimano hub? If not, not all other brands' hubs are removed with a bolt accessed through the drive side like that. Check with the hub manufacturer (or possibly Dahon) to make sure you are doing it right.
Wilfred Laurier is offline
Old 01-17-20, 10:37 AM
  #5
sjanzeir
Keeling over.
Thread Starter

Join Date: Apr 2016
Location: Jeddah, Saudi Arabia
Posts: 665

Bikes: 1990 Raleigh Flyer (size 21"); 2014 Trek 7.6 FX (size 15"); 2014 Trek 7.6 FX (size 17.5"); 2019 Dahon Mu D9; 2020 Dahon Hemingway D9

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 279 Post(s)
Liked 200 Times in 87 Posts

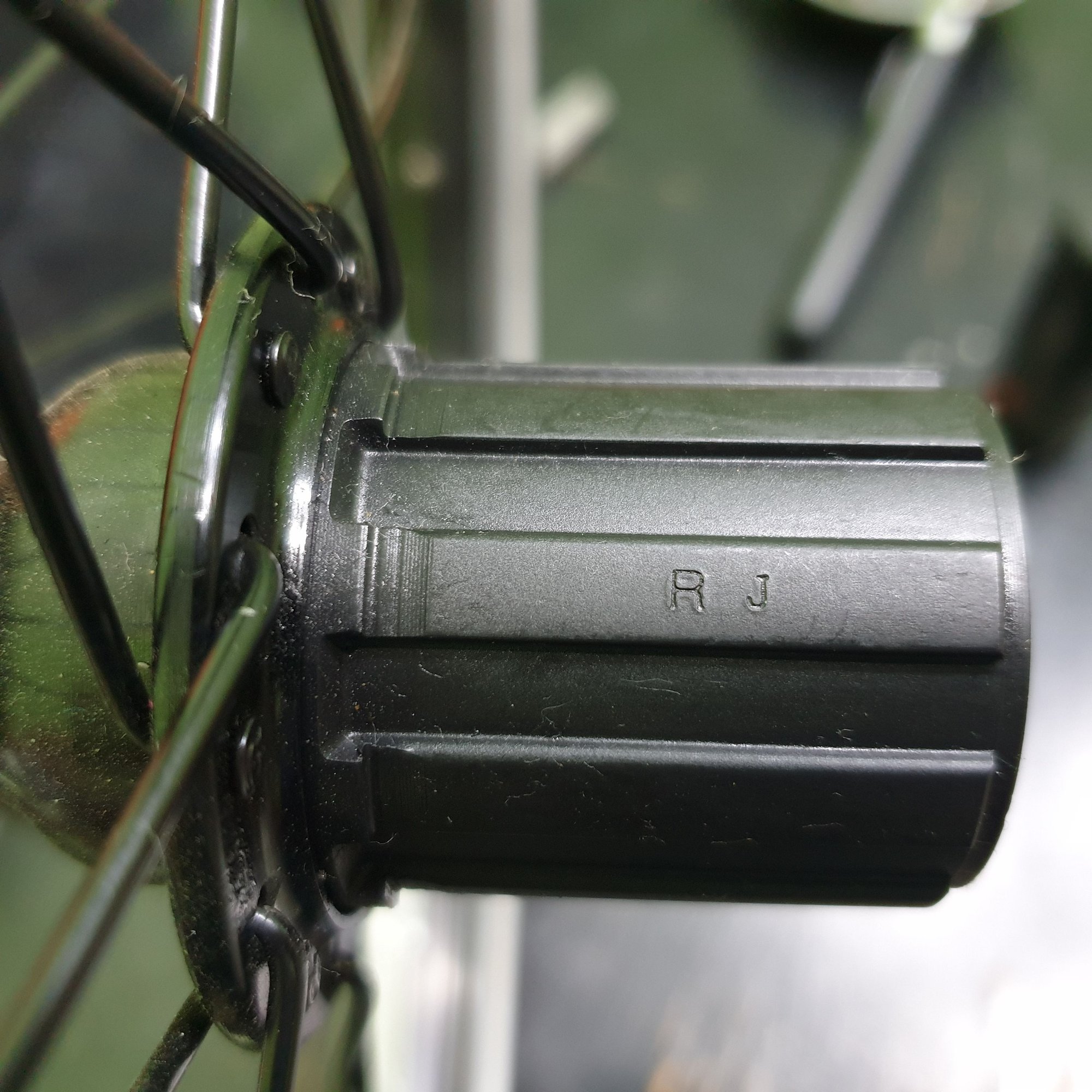

I couldn't tell what brand it is. All I can see is the letters R and J on one of the cassette splines. Googling "RJ freehub" rendered a ton of RJ the Bike Guy's videos. All I see inside the hub/freehub is some sort of a receptacle for a 12mm hex key that sits somewhat inboard of the driveside spoke flange. There's no other feature that I could see around the hub/freehub assembly that might constitute a sure way to undo the freehub:




sjanzeir is offline
Old 01-17-20, 10:42 AM
  #6
sjanzeir
Keeling over.
Thread Starter

Join Date: Apr 2016
Location: Jeddah, Saudi Arabia
Posts: 665

Bikes: 1990 Raleigh Flyer (size 21"); 2014 Trek 7.6 FX (size 15"); 2014 Trek 7.6 FX (size 17.5"); 2019 Dahon Mu D9; 2020 Dahon Hemingway D9

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 279 Post(s)
Liked 200 Times in 87 Posts
Originally Posted by Andrew R Stewart View Post
I assume you know why FHs and freewheels are not intended to be greased?
I do know that freewheels aren't supposed (or designed, for that matter) to be repacked - at least not modern, brand-name quality ones. But freehubs? This is honestly the first time I've read something like this. What's the deal with that?
sjanzeir is offline
Old 01-17-20, 10:48 AM
  #7
frankenmike
mechanically sound

frankenmike's Avatar

Join Date: Jan 2007
Location: Dover, NH
Posts: 1,571

Bikes: Indy Fab steel deluxe, Aventon cordoba, S-works stumpy fsr, Masi vincere, Dahon mu uno, Outcast 29 commuter

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 73 Post(s)
Liked 41 Times in 31 Posts
Grease can interfere with the pawls, making their (re)engagement a bit lazy.
__________________
frankenmike is offline
Old 01-17-20, 10:51 AM
  #8
sjanzeir
Keeling over.
Thread Starter

Join Date: Apr 2016
Location: Jeddah, Saudi Arabia
Posts: 665

Bikes: 1990 Raleigh Flyer (size 21"); 2014 Trek 7.6 FX (size 15"); 2014 Trek 7.6 FX (size 17.5"); 2019 Dahon Mu D9; 2020 Dahon Hemingway D9

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 279 Post(s)
Liked 200 Times in 87 Posts
Oh... I suspected as much. I'm not a competitive cyclist, though, so I'd rather have a quiet freehub than a speedy one.
sjanzeir is offline
Old 01-17-20, 10:51 AM
  #9
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,505
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 524 Post(s)
Likes: 0
Liked 128 Times in 108 Posts
A friend had a hub like this one. You have a 7/16 allen wrench nut inside the freehub. So you use a 12mm from the rt. side and the 7/16" from the left side of the hub.
davidad is offline
Old 01-17-20, 11:04 AM
  #10
sjanzeir
Keeling over.
Thread Starter

Join Date: Apr 2016
Location: Jeddah, Saudi Arabia
Posts: 665

Bikes: 1990 Raleigh Flyer (size 21"); 2014 Trek 7.6 FX (size 15"); 2014 Trek 7.6 FX (size 17.5"); 2019 Dahon Mu D9; 2020 Dahon Hemingway D9

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 279 Post(s)
Liked 200 Times in 87 Posts

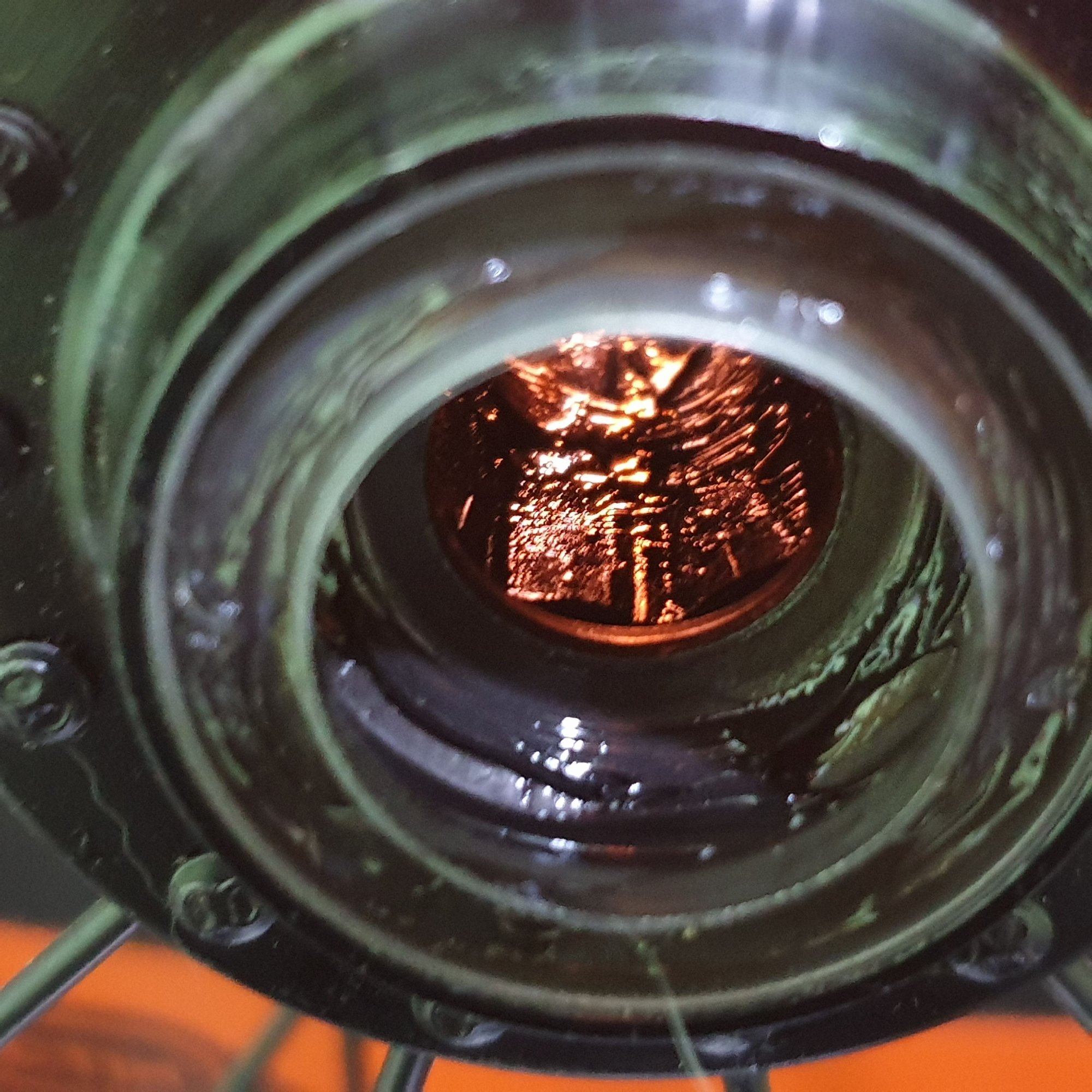

Here's that I could see from the left side:




This thing is octa-faced, not hex-faced (I counted the flat surfaces.) I'm not sure if this is the 7/16" nut you mentioned. Besides, even if I were to fit some sort of eight-faced wrench in there, the bearing cup appears to be narrower than said nut, so I doubt that said wrench would fit.
sjanzeir is offline
Old 01-17-20, 04:29 PM
  #11
Drew Eckhardt
Senior Member

Drew Eckhardt's Avatar

Join Date: Apr 2010
Location: Mountain View, CA USA and Golden, CO USA
Posts: 6,340

Bikes: 97 Litespeed, 50-39-30x13-26 10 cogs, Campagnolo Ultrashift, retroreflective rims on SON28/PowerTap hubs

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 547 Post(s)
Liked 314 Times in 220 Posts
Originally Posted by frankenmike View Post
Grease can interfere with the pawls, making their (re)engagement a bit lazy.
It's also the officially recommended lubricant for some freehubs, like those on CycleOps PowerTap hubs.
Drew Eckhardt is offline
Likes For Drew Eckhardt:
Old 01-17-20, 04:47 PM
  #12
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,054

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2973 Post(s)
Liked 1,261 Times in 883 Posts
Originally Posted by sjanzeir View Post
Oh... I suspected as much. I'm not a competitive cyclist, though, so I'd rather have a quiet freehub than a speedy one.
Friction (inside the FH body) isn't the issue when pedaling as it's two "halves" are locked together. And when coasting on a loose ball, cup and cone, design grease is slower, oil will have less drag. In my area it gets cold enough during winter to cause the lubes to thicken, I suspect in Saudi this isn't a problem.

The issue we allude to is if the pawls stick "shut" as you begin forward pedaling the pedals can just spin forwards and you get no engagement. Often followed by your nuts impacting the frame Grease being thick and sticky can encourage this pawl slow engagement. But maybe only one or two pawls will stick and the other(s) will crack from the overloading and cocking of the FH body. This less often results in loss of control.

For the vast majority of those who are thinking of servicing their FH body (or freewheel) I again suggest a flushing/cleaning of the body and relubing with a thick oil like Phil's. This can be done with no break down of the body. These loose ball FHs generally have a slight bit of bearing slop which they need, unlike similar bearinged hubs (wanting a no slop slight preload). Some of these FHs have a seal on the back side, contacting the shell, that can be removed and reinstalled allowing a larger access to the insides through which to flush/lube by. Andy
__________________
AndrewRStewart

Last edited by Andrew R Stewart; 01-17-20 at 04:56 PM. Reason: Trying to make sense
Andrew R Stewart is offline
Old 01-17-20, 11:39 PM
  #13
sjanzeir
Keeling over.
Thread Starter

Join Date: Apr 2016
Location: Jeddah, Saudi Arabia
Posts: 665

Bikes: 1990 Raleigh Flyer (size 21"); 2014 Trek 7.6 FX (size 15"); 2014 Trek 7.6 FX (size 17.5"); 2019 Dahon Mu D9; 2020 Dahon Hemingway D9

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 279 Post(s)
Liked 200 Times in 87 Posts
This being a folding bike with a single, low-slung "top" (main?) tube for a frame, I'mssure my nuts are in now immediate danger

The grease I use isn't very thick - I would describe its consistency as about that of skin cream or tooth paste:




I've used this same grease in every hub I've repacked over the past few years, a Shimano freehub, a couple of bottom brackets (the loose bearing type) and a vintage headset. Heck, I even used the black liquid that tends to puddle up the hole made by by my fingers in the middle of the grease to refill thettiny ball bearings of jockey wheels.

WheniI took said Shimano freehub apart (it belonged to my long-gone 2016 Trek 7.3FX) it had just about lost all of its lubricant in the year or so that I'd owned the bike. It was literally metal on metal in there, and it zzzzzzzz'ed as loudly AF - it was almost embarrassing. It was quiet and prompt after I repacked it with this same grease.

That freehub was much easier to get off the hub, though. Like WL pointed out earlier, all I had to do was unscrew the hollow bolt in the middle with a 10mm hex key. But this? I'm stumped.
sjanzeir is offline
Old 01-18-20, 12:07 AM
  #14
jbucky1
Senior Member

jbucky1's Avatar

Join Date: Mar 2007
Location: portland, Ore
Posts: 397

Bikes: Moots Routt

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Liked 22 Times in 20 Posts
How about tool in vice and rotate the wheel?
jbucky1 is offline
Likes For jbucky1:
Old 01-18-20, 12:23 AM
  #15
sjanzeir
Keeling over.
Thread Starter

Join Date: Apr 2016
Location: Jeddah, Saudi Arabia
Posts: 665

Bikes: 1990 Raleigh Flyer (size 21"); 2014 Trek 7.6 FX (size 15"); 2014 Trek 7.6 FX (size 17.5"); 2019 Dahon Mu D9; 2020 Dahon Hemingway D9

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 279 Post(s)
Liked 200 Times in 87 Posts
Tried that; a) the tiny vice I've got at home is too small and too flimsy to hold the hex bit securely, and it's attached to a wooden table top (it started slipping off after some effort) and b) that 20" wheel is too small to furnish enough leverage anyway. It just didn't work.

Last edited by sjanzeir; 01-18-20 at 04:29 AM.
sjanzeir is offline
Old 01-18-20, 09:12 AM
  #16
Litespeedlouie
Senior Member

Join Date: Sep 2007
Location: Seattle
Posts: 311

Bikes: Litespeed, O'Brien, Specialized, Fuji

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 6 Times in 4 Posts
I'm confused as to what your socket is attached to in the first photo.
If it's anything like my 8 speed Ultegra, the attached instructions say to use the allen wrench to remove the bolt holding the freehub. Note, the attached directions say never to disassemble it! I would probably just try to dribble the thick oil into it or soak it in the oil. I bought the big allen wrench, but never had the urge to use it.
Litespeedlouie is offline
Old 01-18-20, 09:43 AM
  #17
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,505
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 524 Post(s)
Likes: 0
Liked 128 Times in 108 Posts
Originally Posted by Litespeedlouie View Post
I'm confused as to what your socket is attached to in the first photo.
If it's anything like my 8 speed Ultegra, the attached instructions say to use the allen wrench to remove the bolt holding the freehub. Note, the attached directions say never to disassemble it! I would probably just try to dribble the thick oil into it or soak it in the oil. I bought the big allen wrench, but never had the urge to use it.
It's not a shimano hub.
davidad is offline
Old 01-29-20, 04:17 AM
  #18
sjanzeir
Keeling over.
Thread Starter

Join Date: Apr 2016
Location: Jeddah, Saudi Arabia
Posts: 665

Bikes: 1990 Raleigh Flyer (size 21"); 2014 Trek 7.6 FX (size 15"); 2014 Trek 7.6 FX (size 17.5"); 2019 Dahon Mu D9; 2020 Dahon Hemingway D9

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 279 Post(s)
Liked 200 Times in 87 Posts
Originally Posted by Litespeedlouie View Post
I'm confused as to what your socket is attached to in the first photo.
It's a 10mm spring-and-ball locking socket attached to this 12mm hex key and a 16"/40cm breaker bar:




And as it turned out, after I decided to pull out the pressed-metal seal behind the cassette lockring to get a better view of what's inside, I found the signature "Shimano notches" hidden right behind that! Since I don't own the corresponding tool, I tried the hammer-and-striking-screwdriver method, but it still didn't budge. Next week I might just take it to the local bike shop/Trek dealer and have them unscrew it for me, or buy me an impact socket of the right outside diameter and grind it down to create the two teeth as in RJ the Bike Guy's video.
sjanzeir is offline
Old 01-29-20, 08:02 AM
  #19
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 2,759
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 921 Post(s)
Liked 701 Times in 411 Posts
As Andrew R Stewart gently hinted a couple of times already, you can save yourself a lot of frustration and achieve your goal of quieting the freehub by simply dripping heavy oil into it, which is what almost all bike mechanics do (and all smart bike mechanics do) in preference to applying grease.
Trakhak is offline
Old 01-29-20, 01:30 PM
  #20
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,505
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 524 Post(s)
Likes: 0
Liked 128 Times in 108 Posts
I would try e-mailing Dahon and see if they can tell you how to remove the freehub.
If you try to take it apart the outer race is a left-handed thread. You will need a tool like this one. https://www.ebay.com/itm/Free-Hub-To...75.c100623.m-1
davidad is offline
