Tig welding an aluminum seat tube back together?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Tig welding an aluminum seat tube back together?

Old 02-13-20, 02:41 AM
  #26
tFUnK
Senior Member

Join Date: Jun 2002
Location: San Jose, CA
Posts: 2,487

Bikes: GT Forte Ti, GT GTR Carbon Sport, BMC RaceMachine, Guru Photon, Bianchi San Jose, Trek Portland, Xootr Swift

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Liked 11 Times in 9 Posts
Assuming you cannot contact their support team and get a new frame, another option is to just JB Weld that piece back on and then JB Weld your seat post into the seat tube as well (at the correct height of course). The seat post will no longer be removable and it might still be a total fail but hey it's something cheap to try before throwing out the frame.
tFUnK is offline
Old 02-13-20, 03:33 AM
  #27
alo
Senior Member

Join Date: Feb 2020
Posts: 193
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Likes: 0
Liked 34 Times in 27 Posts
I would not be overly concerned about another part of the frame failing. Of course any part of any bike can fail at any time.

I would not just butt weld the broken piece. Something needs to be done to give it more strength. When you look at the options, I would not weld it at all. Just grind or file off the jagged edges, and think about other creative ways to secure the seat post.

For creative minded people, there are a lot of other ways the seat post could be secured.

Another idea. Make up two clamps joined together. Clamp one around the seat post, above the frame. Clamp the other around the bar.
alo is online now
Old 02-13-20, 03:55 AM
  #28
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 24,088
Mentioned: 189 Post(s)
Tagged: 0 Thread(s)
Quoted: 10624 Post(s)
Liked 554 Times in 441 Posts
Originally Posted by alo View Post
For creative minded people, there are a lot of other ways the seat post could be secured.
You might find this thread interesting:

Modifying a frame

Anyway, the user had a most unique tandem with a forward sloping top tube, and a tall mast on the seatpost similar to the OP's. He had to lower the seat by about 2".

However, the post used a unique half-moon lock in a tube.

So, that post lock was simply moved downward.



CliffordK is offline
Old 02-13-20, 07:28 AM
  #29
Amt0571
Senior Member

Join Date: Dec 2014
Location: Catalonia
Posts: 298

Bikes: Rockrider 8.2, Btwin Ultra 520 AF GF, Dahon Mu P27, Triban Road 7

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 46 Times in 27 Posts
I don't think that can be reliably repaired. My take is to bin it.

Even if you could repair it, it's a chinese frame of unknown quality, so the chances of it breaking somwhere else are too much risk IMHO.

I have bought lots of cheap china bike parts: bottle cages, cyclecomputers, bar ends, grips and even a saddle... but I have never bought anything that could compromise my safety. Frames, forks, wheels, tires, brakes, handlebars, stems, seatposts, quick releases, and anything that could compromise the integrity of the bike should be bought only from brands that you can trust.

You really don't want a frame or a handlebar to break in half while riding.
Amt0571 is offline
Old 02-13-20, 07:30 AM
  #30
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 5,850

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 972 Post(s)
Liked 314 Times in 229 Posts
If I was to have that repaired by welding, I'd probably fab up some gusset plates and add them to the repair.
Maybe something like this


dedhed is offline
Old 02-13-20, 08:21 AM
  #31
jadocs
Senior Member

jadocs's Avatar

Join Date: Jul 2018
Location: USA
Posts: 1,499

Bikes: Ti, Mn Cr Ni Mo Nb, Al, C

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 639 Post(s)
Liked 286 Times in 192 Posts
Originally Posted by CliffordK View Post
You might find this thread interesting:

Modifying a frame

Anyway, the user had a most unique tandem with a forward sloping top tube, and a tall mast on the seatpost similar to the OP's. He had to lower the seat by about 2".

However, the post used a unique half-moon lock in a tube.

So, that post lock was simply moved downward.



How does that compress the seat tube to secure the seat post, are there slits cut into it?
jadocs is offline
Old 02-13-20, 09:28 AM
  #32
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,058
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 394 Post(s)
Likes: 0
Liked 36 Times in 34 Posts
The break is in the heat affected zone of the weld and a sign of poor welding or poor heat treatment. I would be afraid of this thing going forward.
davidad is offline
Likes For davidad:
Old 02-13-20, 09:29 AM
  #33
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 1,463
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 223 Post(s)
Liked 39 Times in 29 Posts
Originally Posted by erileykc View Post

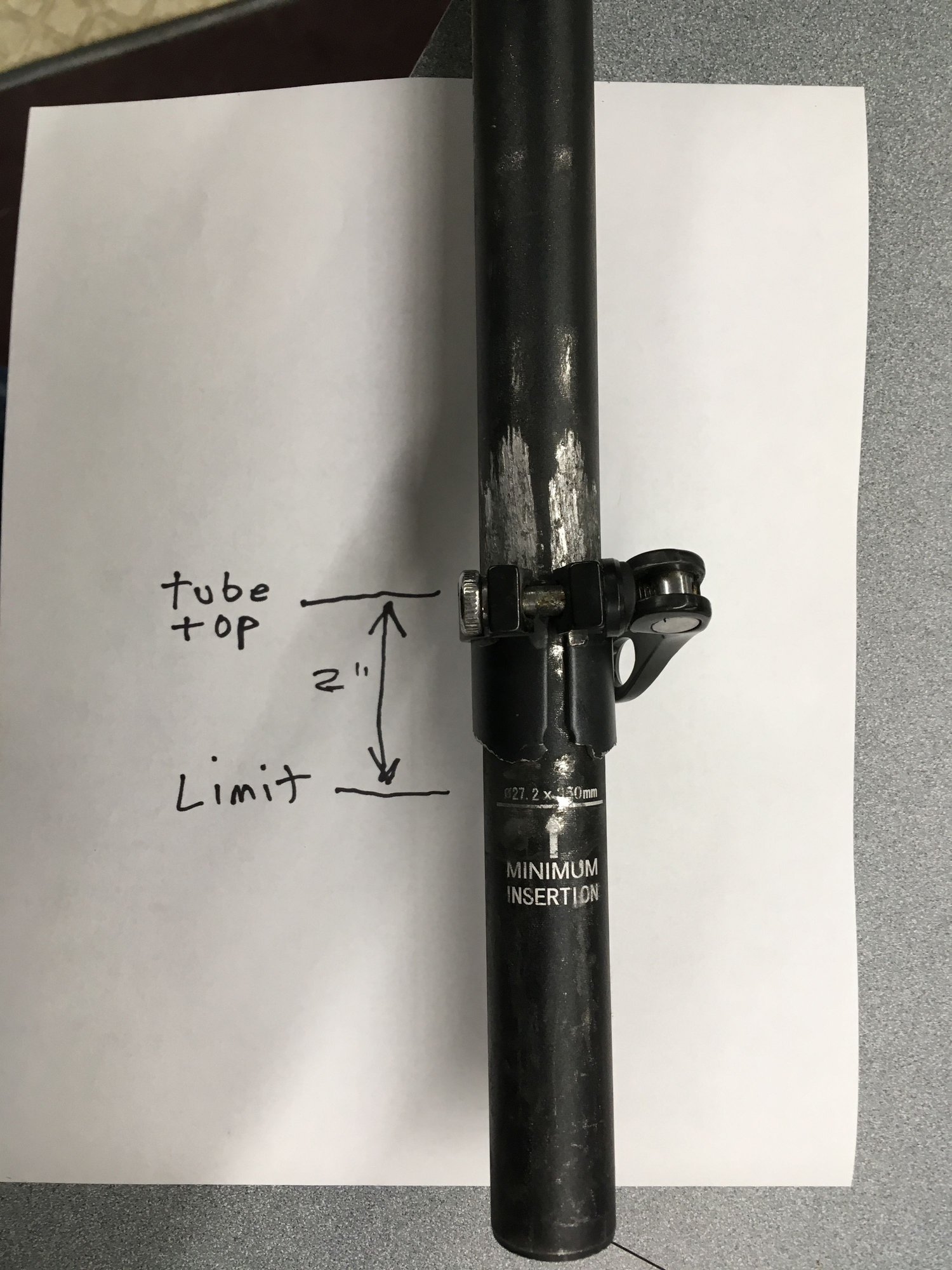

The seat post was about three inches short of the limit mark screened on to the post. I'm 6'3 and weigh weigh 200 lbs.
OK, well in that case it sounds like a faulty frame. 200lbs is not all that heavy, plenty of other riders in your weight class (including me) ride around on much less robust bikes with no problems for tens of thousands of miles. As mentioned you may want to get a little more assertive with RAD to resolve this for you. You could also give them a link to this thread which may get them to respond to protect their reputation.
Crankycrank is offline
Likes For Crankycrank:
Old 02-13-20, 09:29 AM
  #34
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,518

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 918 Post(s)
Liked 162 Times in 118 Posts
Originally Posted by jadocs View Post
How does that compress the seat tube to secure the seat post, are there slits cut into it?
No, it works like a quill lock on a drill press. There are two cylindrical pieces of (probably) steel that slide in and out in the tube that's welded to the seat tube. One piece on each side of the seat post. There are axial holes through the center of each piece for the QR to go through. In the tips of the cylindrical pieces there is a recess that fits the seatpost contour. Closing the QR presses the cylinders towards each other in the sleeve and squeezes against the seatpost. This pushes the cylinders against the sleeve. The frame doesn't flex to hold the post, so no slit needed.

Regarding fixing the frame, I stand by my recommendation: Toss it after you cut the top tube. If this was a pristine example of a superb vintage aluminum frame, perhaps you could fix it (probably 1: heat treat, 2: grind out chamfers to allow for weld material, 3: weld, 4: heat treat, 5: refinish and 6) ride it nervously, because you'll never be certain it's not going to break at the original break, or elsewhere). But it's a PIECE OF CHEAP CHINESE JUNK THAT ALREADY BROKE ONCE! Even the best repair will result in a REPAIRED PIECE OF CHEAP CHINESE JUNK. Perhaps the bike mfr does build some quality frames. This wasn't one of them. And cost! Skilled TIG welders aren't the cheapest skilled labor around - they're pretty talented people with rare skills. Just refinishing a bike (required after heat treating the frame) will be as expensive as a new frame.

Do what you will, but I urge you to ask before starting: is the view worth the climb?
WizardOfBoz is offline
Likes For WizardOfBoz:
Old 02-13-20, 09:38 AM
  #35
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,518

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 918 Post(s)
Liked 162 Times in 118 Posts
Originally Posted by CliffordK View Post
You might find this thread interesting:
Modifying a frame
Anyway, the user had a most unique tandem with a forward sloping top tube, and a tall mast on the seatpost similar to the OP's. He had to lower the seat by about 2".
However, the post used a unique half-moon lock in a tube.
So, that post lock was simply moved downward.
I went to the link, and in viewing the repairs it seems to me that 1) the tube containing the locking stuff is steel, and 2) other pics on that post show the dropouts on this bike being steel, and 3) the weld bead on the relocated tube looks pretty small (certainly not adequate for an weld in aluminum, and 4) the fix was obviously not post-weld heat treated. So I suspect that its steel. It's a clever mod, and in steel easily done. In aluminum, on a frame that's already broken, not so much.

Upon further research, the tandem is a Counterpoint Tandem Opus, which has a steel frame. (Interesting tandem: recumbent in front, upright seat in rear). So not applicable to the Al frame repair discussion because if you did that mod, you'd still have to post weld heat treat the whole frame, or you'd expect another crack in the area of the weld quite shortly.
https://aroundthecycle.com/products/...=8370188943420

Last edited by WizardOfBoz; 02-13-20 at 09:44 AM.
WizardOfBoz is offline
Old 02-13-20, 10:11 AM
  #36
erileykc
Senior Member
Thread Starter

erileykc's Avatar

Join Date: Jan 2011
Location: Washington DC
Posts: 98

Bikes: Raleigh Tourist, Jamis Coda, Rad City e-bike & a bright orange Citizen Miami folder

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Liked 2 Times in 2 Posts

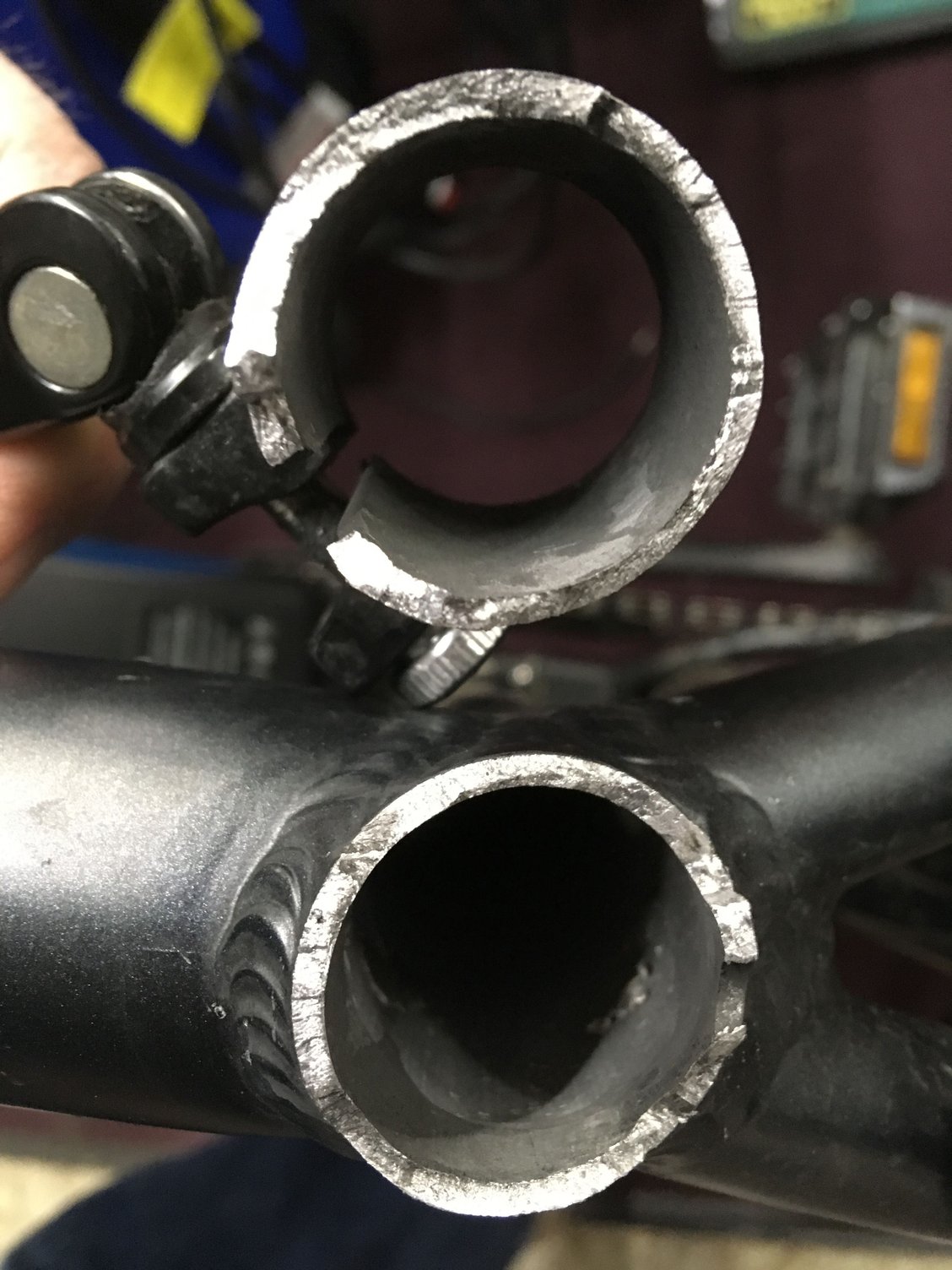

Someone asked to see the tube break edges end on so I have attached a pic of that and a pic of the location of the end of the tube in relation to the height limit mark on the seat post for those who questioned if this was operator error. I gather from reading in various Rad user groups that a fair number of people use these essentially as electric motorcycles so I suppose it's possible that by relying largely on the pedals and only using the motor sparingly I was stressing the frame more than the manufacturer expects and perhaps that constitutes user error.

I see that no one had anything to say about of my idea to install a new piece of similar aluminum tube eight inches or so into the broken seat tube cut and extending say four inches higher than the original tube ended, welding that at the broken top and installing a new seat post sized to fit that new and smaller tube. This would move the stress away from the original break location and the top tube welds. Doesn't seem a bad idea in theory compared to some others. What are the demerits of doing that?



Last edited by erileykc; 02-13-20 at 10:14 AM.
erileykc is offline
Old 02-13-20, 10:22 AM
  #37
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,518

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 918 Post(s)
Liked 162 Times in 118 Posts
I'm going to ask two questions, but if you want to persist, I'll give (e.g. shut) up.

Welding involves melting the metal being welded, and the heat required to do this leaves what is called a heat affected zone (HAZ). In aluminum especially, the metal in the HAZ is much weaker than properly heat -treated aluminum*, so normally you heat treat the frame after its welded. That either was not done, or not done properly on your bike, and you hold in your hands the broken parts that are a result of that poor manufacturing technique (or poor material quality).

Questions:
1) If you put a new tube in, presumably you'll need to weld it, creating a new HAZ. Are you prepared to heat treat your frame after doing this weld? Oh, and BTW, to refinish your frame after the heat treat destroys the finish?
2) Given that there's a chance that the material itself is of poor quality (e.g. improper metallurgy) are you prepared after doing all the work on the frame, to have it break again in a different place?

*In more common steels, the HAZ often does not lose much strength compared to the steel outsize the HAZ, and so you don't have to heat treat a steel frame after welding on it.
WizardOfBoz is offline
Old 02-13-20, 10:33 AM
  #38
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 1,463
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 223 Post(s)
Liked 39 Times in 29 Posts
Originally Posted by erileykc View Post
. I gather from reading in various Rad user groups that a fair number of people use these essentially as electric motorcycles so I suppose it's possible that by relying largely on the pedals and only using the motor sparingly I was stressing the frame more than the manufacturer expects and perhaps that constitutes user error.
There is no way that your bike should fail due to using the pedals more. Don't even consider it. It should be strong enough to survive pedaling. It has pedals and should be designed to use them.
Crankycrank is offline
Likes For Crankycrank:
Old 02-13-20, 10:43 AM
  #39
AnkleWork
Senior Member

Join Date: Jan 2013
Location: Llano Estacado
Posts: 3,704

Bikes: old clunker

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 684 Post(s)
Likes: 0
Liked 91 Times in 72 Posts
Originally Posted by erileykc View Post
...
I see that no one had anything to say about of my idea to install a new piece of similar aluminum tube eight inches or so into the broken seat tube cut and extending say four inches higher than the original tube ended, welding that at the broken top and installing a new seat post sized to fit that new and smaller tube. This would move the stress away from the original break location and the top tube welds. Doesn't seem a bad idea in theory compared to some others. What are the demerits of doing that?
Seems like that could work well -- good luck finding the right dimensioned tube and post. The lower binder on the seat tube with a longer post seems simpler. I'd try it with a split and hose clamps before anything fancy. Or maybe just epoxy in the post at the right height -- "measure four times..." Or hot melt glue could allow adjustment later.

As for pedaling, that usually puts less stress on the seat tube than just sitting.

Last edited by AnkleWork; 02-13-20 at 09:01 PM.
AnkleWork is offline
Old 02-13-20, 10:49 AM
  #40
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 24,088
Mentioned: 189 Post(s)
Tagged: 0 Thread(s)
Quoted: 10624 Post(s)
Liked 554 Times in 441 Posts
Originally Posted by erileykc View Post
Someone asked to see the tube break edges end on so I have attached a pic of that and a pic of the location of the end of the tube in relation to the height limit mark on the seat post for those who questioned if this was operator error. I gather from reading in various Rad user groups that a fair number of people use these essentially as electric motorcycles so I suppose it's possible that by relying largely on the pedals and only using the motor sparingly I was stressing the frame more than the manufacturer expects and perhaps that constitutes user error.

I see that no one had anything to say about of my idea to install a new piece of similar aluminum tube eight inches or so into the broken seat tube cut and extending say four inches higher than the original tube ended, welding that at the broken top and installing a new seat post sized to fit that new and smaller tube. This would move the stress away from the original break location and the top tube welds. Doesn't seem a bad idea in theory compared to some others. What are the demerits of doing that?


Do you know what has caused all the scratching on the seatpost? Has the post been slipping down?

27.2 is a pretty standard seatpost. You can get smaller posts. But, say going down to 25mm would be a quite a small post, and smaller than one commonly finds. That would only give you about a 1mm tube. Going to 2mm tubing, and you're down to 23mm. That wouldn't be my choice for a moderately heavy rider.

I think a couple of people mentioned the use of epoxy of one type or another.

Assuming you are the only rider, then there would be no reason not to simply clean everything up, then epoxy the post in place. At least it wouldn't make anything worse. You can use your clamp to help hold it in place as the epoxy cures.

Many bikes from 20 to 40 years ago had epoxy to avoid the heat issues that people have discussed. And, doing a 5" overlapping sleeve or so would be reasonably strong.

I'm not convinced that bike was designed to be heat treated. Not all 6061 is heat treated, & not all filler rod is designed for heat treating.

As far as "Chinese Bikes", perhaps 90% of the modern bikes are made in China, from Trek to Cannondale. The big companies may have a bit better quality control, and even better engineering than smaller companies, but we do get a lot of Chinese products here.
CliffordK is offline
Old 02-13-20, 12:17 PM
  #41
erileykc
Senior Member
Thread Starter

erileykc's Avatar

Join Date: Jan 2011
Location: Washington DC
Posts: 98

Bikes: Raleigh Tourist, Jamis Coda, Rad City e-bike & a bright orange Citizen Miami folder

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Liked 2 Times in 2 Posts
The scratching was from the first day I got the bike. Took a few tries to discover that the seat post clamp only worked reliably in one position. A large part of my world here in the US is built around Chinese made products and I am happy to use them. Pretty sure I'd never have been able to afford the nice laptop I'm typing this on had it been made in say Chicago. I have another cheap Chinese bike that is working fine although that bike is steel. That said there is a bell curve associated with much of this world and it's quite possible to buy products from China that are at the wrong place on that curve.

Thanks for the suggestion on the epoxy. That had really not occurred to me. My anxiety about all the red flags involved in welding aluminum makes the idea of epoxy very appealing.

Originally Posted by CliffordK View Post
Do you know what has caused all the scratching on the seatpost? Has the post been slipping down?
...
As far as "Chinese Bikes", perhaps 90% of the modern bikes are made in China, from Trek to Cannondale. The big companies may have a bit better quality control, and even better engineering than smaller companies, but we do get a lot of Chinese products here.
erileykc is offline
Likes For erileykc:
Old 02-13-20, 01:23 PM
  #42
2seven0
Senior Member

Join Date: Feb 2017
Location: O.C. CA
Posts: 82

Bikes: A few

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
[QUOTE=Bill Kapaun;21325637]Seeing how "cleanly" it broke near the toe of the weld (on the upper side) I'd consider this to be a lack of needed heat treatment after welding.

I agree with Bill's assessment of the damage. The welds look fine to me and if the frame was not post-weld heat-treated then artificially aged to a homogenous T6 condition it isn't the welders fault.
(Aerospace welding is my profession I've been qualified since 1981.)
West
2seven0 is offline
Likes For 2seven0:
Old 02-13-20, 02:00 PM
  #43
alo
Senior Member

Join Date: Feb 2020
Posts: 193
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Likes: 0
Liked 34 Times in 27 Posts
Originally Posted by erileykc View Post
I see that no one had anything to say about of my idea to install a new piece of similar aluminum tube eight inches or so into the broken seat tube cut and extending say four inches higher than the original tube ended, welding that at the broken top and installing a new seat post sized to fit that new and smaller tube. This would move the stress away from the original break location and the top tube welds. Doesn't seem a bad idea in theory compared to some others. What are the demerits of doing that?
It is a good idea, but I would look for a way of securing it other than welding. You could even use steel, which would be even stronger. I would extend it more than four inches above the top. The seat post above that new extension, could be internal or external, which ever size tube you can find. External would be stronger.
alo is online now
Old 02-13-20, 02:19 PM
  #44
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,989

Bikes: old ones

Mentioned: 251 Post(s)
Tagged: 0 Thread(s)
Quoted: 16740 Post(s)
Liked 765 Times in 604 Posts
Originally Posted by erileykc View Post

I see that no one had anything to say about of my idea to install a new piece of similar aluminum tube eight inches or so into the broken seat tube cut and extending say four inches higher than the original tube ended, welding that at the broken top and installing a new seat post sized to fit that new and smaller tube. This would move the stress away from the original break location and the top tube welds. Doesn't seem a bad idea in theory compared to some others. What are the demerits of doing that?

...extending the repair tubing even higher doesn't do anything except to increase the lever arm length of the business end above the top tube. Draw it out and try to visualize it.
As your weight pushes down on the saddle and seat post, you would, if anything, increase the stresses on the seat tube/top tube interface right there at the top surface of the top tube.

Otherwise, I guess this might work if you could find the tubing to accomplish it. It's probably worth a shot, because generally whatever you do is likely to give you some early warning signs of failure. So if you check regularly at your repair for signs of cracking or maybe welds breaking, you're less likely to crash and injure yourself. If I were attempting something like that, I'd try to get as much of the repair tubing down inside the seat tube as I could, and probably cut it off pretty short...just long enough above the top tube.seat tube junction to allow for slotting and clamping.

And epoxy might very well work for this sort of repair, if your internal tube is well fitted.

Last edited by 3alarmer; 02-13-20 at 02:22 PM.
3alarmer is online now
Old 02-13-20, 02:21 PM
  #45
alo
Senior Member

Join Date: Feb 2020
Posts: 193
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Likes: 0
Liked 34 Times in 27 Posts
Consider using a piece of aluminum or steel bent in a U shape under the bar. It would need to be fairly thick, or it would flex, and the seat would twist. You could have rubber inside the U bracket. You could try various thicknesses of rubber until you get a secure fit.

alo is online now
Old 02-13-20, 02:51 PM
  #46
Iride01
Senior Member

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 2,620

Bikes: '20 Tarmac Disc Comp '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 984 Post(s)
Liked 112 Times in 87 Posts
Even if embrittlement from the welding is an issue, I'd still have to wonder where the stress is coming from. Is the seat post itself not rigid enough and flexing while being ridden? Or is the seat tube diameter four to five inches down inside where the very end of the seat post sits too big, letting the post rock back and forth pivoting on the clamped area as it's ridden?

If I couldn't get another bike, I'd get it welded by someone I trusted or at least seemed knowledgeable and just watch everything a little closer. Unless you are racing this thing, then you got a fair chance of surviving as long as you don't land on your skull.
Iride01 is offline
Likes For Iride01:
Old 02-13-20, 03:13 PM
  #47
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 24,088
Mentioned: 189 Post(s)
Tagged: 0 Thread(s)
Quoted: 10624 Post(s)
Liked 554 Times in 441 Posts
Originally Posted by alo View Post
It is a good idea, but I would look for a way of securing it other than welding. You could even use steel, which would be even stronger. I would extend it more than four inches above the top. The seat post above that new extension, could be internal or external, which ever size tube you can find. External would be stronger.
Not a bad idea of using a different material. Chromoly, Stainless, or Titanium. Then just epoxy it into place. It does still reduce the size of the seatpost slightly, but perhaps not as much as an aluminum liner would require.
CliffordK is offline
Old 02-13-20, 04:09 PM
  #48
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 6,654

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) '82 nishiski,

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 1001 Post(s)
Liked 226 Times in 169 Posts
Originally Posted by CliffordK View Post

A lot of people don't like welding onto an existing bead, although it was the tube and not the weld bead that failed.
it sure looks to me like it failed at the edge of the weld bead all around. Which suggest that something about the welding introduced a failure point that is what makes me feel the integrity of the frame as whole is suspect. This all goes out the window if the seat post was installed such that the bottom of it was at the edge of the weld bead, but I believe the OP said that was not the case.
__________________
Looking for more time to ride what I have
squirtdad is offline
Old 02-13-20, 04:41 PM
  #49
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 24,088
Mentioned: 189 Post(s)
Tagged: 0 Thread(s)
Quoted: 10624 Post(s)
Liked 554 Times in 441 Posts
Originally Posted by squirtdad View Post
it sure looks to me like it failed at the edge of the weld bead all around. Which suggest that something about the welding introduced a failure point that is what makes me feel the integrity of the frame as whole is suspect. This all goes out the window if the seat post was installed such that the bottom of it was at the edge of the weld bead, but I believe the OP said that was not the case.
Looking at the photo, it looks like there was about 6" of post in the hole which should have been sufficient.

The clamp does look pinched in slightly, but I'm not sure if that is normal or not. It certainly would be within an acceptable range for a steel bike.
CliffordK is offline
Old 02-13-20, 05:26 PM
  #50
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,518

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 918 Post(s)
Liked 162 Times in 118 Posts
Originally Posted by CliffordK View Post
I'm not convinced that bike was designed to be heat treated. Not all 6061 is heat treated, & not all filler rod is designed for heat treating.
Welding 6061-T6 (6061 heat treated to get the T6 temper) reduces the material to what is referred to as 6061-0, with strength of between 30 and 60% of T6. To get back the 40-70% of the strength you lost in welding, you need to do solution-precipitation heat treating. You heat the assembly up to about 1000F for a bit, then you quench the thing. This dissolves all the alloying elements into a metal solution, and the quenching essentially freezes the alloy in solution form. This gives you 6061-T4. Then you precipitate certain combinations of the alloying elements by heating to about 400F and ageing it for several hours (longer for lower temps, shorter for temps 25 or so higher). This gives you 6061-T6.

For filler you use 4043 filler mostly. You can use 4643 filler wire which has more magnesium to make it more susceptible to heat treatment. But neither wire gives you T6 (that is, the untreated joint remains very weak compared to surrounding metal) without the full treatment of solution at 1000F and quenching, then precipitation aging. Ageing alone won't cut it.

If your bike can take joints that are only 30% of the strength of base metal, you don't need to heat treat. But because modern bike frames must already be beefy enough to keep stresses low to avoid fatigue failure, no modern frame will have the added mass to allow it to survive without proper heat treatment. As the OP found. I agree with the aerospace welder: the original bike welder may have done a great job (its certainly aesthetically adequate) and was let down by his heat-treating colleagues.
WizardOfBoz is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
