Wheel dishing problem

I just rebuilt the wheels on my 78 Schwinn Superior using the original Weinmann 27" rims and Schwinn Approved Deluxe / Normandy Luxe 36 hole hubs. The old spokes were corroded, and I wanted to bring back the shine like when it was new in 79 when I bought it. I measured the old spokes and found that the ds and nds were both 306mm so that's what I used to rebuild them. They are 4 cross btw. This was just my fourth set of wheels that I've built, and the first that used the same length for both sides. When I was done with the back wheel, it was off centered with the frame by quite a bit so I took it to the lbs for their advice. They said you need to tighten the ds more to pull it over which made sense, so I just had them do it for me. It's better but still not centered. Should I re-lace the ds with shorter spokes, and how much shorter?

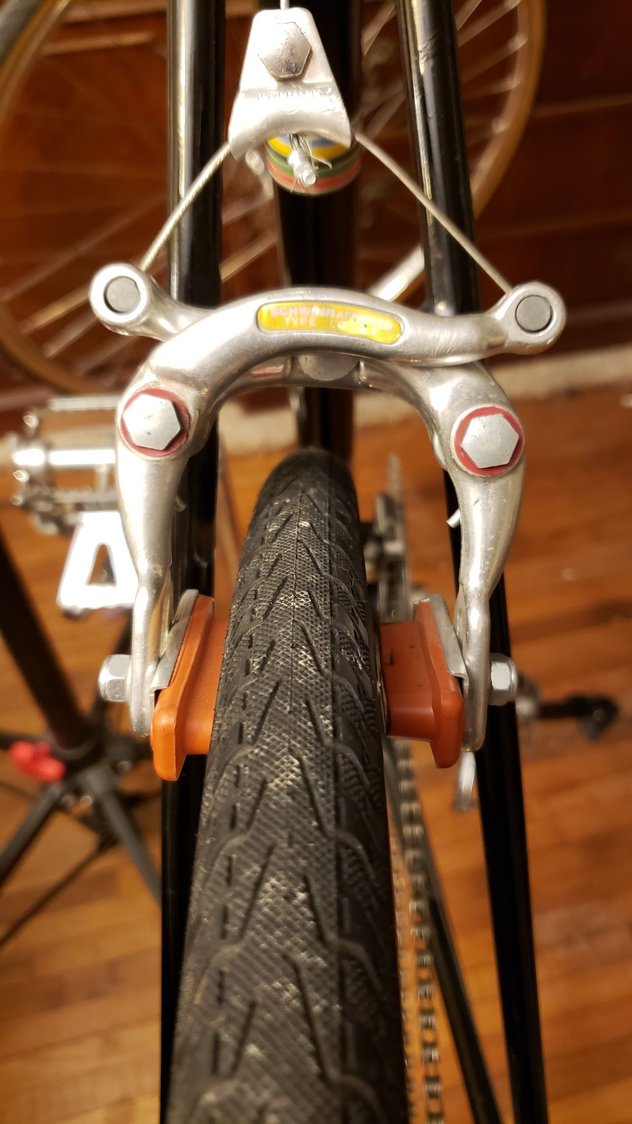

The wheel was properly centered before I rebuilt it so I know the frame is good. Here's a pic of it. It's not bad and it rides ok but it's not centered like it was.
76SLT is offline
Old 02-24-20, 07:54 PM
  #2
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,090

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1497 Post(s)
Liked 759 Times in 557 Posts
Loosen the NDS spokes some.
On a multi cog rear wheel, the NDS spokes have a greater effect due to the bracing angle being different than the DS.
Bill Kapaun is offline
Old 02-24-20, 08:20 PM
  #3
bitpuddle
Senior Member

Join Date: Jan 2015
Location: Brooklyn, NY
Posts: 81

Bikes: Cinelli Nemo Tig / Battaglin Power Plus / Giant TCR SL

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Liked 18 Times in 13 Posts
Drive and non-drive side spokes should be a couple of mm different, but those old hubs might have required so much less dish that the factory used the same length spokes to save money. Any reasonable mechanic should be able to re-dish that wheel; a proper dishing tool makes it straightforward.
bitpuddle is offline
Old 02-24-20, 08:41 PM
  #4
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,050

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3628 Post(s)
Liked 2,058 Times in 1,306 Posts
Originally Posted by 76SLT View Post
The wheel was properly centered before I rebuilt it so I know the frame is good.
You sure? Could be that the frame is tweaked a little and the wheel was trued off-center to work with it.

Try flipping the wheel in the dropouts to see if the rim is still too far to the left, or if it is now too far to the right.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 02-24-20, 09:04 PM
  #5
76SLT
Cycologist
Thread Starter

76SLT's Avatar

Join Date: Jun 2017
Location: Earlville, IL
Posts: 641

Bikes: Some Schwinns, Raleighs, Centurions, Crescent, Bianchi

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 239 Post(s)
Liked 260 Times in 109 Posts
Originally Posted by bitpuddle View Post
Drive and non-drive side spokes should be a couple of mm different, but those old hubs might have required so much less dish that the factory used the same length spokes to save money. Any reasonable mechanic should be able to re-dish that wheel; a proper dishing tool makes it straightforward.
I think I'm going to replace the ds spokes with some 304mm spokes and see how it comes out.
76SLT is offline
Old 02-24-20, 09:06 PM
  #6
Russ Roth
Senior Member

Join Date: Dec 2019
Location: South Shore of Long Island
Posts: 2,099

Bikes: 2010 Carrera Volans, 2015 C-Dale Trail 2sl, 2017 Raleigh Rush Hour, 2017 Blue Proseccio, 1992 Giant Perigee, 80s Gitane Rallye Tandem

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 795 Post(s)
Liked 639 Times in 481 Posts
Originally Posted by ThermionicScott View Post
You sure? Could be that the frame is tweaked a little and the wheel was trued off-center to work with it.

Try flipping the wheel in the dropouts to see if the rim is still too far to the left, or if it is now too far to the right.
This, or run a string from one dropout to the headtube, and down to the other dropout. If the distance between the string and the seat tube is different on both sides the rear isn't straight.
Russ Roth is offline
Old 02-24-20, 09:08 PM
  #7
76SLT
Cycologist
Thread Starter

76SLT's Avatar

Join Date: Jun 2017
Location: Earlville, IL
Posts: 641

Bikes: Some Schwinns, Raleighs, Centurions, Crescent, Bianchi

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 239 Post(s)
Liked 260 Times in 109 Posts
Originally Posted by ThermionicScott View Post
You sure? Could be that the frame is tweaked a little and the wheel was trued off-center to work with it.
I haven't checked the frame for straightness but I've had it since new and it's never been crashed. If it has 200 miles on it I'd be surprised. I didn't ride it much and only got it out of storage a few years ago.
76SLT is offline
Old 02-24-20, 09:13 PM
  #8
HerrKaLeun
Senior Member

Join Date: Mar 2017
Location: Madison, WI
Posts: 1,923

Bikes: Giant Toughroad SLR1 and Motobecane Sturgis NX

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 900 Post(s)
Liked 228 Times in 166 Posts
Use truing stand and dishing tool.

Spoke lengths should be calculated based on hub and rim measurement.
HerrKaLeun is offline
Old 02-24-20, 09:14 PM
  #9
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,090

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1497 Post(s)
Liked 759 Times in 557 Posts
Originally Posted by 76SLT View Post
I think I'm going to replace the ds spokes with some 304mm spokes and see how it comes out.
WHY?
It's the difference in spoke tension that causes the dish.
Back off the NDS spokes a bit. You probably don't need more than 1/4-1/2 turn.
It's either tighten DS or loosen NDS spokes.
Once your DS spokes get too tight, you only have one other alternative.
Bill Kapaun is offline
Old 02-24-20, 09:26 PM
  #10
76SLT
Cycologist
Thread Starter

76SLT's Avatar

Join Date: Jun 2017
Location: Earlville, IL
Posts: 641

Bikes: Some Schwinns, Raleighs, Centurions, Crescent, Bianchi

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 239 Post(s)
Liked 260 Times in 109 Posts
Originally Posted by Bill Kapaun View Post
WHY?
It's the difference in spoke tension that causes the dish.
Back off the NDS spokes a bit. You probably don't need more than 1/4-1/2 turn.
It's either tighten DS or loosen NDS spokes.
Once your DS spokes get too tight, you only have one other alternative.
I'll give it a try, thanks.
76SLT is offline
Old 02-24-20, 09:38 PM
  #11
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 1,948

Bikes: Schwinn Paramounts, Othon Ochsner, Masi, Faggin

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 819 Post(s)
Liked 840 Times in 584 Posts
76SLT,
If memory serves me right all of those old five speed Schwinns were built with the same size spokes. Back then they were using 12-1/8" spokes made by Union and all of the wheels were four cross patterns. The difference was that the wheel build required a difference of about two turns of each spoke less on the non drive side than the drive side. As BK points out it is fairly easy from an engineering mindset, But to put it lay terms: one side is not tightened as much as the other, and in this case it is about two turns of the spokes on the NDS. HTH, MH

Last edited by Mad Honk; 02-24-20 at 11:23 PM.
Mad Honk is online now
Old 02-25-20, 07:19 AM
  #12
Prowler
Senior Member

Join Date: Nov 2013
Location: Near Pottstown, PA: 30 miles NW of Philadelphia
Posts: 1,965

Bikes: 2 Trek Mtn, Cannondale R600 road, 6 vintage road bikes

Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 399 Post(s)
Liked 588 Times in 282 Posts
Originally Posted by ThermionicScott View Post
. Try flipping the wheel in the dropouts to see if the rim is still too far to the left, or if it is now too far to the right.
When I build a wheel (or retension one during a rehab) I start with checking the dish, spokes barely tensioned, then recheck dish often as it's brought up. Same with hop and runout. Much easier than correcting after the fact. As I built my own truing stand, with the means to easily flip the wheel to check centering, this is just part of the process. I suppose manufactured stands have the means to do it too. Caution: the two Park truing stands at work are not aligned to check for dish and no one seems inclined to correct them. Fine with me, but do not assume that any professional or credible stand is properly aligned. Maybe that's why dishing tools sell well.

I prefer ensuring, first, that the rim is centered over the lock nuts. Then, knowing that is fine, see how it does in the frame, is the frame or fork ok?
Prowler is offline
Likes For Prowler:
Old 02-25-20, 10:56 AM
  #13
76SLT
Cycologist
Thread Starter

76SLT's Avatar

Join Date: Jun 2017
Location: Earlville, IL
Posts: 641

Bikes: Some Schwinns, Raleighs, Centurions, Crescent, Bianchi

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 239 Post(s)
Liked 260 Times in 109 Posts
You all had great advice, and with that advice I was able to make adjustments that resulted in a perfectly centered wheel. Thank you all.
