Headset Bolt Tightness? Ever Had It Come Loose While Riding?

Okay, I know as a sheep walking into the wolves' den of mechanics I may lose some fur, but:

Yes, I know about torque specs. No, I haven't ever used a torque wrench on any of my bikes.

Yesterday, I transported our child in one of these iberts for the first time (not a pic of my bike here, but you can see how it attaches):




I had installed it the night before, and in the process, changed the height of the stem. When I tightened the stem bolt I know I didn't tighten it very tightly, as I have a thing where I hate to strip out threads.

Well, riding home with my baby yesterday going slowly up a hill, simultaneously the child seat clamp came loose and the stem came loose resulting in the wheel cocking to the side!

The seat coming loose, I know why it happened and fortunately, it is not a catastrophic failure. The seat and child just flops a bit to the side.

Here is what has me freaked out: The stem coming loose. I've had a love affair of riding bikes for most of my life. Like many of you, I've ridden probably over 100 different bikes in many and varied conditions, including bombing down hills at 30+ MPH. Never once did I realize that all it would take for the wheel to suddenly cock to the side and become independent of the bars is for that one bolt to come loose.

Isn't that a harrowing thought?

Fortunately, I did carry in my pocket two Allen wrenches required to retighen the bolts and continue on home. I have since given the stem bolt some good cranks with the Allen wrench that is about the length of 2/3 the width of my hand (so, not a lot of leverage).

How tightly should I tighten that bolt, and what the freak are the chances of such a failure again? I know, it's not happened before in my 40 year history of riding, but again, the new realization/thought has me freaked out.

Last edited by thriftyswift3; 03-04-20 at 10:41 PM. Reason: I guess I can't edit the title to fix the typo. Oh well.
thriftyswift3 is offline
Old 03-04-20, 11:36 PM
  #2
cpach
Senior Member

Join Date: Oct 2009
Location: Mt Shasta, CA, USA
Posts: 1,755

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 389 Post(s)
Liked 155 Times in 124 Posts
Torque spec on quill bolts is hellatight, or actually 20-30nm. You should always test to see if you can forcefully twist the handlebars with the wheel held in your knees. On some setups, particularly with poor quality stems, it can be actually difficult to make it impossible to turn the bars. Normal best practices are to grease everything, but sometimes I'll put carbon assembly paste on the wedge portion of the stem to increase friction if no sane amount of torque can prevent the bars from turning with force.
cpach is offline
Likes For cpach:
Old 03-05-20, 08:26 AM
  #3
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 22,986

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 113 Post(s)
Tagged: 1 Thread(s)
Quoted: 3522 Post(s)
Liked 983 Times in 611 Posts
Originally Posted by thriftyswift3 View Post
Okay, I know as a sheep walking into the wolves' den of mechanics I may lose some fur, but:

Yes, I know about torque specs. No, I haven't ever used a torque wrench on any of my bikes.
Because of the way that the wedge works on a stem, I don't think there is a torque specification on it. The wedge has to "wedge" in the steer tube and how much pressure is needed is going to depend on several factors.

Originally Posted by thriftyswift3 View Post
Yesterday, I transported our child in one of these iberts for the first time (not a pic of my bike here, but you can see how it attaches):




I had installed it the night before, and in the process, changed the height of the stem. When I tightened the stem bolt I know I didn't tighten it very tightly, as I have a thing where I hate to strip out threads.

Well, riding home with my baby yesterday going slowly up a hill, simultaneously the child seat clamp came loose and the stem came loose resulting in the wheel cocking to the side!

The seat coming loose, I know why it happened and fortunately, it is not a catastrophic failure. The seat and child just flops a bit to the side.

Here is what has me freaked out: The stem coming loose. I've had a love affair of riding bikes for most of my life. Like many of you, I've ridden probably over 100 different bikes in many and varied conditions, including bombing down hills at 30+ MPH. Never once did I realize that all it would take for the wheel to suddenly cock to the side and become independent of the bars is for that one bolt to come loose.

Isn't that a harrowing thought?

Fortunately, I did carry in my pocket two Allen wrenches required to retighen the bolts and continue on home. I have since given the stem bolt some good cranks with the Allen wrench that is about the length of 2/3 the width of my hand (so, not a lot of leverage).

How tightly should I tighten that bolt, and what the freak are the chances of such a failure again? I know, it's not happened before in my 40 year history of riding, but again, the new realization/thought has me freaked out.
You are asking a lot from a stem, especially one for a threaded headset. The stem is only meant to gently nudge the front wheel so that you can steer. It's not really meant to carry a load. Putting a load on the stem adds a torque that it really isn't meant to take and in a direction it isn't meant to move. You can try tightening the stem but there is a limit to how much you can tighten it.

The wedge is a wedge (well, duh!) but that means that it can put pressure on the steer tube. Tighten it too much and you risk bulging the steer tube at a minimum. You could even split the tube if you try to tighten it too much. In the worst case, the tube is deformed enough that you can't get it past the cup of the headset.

Frankly, looking at the mechanism, stem movement seems inevitable.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 03-05-20, 08:39 AM
  #4
Iride01
Senior Member

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 4,381

Bikes: '20 Tarmac Disc Comp '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1648 Post(s)
Liked 530 Times in 407 Posts
Hmmmm...... and infant/child car seats in automobiles are the subject of safety concerns all the time.
Iride01 is online now
Likes For Iride01:
Old 03-05-20, 08:40 AM
  #5
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 32,267

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 1443 Post(s)
Likes: 0
Liked 262 Times in 211 Posts
Frankly, that seems to me to be a terrible design for a child carrier. First, as noted, it puts a load on the stem it was never intended to take. Second, in the event of an accident, the child hits first.
HillRider is online now
Likes For HillRider:
Old 03-05-20, 09:03 AM
  #6
Wilfred Laurier
Señor Member

Wilfred Laurier's Avatar

Join Date: Feb 2013
Posts: 5,031
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 627 Post(s)
Liked 261 Times in 191 Posts
That picture seems to show some markings on the stem's quill well above the top of the headset nut. The only markings you will regularly find on a stem's quill are at the 'maximum extension' line.

I suspect that stem was way too high and the fault lies with the person who installed it. In other words, the problem is not a loose bolt int he stem, but a loose nut on the saddle
Wilfred Laurier is offline
Likes For Wilfred Laurier:
Old 03-05-20, 09:17 AM
  #7
thriftyswift3
Roll Swift on the Thrift.
Thread Starter

Join Date: Jul 2018
Posts: 51

Bikes: Nishiki Olympic, Fuji Grand, 1980? Scwhinn Le Tour, 1970 Concord Deluxe, American Flyer Emperor, 198(x) Cannondale road bike, Trek 720 Multi Trak, 198(x) Cannondale mountain bike, 198(x) Motobecane road bike, 196(x) Sears cruiser, 1960 Scwhinn Racer

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 14 Times in 7 Posts
Originally Posted by Wilfred Laurier View Post
That picture seems to show some markings on the stem's quill well above the top of the headset nut. The only markings you will regularly find on a stem's quill are at the 'maximum extension' line.

I suspect that stem was way too high and the fault lies with the person who installed it. In other words, the problem is not a loose bolt int he stem, but a loose nut on the saddle
Good observation! As I noted, however, that is not a picture of my bike. I pulled that off the web just to show the setup.
thriftyswift3 is offline
Old 03-05-20, 09:30 AM
  #8
Iride01
Senior Member

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 4,381

Bikes: '20 Tarmac Disc Comp '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1648 Post(s)
Liked 530 Times in 407 Posts
I take a dim view of putting an infant seat up on the handlebars. When I wrecked last year, except for some cosmetic scrapes elsewhere, the damage was concentrated on the handlebar area. Evidence of the force the bars and headset took was a bulge in the steel of the top tube near the lug joining it to the headset.

I'd think a trailer the safest option and possibly over the rear wheel the only other choice. However I don't know for certain, these are only my initial thoughts on something I've never read about or discussed.
Iride01 is online now
Likes For Iride01:
Old 03-05-20, 12:23 PM
  #9
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,571

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1158 Post(s)
Liked 550 Times in 396 Posts
The way the carrier is mounted puts a lot of rearwards force onto the stem due to the leverage of the mounting arm. Looks kind of scary to me.
dsbrantjr is offline
Likes For dsbrantjr:
Old 03-05-20, 01:01 PM
  #10
AnkleWork
Senior Member

Join Date: Jan 2013
Location: Llano Estacado
Posts: 3,702

Bikes: old clunker

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 684 Post(s)
Likes: 0
Liked 97 Times in 75 Posts
Originally Posted by thriftyswift3 View Post
...
How tightly should I tighten that bolt, and what the freak are the chances of such a failure again? I know, it's not happened before in my 40 year history of riding, but again, the new realization/thought has me freaked out.
Your stem was grossly under-tightened, but it should not be over-tightened either. The stem should slip with a moderate impact to the wheel or fork. This will reduce impacts to the child.

Still, neither that location nor mounting for a child seat is safe. There are much better options.
AnkleWork is offline
Likes For AnkleWork:
Old 03-06-20, 04:59 PM
  #11
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,060
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1619 Post(s)
Liked 674 Times in 516 Posts
Originally Posted by thriftyswift3 View Post
.... that is not a picture of my bike....
In that case, every reply on this thread (no pun intended...) is based on an assumption, the premise of which hasn't been established. The photo shows a THREADED (quill) stem/headset/fork design. In addition, your opening post refers to both a "headset" and "stem" bolt, which is ambiguous. So, significant clarification is needed:
* Does your bike have a threaded/quill stem, or threadless?
* If threadless, was it the bolt for the headset preload (top cap) or the bolt(s) for the stem (side bolt(s)) that came loose?
Torque specs for the above vary, so knowing which equipment you have, and what came loose, will determine the torque answers.

Ultimately, however, the distinction won't make much difference with respect to the setup with the child seat. As said, it's asking an awful lot of the steerer, whichever version it is. Even if it could be mechanically secured, given the high center of gravity, and the nature of the "cargo", it's not exactly dressed for success.
madpogue is offline
Old 03-10-20, 10:21 PM
  #12
thriftyswift3
Roll Swift on the Thrift.
Thread Starter

Join Date: Jul 2018
Posts: 51

Bikes: Nishiki Olympic, Fuji Grand, 1980? Scwhinn Le Tour, 1970 Concord Deluxe, American Flyer Emperor, 198(x) Cannondale road bike, Trek 720 Multi Trak, 198(x) Cannondale mountain bike, 198(x) Motobecane road bike, 196(x) Sears cruiser, 1960 Scwhinn Racer

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 14 Times in 7 Posts
It took me while to reply because a few times it seemed this site was having some problems.

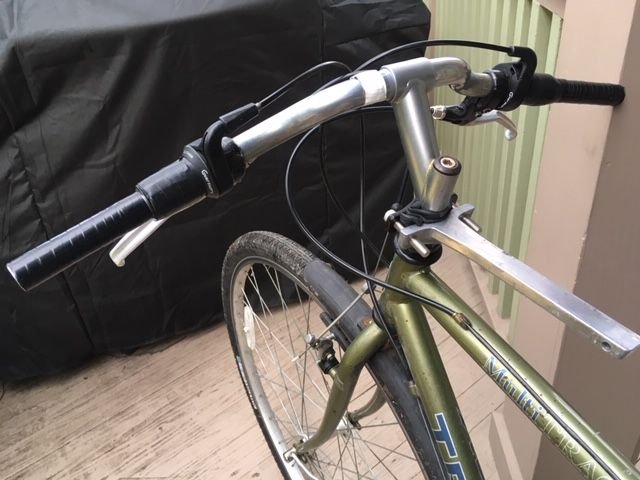

It is an old style threaded headset. The bike is a TREK 720 Multitrack that someone on my street had set out with the trash. I figure the bike is probably from the 1980s or 90s.
thriftyswift3 is offline
Old 03-10-20, 11:26 PM
  #13
Russ Roth
Senior Member

Join Date: Dec 2019
Location: South Shore of Long Island
Posts: 899

Bikes: 2010 Carrera Volans, 2015 C-Dale Trail 2sl, 2017 Raleigh Rush Hour, 2017 Blue Proseccio, 1992 Giant Perigee, 80s Gitane Rallye Tandem

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 327 Post(s)
Liked 224 Times in 169 Posts
Originally Posted by cyccommute View Post

The wedge is a wedge (well, duh!) but that means that it can put pressure on the steer tube. Tighten it too much and you risk bulging the steer tube at a minimum. You could even split the tube if you try to tighten it too much. In the worst case, the tube is deformed enough that you can't get it past the cup of the headset.

Frankly, looking at the mechanism, stem movement seems inevitable.
Have you ever actually seen any of these situations happen? It all sounds plausible but improbable.

Originally Posted by HillRider View Post
Frankly, that seems to me to be a terrible design for a child carrier. First, as noted, it puts a load on the stem it was never intended to take. Second, in the event of an accident, the child hits first.
Couldn't agree more. I always refused to install these in the shops I worked in. I liked to point out that most accidents people had were running into things or crashing forward (sewer grate, cracks in the road, pot holes, etc) which basically turns the kid into an airbag, and airbags aren't meant to last more then one hit.
As you just learned things can happen fast, put the kid behind you in a seat or trailer.
Also the torque on that is really frickkin tight. Never used a torque wrench on one, just tighten till the 6mm L wrench started to flex.
Russ Roth is offline
Old 03-11-20, 08:29 AM
  #14
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 22,986

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 113 Post(s)
Tagged: 1 Thread(s)
Quoted: 3522 Post(s)
Liked 983 Times in 611 Posts
Originally Posted by Russ Roth View Post
Have you ever actually seen any of these situations happen? It all sounds plausible but improbable.
Yes. Not often but it can happen. Attempting to tighten the stem bolt too much could also result in rounding out of the bolt head. Neither situation is easy to deal with.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 03-11-20, 09:03 AM
  #15
Unca_Sam
The dropped

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 1,538

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1118 Post(s)
Liked 512 Times in 366 Posts
here.
I use 170 in lbs. torque on threaded stem bolts (unless specified otherwise). That ends up as almost 20 Nm before the wrench clicks. The only time a stem has slipped on me was when I neglected this step (while trying to find the right stem height). With the number of stuck quill stems we encounter in the C&V republic, applying grease to the quill and wedge seems like something silly to avoid. I could get behind the CF anti-slip paste, though I don't own any CF handlebars or seat posts.
Unca_Sam is offline
Likes For Unca_Sam:
Old 03-11-20, 09:11 AM
  #16
infamousfaith
Junior Member

infamousfaith's Avatar

Join Date: Mar 2020
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Yeah that looks really dangerous to be putting an infant on, I wouldn't risk it. The way it's designed is poor holding onto a tube vertically like that, no matter how much clamping force you apply It'll always have a tendency to move around. Definitely go back to the drawing board on this one and think it out.
infamousfaith is offline
Likes For infamousfaith:
Old 03-11-20, 10:00 AM
  #17
2old
Senior Member

Join Date: Jul 2014
Location: socal
Posts: 2,321
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 393 Post(s)
Liked 165 Times in 120 Posts
I rode extensively for 10 or so years mostly off road or on wide sidewalks with a succession of children (yeah, overdid it) in a rear-mounted child seat and the only accident I recall was when the bike slid out. The sides of the seat protected my son and he wasn't even dinged. Can't imagine ever using any type of front carrier. Also, have tightened stem bolts to the limits of a six mm wrench and never had a problem. I'd need to see an oval steerer tube before believing someone could do it unless the tubing was paper thin.
2old is offline
Likes For 2old:
Old 03-11-20, 10:03 AM
  #18
woodcraft
Senior Member

woodcraft's Avatar

Join Date: Apr 2012
Location: Nor Cal
Posts: 5,283
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1484 Post(s)
Likes: 0
Liked 519 Times in 307 Posts
There are folks around here that freak out over a scratch on the frame,

but that (cast aluminum?) clamp is catastrophe waiting to happen.

I'm surprised the company has not already been sued out of existence.


From Amazon reviews:


woodcraft is online now
Likes For woodcraft:
Old 03-11-20, 05:10 PM
  #19
thriftyswift3
Roll Swift on the Thrift.
Thread Starter

Join Date: Jul 2018
Posts: 51

Bikes: Nishiki Olympic, Fuji Grand, 1980? Scwhinn Le Tour, 1970 Concord Deluxe, American Flyer Emperor, 198(x) Cannondale road bike, Trek 720 Multi Trak, 198(x) Cannondale mountain bike, 198(x) Motobecane road bike, 196(x) Sears cruiser, 1960 Scwhinn Racer

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 14 Times in 7 Posts
Well, dang it. I know I'd seen these ibert seats years ago, before we had kids and it seemed like the cool parents used them. Ha.

I got the seat at a Performance Bicycle store that was liquidating. Got it for $20.

The seat says it's made in USA.

All these things made like the seat, but I understand and agree that it's not a great mounting concept. That broken clamp is alarming too!

Yeah, we had a Kettler seat for our first child (behind the rider) but we sold it because we were not going to have another child. I do have a trailer as well – actually two trailers!
thriftyswift3 is offline
Old 03-12-20, 08:25 AM
  #20
zacster
Senior Member

Join Date: Jul 2004
Location: Brooklyn NY
Posts: 6,956
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 210 Times in 168 Posts
I've returned both a bike child carrier and a child backpack carrier due to safety concerns, this 25+ years ago as my kids are all adults now. On the backpack, the kid could flip right out of it as I recall. The bike carrier just didn't attach to the bike very well. Both were from the better outdoor equipment brands and were supposed to be the best. You could tell they were made to photograph well in the catalogs (we had slow internet but still referred to catalogs back then.) I still have the Blackburn rack from the bike carrier I ultimately used and it is still attached to the commuter bike. The carrier itself attached firmly to the rack and they were sold together as a system and the carrier was removable. I think we discarded the seat portion as it had gotten moldy in our damp basement and we pretty clearly aren't having any more kids! I just looked at Amazon quickly and I don't see anything like it but I'm sure there are somewhere.
zacster is offline
Old 03-12-20, 08:29 AM
  #21
thriftyswift3
Roll Swift on the Thrift.
Thread Starter

Join Date: Jul 2018
Posts: 51

Bikes: Nishiki Olympic, Fuji Grand, 1980? Scwhinn Le Tour, 1970 Concord Deluxe, American Flyer Emperor, 198(x) Cannondale road bike, Trek 720 Multi Trak, 198(x) Cannondale mountain bike, 198(x) Motobecane road bike, 196(x) Sears cruiser, 1960 Scwhinn Racer

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 14 Times in 7 Posts
You know, I still like my Ibert, but here's another feature at which we may chuckle. Ride with the child seat removed and this is waiting to, um, give you the shaft:
thriftyswift3 is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
