I don't like doing the bottom bracket

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

I don't like doing the bottom bracket

Old 03-20-20, 06:45 PM
  #1
BCDrums
Recreational Road Cyclist
Thread Starter

BCDrums's Avatar

Join Date: Sep 2013
Location: MetroWest, Mass.
Posts: 278

Bikes: 1990 Peter Mooney road bike

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Liked 61 Times in 43 Posts
I don't like doing the bottom bracket

Somewhere in the '90s, I stopped maintaining the bottom bracket of my bike and let the LBS do it. When I did the work, it always ended up with ball bearings all over the floor, too much play, and grease on every available surface and object.

But today I did my own service, on a '90s Shimano Cup 'n' Cone bottom bracket. Here are my observations.

I had the right tools; a Park crank puller, a Sugino lock-ring/fixed cup wrench, some grade-25 ball bearings, and some fresh slippery grease. I had a Park pin-spanner for the adjustable cup. I had Cabernet for the afterparty.

The cranks came off lickety-split, with a crank bolt wrench and a crank puller from our friends at Park Tools. Then, the grease hit the fan.

I spent more than a half-hour trying to remove the lock ring for the adjustable cup. I had a Sugino lock ring wrench from the Bush administration, but the lock ring said no. I applied PB Blaster penetrating oil and heat from an old hair dryer, more than once. I beat on the wrench with a block of wood. Used a hammer and screwdriver in a notch. Finally, I attacked the lock-ring wrench with a claw hammer, and the ring moved.

Lunchtime.

Feeling omnipotent after humiliating the lock ring, I went after the fixed cup. I assaulted it with the Sugino wrench, a block of wood, some coarse language, and finally the claw hammer. I fought the law, and the law won. I was forced to leave it in place, and clean and grease it from the exterior. Humbling.

I spent some time cleaning the BB parts, and the drive-side crank arm, color of natural aluminum. Three chain rings, no waiting. I used Simple Green, and I was amazed at how good it looked after some vigorous brushing. Really. I want to go to a biker coffee shop and fish for compliments on it.

I used Lucas Marine Grease in generous amounts in the re-pack. It looks like Phil and Park grease, but is less expensive. It is wicked smooth. As usual, I was shooting BBs all over the place. If I ever do this again, will consider caged bearings; they know their place.

Reassembly was pretty quick, compared to removing the lock ring and not removing the fixed cup. I had watched a couple of good videos on Bottom Brackets, from RJ the Bike Guy and Calvin at Park Tools. I put both crank arms onto the spindle before setting the adjustable cup. I used the crank arms to judge the pre-load on the bearings. When I learned to adjust the cup back in yesteryear, I recall that you could do this with the NDS crank arm already mounted, which gave you a good feel for the play. Neither video used that method, but I did. I got the adjustable cup set for no play and no drag, so I thought.

I took the bike for a ride, and then re-checked the bolts and bearing play. The grease and the bearings had become intimate, and now there is a little play, not much, but enough to chase. Tomorrow I will readjust the adjustable cup for optimum play.

I was appalled at how tight my LBS had set the adjustable cup lock ring and the fixed cup. I am not Herculean, but I should be able to remove these parts without nuclear assistance. But I did get the job done, and when I took the bike for a ride, it felt really, really—

the same as before.

Last edited by BCDrums; 03-20-20 at 09:29 PM.
BCDrums is offline
Likes For BCDrums:
Old 03-20-20, 07:00 PM
  #2
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 996

Bikes: Trek 770, Trek 760, Schwinn Peloton, Patelli Professional, Othon Ochsner

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 417 Post(s)
Liked 296 Times in 227 Posts
I think the bottom bracket is the hardest dance to master! Doing the crank arm wrangle is hard enough in itself, but then you have to go through the lock ring two step. Same thing for a tight adjustable cup, and then the bearing pick-up move. Removing the fixed cup is the most difficult part of the dance. Turn left (or turn right?) then dosey- doe and repeat until it moves. Cleaning and re-assembly is like doing the dance backwards. Make sure the fixed cup is tight, find the bearings or get new ones, and make sure you have the right number, then set the pre-load and then re attach the arms. Almost as difficult as the "macarina"! Smiles, MH
Mad Honk is offline
Likes For Mad Honk:
Old 03-20-20, 07:37 PM
  #3
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 11,740

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1011 Post(s)
Liked 229 Times in 180 Posts

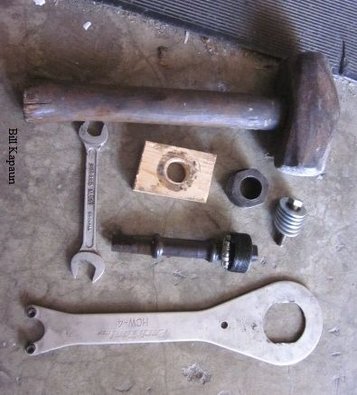

This is what I use.
4 lb. hammer.

Bill Kapaun is online now
Likes For Bill Kapaun:
Old 03-20-20, 07:57 PM
  #4
BCDrums
Recreational Road Cyclist
Thread Starter

BCDrums's Avatar

Join Date: Sep 2013
Location: MetroWest, Mass.
Posts: 278

Bikes: 1990 Peter Mooney road bike

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Liked 61 Times in 43 Posts
Originally Posted by Bill Kapaun View Post
This is what I use.
4 lb. hammer.

Brutal! Overwhelming force.
BCDrums is offline
Old 03-20-20, 08:01 PM
  #5
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 996

Bikes: Trek 770, Trek 760, Schwinn Peloton, Patelli Professional, Othon Ochsner

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 417 Post(s)
Liked 296 Times in 227 Posts
Originally Posted by Bill Kapaun View Post
This is what I use.
4 lb. hammer.

It is still the hardest part of the dance steps! Smiles, MH
Mad Honk is offline
Old 03-20-20, 08:05 PM
  #6
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 11,740

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1011 Post(s)
Liked 229 Times in 180 Posts
Originally Posted by BCDrums View Post
Brutal! Overwhelming force.
It's never failed me.
I should add a can pf Penetrating Oil to the pic.
Lay the bike on its side, cup down, and drip PO in from the top. Let it run down the sides of the shell and "puddle" slightly on the top threads, like filling a reservoir.
When the puddle disappears, add more, couple/several drops until you refill the reservoir. repeat several times. If it ain't leaking out the bottom, there's room for more.
Bill Kapaun is online now
Old 03-20-20, 08:08 PM
  #7
BCDrums
Recreational Road Cyclist
Thread Starter

BCDrums's Avatar

Join Date: Sep 2013
Location: MetroWest, Mass.
Posts: 278

Bikes: 1990 Peter Mooney road bike

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Liked 61 Times in 43 Posts
Jeez, that’s relentless.
BCDrums is offline
Old 03-20-20, 08:13 PM
  #8
HerrKaLeun
Senior Member

Join Date: Mar 2017
Location: Madison, WI
Posts: 1,733

Bikes: Giant Toughroad SLR1 and Motobecane Sturgis NX

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 814 Post(s)
Likes: 0
Liked 136 Times in 114 Posts
Everyone except big box stores use sealed (cartridge or external) BB. Just nothing to maintain besides replacement of the $15 BB. imagine how much an LBS would charge for servicing cup/cone BB.
HerrKaLeun is offline
Likes For HerrKaLeun:
Old 03-20-20, 08:19 PM
  #9
zacster
Senior Member

Join Date: Jul 2004
Location: Brooklyn NY
Posts: 6,877
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 185 Times in 148 Posts
Isn't the point of the FIXED cup that it is FIXED? Aren't you supposed to leave that alone except when replacing the entire unit? Isn't that why it is on so friggin' tight?
zacster is offline
Likes For zacster:
Old 03-20-20, 08:35 PM
  #10
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 10,908

Bikes: Schwinn Paramount, Salsa Timberjack, Diamondback Expert TG, Burley Samba

Mentioned: 64 Post(s)
Tagged: 0 Thread(s)
Quoted: 1968 Post(s)
Liked 527 Times in 365 Posts
...or because the LBS has not even tried to touch it since somewhere in the 90's.

Frankly I'm kind of surprised he didn't go down there with the lock ring wrench and discover they'd put in a cartridge some decades ago
__________________
Genesis 49:16-17
Darth Lefty is offline
Old 03-20-20, 08:48 PM
  #11
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 32,184

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 1410 Post(s)
Likes: 0
Liked 239 Times in 190 Posts
It's a bit late to ask but were you trying to turn the fixed cup in the correct direction? For the most common English bottom brackets it's left-hand threaded and unthreads clockwise. Is that what you did?

I use a similar bolt-type fixed cup tool clamp Bill showed in his photo. It assures the tool can't slip and damage the wrench or round the flats on the cup. If you turn it the right way I've never had a fixes cup that couldn't be removed.

Having spent many years maintaining cup-and-cone bottom brackets on numerous bikes, I gratefully went to cartridges and never looked back.
HillRider is offline
Likes For HillRider:
Old 03-20-20, 08:55 PM
  #12
BCDrums
Recreational Road Cyclist
Thread Starter

BCDrums's Avatar

Join Date: Sep 2013
Location: MetroWest, Mass.
Posts: 278

Bikes: 1990 Peter Mooney road bike

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Liked 61 Times in 43 Posts
Originally Posted by HerrKaLeun View Post
Everyone except big box stores use sealed (cartridge or external) BB. Just nothing to maintain besides replacement of the $15 BB. imagine how much an LBS would charge for servicing cup/cone BB.
So when do you replace or service? How does one know? Serious question.
BCDrums is offline
Old 03-20-20, 08:58 PM
  #13
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 11,740

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1011 Post(s)
Liked 229 Times in 180 Posts
Originally Posted by zacster View Post
Isn't the point of the FIXED cup that it is FIXED? Aren't you supposed to leave that alone except when replacing the entire unit? Isn't that why it is on so friggin' tight?
Contrary to popular belief by the youngsters here, it's called the FIXED cup because it's the NON ADJUSTABLE cup.
Bill Kapaun is online now
Likes For Bill Kapaun:
Old 03-20-20, 09:01 PM
  #14
BCDrums
Recreational Road Cyclist
Thread Starter

BCDrums's Avatar

Join Date: Sep 2013
Location: MetroWest, Mass.
Posts: 278

Bikes: 1990 Peter Mooney road bike

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Liked 61 Times in 43 Posts
Originally Posted by zacster View Post
Isn't the point of the FIXED cup that it is FIXED? Aren't you supposed to leave that alone except when replacing the entire unit? Isn't that why it is on so friggin' tight?
Good point. But, I think that the fixed cup is fixed because there's another cup that gets adjusted. I don't think the fixed cup is supposed to be a permanent part of the frame.

My interest in removing it today was because I could deal with it more easily; clean it, pack it, place the bearings, screw it back in ready to go, instead of doing it through the shell. But the job can be done that way, and I did it.

Plus I want to dominate the bottom bracket.
BCDrums is offline
Old 03-20-20, 09:09 PM
  #15
HerrKaLeun
Senior Member

Join Date: Mar 2017
Location: Madison, WI
Posts: 1,733

Bikes: Giant Toughroad SLR1 and Motobecane Sturgis NX

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 814 Post(s)
Likes: 0
Liked 136 Times in 114 Posts
Originally Posted by BCDrums View Post
So when do you replace or service? How does one know? Serious question.
After 20,000 miles or so... they last a very long time unless you submerge them in water or mud.

Basically when it grinds or appears loose.You still can ride a long time once you notice.
HerrKaLeun is offline
Old 03-20-20, 09:13 PM
  #16
BCDrums
Recreational Road Cyclist
Thread Starter

BCDrums's Avatar

Join Date: Sep 2013
Location: MetroWest, Mass.
Posts: 278

Bikes: 1990 Peter Mooney road bike

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Liked 61 Times in 43 Posts
Originally Posted by Darth Lefty View Post
...or because the LBS has not even tried to touch it since somewhere in the 90's.
Ya know, that finally occurred to me, that the fixed cup had been placed in the frame at birth (I know its mom) and never touched again. And if that's so, it remains so.

Frankly I'm kind of surprised he didn't go down there with the lock ring wrench and discover they'd put in a cartridge some decades ago
By he you mean me. I am actually much more in touch with my bike than you suppose. It was custom built for me, and I know every part on it, and what parts preceded them. The only original parts on the frame are the cranks (and one of the three the rings), this bottom bracket, and the seat post bolt. I recently removed the dropout screws to slide the rear wheel back and get a little more room between the chainstays for the fat-ish tires I'm using.

Last edited by BCDrums; 03-20-20 at 09:27 PM.
BCDrums is offline
Old 03-20-20, 09:21 PM
  #17
BCDrums
Recreational Road Cyclist
Thread Starter

BCDrums's Avatar

Join Date: Sep 2013
Location: MetroWest, Mass.
Posts: 278

Bikes: 1990 Peter Mooney road bike

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Liked 61 Times in 43 Posts
Originally Posted by HillRider View Post
It's a bit late to ask but were you trying to turn the fixed cup in the correct direction? For the most common English bottom brackets it's left-hand threaded and unthreads clockwise. Is that what you did?
Yes, and this is a good question.

I use a similar bolt-type fixed cup tool clamp Bill showed in his photo. It assures the tool can't slip and damage the wrench or round the flats on the cup. If you turn it the right way I've never had a fixes cup that couldn't be removed.

Having spent many years maintaining cup-and-cone bottom brackets on numerous bikes, I gratefully went to cartridges and never looked back.
I was thinking of going to the hardware store (we still have one!) and getting the bolts, nuts and washers to make a Sheldon-like contraption, but maybe next time around it'll be a cartridge bearing. I'll still have to remove this freakn' cup, though.

I know nothing about bottom brackets with cartridge bearings. Do they come in different spindle lengths, say, for a triple?
BCDrums is offline
Old 03-20-20, 09:47 PM
  #18
Russ Roth
Senior Member

Join Date: Dec 2019
Location: South Shore of Long Island
Posts: 819

Bikes: 2010 Carrera Volans, 2015 C-Dale Trail 2sl, 2017 Raleigh Rush Hour, 2017 Blue Proseccio, 1992 Giant Perigee, 80s Gitane Rallye Tandem

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 299 Post(s)
Liked 203 Times in 153 Posts
Originally Posted by BCDrums View Post
So when do you replace or service? How does one know? Serious question.
Grab the crank arm and yank it from side to side, if it moves then the BB is no good. If it doesn't drop the chain onto the frame and spin the crank, does it move freely and without a notchy feeling or a gritty sound. If so, reinstall chain and ride on, if not take the 15 minutes to install the new one. Biggest issue with cup and cone is the need for a pin spanner if something is corroded. But I use a really big wrench to remove the fixed cup, basically an American made industrial wrench that will tear apart of the fixed cup long before it will ever let go and only once did I have to use a pipe wrench to take out an adjustable cup but it wasn't any good anymore either way.
Russ Roth is offline
Old 03-20-20, 09:52 PM
  #19
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 11,740

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1011 Post(s)
Liked 229 Times in 180 Posts
Originally Posted by BCDrums View Post
........
My interest in removing it today was because I could deal with it more easily; clean it, pack it, place the bearings, screw it back in ready to go, instead of doing it through the shell. But the job can be done that way, and I did it.

Plus I want to dominate the bottom bracket.
Not having the best vision, I want to see it up close and "in the light".
It's the cup that gets the most abuse. Servicing it now, reinstalling with some grease or anti seize will make the future cartridge install easier then. Corrosion isn't going to loosen its grip over time. It just gets more frozen.
I used to flip bikes. Sometimes you simply have to remove the fixed cup no matter what and I needed something that didn't destroy the more rare good DS cup. If nothing else, it went in the parts bin to get used later.
Some older cranks used an extremely long spindle that can't be duplicated with a cartridge.
Bill Kapaun is online now
Old 03-20-20, 10:37 PM
  #20
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,244
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 434 Post(s)
Likes: 0
Liked 61 Times in 56 Posts
Originally Posted by BCDrums View Post
Somewhere in the '90s, I stopped maintaining the bottom bracket of my bike and let the LBS do it. When I did the work, it always ended up with ball bearings all over the floor, too much play, and grease on every available surface and object.

But today I did my own service, on a '90s Shimano Cup 'n' Cone bottom bracket. Here are my observations.

I had the right tools; a Park crank puller, a Sugino lock-ring/fixed cup wrench, some grade-25 ball bearings, and some fresh slippery grease. I had a Park pin-spanner for the adjustable cup. I had Cabernet for the afterparty.

The cranks came off lickety-split, with a crank bolt wrench and a crank puller from our friends at Park Tools. Then, the grease hit the fan.

I spent more than a half-hour trying to remove the lock ring for the adjustable cup. I had a Sugino lock ring wrench from the Bush administration, but the lock ring said no. I applied PB Blaster penetrating oil and heat from an old hair dryer, more than once. I beat on the wrench with a block of wood. Used a hammer and screwdriver in a notch. Finally, I attacked the lock-ring wrench with a claw hammer, and the ring moved.

Lunchtime.

Feeling omnipotent after humiliating the lock ring, I went after the fixed cup. I assaulted it with the Sugino wrench, a block of wood, some coarse language, and finally the claw hammer. I fought the law, and the law won. I was forced to leave it in place, and clean and grease it from the exterior. Humbling.

I spent some time cleaning the BB parts, and the drive-side crank arm, color of natural aluminum. Three chain rings, no waiting. I used Simple Green, and I was amazed at how good it looked after some vigorous brushing. Really. I want to go to a biker coffee shop and fish for compliments on it.

I used Lucas Marine Grease in generous amounts in the re-pack. It looks like Phil and Park grease, but is less expensive. It is wicked smooth. As usual, I was shooting BBs all over the place. If I ever do this again, will consider caged bearings; they know their place.

Reassembly was pretty quick, compared to removing the lock ring and not removing the fixed cup. I had watched a couple of good videos on Bottom Brackets, from RJ the Bike Guy and Calvin at Park Tools. I put both crank arms onto the spindle before setting the adjustable cup. I used the crank arms to judge the pre-load on the bearings. When I learned to adjust the cup back in yesteryear, I recall that you could do this with the NDS crank arm already mounted, which gave you a good feel for the play. Neither video used that method, but I did. I got the adjustable cup set for no play and no drag, so I thought.

I took the bike for a ride, and then re-checked the bolts and bearing play. The grease and the bearings had become intimate, and now there is a little play, not much, but enough to chase. Tomorrow I will readjust the adjustable cup for optimum play.

I was appalled at how tight my LBS had set the adjustable cup lock ring and the fixed cup. I am not Herculean, but I should be able to remove these parts without nuclear assistance. But I did get the job done, and when I took the bike for a ride, it felt really, really—

the same as before.
Enjoyable tale cause it was you and not me. When you adjust the bearings there should be a slight amount of drag that is the necessary preload.
davidad is offline
Likes For davidad:
Old 03-21-20, 05:34 AM
  #21
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO
Posts: 1,797

Bikes: 2016 Fuji Tread

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 307 Post(s)
Liked 85 Times in 67 Posts
Two observations:

1) Tightening the lock ring will often change the bearing adjustment. There's a bit of play in the adjustable cup and shell threads and the lock ring pulls out against that play, loosening the bearing.

2) Penetrating oil, a heat gun, and an impact with a mallet has always worked for me on the fixed up.
andrewclaus is offline
Old 03-21-20, 04:24 PM
  #22
Litespud
Senior Member

Join Date: Oct 2017
Location: Chapel Hill NC
Posts: 830

Bikes: 2000 Litespeed Vortex Chorus 10, 1995 DeBernardi Cromor S/S, Nashbar 3sp commuter

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 321 Post(s)
Liked 245 Times in 146 Posts
Originally Posted by BCDrums View Post
So when do you replace or service? How does one know? Serious question.
when it starts to feel rough, which could take forever. I had >50,000 miles on my Chorus cartridge BB and only replaced it because the drive side flange cracked
Litespud is offline
Old 03-21-20, 05:13 PM
  #23
Leisesturm
Senior Member

Join Date: Jul 2005
Posts: 4,399
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1574 Post(s)
Liked 178 Times in 141 Posts
Engaging writing is a lost art. If for no other reason than that the o.p.'s account of their quality time with bike tools was delivered with style and no small amount of wit, I for one was pleased to have spent the time reading it. Chapeau!
Leisesturm is offline
Likes For Leisesturm:
Old 03-21-20, 05:20 PM
  #24
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,635

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1246 Post(s)
Liked 653 Times in 448 Posts
Originally Posted by BCDrums View Post
I know nothing about bottom brackets with cartridge bearings. Do they come in different spindle lengths, say, for a triple?
Short answer, Yes

https://www.jensonusa.com/Shimano-UN55-Bottom-Bracket

https://www.sheldonbrown.com/bbsize.html
dedhed is offline
Old 03-21-20, 07:39 PM
  #25
BCDrums
Recreational Road Cyclist
Thread Starter

BCDrums's Avatar

Join Date: Sep 2013
Location: MetroWest, Mass.
Posts: 278

Bikes: 1990 Peter Mooney road bike

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Liked 61 Times in 43 Posts
Originally Posted by HerrKaLeun View Post
Everyone except big box stores use sealed (cartridge or external) BB. Just nothing to maintain besides replacement of the $15 BB.
Originally Posted by BCDrums View Post
I know nothing about bottom brackets with cartridge bearings. Do they come in different spindle lengths, say, for a triple?
Originally Posted by dedhed View Post
Short answer, Yes
So I see. This thread has been an eye-opener for me. What I see is, brute force, and/or a cartridge BB. I have slept through many trends in the bike biz, because my main squeeze was built in 1990, and my subscription to Buycycling lapsed prior to that. But my next bottom bracket, circa 2025, will not be loose balls, cones, cups, and chaos, but something like a cartridge BB. Thanks to all for the valuable information and the nice conversation.
BCDrums is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
