Ultegra 11 speed shifter

I purchased some used Ultegra 11 speed brifters that came without the special cable ends with the locking slot that fit the groove in the shifter body and tail piece the cable runs through. Can I just use normal plastic cable ends as a substitute? If not a good idea are the proper ones available anywhere?
__________________
Ride bikes, drink beer, not necessarily in that order.
deephate is offline
Likes For deephate:
Old 03-27-20, 08:20 AM
  #2
sdmc530
Heft On Wheels

sdmc530's Avatar

Join Date: Nov 2014
Location: South Dakota
Posts: 2,893

Bikes: Specialized,Cannondale,Argon 18

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 790 Post(s)
Liked 393 Times in 262 Posts
Are you saying the cables don't have the proper end fitting? Doesn't have the proper "pipe" on the end? If no just buy new cables. They are cheap enough. Sorry if I misunderstand your question.


https://www.competitivecyclist.com/s...b4e502ab696d24
sdmc530 is offline
Old 03-27-20, 08:46 AM
  #3
deephate
D. Pate
Thread Starter

deephate's Avatar

Join Date: Apr 2012
Location: Iowa
Posts: 387

Bikes: COLNAGO! Litespeed, Motobecane, Peugeot, Gitane, Fuji, Nishiki, Centurion, Panasonic, Giant, Trek, Cannondale, Raleigh, Bianchi, Winsor

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 112 Post(s)
Liked 16 Times in 10 Posts
The cable end on the shifter side is special, similar to the one on the rear derailleur but shorter. It has a notch in it that locks it into the shifter body and a "tail" that extends out that the cable runs through. I wasn't sure if that was important. I wish I had a picture of it.
__________________
Ride bikes, drink beer, not necessarily in that order.

Last edited by deephate; 03-27-20 at 09:10 AM.
deephate is offline
Old 03-27-20, 09:18 AM
  #4
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 2,410
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 466 Post(s)
Liked 340 Times in 270 Posts
6800 shifter diagram: https://si.shimano.com/pdfs/ev/EV-ST-6800-3603.pdf
8000 shifter diagram: https://si.shimano.com/pdfs/ev/EV-ST-R8000-4244.pdf

I suspect you're talking about part #9 in the diagrams. You can do a search with the "Shimano Code Number" to find sellers and yes, it's needed.

Last edited by Crankycrank; 03-27-20 at 09:22 AM.
Crankycrank is offline
Old 03-27-20, 09:30 AM
  #5
deephate
D. Pate
Thread Starter

deephate's Avatar

Join Date: Apr 2012
Location: Iowa
Posts: 387

Bikes: COLNAGO! Litespeed, Motobecane, Peugeot, Gitane, Fuji, Nishiki, Centurion, Panasonic, Giant, Trek, Cannondale, Raleigh, Bianchi, Winsor

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 112 Post(s)
Liked 16 Times in 10 Posts
That looks like the grooved piece that is part of the shifter. The part I am talking about goes on the cable housing. It has a notch that slips into the groove in the shifter. I'm struggling to find a picture of what I mean. I don't really think it is absolutely necessary but I wanted to ask. The notch/groove thing can only be to keep it from rotating which I can't believe is super important.
__________________
Ride bikes, drink beer, not necessarily in that order.
deephate is offline
Old 03-27-20, 09:36 AM
  #6
deephate
D. Pate
Thread Starter

deephate's Avatar

Join Date: Apr 2012
Location: Iowa
Posts: 387

Bikes: COLNAGO! Litespeed, Motobecane, Peugeot, Gitane, Fuji, Nishiki, Centurion, Panasonic, Giant, Trek, Cannondale, Raleigh, Bianchi, Winsor

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 112 Post(s)
Liked 16 Times in 10 Posts

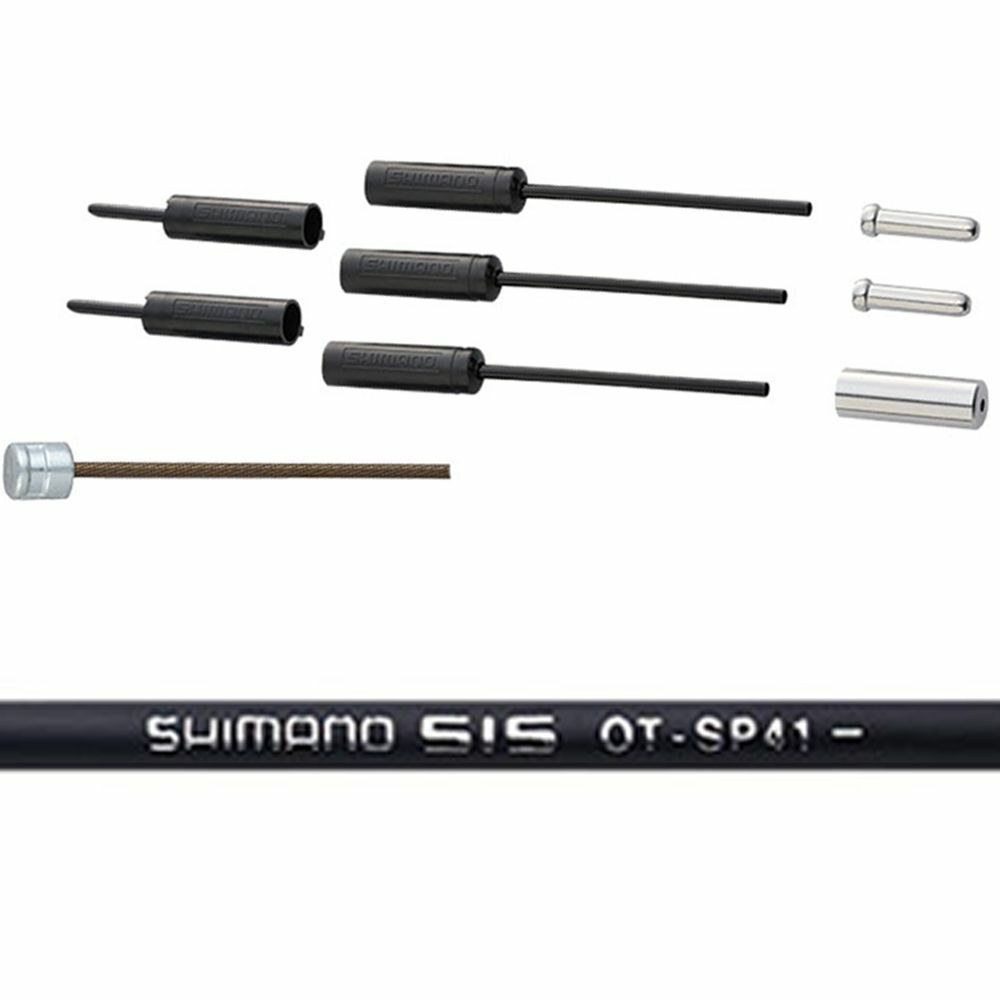

Top left corner
__________________
Ride bikes, drink beer, not necessarily in that order.
deephate is offline
Old 03-27-20, 09:52 AM
  #7
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 2,410
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 466 Post(s)
Liked 340 Times in 270 Posts
Sounds like this piece at 2:43 mins in the video then.
Parts #10 & 11 maybe??? https://si.shimano.com/pdfs/ev/EV-ST-R8020-4245C.pdf I have lots of time to search during the virus lockdown.
Crankycrank is offline
Old 03-27-20, 09:57 AM
  #8
deephate
D. Pate
Thread Starter

deephate's Avatar

Join Date: Apr 2012
Location: Iowa
Posts: 387

Bikes: COLNAGO! Litespeed, Motobecane, Peugeot, Gitane, Fuji, Nishiki, Centurion, Panasonic, Giant, Trek, Cannondale, Raleigh, Bianchi, Winsor

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 112 Post(s)
Liked 16 Times in 10 Posts
Yes! Number ten! Do I need that to lock in or just use a standard end in place of it? That was the video I was watching when I realized I was missing that piece!
__________________
Ride bikes, drink beer, not necessarily in that order.
deephate is offline
Old 03-27-20, 10:03 AM
  #9
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 2,410
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 466 Post(s)
Liked 340 Times in 270 Posts
Originally Posted by deephate View Post
Yes! Number ten! Do I need that to lock in or just use a standard end in place of it? That was the video I was watching when I realized I was missing that piece!
Sorry but I don't know the answer to that for sure but if it were mine I would get the proper part as the fit may need to be the perfect size to function properly.
Crankycrank is offline
Old 03-27-20, 10:10 AM
  #10
deephate
D. Pate
Thread Starter

deephate's Avatar

Join Date: Apr 2012
Location: Iowa
Posts: 387

Bikes: COLNAGO! Litespeed, Motobecane, Peugeot, Gitane, Fuji, Nishiki, Centurion, Panasonic, Giant, Trek, Cannondale, Raleigh, Bianchi, Winsor

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 112 Post(s)
Liked 16 Times in 10 Posts
Thanks for the part number!!
__________________
Ride bikes, drink beer, not necessarily in that order.
deephate is offline
Old 03-27-20, 10:14 AM
  #11
Racing Dan
Senior Member

Racing Dan's Avatar

Join Date: Aug 2015
Posts: 1,887
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1091 Post(s)
Liked 185 Times in 127 Posts
Im not sure if you MUST have the special ends, but they are included in a shimano road gear cable set.

Like this:

https://www.merlincycles.com/shimano...ck-102057.html
Racing Dan is offline
Old 03-28-20, 09:35 PM
  #12
katsup
Senior Member

katsup's Avatar

Join Date: May 2016
Location: Southern California
Posts: 1,510

Bikes: Soma Fog Cutter v1, 2021 Polygon Siskiu T8 and Vintage Mountain Bikes

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 521 Post(s)
Liked 369 Times in 217 Posts
The special ends also help when installing a new cable. Although, I didn't specifically try, I'm not sure a normal shift cable end would fit all the way in.
katsup is offline
Old 03-29-20, 07:54 AM
  #13
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,912

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1702 Post(s)
Liked 1,344 Times in 868 Posts
They're called "ferrules".

https://www.cambriabike.com/products...th-long-tongue
