Flooded Freewheel

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Flooded Freewheel

Old 04-10-20, 10:13 AM
  #1
LeicaLad
Senior Member
Thread Starter

Join Date: Jun 2010
Location: Work in Asia, now based in Vienna, VA
Posts: 1,758
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 35 Times in 22 Posts
Flooded Freewheel

Gentle Wrenches,

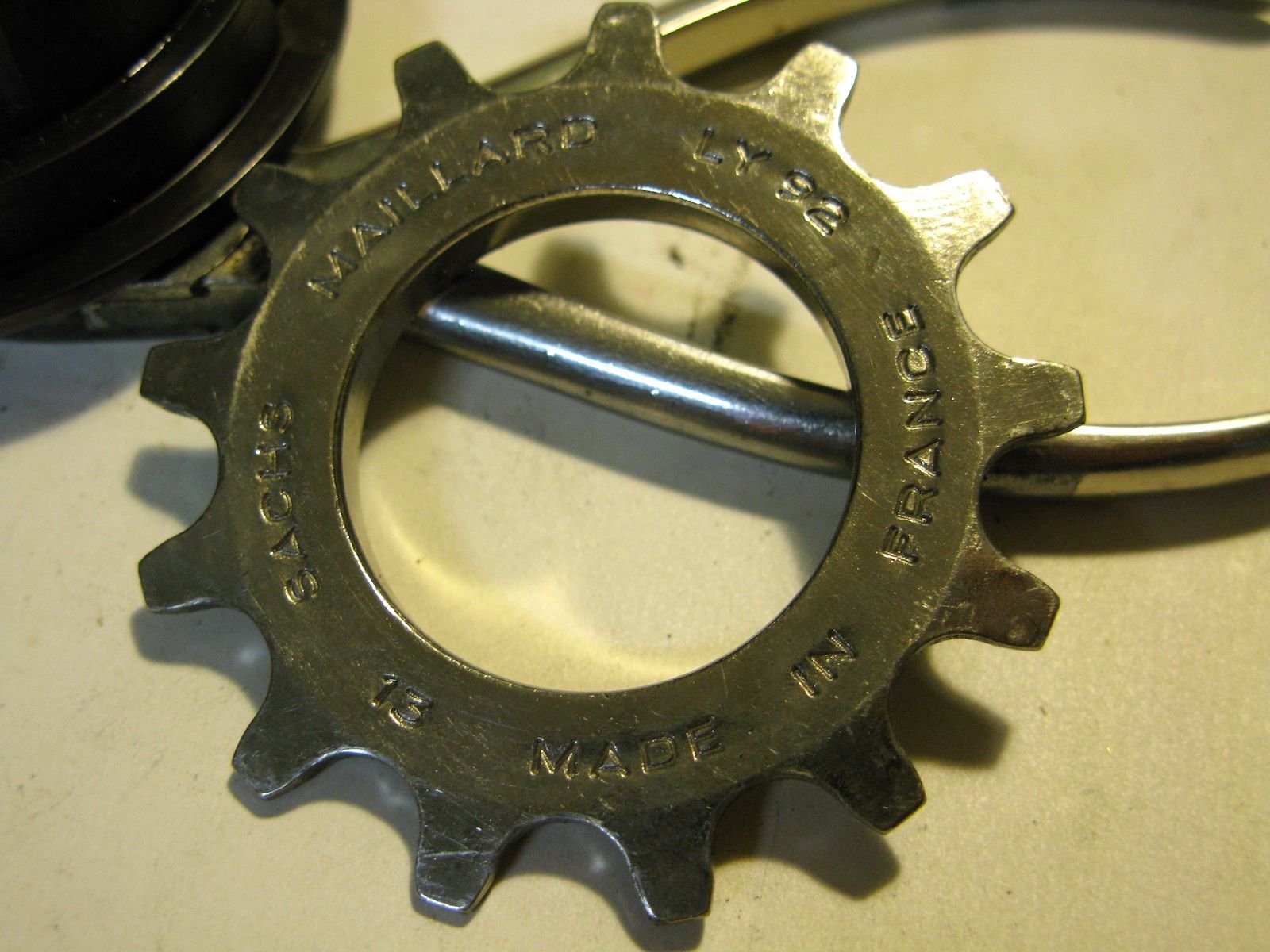

I built a wheel set on fine Campy Hi-Flange hubs that, of course, require a freewheel. Deep from within the boxes came a nice Sachs Maillard LY92 freewheel, with a note saying “low miles, flush, lube”.

So, initially, I shot a certain volume of WD-40 into both sides. A surprisingly small volume came back out. Suddenly, the FW body quite literally sloshed. I left it on absorbent material overnight. Very little out. So I shot a bunch of penetrating oil into it. Perhaps a small amount more came out. Modest dirt with the oils. But once the seals were clean, any further oil evidence appeared clean.

So I dismantle the cogs from the body, just to get closer access to the matter. It’s now been a couple days of attempts to drain one direction or the other. There was a last addition of several drops of Phil’s Tenacious Oil, but my question is really ->

How do I address the slosh inside the freewheel body?

Just wait for it so leak down spokes after some weeks of riding? Ugh.

Oh, I even tried holding the small body in front of a blower (outdoors). Traces of oil, but nadda.

Anyway, I humbly ask. . now what?

Thank you.


It's a 7 speed freewheel

I don't really want to open this up any further. . .
__________________
1959 Hilton Wrigley Connoisseur (my favorite!)
1963 Hetchins Mountain King
1971 Gitane Tour de France (original owner)
* 1971 Gitane Super Corsa (crashed)
* rebuilt as upright cruiser
1971 Gitane Super Corsa #2 (sweet replacement)
1980 Ritchey Road Touring (The Grail Bike)
1982 Tom Ritchey Everest
(replacing stolen 1981 TR Everest custom)
1982 Tom Ritchey McKinley (touring pickup truck)
1985 ALAN Record (Glued & Screwed. A gift.)
LeicaLad is offline
Old 04-10-20, 10:53 AM
  #2
Iride01
Plz hurry Dec 22!

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,944

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4896 Post(s)
Liked 3,415 Times in 2,368 Posts
Perhaps you are just hearing the bearings rolling around. Put it back together, install it and see if you are having any issues with actual function of how it is supposed to work. Not how you think it should work when used as not intended.

When you ride the bike, the only time anything inside the freewheel moves is when you coast.
Iride01 is offline
Old 04-10-20, 11:01 AM
  #3
LeicaLad
Senior Member
Thread Starter

Join Date: Jun 2010
Location: Work in Asia, now based in Vienna, VA
Posts: 1,758
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 35 Times in 22 Posts
I do actually understand how a freewheel works. My question regards excessive lubricant.

Thank you.
__________________
1959 Hilton Wrigley Connoisseur (my favorite!)
1963 Hetchins Mountain King
1971 Gitane Tour de France (original owner)
* 1971 Gitane Super Corsa (crashed)
* rebuilt as upright cruiser
1971 Gitane Super Corsa #2 (sweet replacement)
1980 Ritchey Road Touring (The Grail Bike)
1982 Tom Ritchey Everest
(replacing stolen 1981 TR Everest custom)
1982 Tom Ritchey McKinley (touring pickup truck)
1985 ALAN Record (Glued & Screwed. A gift.)
LeicaLad is offline
Old 04-10-20, 11:13 AM
  #4
Iride01
Plz hurry Dec 22!

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,944

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4896 Post(s)
Liked 3,415 Times in 2,368 Posts
If excessive lubricant is bad, then you've already ruined it. So put it on and see what it does.

It's very unlikely that any excessive lubricant will permanently destroy it. At most, it'll just work it's way out and drip on your rims and ruin your brake pads, or get little spots on your clothes.
Iride01 is offline
Old 04-10-20, 11:21 AM
  #5
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 7,167

Bikes: Bob Jackson, Wizard, Pegoretti Duende, Merckx ProSLX, Pelizzoli, Cannondale ST, Schwinn Tempo, Schwinn Voyageur, Canyon Endurace, Richard Sachs, Davidson Discovery

Mentioned: 205 Post(s)
Tagged: 0 Thread(s)
Quoted: 1844 Post(s)
Liked 2,063 Times in 799 Posts
Maybe shoot some compressed air into the same holes you’ve been using to insert oil? Computer air if nothing else...
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 04-10-20, 11:28 AM
  #6
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,171

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 1038 Post(s)
Liked 1,066 Times in 637 Posts
I don't know a ton about Sachs freewheels, but I do know they're sealed, which is probably preventing the release of the WD-40.

Here is a thread that has a helpful view of another Sachs Aris disassembled by Pastor Bob: Sach Freewheel disassembly
noobinsf is online now
Old 04-10-20, 11:45 AM
  #7
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,463

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1927 Post(s)
Likes: 0
Liked 905 Times in 634 Posts

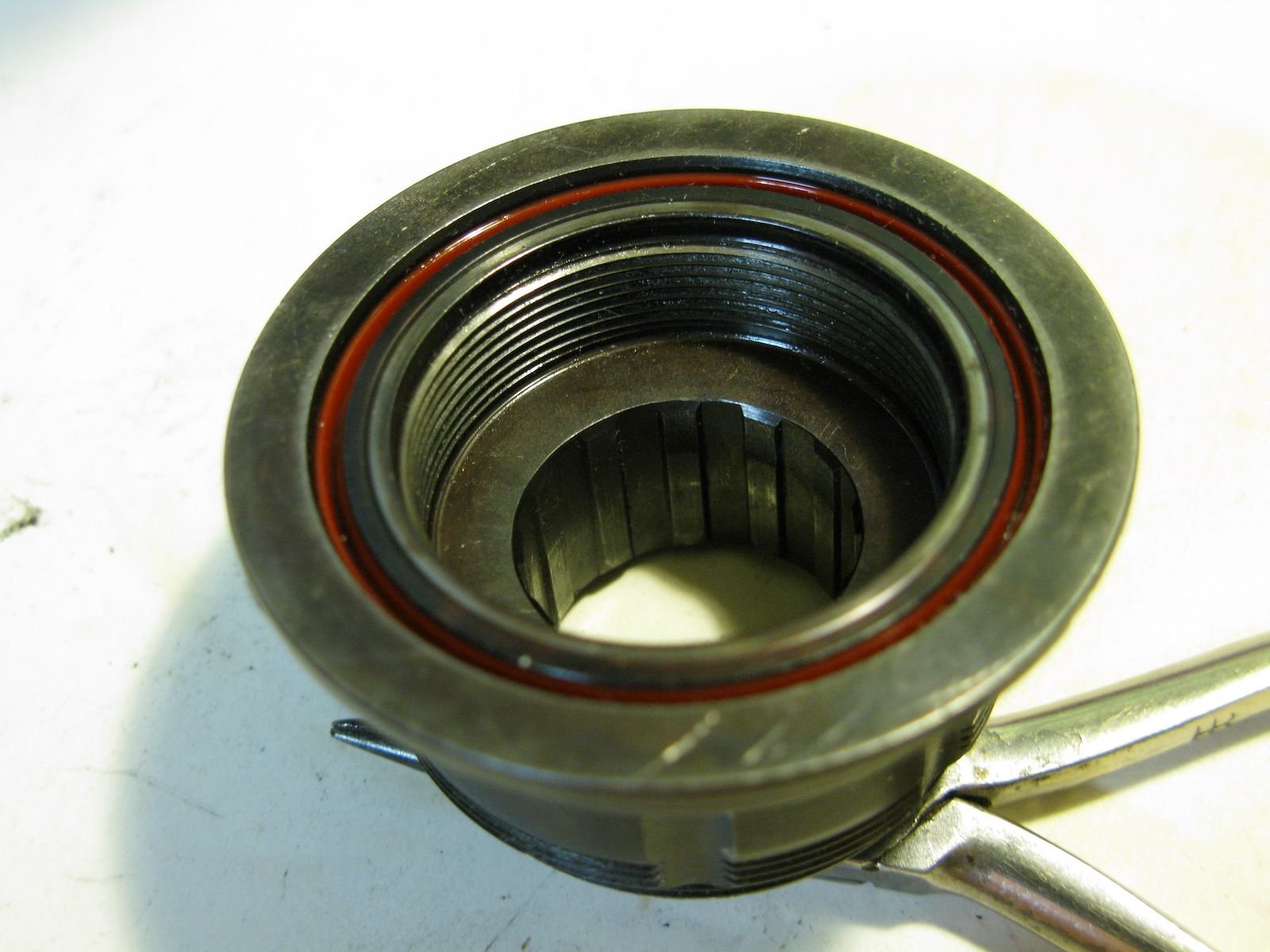

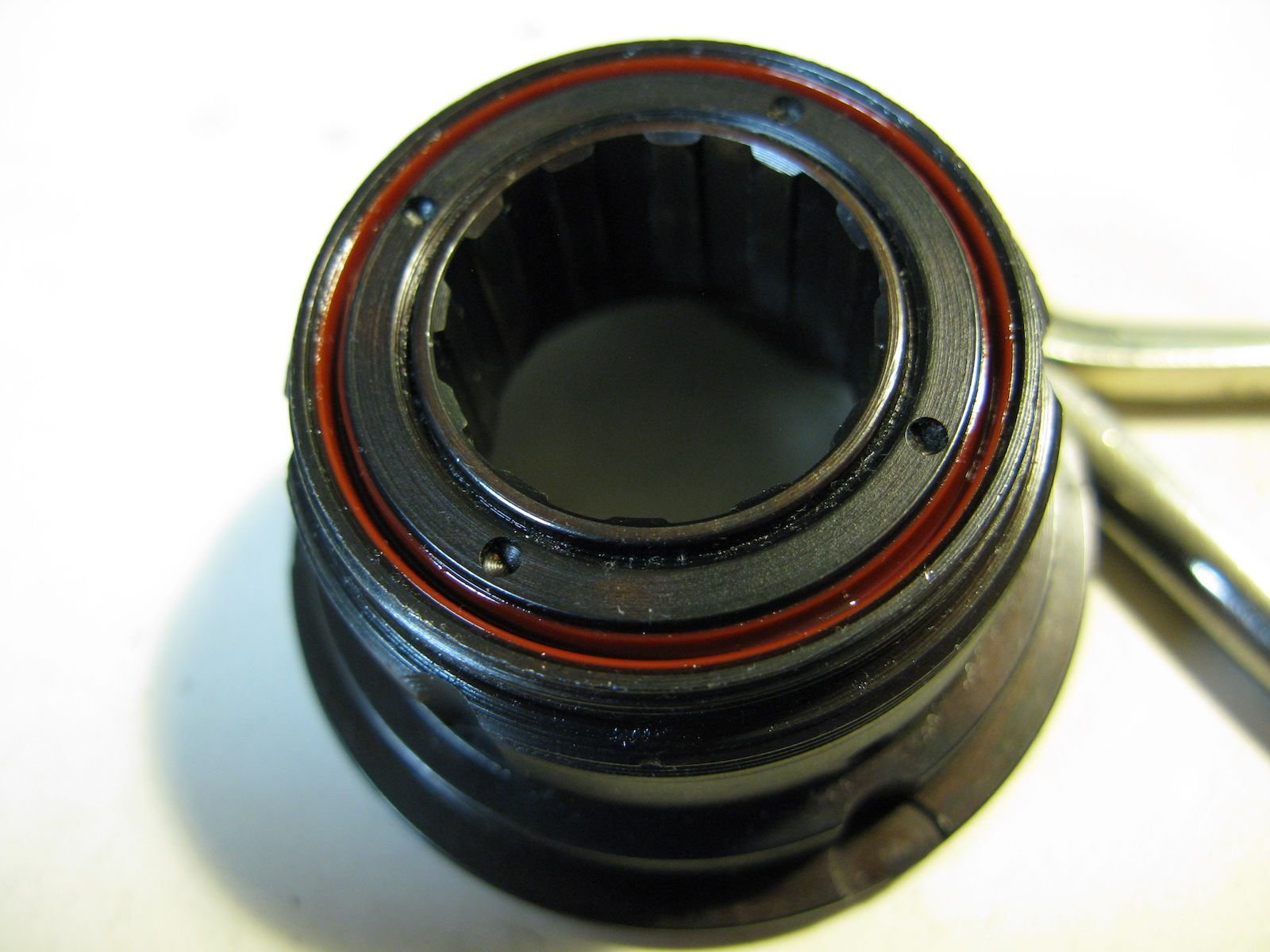

The red rubber seal at both ends should be removable. Pull them out carefully with a pair of needle nose pliers and let any excess oil or solvent drain out. Then relube with light or medium weight oil and reinsert the seals.
HillRider is offline
Old 04-10-20, 11:47 AM
  #8
Dave Mayer
Senior Member

Join Date: Dec 2006
Posts: 2,233
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 922 Post(s)
Liked 272 Times in 176 Posts
I've taken a few of these apart... Mine have an oil injection port on the side of the body. Is this plugged? If it can be unplugged, then do so, and drain. WD40 is basically useless on any place on a bike, except for a freewheel flush as you are attempting here... Phil Tenacious makes a good replacement lube once you have any solvents drained. Compressed air: good idea.

No injection port?.. then you may want a complete disassemble - these freewheels are among the very few for this is worthwhile. 99% of the freewheels that pass through my hands at our local bike Co-op are disposable, but not Dura-Ace, Winner Pro, or these Sachs units.
Dave Mayer is offline
Old 04-10-20, 11:47 AM
  #9
tFUnK
Senior Member

Join Date: Jun 2002
Location: San Jose, CA
Posts: 3,022

Bikes: Too many bikes, too little time to ride

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 132 Times in 114 Posts
Shooting WD 40 into it probably dissolved any grease that was in there. If it's easy to open up I suggest you do that and add grease. If you don't want to or cannot open it up then just ride it as is.
tFUnK is offline
Old 04-10-20, 12:07 PM
  #10
LeicaLad
Senior Member
Thread Starter

Join Date: Jun 2010
Location: Work in Asia, now based in Vienna, VA
Posts: 1,758
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 35 Times in 22 Posts
Some solid advice. Many thanks. There is a small side hole that has a tiny screw. I'd not opened it but will (once back from a ride).

Thanks, also to Noobinsf, for the link back to PastorBob. Much appreciated.

Gentlemen, all.

Thank you.
__________________
1959 Hilton Wrigley Connoisseur (my favorite!)
1963 Hetchins Mountain King
1971 Gitane Tour de France (original owner)
* 1971 Gitane Super Corsa (crashed)
* rebuilt as upright cruiser
1971 Gitane Super Corsa #2 (sweet replacement)
1980 Ritchey Road Touring (The Grail Bike)
1982 Tom Ritchey Everest
(replacing stolen 1981 TR Everest custom)
1982 Tom Ritchey McKinley (touring pickup truck)
1985 ALAN Record (Glued & Screwed. A gift.)
LeicaLad is offline
