Steerer tube gouged, safe or trashed?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Steerer tube gouged, safe or trashed?

Old 04-11-20, 08:54 PM
  #1
sdimattia
Senior Member
Thread Starter

Join Date: Mar 2019
Location: NY
Posts: 57

Bikes: '86 Trek 560 PS, Wabi Classic, Modified All City NB Disc

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 8 Times in 5 Posts
Steerer tube gouged, safe or trashed?

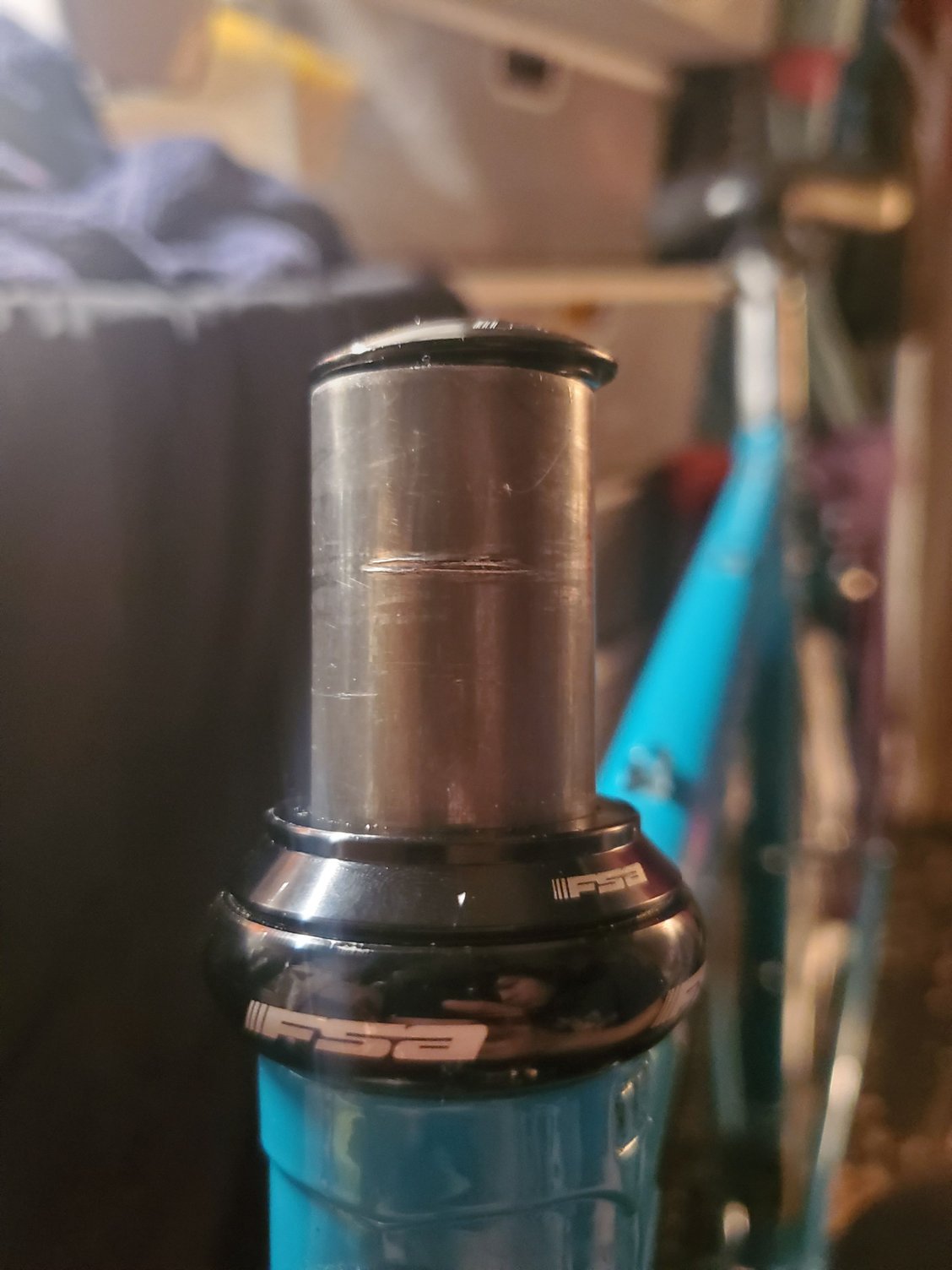

Aluminum steerer tube on an '87 Trek 560 Pro. Gouge is 0.2-0.3mm deep, tube walls are 2.5mm thick. It'd be covered by a shim and stem (1" to 1 1/8").

I weigh 120lbs, bike is for road use. I hit an occasional pothole and do ride some bumps here and there in NYC but nothing super harsh.

Is this still safe to use or should I look for a new fork?

Thanks in advance. Excuse the wonky top cap, it's not bolted in.
sdimattia is offline
Old 04-11-20, 09:14 PM
  #2
alo
Senior Member

Join Date: Feb 2020
Posts: 430
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 191 Post(s)
Likes: 0
Liked 92 Times in 70 Posts
I would keep using it. It does not appear to have structural damage.
alo is offline
Old 04-11-20, 09:22 PM
  #3
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,764

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2495 Post(s)
Liked 559 Times in 433 Posts
The gouge looks to be within the stem's clamping area. Is this so? If so then there's less to be concerned about as the stem's clamp will act as a sleeve and the bending force will concentrate at the stem clamps bottom. Still periodic monitoring is prudent. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 04-11-20, 09:23 PM
  #4
sdimattia
Senior Member
Thread Starter

Join Date: Mar 2019
Location: NY
Posts: 57

Bikes: '86 Trek 560 PS, Wabi Classic, Modified All City NB Disc

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 8 Times in 5 Posts
Originally Posted by alo View Post
I would keep using it. It does not appear to have structural damage.
Awesome, thank you!

Originally Posted by Andrew R Stewart View Post
The gouge looks to be within the stem's clamping area. Is this so? If so then there's less to be concerned about as the stem's clamp will act as a sleeve and the bending force will concentrate at the stem clamps bottom. Still periodic monitoring is prudent. Andy
It's smack in the middle of where the stem will clamp. There will be a shim too because I'm converting 1" to 1 1/8" so, extra "reinforcement" I guess?

I'll definitely keep an eye on it.

Stay safe and healthy out there!
sdimattia is offline
Old 04-11-20, 11:54 PM
  #5
tFUnK
Senior Member

Join Date: Jun 2002
Location: San Jose, CA
Posts: 2,698

Bikes: Too many bikes, too little time to ride

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Liked 46 Times in 41 Posts
Safe
tFUnK is offline
Likes For tFUnK:
Old 04-12-20, 08:19 AM
  #6
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,545

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1150 Post(s)
Liked 537 Times in 388 Posts
Due to its location, the forces on it are small and likelihood/consequences of failure are slim. I am pretty conservative on such things and it would not give me any heartburn.
dsbrantjr is offline
Likes For dsbrantjr:
