Kona - missing V-brake cable stop?

I don't work on mtn bikes much, but have adjusted V-brakes a few times. Someone gave me an old Kona Cinder Cone frame that I'm building up. I see a brake cable stop near the headset, but not at the rear brake. I'm baffled. Did they use a clamp-on cable stop? No cable stop? And if no stop, do I run a bare wire directly to the rear V-brake noodle? Doesn't seem right.



sunburst is offline
Old 04-24-20, 04:59 PM
  #2
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,630

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 2370 Post(s)
Liked 2,645 Times in 1,612 Posts
You can see where the paint is brighter under the seat post clamp. Likely had a hanger mounted there and originally ran canti lever brakes.
dedhed is online now
Old 04-24-20, 05:13 PM
  #3
Steve B.
Senior Member

Join Date: Jul 2007
Location: South shore, L.I., NY
Posts: 6,068

Bikes: Flyxii FR322, Cannondale Topstone, Miyata City Liner, Specialized Chisel, Specialized Epic Evo

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 2662 Post(s)
Liked 1,410 Times in 817 Posts
You can zip tie a full length brake cable housing right to the rear brake.
Steve B. is offline
Likes For Steve B.:
Old 04-24-20, 05:19 PM
  #4
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,298

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1427 Post(s)
Liked 1,061 Times in 709 Posts
V-brakes do not use cable stops, you run the housing all the way to the noodle.
dsbrantjr is offline
Old 04-24-20, 05:28 PM
  #5
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,963

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3727 Post(s)
Liked 2,773 Times in 1,724 Posts
Many bikes (with V brakes) do have a rear of TT casing stop because they have a front of TT one. First thing, besides the very obvious full length casing, is a backstop or other clamp on stop. From the TT weld beads it looks to be a round tube. So a clamp on stop like this might do. This is an Origin 8 part #14469 . They are made in different tube diameters. Andy

__________________
AndrewRStewart
Andrew R Stewart is offline
Old 04-24-20, 05:30 PM
  #6
freeranger
Senior Member

freeranger's Avatar

Join Date: Jun 2005
Location: Kentucky
Posts: 2,401

Bikes: 06 Lemond Reno, 98 GT Timberline mtn.bike

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 369 Post(s)
Liked 573 Times in 357 Posts
Originally Posted by dedhed View Post
You can see where the paint is brighter under the seat post clamp. Likely had a hanger mounted there and originally ran canti lever brakes.
I found some photos online and it does appear there was some type of hanger there: https://www.retrobike.co.uk/forum/dow....php?id=156388
If you don't have the hanger tho, you could certainly run full length housing, as prev. mentioned. Could use zip ties or clamps similar to these: https://www.modernbike.com/product-2126195207

Last edited by freeranger; 04-24-20 at 05:47 PM.
freeranger is offline
Old 04-24-20, 06:12 PM
  #7
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,630

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 2370 Post(s)
Liked 2,645 Times in 1,612 Posts
This thread shows a pretty clean set up with a post clamp mount.

Cantilever to V Brakes Swap?

https://www.greggscycles.com/product...hoCDoAQAvD_BwE

https://www.google.com/search?q=seat...CAKVPC_enUS837
dedhed is online now
Old 04-24-20, 06:18 PM
  #8
wesmamyke
Senior Member

Join Date: Nov 2009
Posts: 1,141
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 196 Post(s)
Liked 79 Times in 70 Posts
kona called it a dog collar. It's less of a cable stop and more of a guide for a bare cable, meant for canti brakes only. Can be modified to use is as a housing stop though. I have a bunch if anybody needs one.

They all got removed/replaced with the style of clamp on stop posted above when the owners converted to V-brakes. I also have some of the nicer old machined V-brake stops, probably all huge sizes for aluminum bikes though.
wesmamyke is offline
Likes For wesmamyke:
Old 04-24-20, 06:21 PM
  #9
Trevtassie
Senior Member

Join Date: Jun 2015
Location: Down Under
Posts: 1,936

Bikes: A steel framed 26" off road tourer from a manufacturer who thinks they are cool. Giant Anthem. Trek 720 Multiroad pub bike. 10 kids bikes all under 20". Assorted waifs and unfinished projects.

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1188 Post(s)
Liked 1,148 Times in 635 Posts
I'd just run full length outer, keeps the inner clean and will save you some money.
Trevtassie is offline
Old 04-24-20, 07:41 PM
  #10
sunburst
Senior Member
Thread Starter

sunburst's Avatar

Join Date: Jan 2008
Location: SF Bay Area
Posts: 1,721

Bikes: Giant, Trek, Peugeots, Motobecane, Kona, Specialized, Bike Friday, Ironhorse

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Liked 67 Times in 40 Posts
Originally Posted by dedhed View Post
You can see where the paint is brighter under the seat post clamp. Likely had a hanger mounted there and originally ran canti lever brakes.
You are right. Kona did have a clamp-on cable stop right there. Someone took it off, but I still have it, so will install tomorrow and post a photo.
Thx everyone!
sunburst is offline
Old 04-24-20, 08:30 PM
  #11
Steve B.
Senior Member

Join Date: Jul 2007
Location: South shore, L.I., NY
Posts: 6,068

Bikes: Flyxii FR322, Cannondale Topstone, Miyata City Liner, Specialized Chisel, Specialized Epic Evo

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 2662 Post(s)
Liked 1,410 Times in 817 Posts
Originally Posted by dsbrantjr View Post
V-brakes do not use cable stops, you run the housing all the way to the noodle.

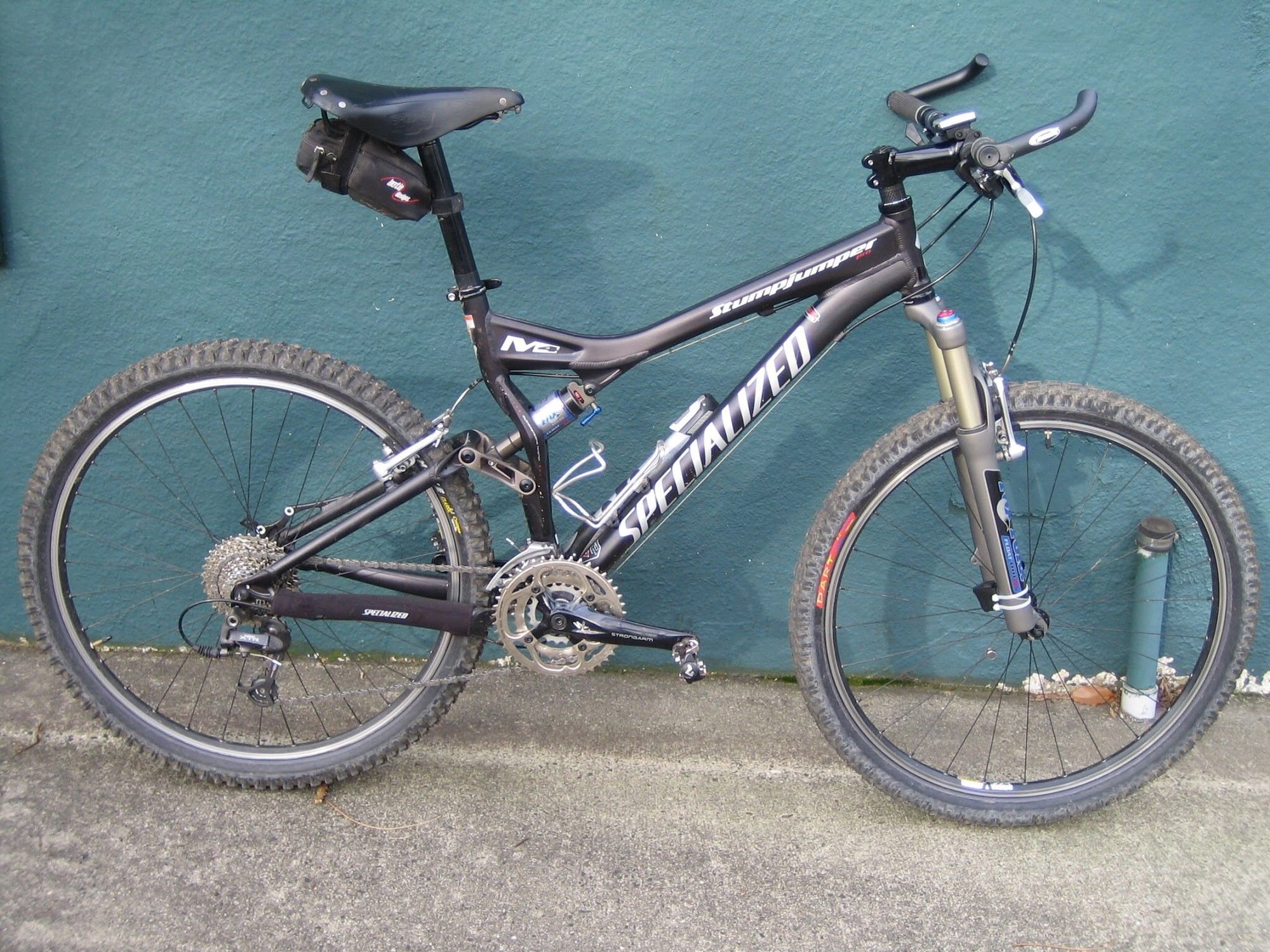

Well.... nitpicking, but this very frame dependent. My ‘04 Specialized has cable stops on the bottom of the top tube, front and rear. It had housing from the rear stop to the noodle on the rear brake. My ‘91 Fuji has a hand made steel tube welded in place around the seat and top tube junction that routed the rear brake cable to the center position on canti brakes. When I upgraded that to V, I couldn’t use that nice noodle and ran brake housing right from the lever, zip tied

Steve B. is offline
Old 04-25-20, 04:00 AM
  #12
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 2,261

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 871 Post(s)
Liked 401 Times in 297 Posts
Originally Posted by dsbrantjr View Post
V-brakes do not use cable stops, you run the housing all the way to the noodle.
I have cable stops on my Trek 6000 mountain bike, which has V-brakes. That said, the OP's frame ornament doesn't look like a proper cable stop... the housing could pass right through it, as wesmamyke pointed out.
sweeks is offline
Old 04-25-20, 06:17 AM
  #13
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,298

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1427 Post(s)
Liked 1,061 Times in 709 Posts
Originally Posted by sweeks View Post
I have cable stops on my Trek 6000 mountain bike, which has V-brakes. That said, the OP's frame ornament doesn't look like a proper cable stop... the housing could pass right through it, as wesmamyke pointed out.
I should have been clearer, V-brakes have a run of housing going to the noodle, unlike cantilever brakes which have a cable hanger where the housing stops and then a bare inner wire goes to the brake's straddle cable carrier or link wire. Either may have intermediate stops for bare cable runs such as along the top tube.
dsbrantjr is offline
Old 04-25-20, 07:57 AM
  #14
Steve B.
Senior Member

Join Date: Jul 2007
Location: South shore, L.I., NY
Posts: 6,068

Bikes: Flyxii FR322, Cannondale Topstone, Miyata City Liner, Specialized Chisel, Specialized Epic Evo

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 2662 Post(s)
Liked 1,410 Times in 817 Posts
Originally Posted by dsbrantjr View Post
I should have been clearer, V-brakes have a run of housing going to the noodle, unlike cantilever brakes which have a cable hanger where the housing stops and then a bare inner wire goes to the brake's straddle cable carrier or link wire. Either may have intermediate stops for bare cable runs such as along the top tube.
And there's nothing wrong with full length housing either. My '98 Miyata tourer has internal routing in the top tube for a full length housing, could have been either Canti or V.
Steve B. is offline
Old 04-25-20, 05:04 PM
  #15
wesmamyke
Senior Member

Join Date: Nov 2009
Posts: 1,141
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 196 Post(s)
Liked 79 Times in 70 Posts

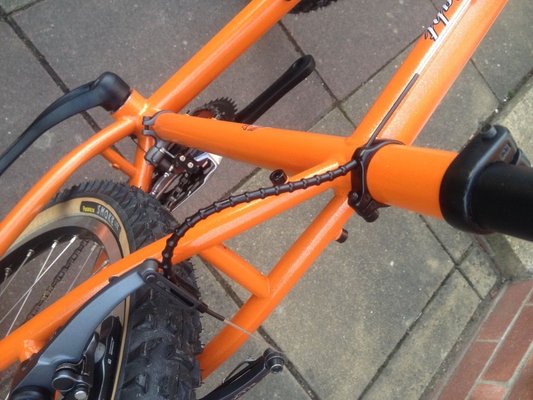

These are two different generations of the same thing, so they look a little different.

Here is one modified to work with V-brakes:




Here is the stock setup:

Last edited by wesmamyke; 04-27-20 at 12:14 AM.
wesmamyke is offline
Old 04-26-20, 07:48 PM
  #16
sunburst
Senior Member
Thread Starter

sunburst's Avatar

Join Date: Jan 2008
Location: SF Bay Area
Posts: 1,721

Bikes: Giant, Trek, Peugeots, Motobecane, Kona, Specialized, Bike Friday, Ironhorse

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Liked 67 Times in 40 Posts

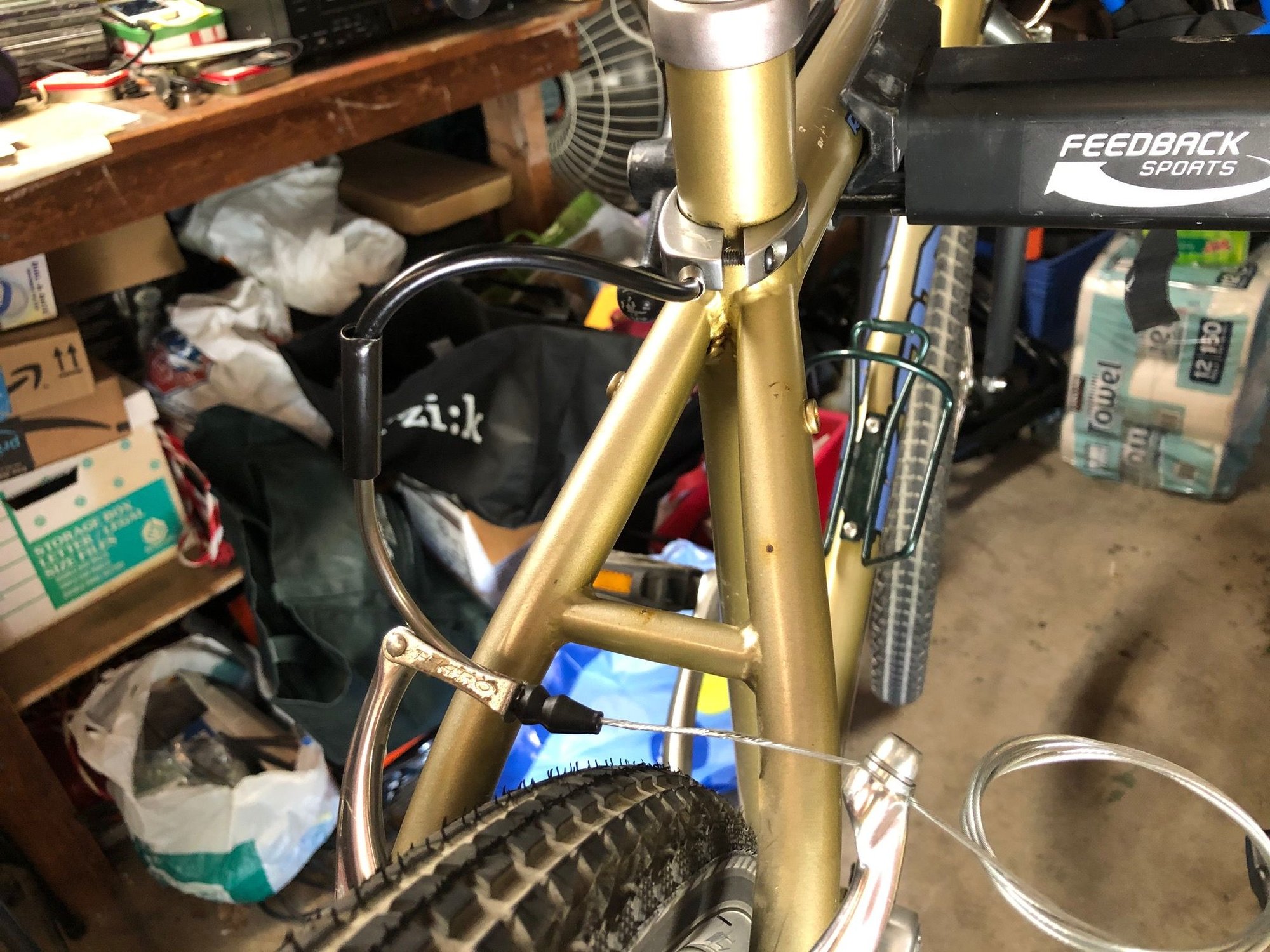

OK, found the part, and found an original pic of the bike. This cable guide/stop has an indent that fixes the position. I first tried to defeat this because I did not like the curve in the cable, and this orientation just seems wrong, but this is what Kona designed. And it works.

Here are pix of the finished bike.



sunburst is offline
Old 04-26-20, 07:54 PM
  #17
sunburst
Senior Member
Thread Starter

sunburst's Avatar

Join Date: Jan 2008
Location: SF Bay Area
Posts: 1,721

Bikes: Giant, Trek, Peugeots, Motobecane, Kona, Specialized, Bike Friday, Ironhorse

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Liked 67 Times in 40 Posts
Maiden voyage last night. Today I changed the saddle. Next up is a better crank and bar-ends. Most of these parts came from a wreaked hybrid I bought for parts.

It fits and rides beautifully. I've wanted a rigid fork mtn bike ever since I gave my brother my old purple Rockhopper.
Thx 2cam!

sunburst is offline
Likes For sunburst:
Old 04-26-20, 08:43 PM
  #18
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,963

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3727 Post(s)
Liked 2,773 Times in 1,724 Posts
Given that the first photo shows a cable casing end that isn't seated in the frame clamp stop fully I don't think this is a solution that Kona , or experienced wrenches, would have hoped for. Then there's the extremely curvy casing path... Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 04-26-20, 09:39 PM
  #19
sunburst
Senior Member
Thread Starter

sunburst's Avatar

Join Date: Jan 2008
Location: SF Bay Area
Posts: 1,721

Bikes: Giant, Trek, Peugeots, Motobecane, Kona, Specialized, Bike Friday, Ironhorse

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Liked 67 Times in 40 Posts
Originally Posted by Andrew R Stewart View Post
Given that the first photo shows a cable casing end that isn't seated in the frame clamp stop fully I don't think this is a solution that Kona , or experienced wrenches, would have hoped for. Then there's the extremely curvy casing path... Andy
That cable casing was not an original part (which I don't have). Just something in my box.

Yeah, I don't like the curve, so I don't know what Kona was thinking. The brake pull doesn't feel like there is any restriction however. The cable guide has a top tube indent that forces the guide into this position. I tried getting around it but, in my opinion, this is just bad/strange design. I could be wrong.
sunburst is offline
Old 04-27-20, 12:08 AM
  #20
wesmamyke
Senior Member

Join Date: Nov 2009
Posts: 1,141
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 196 Post(s)
Liked 79 Times in 70 Posts
Again. this is the stock setup:


wesmamyke is offline
Old 04-27-20, 10:25 AM
  #21
sunburst
Senior Member
Thread Starter

sunburst's Avatar

Join Date: Jan 2008
Location: SF Bay Area
Posts: 1,721

Bikes: Giant, Trek, Peugeots, Motobecane, Kona, Specialized, Bike Friday, Ironhorse

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Liked 67 Times in 40 Posts
duh, I get it now - the bike originally came with canti-levers. Someone, at some point, replaced them with V-brakes, so I assumed that was the factory design. Thx for the photo.



Originally Posted by wesmamyke View Post
Again. this is the stock setup:


sunburst is offline
