Questions about my cross check?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Questions about my cross check?

Old 04-26-20, 12:16 PM
  #1
Liquidspacehead
Senior Member
Thread Starter

Join Date: Sep 2019
Posts: 51
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 4 Times in 4 Posts
Questions about my cross check?

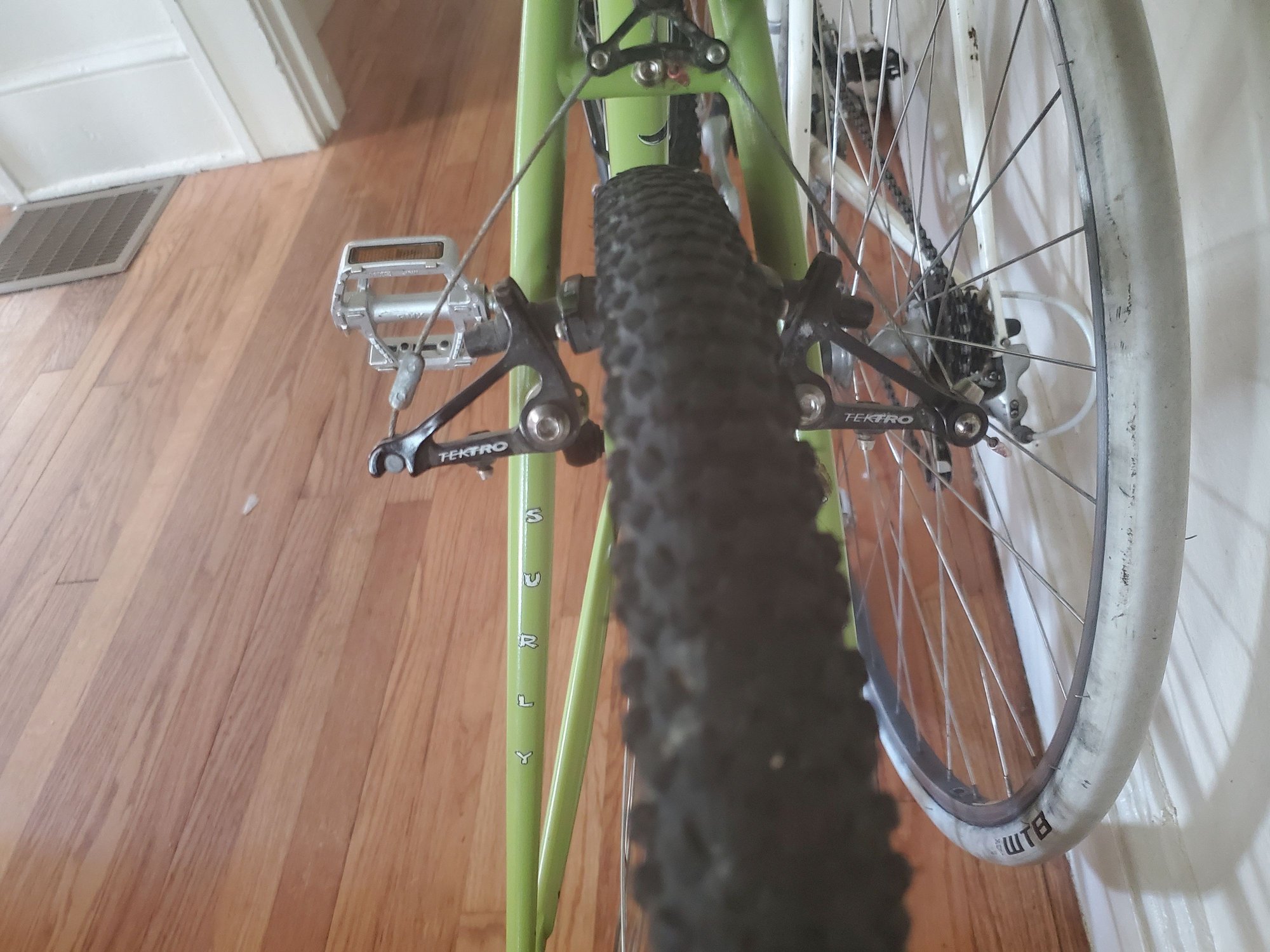

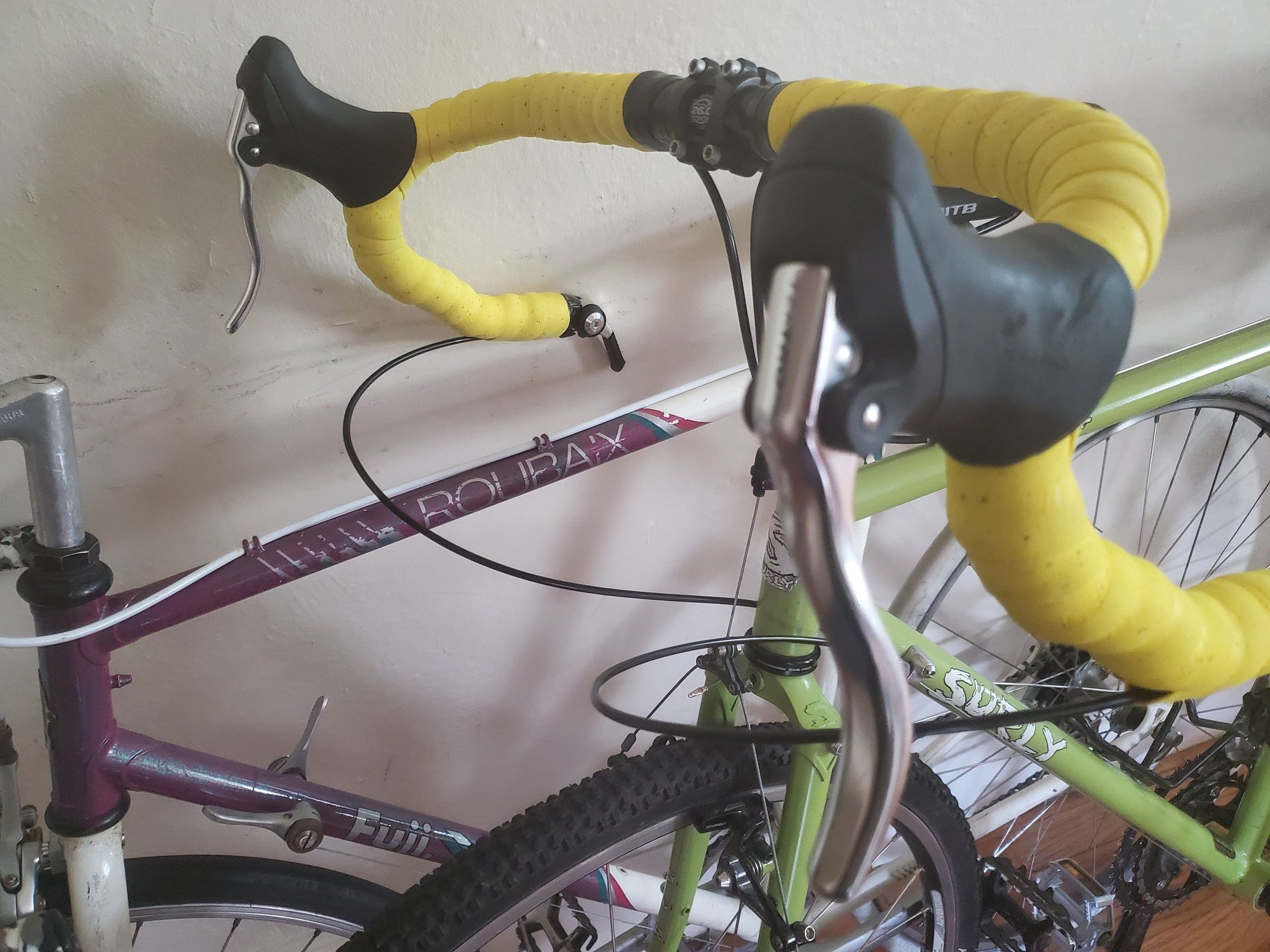

Hello everyone! I recently was very fortunate to find a very affordable surly crosscheck in very good shape, and I got it! I love everything about this bike all around and do not plan on making any changes in the next few months. However, there are a few modifications that I would like to make at some point. One being V-brakes. Right now it has the stock Tektro Cantilever brakes from what I am assuming is an older model. So my question is SINCE it does have drop bar shifters and they are brake only levers, would it be possible? I would gladly replace all the cables and housing for the brakes when that time comes, IF I am able to do this. I like V-brakes a lot more and they're predictable skids are what I dream of when riding (even if I replace mr brake pads 2x as fast).


Liquidspacehead is offline
Old 04-26-20, 01:07 PM
  #2
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 1,320
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 394 Post(s)
Liked 216 Times in 165 Posts
You may need new levers if you change out to V-brake.

What's a matter with the cantis?
Mr. 66 is offline
Old 04-26-20, 02:05 PM
  #3
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,567

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1156 Post(s)
Liked 546 Times in 394 Posts
Originally Posted by Mr. 66 View Post
You may need new levers if you change out to V-brake.

What's a matter with the cantis?
If you keep the cantis (which I have on all of my bikes BTW) I would recommend that you put a reflector bracket or similar under the straddle wire to catch it in case the main wire parts; the straddle wire will get caught in the tire knobs and lock the tire..
dsbrantjr is offline
Old 04-26-20, 02:30 PM
  #4
showlow
Senior Member

showlow's Avatar

Join Date: Sep 2014
Location: Tucson
Posts: 257

Bikes: Lemond Zurich, All City Macho King Ace

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 82 Post(s)
Liked 38 Times in 26 Posts
You just need to get brake levers that have the appropriate pull. Tektro RL520 drop bar levers are made for v-brakes. I use them on my CC. They work great. V-brakes are much better than cantis for just about everything.
showlow is offline
Likes For showlow:
Old 04-26-20, 03:31 PM
  #5
tFUnK
Senior Member

Join Date: Jun 2002
Location: San Jose, CA
Posts: 2,699

Bikes: Too many bikes, too little time to ride

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Liked 46 Times in 41 Posts
Mini-v brakes work with road-pull brake levers.
tFUnK is offline
Likes For tFUnK:
Old 04-26-20, 03:32 PM
  #6
freeranger
Senior Member

freeranger's Avatar

Join Date: Jun 2005
Location: Kentucky
Posts: 1,720

Bikes: 06 Lemond Reno, 98 GT Timberline mtn.bike

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked 214 Times in 148 Posts
Or you could use a travel agent with your current levers: https://problemsolversbike.com/produ..._agents_-_6416
freeranger is offline
Old 04-26-20, 03:32 PM
  #7
aggiegrads
Senior Member

Join Date: Oct 2009
Location: Sherwood, OR
Posts: 1,011
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 193 Post(s)
Liked 104 Times in 77 Posts
Or you can get travel agents that will convert the pull ratio from the levers that you have to be appropriate for long-arm v brakes.

Mini-V brakes also work with short pull levers, and they are cheap too. I have the Tektro 926 on my Kona Jake the Snake and they stop like nobodyís business.

You want something shorter than about 85mm.
aggiegrads is offline
Likes For aggiegrads:
Old 04-26-20, 04:38 PM
  #8
Liquidspacehead
Senior Member
Thread Starter

Join Date: Sep 2019
Posts: 51
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by dsbrantjr View Post
If you keep the cantis (which I have on all of my bikes BTW) I would recommend that you put a reflector bracket or similar under the straddle wire to catch it in case the main wire parts; the straddle wire will get caught in the tire knobs and lock the tire..

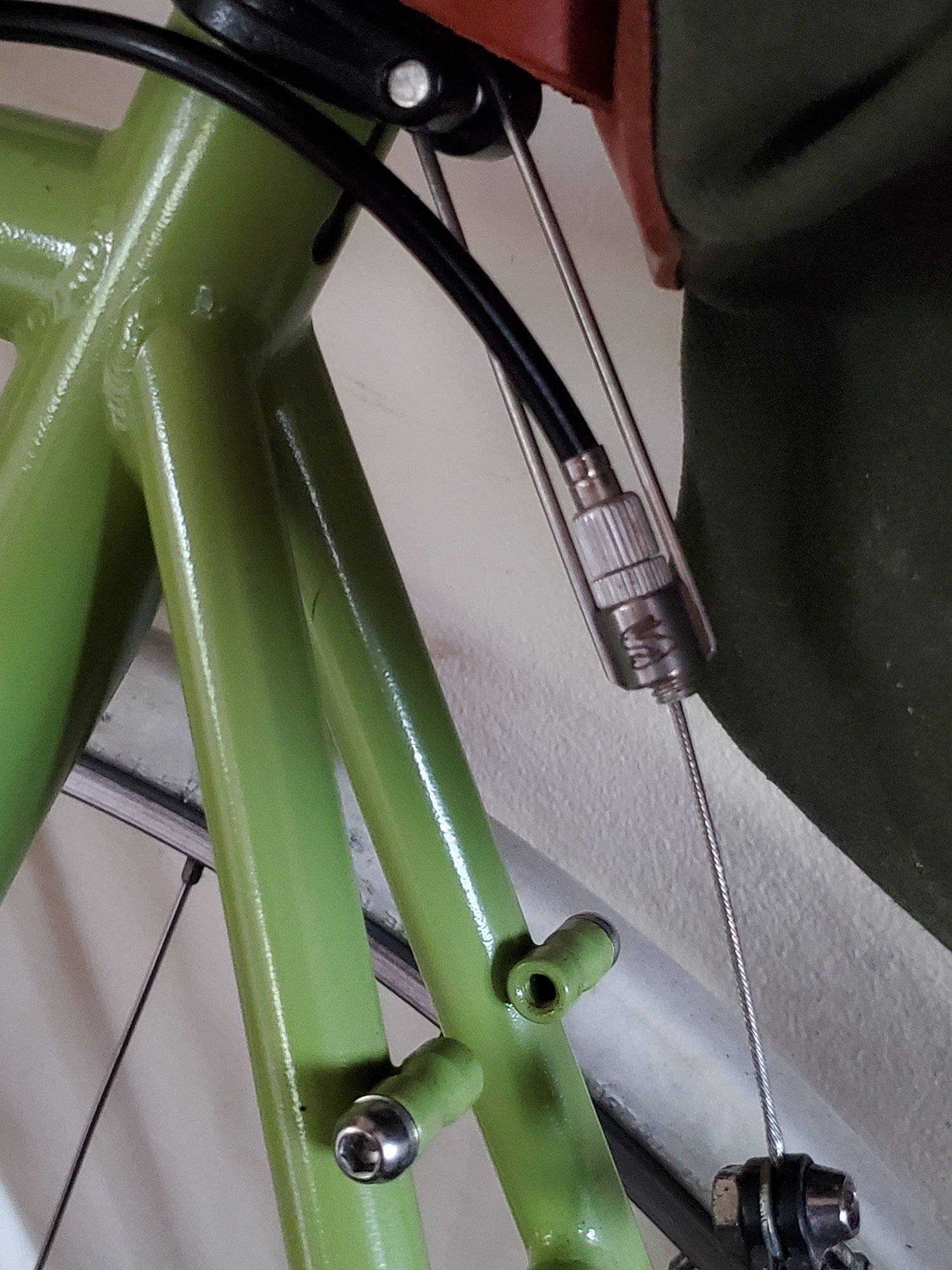

Is this what you mean? My rear bag covers it in the picture but I think I have what you mean.
Liquidspacehead is offline
Old 04-26-20, 04:41 PM
  #9
Liquidspacehead
Senior Member
Thread Starter

Join Date: Sep 2019
Posts: 51
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by aggiegrads View Post
Or you can get travel agents that will convert the pull ratio from the levers that you have to be appropriate for long-arm v brakes.

Mini-V brakes also work with short pull levers, and they are cheap too. I have the Tektro 926 on my Kona Jake the Snake and they stop like nobodyís business.

You want something shorter than about 85mm.
so I could essentially make it work with mini V's and my current levers? I can't really explain to anyone who doesn't understand why I love them more than canti's but you seem to get why!
Liquidspacehead is offline
Old 04-26-20, 05:03 PM
  #10
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,567

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1156 Post(s)
Liked 546 Times in 394 Posts
Originally Posted by Liquidspacehead View Post
Is this what you mean? My rear bag covers it in the picture but I think I have what you mean.
No something under the straddle cable to catch it if the main brake cable parts or comes loose, to stop it from fouling the tire.
dsbrantjr is offline
Old 04-26-20, 05:22 PM
  #11
aggiegrads
Senior Member

Join Date: Oct 2009
Location: Sherwood, OR
Posts: 1,011
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 193 Post(s)
Liked 104 Times in 77 Posts
Originally Posted by Liquidspacehead View Post
so I could essentially make it work with mini V's and my current levers? I can't really explain to anyone who doesn't understand why I love them more than canti's but you seem to get why!
Yes, you can. The downside is that you get slightly less pad clearance and much less clearance between the tire and the exposed section of the brake cable.
aggiegrads is offline
Old 04-26-20, 06:00 PM
  #12
aggiegrads
Senior Member

Join Date: Oct 2009
Location: Sherwood, OR
Posts: 1,011
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 193 Post(s)
Liked 104 Times in 77 Posts
I also recommend getting adjustable noodles or in-line adjusters:
https://www.universalcycles.com/shop...&category=3154
https://www.universalcycles.com/shop...s.php?id=35773
https://www.universalcycles.com/shop...&category=1613

the road levers don’t have the ability to adjust cable tension, nor do v-brakes, so you need some way to adjust as pads wear.

That’s a great color, by the way. What does Surly call it?
aggiegrads is offline
Old 04-26-20, 06:13 PM
  #13
Rogerogeroge
Senior Member

Join Date: Oct 2017
Posts: 201

Bikes: Trek Emonda SLR 9; Moots Routt YBB; Trek Fuel EX8+; LeMond Poprad

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 95 Post(s)
Liked 61 Times in 38 Posts
Originally Posted by dsbrantjr View Post
If you keep the cantis (which I have on all of my bikes BTW) I would recommend that you put a reflector bracket or similar under the straddle wire to catch it in case the main wire parts; the straddle wire will get caught in the tire knobs and lock the tire..
So you lock up the front wheel and send yourself over the handlebars? Why don't you just use your rear brake to stop? I've never heard that argument for using a reflector.

BTW, I can tell that those canti's aren't set up correctly at all. Those pads aren't set up symmetrically and the straddle cable is about two inches two long, which would probably necessitate a new brake cable.
Rogerogeroge is offline
Old 04-26-20, 11:16 PM
  #14
dabac
Senior Member

Join Date: Mar 2008
Posts: 8,219
Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 928 Post(s)
Liked 94 Times in 72 Posts
Last time I checked, it was still possible to buy Travel Agents.
These are pulleys that replace the noodle on V-brakes and allow you to use canti/caliper levers by increasing the cable pull.
dabac is offline
Old 04-27-20, 09:14 AM
  #15
showlow
Senior Member

showlow's Avatar

Join Date: Sep 2014
Location: Tucson
Posts: 257

Bikes: Lemond Zurich, All City Macho King Ace

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 82 Post(s)
Liked 38 Times in 26 Posts
Originally Posted by aggiegrads View Post
I also recommend getting adjustable noodles or in-line adjusters:
https://www.universalcycles.com/shop...&category=3154
https://www.universalcycles.com/shop...s.php?id=35773
https://www.universalcycles.com/shop...&category=1613

the road levers donít have the ability to adjust cable tension, nor do v-brakes, so you need some way to adjust as pads wear.

Thatís a great color, by the way. What does Surly call it?
Forgot about this part. I split my cables and installed an inline barrel adjuster.
showlow is offline
Old 04-27-20, 10:15 AM
  #16
Liquidspacehead
Senior Member
Thread Starter

Join Date: Sep 2019
Posts: 51
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by aggiegrads View Post
I also recommend getting adjustable noodles or in-line adjusters:
https://www.universalcycles.com/shop...&category=3154
https://www.universalcycles.com/shop...s.php?id=35773
https://www.universalcycles.com/shop...&category=1613

the road levers donít have the ability to adjust cable tension, nor do v-brakes, so you need some way to adjust as pads wear.

Thatís a great color, by the way. What does Surly call it?
I am not sure what they call it, I am pretty sure it's an older model by a couple years.
Liquidspacehead is offline
Old 04-27-20, 10:27 AM
  #17
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Posts: 8,965

Bikes: Klein, Merckx, Trek

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 2551 Post(s)
Liked 421 Times in 248 Posts
Originally Posted by dsbrantjr View Post
If you keep the cantis (which I have on all of my bikes BTW) I would recommend that you put a reflector bracket or similar under the straddle wire to catch it in case the main wire parts; the straddle wire will get caught in the tire knobs and lock the tire..
This issue with cantilevers was one of the main reasons they invented V-brakes, and why canti's are so rare on newer bikes.
DiabloScott is offline
