Question about slight damage to carbon fork in '97 LeMond Zurich

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Question about slight damage to carbon fork in '97 LeMond Zurich

Old 05-04-20, 11:21 PM
  #1
TimbyMaTombo
Junior Member
Thread Starter

Join Date: Jun 2013
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Question about slight damage to carbon fork on '97 LeMond Zurich *now with pictures*

Just picked up a '97 LeMond Zurich with full Shimano 105 a couple days ago that needs a good cleaning and tune up. Overall the frame is in pretty good condition with some nicks and small spots of rust. I'm planning on tearing the bike down to the frame to clean up all the parts but an concerned about the front fork. It's got a pretty good sized nick in the... shoulder (?) of the carbon fork. It's hard to tell if the carbon itself is damaged or just the paint but I am probably going to start looking for a replacement fork regardless just in case.

Looking online, I would have no qualms switching to an alloy fork but I'm not sure how to make sure it is compatible. As far as I know it is a 1" threadless fork with a 47mm rake. I'm trying to attach some pictures of the fork but I assume I will need it professionally inspected to know for certain if it's safe.

How would I go about finding a compatible fork? Could I expect to find an alloy one or would finding another stock for be the only viable option
Thanks

Last edited by TimbyMaTombo; 05-06-20 at 03:25 PM. Reason: New title for updated pictures
TimbyMaTombo is offline
Old 05-04-20, 11:27 PM
  #2
tFUnK
Senior Member

Join Date: Jun 2002
Location: San Jose, CA
Posts: 2,691

Bikes: Too many bikes, too little time to ride

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 101 Post(s)
Liked 44 Times in 40 Posts
Curious to see pics of the damage. Most likely it's still safe to ride. But as for a replacement fork, you already mentioned the important part: 1" threadless steerer (make sure it's as long or longer than the original fork steerer) with 47mm rake (give or take a few mm; 1" threadless forks are hard enough to find without this rake constraint). Also make sure it is drilled to take caliper brakes.
tFUnK is offline
Old 05-05-20, 02:02 AM
  #3
cpach
Senior Member

Join Date: Oct 2009
Location: Mt Shasta, CA, USA
Posts: 1,696

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 375 Post(s)
Liked 138 Times in 114 Posts
I wouldn't stress over the rake too much, as 47mm is slightly uncommon, 45 is reasonably common, and 43 is the most common. You probably can't tell much between 2-3mm at all, less rake will be more stable at speed and less responsive. There are a couple of carbon options still kicking around new, and certainly NOS or used, or your bike would look plenty classy with a matching steel (not alloy, which in bikelandia means aluminum, which is a pretty awful fork material) fork as well.

If you want to go all in: https://www.woundupcomposites.com/product/road-x-1/, for sure.

I'd probably do https://us.ritcheylogic.com/us_en/bi...rbon-road-fork and not worry so much about rake.
cpach is offline
Likes For cpach:
Old 05-05-20, 07:19 AM
  #4
TimbyMaTombo
Junior Member
Thread Starter

Join Date: Jun 2013
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'll need to go add some comments elsewhere to get my post count up to 10 so I can link images but when I do, I'll post the pictures of the damage. I picked the bike up for pretty cheap so I'm not wanting spend more than I paid overall on a new fork.

You're correct that I meant steel rather than alloy. There is a steel 1" threaded LeMond fork on eBay right now for pretty cheap that I'd be tempted to swap over; assuming I can get a threaded headset and quill for less overall than a new carbon fork. I just don't like the idea of my fork catastrophically failing while I'm riding.

Will return with pictures when I can. If I were to take the fork to get professionally inspected, is that something I would take to an LBS?
TimbyMaTombo is offline
Old 05-05-20, 08:58 AM
  #5
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 1,677
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 275 Post(s)
Liked 82 Times in 66 Posts
Originally Posted by TimbyMaTombo View Post
Will return with pictures when I can. If I were to take the fork to get professionally inspected, is that something I would take to an LBS?
My experience with LBS Carbon diagnosis expertise is that it varies wildly. Take it to at least 3 or more shops. Understandably most shops are going to be very conservative to avoid any lawsuits by someone who experienced a broken fork after having been given the OK.
Crankycrank is offline
Old 05-05-20, 09:13 AM
  #6
TimbyMaTombo
Junior Member
Thread Starter

Join Date: Jun 2013
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Crankycrank View Post
My experience with LBS Carbon diagnosis expertise is that it varies wildly. Take it to at least 3 or more shops. Understandably most shops are going to be very conservative to avoid any lawsuits by someone who experienced a broken fork after having been given the OK.
I had a feeling that it would be a questionable what with liability and the opportunity to upsell.
TimbyMaTombo is offline
Old 05-05-20, 09:22 AM
  #7
2old
Senior Member

Join Date: Jul 2014
Location: socal
Posts: 2,223
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 380 Post(s)
Liked 147 Times in 105 Posts
If the individual is smart, he won't give an opinion unless it's very obvious one way or the other; if he's not, you wouldn't want to ask. I had a "scratch" in a carbon bar and my very intelligent (IMO) LBS owner, a friend, said it didn't appear to penetrate the clear coat so was OK. Seven years of hard off road abuse later I replaced the fork for one with more rise.
2old is offline
Old 05-05-20, 11:38 PM
  #8
TimbyMaTombo
Junior Member
Thread Starter

Join Date: Jun 2013
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by tFUnK View Post
Curious to see pics of the damage. Most likely it's still safe to ride. But as for a replacement fork, you already mentioned the important part: 1" threadless steerer (make sure it's as long or longer than the original fork steerer) with 47mm rake (give or take a few mm; 1" threadless forks are hard enough to find without this rake constraint). Also make sure it is drilled to take caliper brakes.

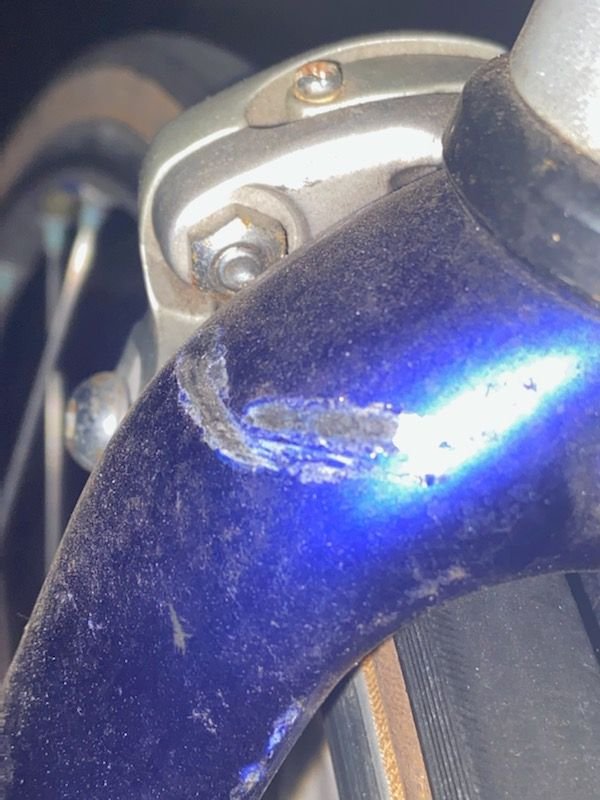

Here are the pictures of the damage.




TimbyMaTombo is offline
Old 05-06-20, 12:11 AM
  #9
tFUnK
Senior Member

Join Date: Jun 2002
Location: San Jose, CA
Posts: 2,691

Bikes: Too many bikes, too little time to ride

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 101 Post(s)
Liked 44 Times in 40 Posts
Thanks for indulging. If it were me I'd ride that original fork without concern but I lean towards being risk tolerant.

Nice bike!
tFUnK is offline
Old 05-06-20, 12:47 AM
  #10
TimbyMaTombo
Junior Member
Thread Starter

Join Date: Jun 2013
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks for the input, I'll be wrenching on it for a little while so I've got time to decide. It needs a bit of love but it definitely seems worth the effort.
TimbyMaTombo is offline
Old 05-07-20, 07:09 AM
  #11
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 1,387

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 207 Post(s)
Liked 68 Times in 53 Posts
If you were my brother-in-law puttering around the neighborhood I would say ride on, if you were my nephews who think they will live forever and find ways to damage rims & tires and break things, no way. You are probably between those groups somewhere so I would be looking very closely and trying to get opinions to see if the damage is beyond the clear coat. That said the question of how it happened may be material in that the pics look like a scratches, however, if it was actually impacts the underlying fibers and matrix could be damaged.
easyupbug is offline
Old 05-07-20, 09:28 AM
  #12
TimbyMaTombo
Junior Member
Thread Starter

Join Date: Jun 2013
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by easyupbug View Post
That said the question of how it happened may be material in that the pics look like a scratches, however, if it was actually impacts the underlying fibers and matrix could be damaged.
Unfortunately I don't know the circumstances of the damage, the lad I bought the bike from had it given to him by a relative that was going to throw it out.

If you were my brother-in-law puttering around the neighborhood I would say ride on, if you were my nephews who think they will live forever and find ways to damage rims & tires and break things, no way. You are probably between those groups somewhere so I would be looking very closely and trying to get opinions to see if the damage is beyond the clear coat.
I generally stick to MUPs for cycling and they are fairly well maintained here so I would like to think I'm gentle on my equipment. When I do get it rideable I could leave it to trainer duty until I can get a replacement fork; as much as I'd rather not buy a new fork, my desire to not eat asphalt is stronger.

Final question: there's a steel LeMond fork on eBay right now for a good price but it is threaded so I would need a new headset and stem. I like the idea of getting a somewhat matching fork but am concerned the steerer isn't long enough. I've measured my headtube and it is ~4 9/16" and the steerer is ~5 1/4". It seems like a Tange Passage headset has the shortest stack height at 30mm and by my rough calculation that would leave it about 10mm short. I've heard you can have the headtube faced but I'm not sure 10mm would be possible. I've attached a photo of the head tube for reference; there is room to remove material but not sure it's enough.

TimbyMaTombo is offline
Old 05-07-20, 03:40 PM
  #13
wsteve464
Senior Member

Join Date: Jul 2016
Posts: 551
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 155 Post(s)
Liked 66 Times in 58 Posts
I don't know the specific of Lemond bikes but before buying a new fork check the diameter of the current fork. Most threadless forks are 1 1/8 at the stem.

I'd sand it smooth paint it and forget about it.
wsteve464 is offline
Old 05-07-20, 05:43 PM
  #14
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 7,042

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) '82 nishiski,

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 1171 Post(s)
Liked 368 Times in 283 Posts
I am super conservative about these things..... it sure looks to me like the damage is through paint,primer and gel coat and into the carbon fiber (fibre for op) layer. the first pic shows what looks like a small crack. Personally i would not ride it, but again i am conservative
__________________
Looking for more time to ride what I have
squirtdad is offline
Old 05-07-20, 06:04 PM
  #15
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 996

Bikes: Trek 770, Trek 760, Schwinn Peloton, Patelli Professional, Othon Ochsner

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 417 Post(s)
Liked 296 Times in 227 Posts
As carbon fibre goes this one is damaged. It will fail at that point, but it is just a matter of when. Without X-Ray testing to see how deep the cut is, it is questionable.
The depth of the carbon fibre is another issue. If it is very thick it may be just a surface cut. But a cut that thick in some thin tubes it is a definite failure about to happen. If it occurred in my shop it would come out of service. I don't want to test my liability insurance which is already high enough. JMHO, MH
Mad Honk is offline
Old 05-07-20, 07:08 PM
  #16
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 682

Bikes: Peugeot teamline

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 141 Post(s)
Liked 37 Times in 33 Posts
Grab the fork legs without the wheel and pull and twist them. Do you see any movement there. Do both legs move the same.
If it is compromised you will know straight away and the decision is made.
If it appears to be ok but your still not sure just replace the fork. And ride with confidence.
Going down a hill wondering if I have to brake hard will the fork also break won't be much fun.
You can't ride a bike if you think it is dangerous.
blamester is offline
Old 05-07-20, 07:48 PM
  #17
TimbyMaTombo
Junior Member
Thread Starter

Join Date: Jun 2013
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by blamester View Post
Grab the fork legs without the wheel and pull and twist them. Do you see any movement there. Do both legs move the same.
If it is compromised you will know straight away and the decision is made.
If it appears to be ok but your still not sure just replace the fork. And ride with confidence.
Going down a hill wondering if I have to brake hard will the fork also break won't be much fun.
You can't ride a bike if you think it is dangerous.

I'll try that out when I disassemble it for maintenance, thanks; would rather it break in testing at home than while riding. I was also going to tap around the fork to see if it sounded different in that area. I'll be on the lookout for a new fork in the meantime just so i can have confidence in it.
TimbyMaTombo is offline
Old 05-07-20, 09:04 PM
  #18
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 6,127

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Pink Klein MTB, Phil Wood VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1491 Post(s)
Liked 303 Times in 221 Posts
I wouldn't bother riding it, too much of a risk.

I would replace with probably a Ritchey Fork because they do carbon 1" treadless that will work just fine here. I would not switch to threaded the only time I would stick with threaded is if the bike came with the fork and the fork wasn't damaged.

I wouldn't worry too much about putting money into the bike, it is a decent bike and worth a little love. Shimano 600 Tricolor is in my top three favorite groupsets and I just built a bike around it (though I did switch to a different front derailleur and crank but I could do a full 600 gruppo if I wanted as I have the parts but the Ultegra hollowtech II crank was a better option in my spare parts bin and since the frame wasn't braze on the Dura Ace front derailleur which is clamped was again better option.

If you like the bike make it work well for you, if it just another one in the pile or a transitional bike than get it functional and move on.
veganbikes is offline
