Columbus Foco Chainstay Catastrophe (Dent)

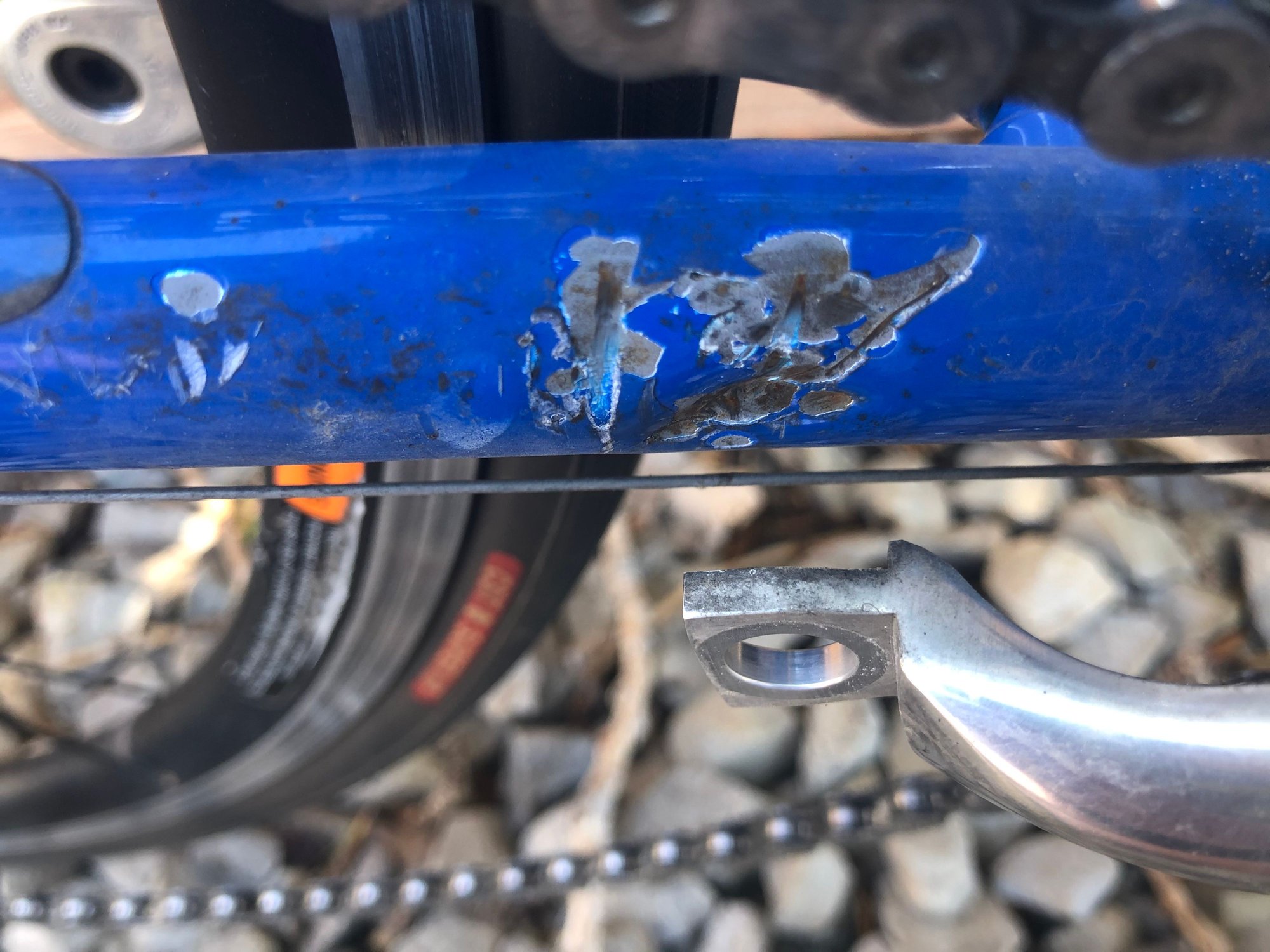

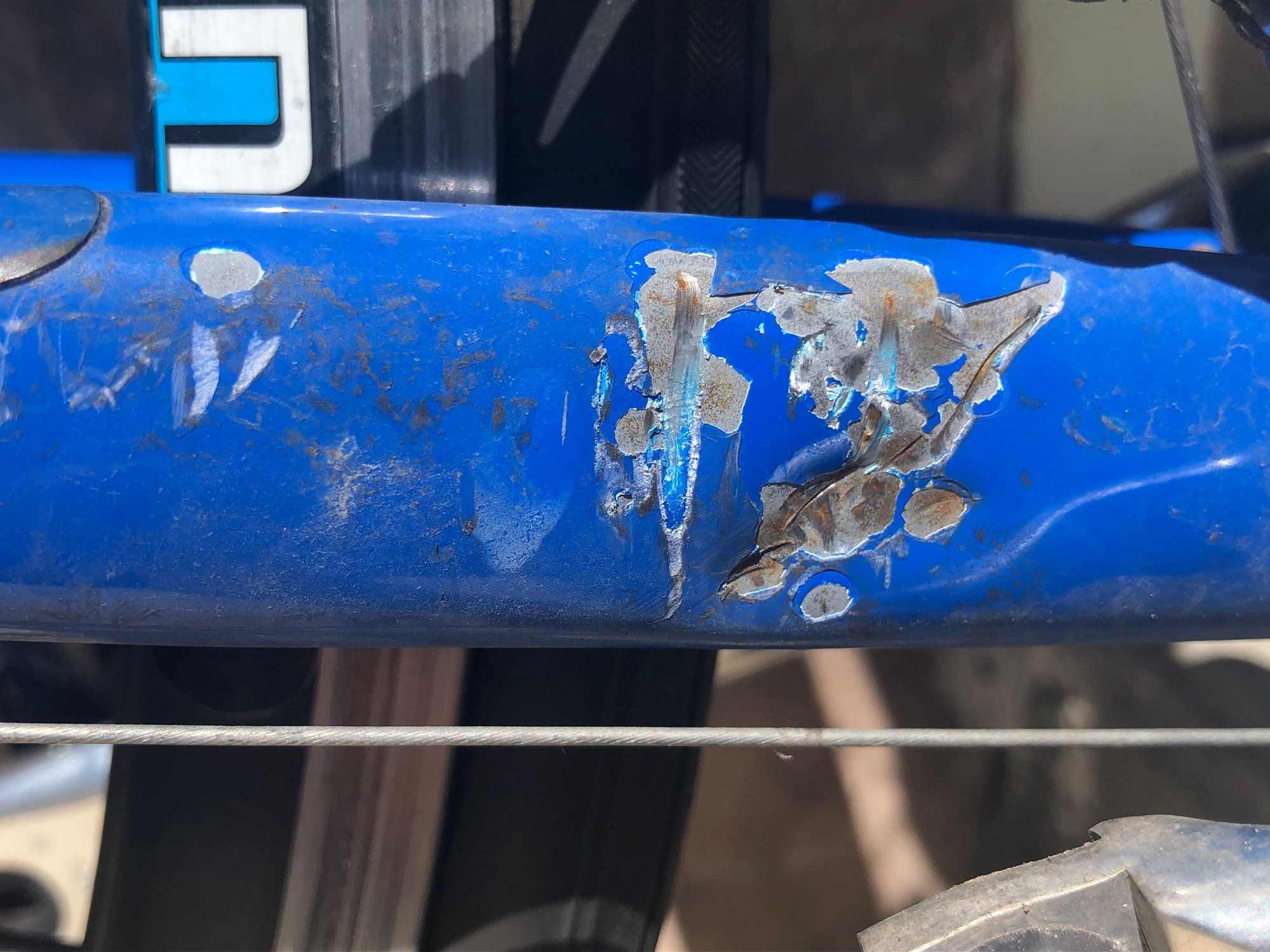

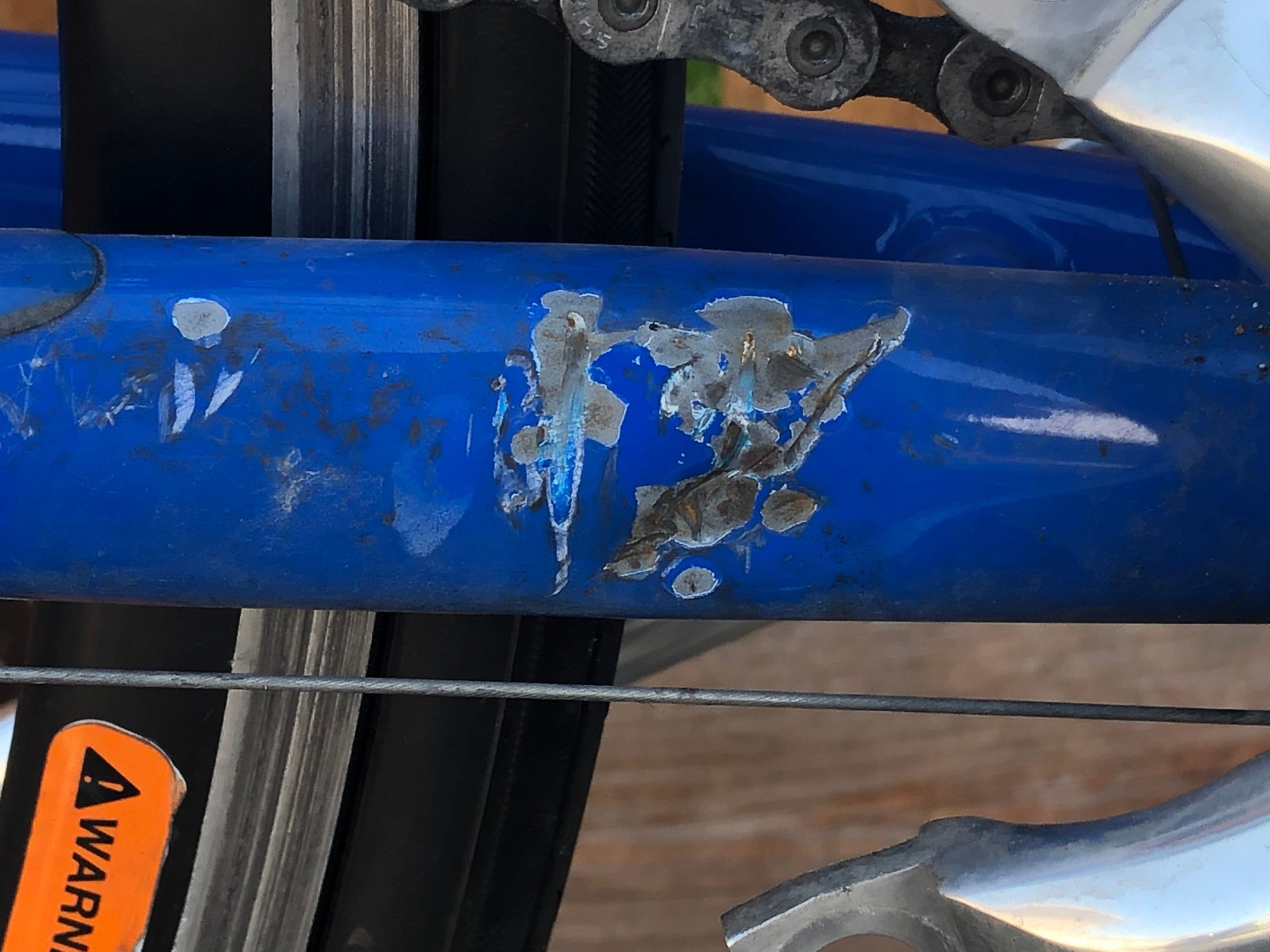

2004 Specialized Allez Comp Columbus Foco steel with a nasty gash/dent on the drive side chainstay. I believe it probably occurred when the chain fell of the inner chain ring and got caught between the chain ring and the stay. Possibly could have been caused by flex in the bottom bracket and the chain ring rubbing. It doesn't quite line up right to be this but could have happened.

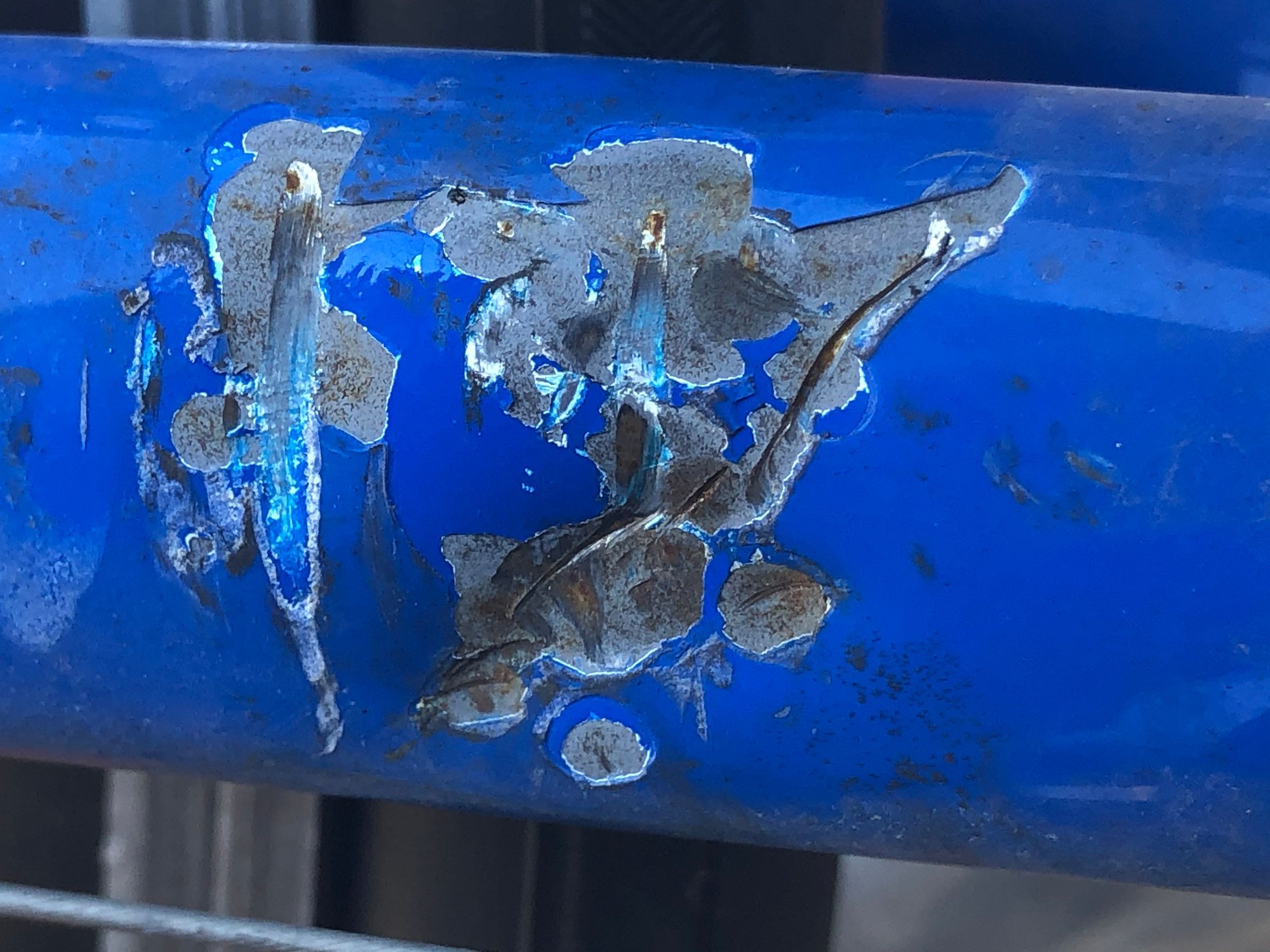

As far as I can tell there are no cracks in the area, but there are a couple of nasty creases with one of them being in the center of a dent. I think the area might have been dimpled a bit already to make clearance for the chain rings, but its hard to tell.

So, the question is: is this frame done? I know the life expectancy for the frame has been shortened, but will it be a matter of months? Years? The previous owner who had owned it for a few years said that they hadn't noticed the damage and that the bike had been sitting for awhile in their garage. Who knows how long ago it occurred and how much riding the bike has been subjected to since then.

I noticed the damage, and still went ahead and bought it . It rides great but for how long?

I could sell it. Obviously, I would feel bad selling it if it's a major risk of breaking. And I feel that it could be.
I could ride it until it dies, enjoy what life it has left. Hopefully that would be awhile.
I could part it out for some of my other bike projects/builds.
Or sell off parts to recoup some of the cost of the bike.

Thoughts/advice on the damage and what to do with the bike are appreciated.










Last edited by AL7000; 05-08-20 at 01:40 AM. Reason: Remove unnecessary info
AL7000 is offline
Old 05-07-20, 06:41 PM
  #2
Edward1066
Member

Edward1066's Avatar

Join Date: Jun 2016
Location: alameda, ca
Posts: 42

Bikes: Rivendell Appaloosa, 1990 Specialized Hardrock Sport/X-tracycle conversion, Surly Steamroller, 1995 Specialized Allez Sport, Early 90's VanTuyl TT bike, Flying Pigeon PA-06

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 40 Times in 17 Posts
Unfortunately, time for a new frame. It will fail. Not today, not tomorrow. But at somepoint, probably while sprinting out from a green light, that chainstay will snap. Sorry...
Edward1066 is offline
Old 05-07-20, 06:53 PM
  #3
AL7000
Senior Member
Thread Starter

Join Date: Sep 2016
Posts: 60
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Edward1066 View Post
Unfortunately, time for a new frame. It will fail. Not today, not tomorrow. But at somepoint, probably while sprinting out from a green light, that chainstay will snap. Sorry...
Thank you for you for being frank. It really stinks...but I have kind of accepted the reality of it. Just wanted to confirm what I already assumed.
AL7000 is offline
Old 05-07-20, 08:04 PM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,764

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2495 Post(s)
Liked 559 Times in 433 Posts
I agree that it will likely crack and fail however I would not be worried about instantaneous doom. I would monitor the location periodically as steel tends to grow cracks fairly slowly.

This seems to be a classic case of chain suck. The chain links don't disengage from the ring's teeth, often during a shift when there's been power applied (not soft pedaling) and the portion of the chain in-between the two rings it under tension. Further contributing can be worn ring teeth and worn chains, so that the chain's meshing with the two rings during the shift is comprised.

We look at the rings, the crank spider trueness, the chain as well as the obvious chain stay when this repair comes in. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 05-07-20, 08:23 PM
  #5
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 730

Bikes: Peugeot teamline

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 163 Post(s)
Liked 41 Times in 35 Posts
Regular inspection required.
blamester is offline
Old 05-07-20, 08:25 PM
  #6
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 32,253

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 1438 Post(s)
Likes: 0
Liked 259 Times in 208 Posts
If there is a frame builder in your area, ask them what replacing that chainstay (and a repaint) would cost. This is not an exotic or extremely valuable frame so determine if the cost of the repair is justified to you. And, yes, I agree that frame is going to fail if not repaired. When, who knows? A broken chainstay will certainly end your ride but is unlikely to cause a crash when it happens. That said, if it were mine I would have it repaired sooner rather than later or replace it.
HillRider is offline
Likes For HillRider:
Old 05-08-20, 07:54 PM
  #7
AL7000
Senior Member
Thread Starter

Join Date: Sep 2016
Posts: 60
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by HillRider View Post
If there is a frame builder in your area, ask them what replacing that chainstay (and a repaint) would cost. This is not an exotic or extremely valuable frame so determine if the cost of the repair is justified to you. And, yes, I agree that frame is going to fail if not repaired. When, who knows? A broken chainstay will certainly end your ride but is unlikely to cause a crash when it happens. That said, if it were mine I would have it repaired sooner rather than later or replace it.
Thanks for the advice. I'll consider it and ask around. Would it help if I had the area welded or brazed to prevent a crack from forming and to strengthen the area? I don't know whether this would help or not. Maybe a question for the framebuilding forum.
AL7000 is offline
Old 05-09-20, 12:59 AM
  #8
cpach
Senior Member

Join Date: Oct 2009
Location: Mt Shasta, CA, USA
Posts: 1,751

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 388 Post(s)
Liked 152 Times in 123 Posts
Originally Posted by AL7000 View Post
Thanks for the advice. I'll consider it and ask around. Would it help if I had the area welded or brazed to prevent a crack from forming and to strengthen the area? I don't know whether this would help or not. Maybe a question for the framebuilding forum.
Probably not. A real repair would basically be welding in a new chainstay and repainting. Do you ride a trainer? Could be good for that.
cpach is offline
Old 05-09-20, 07:29 PM
  #9
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 2,206

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 480 Post(s)
Liked 214 Times in 160 Posts
Not to say you want to go this route, but if you liked your old one enough...
https://www.ebay.com/itm/Specialized...gAAOSwvLteYxfK

... or just keep looking for a replacement frame of the same model.
.
John
70sSanO is offline
Old 05-09-20, 07:43 PM
  #10
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 1,064

Bikes: Trek 770, Trek 760, Schwinn Paramount, Patelli Professional, Othon Ochsner

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 449 Post(s)
Liked 336 Times in 256 Posts
I think I would talk to a frame builder and ask about a repair to the damaged steel section. It hasn't gone through the steel at this point, so It may be possible to add a braze filet to the damage. Or even a weld and grind to repair the tube. If it were mine I would lean toward the braze fill to do the repair. It may cost close to a couple of hundred dollars but would save your frame. Ask some of the frame builders here on BF. Just my thoughts, MH
Mad Honk is offline
Likes For Mad Honk:
