Shimano 9 Speed Ultegra Brifter Issue

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Shimano 9 Speed Ultegra Brifter Issue

Old 05-25-20, 08:16 PM
  #1
mikebian
Senior Member
Thread Starter

Join Date: Sep 2013
Location: Northern NJ
Posts: 50

Bikes: Calfee Tetra Tandem, Ventana ECdM Tandem, Kent Eriksen Custom Coupled Tandem, Meridian Coupled Triplet, Giant TCR, SantaCruz Blur LTb

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 2 Times in 1 Post
Shimano 9 Speed Ultegra Brifter Issue

My wife and I are mostly tandem riders, but she has an old Lemond Zurich road bike that she uses on an old trainer. It has 9 Speed Ultegra brifters on it. Recently, the right side brifter has a weird issue. The smaller lever (to shift to a smaller cog) just moves across without actually releasing the cable to allow the der to move down a cog. But, if I hold the larger lever from moving at all when I press the small lever, it shifts fine. When you just press the small lever, as you normally would, if moves the larger one a millimeter or so at the start of the small lever travel and that seems to cause the shift to not work. Any clue if this is repairable? She doesn't use the bike much so I don't really want to upgrade it. I am very mechanically inclined, but I've heard that Shimano brifters aren't easily repairable.

I am not sure of the model number as I can't find it, but a pic is attached.



Thanks
mikebian is offline
Old 05-25-20, 08:31 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,793

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2500 Post(s)
Liked 571 Times in 440 Posts
This vintage of STI suffers from a couple of common issues. One is the very well posted aging of the lube. The old grease becomes gummy and the little ratchet pawls don't freely move on their shafts so don't hold the position they are asked to. The other is a spring breaks that keeps the primary lever (the brake lever) from moving with the release lever. The former is easily services with flushing out the old gummy lube and replenishing with fresh lube, many dozens of references can be found on this. The later is the death knell unless you are good at micro surgery/watch like repairs (and have a known donner lever). Since the two issues overlap in symptoms I generally suggest a flush and relube because it's low cost and just might do the trick. But don't hold your breath. The need to hold the primary lever stationary (especially when in the smaller cogs) can be a bad sign. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 05-25-20, 08:36 PM
  #3
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 6,370

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 841 Post(s)
Liked 314 Times in 229 Posts
There are videos for flushing those out. The grease gets hard and clogs the pawls inside. Could be a cable fraying inside also.
curbtender is offline
Old 05-25-20, 09:35 PM
  #4
MudPie
Senior Member

MudPie's Avatar

Join Date: May 2004
Location: Southern California
Posts: 1,963
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 21 Times in 17 Posts
I’ve successfully revived three Shimano shifters by flushing and relubing. I followed this video, except I didn’t apply the grease. The Boeshield was the only lubricant.


MudPie is offline
Old 05-26-20, 04:38 PM
  #5
mikebian
Senior Member
Thread Starter

Join Date: Sep 2013
Location: Northern NJ
Posts: 50

Bikes: Calfee Tetra Tandem, Ventana ECdM Tandem, Kent Eriksen Custom Coupled Tandem, Meridian Coupled Triplet, Giant TCR, SantaCruz Blur LTb

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 2 Times in 1 Post
Thanks for the advice, but unfortunately, it didn't work. I tilted the handlebar down, put a pan underneath, and flushed it several times with WD-40 while moving the levers. The WD-40 dripped out dark, so it did take out a lot of grease, but it didn't help the problem at all. I took the brifter off the bike and I'm going to try opening it, but I don't expect much at this point. Even if I see what's broken or worn, where would I get parts?

PS. The cable was in perfect condition.

If I fail (as is likely) on disassembling / fixing the current brifter, I'm thinking of buying a set of Microshift R9 brifters to replace them as they are only $120 and get decent reviews for the price point. And the bike just sits on the trainer mostly.
mikebian is offline
Old 05-26-20, 05:25 PM
  #6
shelbyfv
Banned.

Join Date: Jun 2007
Posts: 7,172
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1810 Post(s)
Liked 1,182 Times in 672 Posts
Microshift sounds like a good plan. I wouldn't waste any more time on trying to repair the old shifter. Actually, for trainer use you could put on a downtube shifter if the frame has a boss.
shelbyfv is offline
Old 05-26-20, 08:06 PM
  #7
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,793

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2500 Post(s)
Liked 571 Times in 440 Posts
Discovering how things work is always a cool idea. But the success rate of reassembly is pretty low for Shimano units (but I guess it depends on how far you go). As to parts Shimano never made available internal parts for any of their indexed shifters that I know of. Very early on they sort of offered their own servicing if the shifter was sent back (IIRC by a qualified dealer) but that went away rather quickly. So the source for replavement parts is another shifter. Of course if that second shifter has an intact primary lever spring it also likely works as it should so why take it apart to fix a broken one...

Micro Shift work well enough and many end up preferring the fixed brake lever blade, like Campy and SRAM uses. However I suggest that you experience the different ergonomic aspects as some don't like the release "button" position. Also these can be more challenging when cold weather gloves are used. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 05-27-20, 08:04 AM
  #8
mikebian
Senior Member
Thread Starter

Join Date: Sep 2013
Location: Northern NJ
Posts: 50

Bikes: Calfee Tetra Tandem, Ventana ECdM Tandem, Kent Eriksen Custom Coupled Tandem, Meridian Coupled Triplet, Giant TCR, SantaCruz Blur LTb

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 2 Times in 1 Post

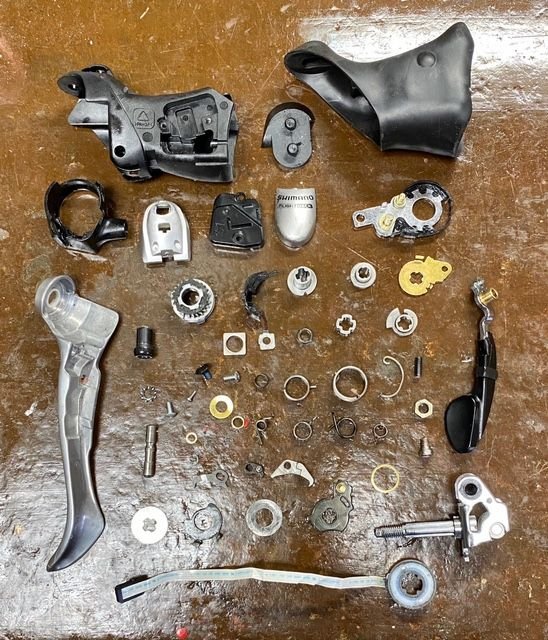

I took it apart this morning and found wear on a ratchet that makes it un-repairable. Then I took it ALL apart. Buying the Microshift brifters now. Thanks for all of your input.

mikebian is offline
Likes For mikebian:
Old 05-27-20, 09:07 AM
  #9
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 6,370

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 841 Post(s)
Liked 314 Times in 229 Posts
That looked like fun. People are always looking for those top caps.
curbtender is offline
Likes For curbtender:
Old 05-27-20, 10:53 PM
  #10
MudPie
Senior Member

MudPie's Avatar

Join Date: May 2004
Location: Southern California
Posts: 1,963
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 21 Times in 17 Posts
Originally Posted by mikebian View Post
I took it apart this morning and found wear on a ratchet that makes it un-repairable. Then I took it ALL apart. Buying the Microshift brifters now. Thanks for all of your input.

You've accomplished what I dream of!
Luckily you don't have to assemble it for a morning ride tomorrow.
MudPie is offline
Old 05-28-20, 05:15 AM
  #11
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,815

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1303 Post(s)
Liked 707 Times in 487 Posts
Originally Posted by mikebian View Post
I took it apart this morning and found wear on a ratchet that makes it un-repairable. Then I took it ALL apart. Buying the Microshift brifters now. Thanks for all of your input.

Those covers plates are a high demand item
dedhed is offline
Old 05-28-20, 05:23 AM
  #12
grizzly59
Senior Member

Join Date: Aug 2016
Posts: 392
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked 60 Times in 45 Posts
That is an awesome picture. I had no idea there were that many parts, holy smokes.
grizzly59 is offline
Old 06-20-20, 08:54 PM
  #13
ckubiak23
Newbie

Join Date: Jun 2020
Posts: 1
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hoods too

THos hoods are also in high demand... Speaking from current experience. If you're looking for a home for the plate and hoods my aged drifters are in need.
ckubiak23 is offline
