An idea for a super cheap mtb gear to SS conversion. Could you double check my idea?

I found an okay mtb on facebook marketplace for free. It's one of those kmart/walmart/costco kind of a trail bike. no suspension, but can take large wheels. I plan on using this for winter commuting in montreal. I was told to get a cheap and simple bike, because it may not last all that long due to salt.

well, it is cheap for sure. (free!) I figured I should drop all of the derailleurs to make it a SS. Probably the easiest to clean and maintain, because I don't have to worry about complex geometry of derailleurs. So I was started looking into different spacers and adapters I need to purchase, and that's when I thought I might be able to achieve the samething without spending more money.

I was hoping that you folks could correct my idea and perhaps suggest if there's any better idea.

If all I'm doing is getting rid of derailleurs and unused chainrings and cogs (and replacing with spaces as necessary), why don't I just get rid of the derailleurs and keep the unused chainrings and cogs? Simple pick a chain ring that I want to use, and then use the cogs that's inline with the chainring. The only additional thing I need to get is a chain tensioner. It's still easy to clean and maintain. The only downsides I see are 1. I can't fully customize the gear, but I don't really care that much 2. it's heavy - I also don't care.

Any thoughts?
curieux88 is offline
Old 06-01-20, 12:59 AM
  #2
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 779

Bikes: Peugeot teamline

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 171 Post(s)
Liked 50 Times in 43 Posts
You would have to be very lucky for it too work well.
​​​​​​Best just leave it as it is.
The salt isn't going to kill it that quickly.
Spray lube every now and again.

Last edited by blamester; 06-01-20 at 06:04 AM.
blamester is offline
Old 06-01-20, 03:51 AM
  #3
dabac
Senior Member

Join Date: Mar 2008
Posts: 8,310
Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 956 Post(s)
Liked 125 Times in 96 Posts
The easiest way to an SS is to stop shifting.
derailer gear bikes are meant to derail. Removing derailers and keeping it reliable usually means adding other bits and pieces to keep the chain settled.
Your Rear derailer IS a chain tensioner.
if you really want to ”customize” your bike, run a piece of wire through the RD. Button end of wire in the barrel adjuster, then clamp the wire to the RD with the RD in position for the preferred gear. Fine tube with the barrel adjuster.
dabac is offline
Old 06-01-20, 08:41 AM
  #4
Thomas15
I know nothing. Really.

Join Date: Aug 2004
Location: NE PA
Posts: 509
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 166 Post(s)
Liked 219 Times in 150 Posts
Originally Posted by curieux88 View Post
............... I figured I should drop all of the derailleurs to make it a SS. Probably the easiest to clean and maintain, because I don't have to worry about complex geometry of derailleurs. So I was started looking into different spacers and adapters I need to purchase, and that's when I thought I might be able to achieve the samething without spending more money.

I was hoping that you folks could correct my idea and perhaps suggest if there's any better idea........
Any thoughts?
Leave it as is. 15 minutes of casual study will take all the mystery out of what is termed "complex geometry of derailleurs". If I can figure it out, anyone can.
Thomas15 is offline
Old 06-01-20, 09:21 AM
  #5
FastJake
Constant tinkerer

FastJake's Avatar

Join Date: May 2010
Location: Madison, Wisconsin
Posts: 7,785
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 35 Times in 29 Posts
I've used derailer bikes as winter commuters but eventually got sick of maintaining them and now exclusively ride fixed gear in the winter. Single-speed/fixed gear definitely has real merits in the winter.

With that said, you could indeed get pretty much the same thing from simply not shifting. Shortening the chain and running it on the middle ring and one of the cogs might work, or you might end up with bad chainline. People have done it before.
FastJake is offline
Old 06-01-20, 10:22 AM
  #6
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 2,493

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 587 Post(s)
Liked 329 Times in 232 Posts
The idea on locking the derailleur in place is a good idea. You can probably just use the shifter cable and the battle adjuster or the cable housing stop before the last loop before the derailleur, might need to add a washer.

You might also be able to bypass the upper jockey (pulley) and just run the chain from the cog to the lower pulley. You are basically creating a chain tensioner without having to serpentine the chain through the derailleur per se. Less chain bend to deal with.

I would ride the bike and figure out what ratio works best. If you set it up right, you can probably select one of two adjacent cogs by just using the barrel adjuster.

John
70sSanO is offline
Old 06-01-20, 12:26 PM
  #7
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,797

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1041 Post(s)
Liked 246 Times in 183 Posts
Originally Posted by dabac View Post
The easiest way to an SS is to stop shifting.
This quote made me chuckle. See, it's funny because it's true.
WizardOfBoz is offline
Old 06-01-20, 01:05 PM
  #8
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 7,193

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) '82 nishiski,

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 1234 Post(s)
Liked 455 Times in 338 Posts
if even on a cheapy bike the cassette/freewheel has any sort of modern tooth design, then taking the derailler off will just let it shift by it self to the smallest cog

simple and cheapest and most reliable is to use it as is
__________________
Life is too short not to ride the best bike you have, as much as you can
squirtdad is offline
Old 06-01-20, 02:12 PM
  #9
Oneder
Banned.

Join Date: Apr 2018
Posts: 822

Bikes: Wahoo of Theseus, others

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Liked 65 Times in 45 Posts
The front deraileur can be annoying but I would not take the rear off. You have gears for a reason and whatever you choose now you may feel is wrong later and probably will. To really make a single speed you should have different cogs that are not designed to slip anyway. In short don't waste your time. Just adjust the limits on the front derailleur to stay on the same chainring and you are set.
Oneder is offline
Old 06-01-20, 03:57 PM
  #10
Ironfish653
Senior Member

Join Date: Oct 2015
Location: Virginia Beach
Posts: 1,318

Bikes: 1997 Cannondale, 1976 Bridgestone, 1998 Softride

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 469 Post(s)
Liked 179 Times in 124 Posts
There’s more to successfully making a single-speed bike than just stripping off the derailleurs. A bike designed for single speed usually has long horizontal dropouts, that let you adjust the chain tension by moving the rear wheel forward and back. Derailleur bikes have vertical dropouts, because the derailleur takes up the slack in the chain. There’s typically not enough movement in a vertical dropout to get correct tension unless you hit the ‘magic ratio’ of gears to get the chain length exactly right.


For bad weather winter beater, provided it’s already in passable mechanical shape, I’d suggest a heavy duty lube job: WD-40 or even light grease on the derailleur linkage, ATF or gear oil on the chain. It’s a little messy, and a little more ‘draggy’ than a typical bike lube, but it’ll last longer in bad conditions.
Ironfish653 is offline
Old 06-01-20, 04:29 PM
  #11
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 2,493

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 587 Post(s)
Liked 329 Times in 232 Posts
OP wants a single speed. I say just strip everything you don’t need off the bike and lock the derailleur in one position. Who needs all that other crap on there. It’s not like this bike is worth anything.

Ride it till it rusts and then throw it away. Go find another one.

John
70sSanO is offline
Likes For 70sSanO:
Old 06-01-20, 07:09 PM
  #12
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,252

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1153 Post(s)
Liked 701 Times in 495 Posts
Okay Mr. OP.

Do you have a cassette or a freewheel on your bike?

If it's a cassette you have a few options. #1 and a great thing about a cassette is that you can scrounge some extra spacers from a t rashed cassette. Most bike shops will give you a trashed cassette that you can take apart for those spacers.

With those spacers and cogs you can pick the cog that gives you the best gear for your riding style. Then by moving the spacers and the cog on the freehub body you can get the best chainline. The straighter the chainline the less chance of derailing the chain.

If you use the middle chainring on your bike you can remove the inner chainring and the outer chainring. You'll need to either get single speed bolts and nuts if you do that, or you'll need to cut down the nuts from your existing crankset. that is if you have removable chainrings.

I've done many such conversions and they work well.

If your bike has a freewheel, then you can by an inexpensive single-speed freewheel and new chain to match.

I've done that too.

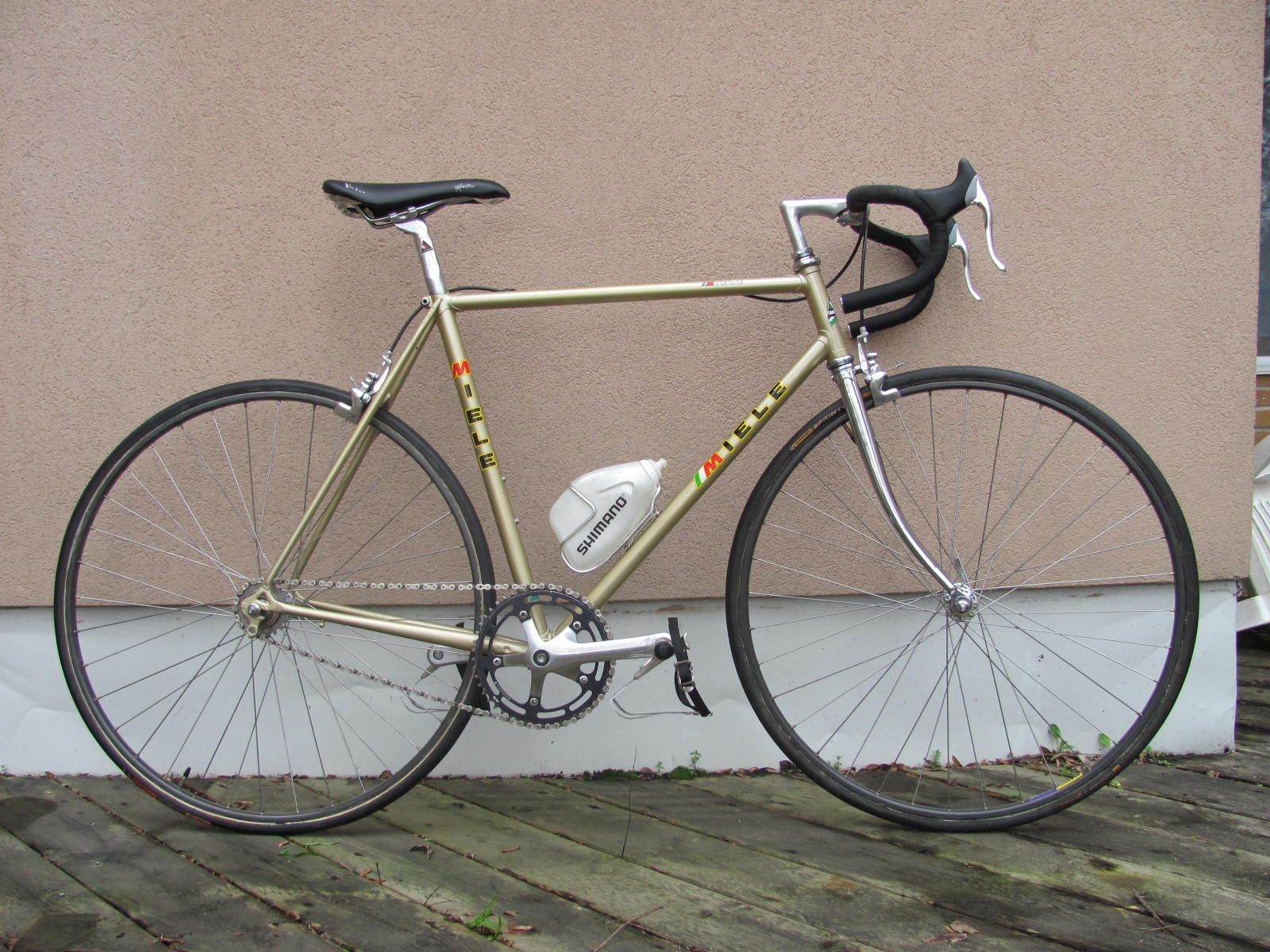

Road bike converted to single-speed freewheel and ex double crank. MTB works the same way.








Cheers
Miele Man is offline
Likes For Miele Man:
Old 06-01-20, 07:31 PM
  #13
tyrion
Senior Member

tyrion's Avatar

Join Date: Oct 2015
Location: San Diego, California
Posts: 3,080

Bikes: Breezer Radar

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1650 Post(s)
Liked 787 Times in 382 Posts
RJ will walk you through it:

tyrion is offline
Old 06-01-20, 08:02 PM
  #14
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 2,493

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 587 Post(s)
Liked 329 Times in 232 Posts
I think The question is what type of dropouts. Horizontal is a piece of cake, vertical is a bit tougher.

John
70sSanO is offline
Old 06-01-20, 08:09 PM
  #15
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 8,853

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 2484 Post(s)
Likes: 0
Liked 925 Times in 630 Posts
Winter salt; an excellent reason to take the rear derailleur off (and just use the front as a chain guide if needed). 1) Salt quickly makes chains run very poorly through the pulley slalom. 2) In ice and snow, crashes happen; usually simply doing down to the side as the tires slip out. Rarely an issue beyond a bruise or two except rear derailleurs take the right side falls personally, Very often simply up and quit. 10 miles from home, that isn't fun. (I used to do a 12 mile commute into Boston through the the winter. Also several in Ann Arbor. I didn't own a car. It's been a few decades but I know what I am talking about.)

I typed the above and realized you probably have vertical dropouts. (The slots the rear wheel axle slides into. Newer bikes (past 30-40 years) have vertical. Older have horizontal as do all the popular bikes for singe speed and fix gear.) With vertical dropouts, you need the rear derailleur or a chain tensioner, Either is prone to damage in a right-side fall. The tensioner cheaper but harder to find in a parts bin.

So I say try the single-speed this winter with what you've go. Like it? Look for a bike or frame with horizontal drops or track ends. (Horizontal dropouts open to the front, track ends to the rear. Track ends are popular, horizontal dropout work just as well and are a lot easier for what you want. (Much less hassle with fenders, removing the wheel and messing with the chain is easier and faster - much appreciated when you flat in the dark. (Commuting in Montreal - you won't get a lot of flats but they will happen in the dark!) Oh, for bikes with horizontal dropouts, look for almost any Japanese bike of the early to mid '80s. Try bike coops. shops with used bikes. garage sales ... (A lot were made.) Most of the mid-priced Japanese bikes could take fenders and a lot of them came with 27" wheels. Use modern 700c wheels - you might have to mess with the brakes - and with the smaller replacement wheels you will have lots of room for fenders.

Ben
79pmooney is offline
Likes For 79pmooney:
Old 06-03-20, 09:13 AM
  #16
curieux88
Member
Thread Starter

Join Date: May 2020
Location: Portland Maine
Posts: 35

Bikes: 1999 Lemond Zurich, 2006 Lemond Zurich, 2006 Lemond Fillmore

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked 7 Times in 5 Posts
Originally Posted by 70sSanO View Post
I think The question is what type of dropouts. Horizontal is a piece of cake, vertical is a bit tougher.

John

hi! Sorry for late response. It took me a while to be allowed to post photos.

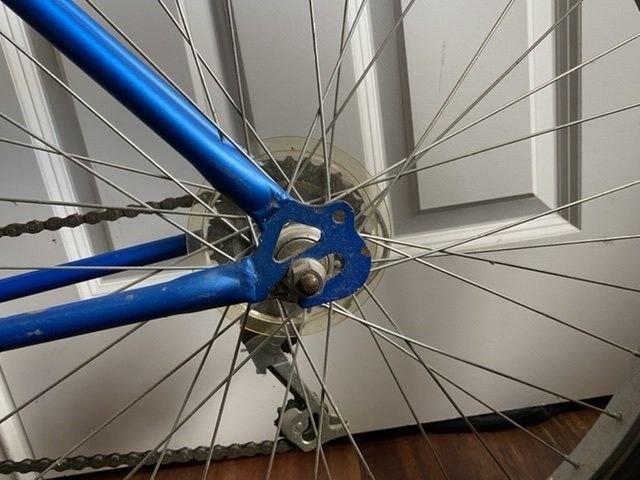

it looks like a vertical drop out, but it also looks like horizontal. Not quite vertical, but definitely not 180 degrees horizontal.


edit: damn, idk why it's upside down. sorry for the photo.
edit2: fixed the photo!
curieux88 is offline
Likes For curieux88:
Old 06-03-20, 10:18 AM
  #17
FastJake
Constant tinkerer

FastJake's Avatar

Join Date: May 2010
Location: Madison, Wisconsin
Posts: 7,785
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 35 Times in 29 Posts
You have horizontal dropouts which make it easy to convert to single-speed or fixed gear. They're called "horizontal" but that shouldn't be taken too literally.
FastJake is offline
Old 06-03-20, 11:11 AM
  #18
caloso
Senior Member

caloso's Avatar

Join Date: Jul 2002
Location: Sacramento, California, USA
Posts: 39,356

Bikes: Ridley Excalibur, Gazelle Champion Mondial, On-One Pompino, Specialized Rock Hopper

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 2357 Post(s)
Liked 1,210 Times in 632 Posts
Originally Posted by curieux88 View Post
hi! Sorry for late response. It took me a while to be allowed to post photos.

it looks like a vertical drop out, but it also looks like horizontal. Not quite vertical, but definitely not 180 degrees horizontal.


edit: damn, idk why it's upside down. sorry for the photo.
edit2: fixed the photo!
You are in good shape with those drop outs. Now the thing to do is see if you have a cassette or freewheel.
caloso is offline
Old 06-03-20, 01:21 PM
  #19
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,252

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1153 Post(s)
Liked 701 Times in 495 Posts

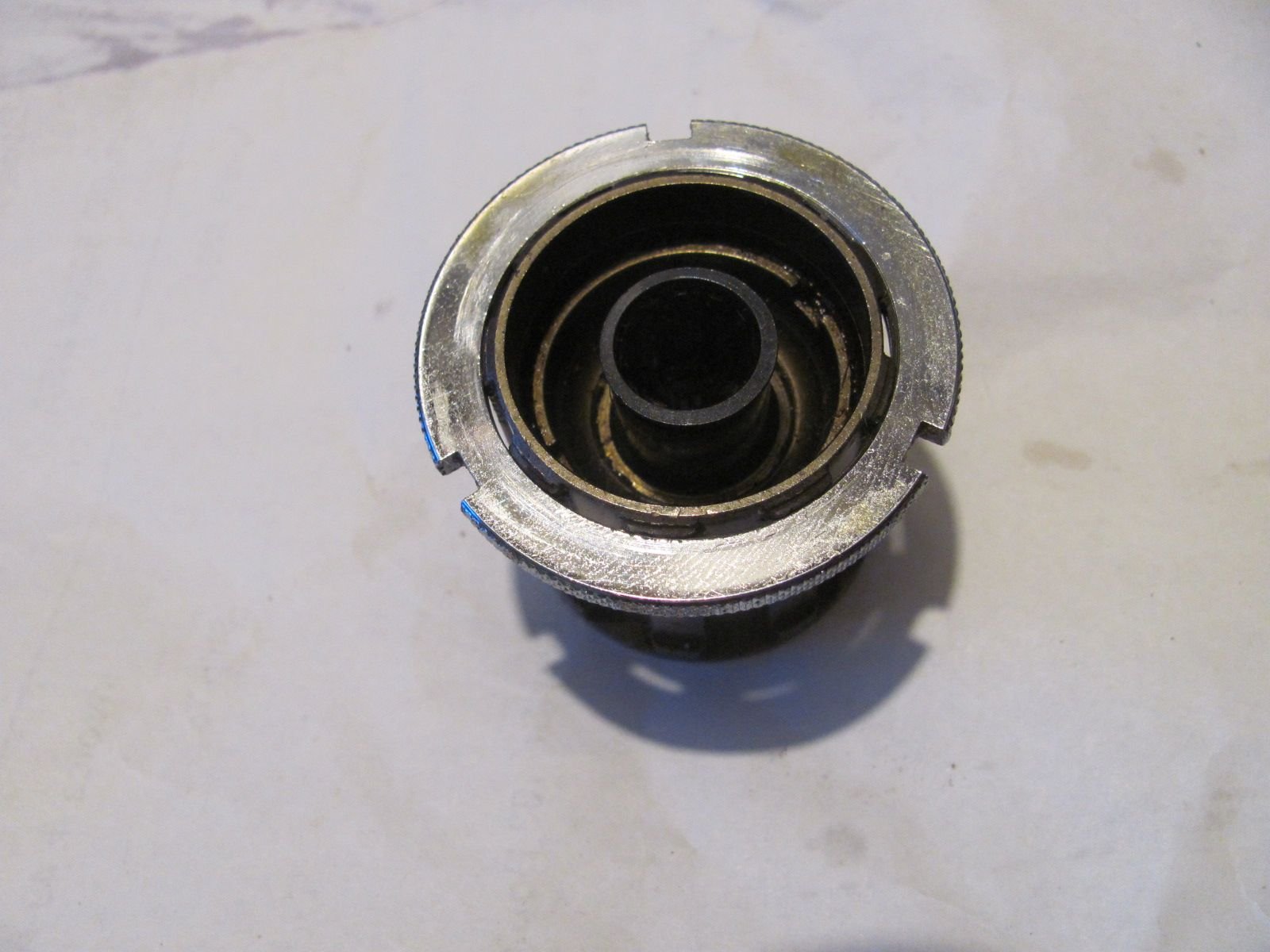

If it's a Uniglide cassette, he's really in luck. That's because a bottom bracket lockring is the same threading as most Uniglide screw-on cogs. Here's a Uniglide cassette body with a bottom bracket lockring but without the spacers or cogs.


Cheers
Miele Man is offline
Old 06-03-20, 01:26 PM
  #20
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,252

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1153 Post(s)
Liked 701 Times in 495 Posts
Bike Forums is having problems allowing me to post today. I'll tryu again.



Miele Man is offline
Old 06-03-20, 02:05 PM
  #21
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,252

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1153 Post(s)
Liked 701 Times in 495 Posts
When bicycle co-ops open again, and if there's one in your area, they are a great source for chainrings and used cogsets. I say that because if a certain gear combination you want to use is too short or too long with the chain installed for your dropout then a slightly smaller chainring or a slightly bigger cog might work. Also, there is a neat item called a half-link that can be used with chains to give that wee bit of extra length or shortening of the chain that one might need to work best.

Cheers
Miele Man is offline
Old 06-03-20, 02:28 PM
  #22
FastJake
Constant tinkerer

FastJake's Avatar

Join Date: May 2010
Location: Madison, Wisconsin
Posts: 7,785
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 35 Times in 29 Posts
Originally Posted by caloso View Post
You are in good shape with those drop outs. Now the thing to do is see if you have a cassette or freewheel.
Come on guys, x-mart bike. It's almost certainly a freewheel. Has a cassette hub ever been installed on one? The bolt-on axle all but confirms it.

Oh, and a Uniglide cassette hub? That was good for a laugh.
FastJake is offline
Old 06-03-20, 04:11 PM
  #23
curieux88
Member
Thread Starter

Join Date: May 2020
Location: Portland Maine
Posts: 35

Bikes: 1999 Lemond Zurich, 2006 Lemond Zurich, 2006 Lemond Fillmore

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked 7 Times in 5 Posts
Originally Posted by FastJake View Post
Come on guys, x-mart bike. It's almost certainly a freewheel. Has a cassette hub ever been installed on one? The bolt-on axle all but confirms it.

Oh, and a Uniglide cassette hub? That was good for a laugh.
damn. you are right. I just got to check it, and it's freewheel.
curieux88 is offline
Old 06-03-20, 04:12 PM
  #24
curieux88
Member
Thread Starter

Join Date: May 2020
Location: Portland Maine
Posts: 35

Bikes: 1999 Lemond Zurich, 2006 Lemond Zurich, 2006 Lemond Fillmore

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked 7 Times in 5 Posts
Originally Posted by caloso View Post
You are in good shape with those drop outs. Now the thing to do is see if you have a cassette or freewheel.
freewheel.
curieux88 is offline
Old 06-03-20, 05:53 PM
  #25
caloso
Senior Member

caloso's Avatar

Join Date: Jul 2002
Location: Sacramento, California, USA
Posts: 39,356

Bikes: Ridley Excalibur, Gazelle Champion Mondial, On-One Pompino, Specialized Rock Hopper

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 2357 Post(s)
Liked 1,210 Times in 632 Posts
Originally Posted by FastJake View Post
Come on guys, x-mart bike. It's almost certainly a freewheel. Has a cassette hub ever been installed on one? The bolt-on axle all but confirms it.

Oh, and a Uniglide cassette hub? That was good for a laugh.
Shrug. I have no idea what comes on an X-mart bike.
caloso is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
