Smooth Presta valve rim stop desired

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Smooth Presta valve rim stop desired

Old 06-10-20, 02:52 PM
  #1
masi61
Senior Member
Thread Starter

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 2,630

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 617 Post(s)
Liked 89 Times in 67 Posts
Smooth Presta valve rim stop desired

I have been using latex Presta tubes on my 2 clincher road bikes going on 3 seasons now to good effect.

Unfortunately my system of checking tire pressures before each ride has caused me to create unrepairable valve leaks on 2 different Vittoria latex tubes in this past year. You see I have been using a Lezyne digital tire gauge to check pressures before each ride. Latex is great, but as most of us already know - latex tubes loose enough air overnight to require topping up before every ride. I was having great fun daring to run a bit lower pressure both front and rear, exploring 70-80 psi front and 80-90 rear for my local chipseal and my 200# body weight.

You see, to get a decent reading from the Lezyne, the pressure gauge has to be pushed firmly onto the valve stem. Threaded stems that allow you to use the knurled nut against the rim would prevent the valve stem from pushing in. Unfortunately, from what I can tell all of the available brands of latex tubes use similar “smooth” brass or aluminum valve stems.

Does anyone one know anyone has ever made a little nylon or even wooden “stop” that fits over a Presta valve stem and has a side set screw to make it remain in place? If no such widget exists, it appears I will be prototyping said widget myself.

Anyone experience a similar issue where your own pumping or tire pressure technique irreparably ruins tubes?

Last edited by masi61; 06-10-20 at 05:24 PM.
masi61 is offline
Old 06-10-20, 03:16 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,768

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2495 Post(s)
Liked 565 Times in 436 Posts
I assume your pump has no gage on it? Once inflated to what the pump's gage suggests is correct the valve should be able to be pushed on firmly without sliding into the rim.

But to answer the question, no I know of no valve stem clamp, I suspect no one else has needed one. certainly in 45+ years of shop wrenching I've not had a request for one.It would be fairly simple to make one. I would use metal, Al, for it as this would provide a more dimensionally stable clamp. The first way I think of is much like a frame building block but very small. A rectangle of Al with three holes. the middle hole is for the valve. The tow outer ones ate through the different long sides and are sized to be the tap pilot for a couple of pinch bolts. Saw the block in half so the valve hole is split. Tap with the pinch bolt's thread on one half, through those two outer holes, and clearance drill the other half's pinch bolt holes. Now you have a split collar with two pinch bolts that will secure this clamp onto the valve's stem. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 06-10-20, 03:17 PM
  #3
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,768

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2495 Post(s)
Liked 565 Times in 436 Posts
I assume your pump has no gage on it? Once inflated to what the pump's gage suggests is correct the valve should be able to be pushed on firmly without sliding into the rim.

But to answer the question, no I know of no valve stem clamp, I suspect no one else has needed one. certainly in 45+ years of shop wrenching I've not had a request for one.It would be fairly simple to make one. I would use metal, Al, for it as this would provide a more dimensionally stable clamp. The first way I think of is much like a frame building block but very small. A rectangle of Al with three holes. the middle hole is for the valve. The tow outer ones ate through the different long sides and are sized to be the tap pilot for a couple of pinch bolts. Saw the block in half so the valve hole is split. Tap with the pinch bolt's thread on one half, through those two outer holes, and clearance drill the other half's pinch bolt holes. Now you have a split collar with two pinch bolts that will secure this clamp onto the valve's stem. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 06-10-20, 03:30 PM
  #4
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,553

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1152 Post(s)
Liked 540 Times in 391 Posts
Here's an item I designed for a different purpose (MCX RF connectors) which should work if you change the center hole diameter to suit your valve stems, like 0.230" or so: Make it whatever height suits you. It is easier to drill hex stock than round
dsbrantjr is offline
Old 06-10-20, 03:43 PM
  #5
Barry2
LR÷P=HR

Join Date: Sep 2019
Location: SF Bay Area
Posts: 531

Bikes: 79 Holdsworth Special, 96 Cannondale F700CAD3, 2011 Cervelo R3, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Liked 161 Times in 105 Posts
Collar

Sounds like you are looking for a Set Screw Collar

Barry
Barry2 is offline
Likes For Barry2:
Old 06-10-20, 03:57 PM
  #6
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 2,214

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 482 Post(s)
Liked 217 Times in 161 Posts
A 6mm shaft split collar might work. Grainger has aluminum ones, but I imagine you can find them elsewhere.

John
70sSanO is offline
Old 06-10-20, 03:59 PM
  #7
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,712

Bikes: Several, mostly not name brands.

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 2241 Post(s)
Liked 635 Times in 427 Posts
I just use a needle-nose vise-grip pliers to prevent the valve stem from sinking into the rim. You only need to secure the stem when the tube is dead-flat; once there's some pressure in the tube, it's less apt to sink into the rim.
JohnDThompson is offline
Old 06-10-20, 04:27 PM
  #8
masi61
Senior Member
Thread Starter

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 2,630

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 617 Post(s)
Liked 89 Times in 67 Posts
Originally Posted by JohnDThompson View Post
I just use a needle-nose vise-grip pliers to prevent the valve stem from sinking into the rim. You only need to secure the stem when the tube is dead-flat; once there's some pressure in the tube, it's less apt to sink into the rim.
The needle nose vice grip idea is a good one. I wouldn’t want to crush the valve though and also don’t want to score the metal. I may try some plastic tubing over the vice grip jaws then apply minimal clamping pressure.

But a couple of the 6mm locking collars may be more of the long term ticket to latex tube pressure gauge happiness though. Thanks for your help everybody!
masi61 is offline
Old 06-10-20, 05:02 PM
  #9
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,712

Bikes: Several, mostly not name brands.

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 2241 Post(s)
Liked 635 Times in 427 Posts
Originally Posted by masi61 View Post
The needle nose vice grip idea is a good one. I wouldn’t want to crush the valve though and also don’t want to score the metal. I may try some plastic tubing over the vice grip jaws then apply minimal clamping pressure.
It doesn't have to be super-tight; just enough to prevent the stem from sinking into the rim.
JohnDThompson is offline
Likes For JohnDThompson:
Old 06-10-20, 09:06 PM
  #10
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,190

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1127 Post(s)
Liked 677 Times in 479 Posts
A lot of my butyl tubes also have smooth stems. If the tube is low on air I just squeeze the tire together at the valve area and then slide the pump head onto the valve stem.

Cheers
Miele Man is offline
Likes For Miele Man:
Old 07-12-20, 03:57 AM
  #11
masi61
Senior Member
Thread Starter

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 2,630

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 617 Post(s)
Liked 89 Times in 67 Posts

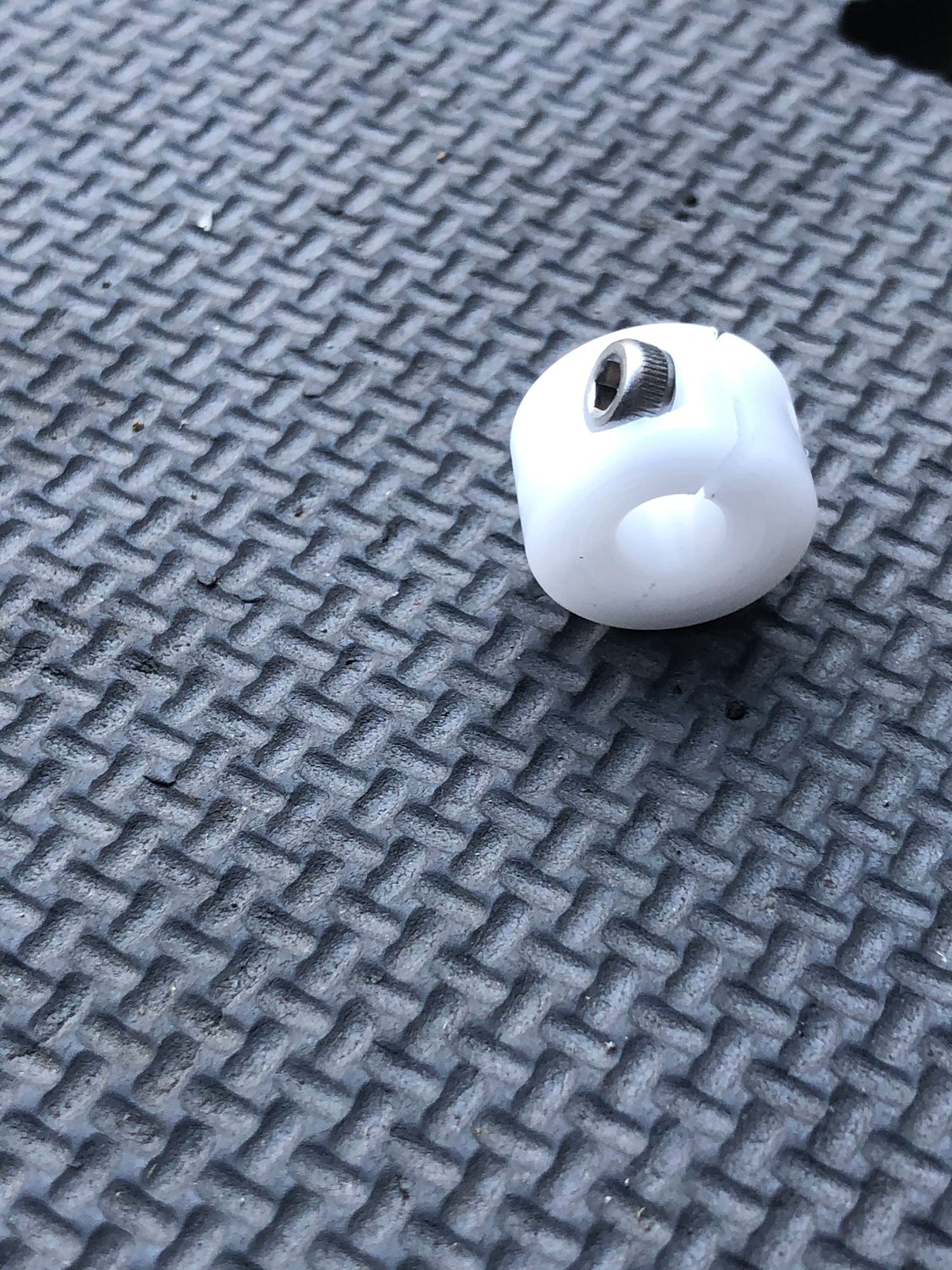

I managed to purchase what I was looking for for about $5 each:



These weigh about 8g each.

I can shove my Lezyne digital tire gauge on the valve stem to get a reliable reading without excessive movement thus saving wear or premature failure of the latexinner tube.
masi61 is offline
