Cue the Fat Jokes

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Cue the Fat Jokes

Old 06-14-20, 01:18 PM
  #1
njlonghorn
Senior Member
Thread Starter

Join Date: Mar 2009
Posts: 277
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 11 Times in 7 Posts
Cue the Fat Jokes

For the second time in 3 years, I snapped the bolt that connects my saddle to the seat post. Both times it happened during a seated climb, which I suppose is when the forces are greatest. But I haven't ever heard of this happening to other cyclists, much less twice.

Should I assume this is just a fluke, or do I need to be looking into titanium bolts?
njlonghorn is offline
Old 06-14-20, 01:21 PM
  #2
Amt0571
Senior Member

Join Date: Dec 2014
Location: Catalonia
Posts: 913

Bikes: Canyon Grand Canyon AL SL 8.0, Btwin Ultra 520 AF GF, Dahon Mu P27, Triban Road 7, Benotto 850

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 385 Post(s)
Liked 180 Times in 120 Posts
Originally Posted by njlonghorn View Post
For the second time in 3 years, I snapped the bolt that connects my saddle to the seat post. Both times it happened during a seated climb, which I suppose is when the forces are greatest. But I haven't ever heard of this happening to other cyclists, much less twice.

Should I assume this is just a fluke, or do I need to be looking into titanium bolts?
I've seen this happen. Not twice in 3 years though.

Jokes aside, how much do you weigh?
Amt0571 is offline
Old 06-14-20, 01:23 PM
  #3
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 20,568

Bikes: old ones

Mentioned: 292 Post(s)
Tagged: 0 Thread(s)
Quoted: 23364 Post(s)
Liked 6,780 Times in 4,855 Posts
.
...it's not uncommon at all to snap a Campagnolo seat post clamp binder bolt, but this is the first I've heard of this one. Are you large enough to have your own zip code ?
3alarmer is offline
Old 06-14-20, 01:31 PM
  #4
shelbyfv
Senior Member

shelbyfv's Avatar

Join Date: Jun 2007
Location: TN
Posts: 10,051
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2973 Post(s)
Liked 3,772 Times in 1,941 Posts
Try a different style of seatpost?
shelbyfv is offline
Old 06-14-20, 01:44 PM
  #5
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 2,974
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 622 Post(s)
Liked 572 Times in 437 Posts
What seat post? Photos would be helpful.
Crankycrank is offline
Old 06-14-20, 01:51 PM
  #6
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,673

Bikes: '20 Tarmac Disc Comp '78 Raleigh Competition GS

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 4308 Post(s)
Liked 2,865 Times in 1,994 Posts
Are you certain there is a gap left between the clamp and the surface it meets? If no gap, then you might be over torquing the bolts and fracturing them just enough to think the seats secure and then they break when normal ride forces are encountered.

I used to similarly break bolts for seat post clamps trying to tighten them enough to keep the seat from falling. Either the slot in the steel tube of my bike would be closed up under the clamp or the clamp would be fully closed. Thankfully I knew about them breaking before riding.
Iride01 is online now
Old 06-14-20, 02:02 PM
  #7
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,235

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 136 Post(s)
Tagged: 1 Thread(s)
Quoted: 4852 Post(s)
Liked 2,412 Times in 1,429 Posts
Originally Posted by njlonghorn View Post
For the second time in 3 years, I snapped the bolt that connects my saddle to the seat post. Both times it happened during a seated climb, which I suppose is when the forces are greatest. But I haven't ever heard of this happening to other cyclists, much less twice.

Should I assume this is just a fluke, or do I need to be looking into titanium bolts?
Sometimes a broken seat bolt can lead to a legend.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 06-14-20, 02:06 PM
  #8
njlonghorn
Senior Member
Thread Starter

Join Date: Mar 2009
Posts: 277
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 11 Times in 7 Posts
Originally Posted by Amt0571 View Post
Jokes aside, how much do you weigh?
The first time it happened, I weighed around 185 lbs. Currently, I'm more like 220.

Originally Posted by 3alarmer View Post
Are you large enough to have your own zip code ?
lol. That's what I was looking for.

In my defense, well over half of my weight gain has been muscle. Unfortunately, pecs, delts, and traps don't offer much help when cycling.

Originally Posted by shelbyfv View Post
Try a different style of seatpost?
What styles are there? Mine came with my bike (2006 Cannondale Quick 5).

Originally Posted by Crankycrank View Post
What seat post? Photos would be helpful.
I'll post photos shortly. I have to go out to the garage and take some.

Originally Posted by Iride01 View Post
Are you certain there is a gap left between the clamp and the surface it meets? If no gap, then you might be over torquing the bolts and fracturing them just enough to think the seats secure and then they break when normal ride forces are encountered.

I used to similarly break bolts for seat post clamps trying to tighten them enough to keep the seat from falling. Either the slot in the steel tube of my bike would be closed up under the clamp or the clamp would be fully closed. Thankfully I knew about them breaking before riding.
I know nothing about clamps or gaps, Is the clamp the mostly rectangular metal part that sits on top of the seat post and has grooves that the saddle rails slide along?
njlonghorn is offline
Old 06-14-20, 02:09 PM
  #9
njlonghorn
Senior Member
Thread Starter

Join Date: Mar 2009
Posts: 277
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 11 Times in 7 Posts
Originally Posted by cyccommute View Post
Sometimes a broken seat bolt can lead to a legend.
Amazing story! Thanks for sharing it.
njlonghorn is offline
Old 06-14-20, 02:12 PM
  #10
Amt0571
Senior Member

Join Date: Dec 2014
Location: Catalonia
Posts: 913

Bikes: Canyon Grand Canyon AL SL 8.0, Btwin Ultra 520 AF GF, Dahon Mu P27, Triban Road 7, Benotto 850

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 385 Post(s)
Liked 180 Times in 120 Posts
Originally Posted by njlonghorn View Post
The first time it happened, I weighed around 185 lbs. Currently, I'm more like 220.
Well, you're not featherlight, but even at 220lbs this should not happen. I have ridden with heavier riders and their seats kept attached to the post for years without issues.

Maybe your seatpost is made in a way that causes fatigue on the bolt, or maybe this has been extremely bad luck.

As I said I have seen this happening a couple of times, but not on the same person and definitely not on a "short" period of time.
Amt0571 is offline
Old 06-14-20, 02:25 PM
  #11
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,673

Bikes: '20 Tarmac Disc Comp '78 Raleigh Competition GS

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 4308 Post(s)
Liked 2,865 Times in 1,994 Posts
Originally Posted by njlonghorn View Post
I know nothing about clamps or gaps, Is the clamp the mostly rectangular metal part that sits on top of the seat post and has grooves that the saddle rails slide along?
Probably. Depending on what post you have. Some are stamped steel plates that might bend a little under the bolt and make contact with the surface they are being bolted too before sufficient force is put on the saddle rails to hold it secure.

Do you think that you are having to use a lot of force to tighten the bolt to hold your saddle?

If so, then it's likely a change to a better seat post might be needed anyhow. Once the clamp plate is bent, there isn't a satisfactory fix for anyone that doesn't lean toward having experience as a machinist or metal fabricator.
Iride01 is online now
Old 06-14-20, 02:34 PM
  #12
Steve B.
Senior Member

Join Date: Jul 2007
Location: South shore, L.I., NY
Posts: 5,584

Bikes: Flyxii FR322, Cannondale Topstone, Miyata City Liner, Specialized Chisel, Specialized Epic Evo

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 2302 Post(s)
Liked 1,072 Times in 625 Posts
Originally Posted by Crankycrank View Post
What seat post? Photos would be helpful.
There are a dozen 2 bolt designs out there. I use Ritchey,

I would suggest maybe just just take off the bolt, take it to a good hardware store and buy a spare or two. Or three it seems. Keep them in your saddle bag, as this is what would be called a "mission critical" part.
Steve B. is offline
Old 06-14-20, 02:35 PM
  #13
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,240

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1412 Post(s)
Liked 988 Times in 673 Posts
Originally Posted by njlonghorn View Post
For the second time in 3 years, I snapped the bolt that connects my saddle to the seat post. Both times it happened during a seated climb, which I suppose is when the forces are greatest. But I haven't ever heard of this happening to other cyclists, much less twice.

Should I assume this is just a fluke, or do I need to be looking into titanium bolts?
If it is just a normal threaded bolt, not a specialized bolt with a shoulder or other features I would look for a grade 10.9 or 12.9 bolt (assuming metric) of the same size. Class 12.9 (1220MPa) are stronger than typical titanium (1030MPa) in ultimate tensile strength.
dsbrantjr is offline
Old 06-14-20, 02:50 PM
  #14
ridingfool
Senior Member

Join Date: Jun 2015
Posts: 239
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked 18 Times in 16 Posts
Originally Posted by njlonghorn View Post
Amazing story! Thanks for sharing it.
try a Thomson seat post a little expensive but doubt you will break that one . I am about 230 on a good day and use them on 2 of my bikes never a problem yet with them.
ridingfool is offline
Likes For ridingfool:
Old 06-14-20, 02:52 PM
  #15
njlonghorn
Senior Member
Thread Starter

Join Date: Mar 2009
Posts: 277
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 11 Times in 7 Posts

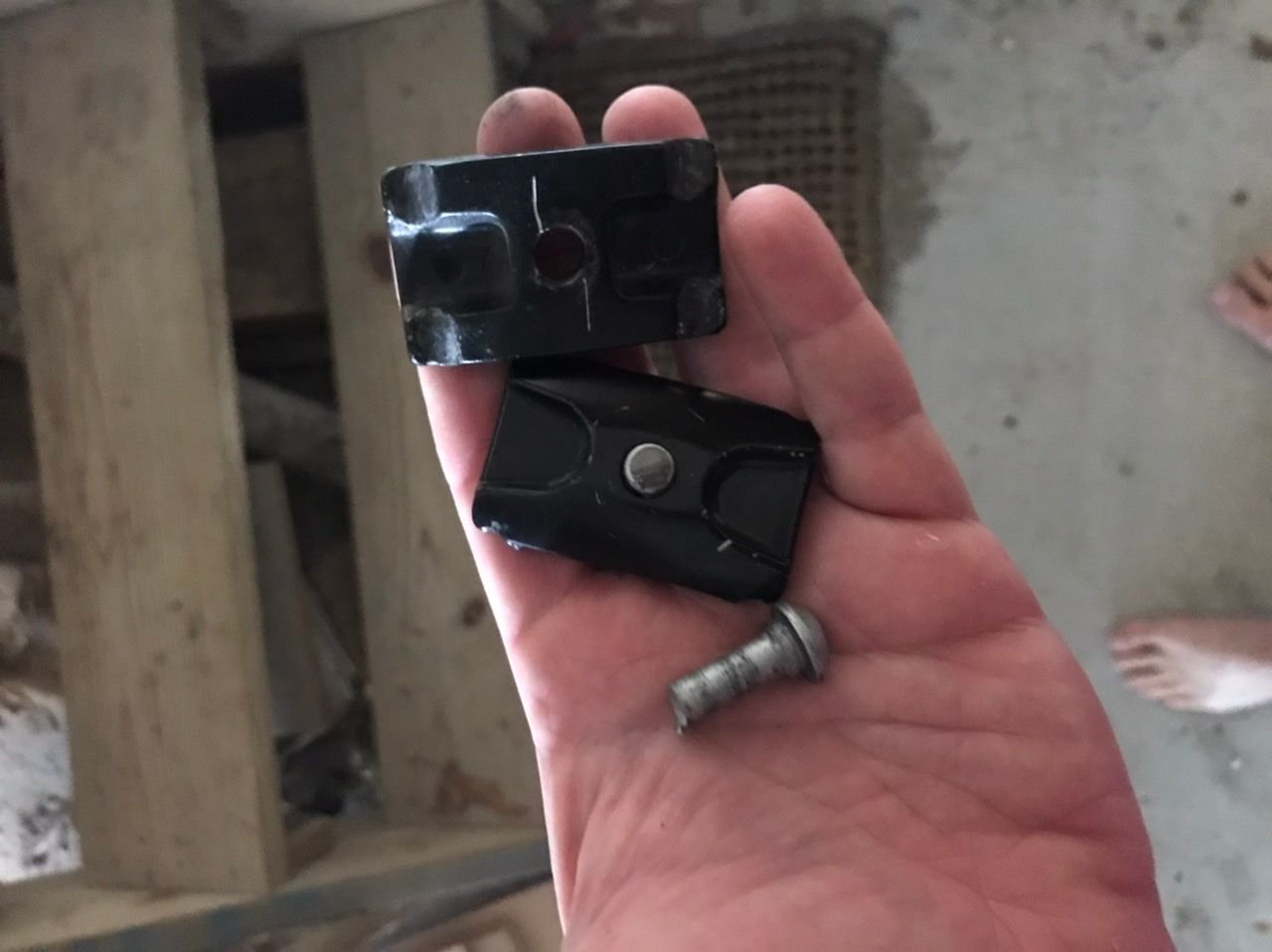

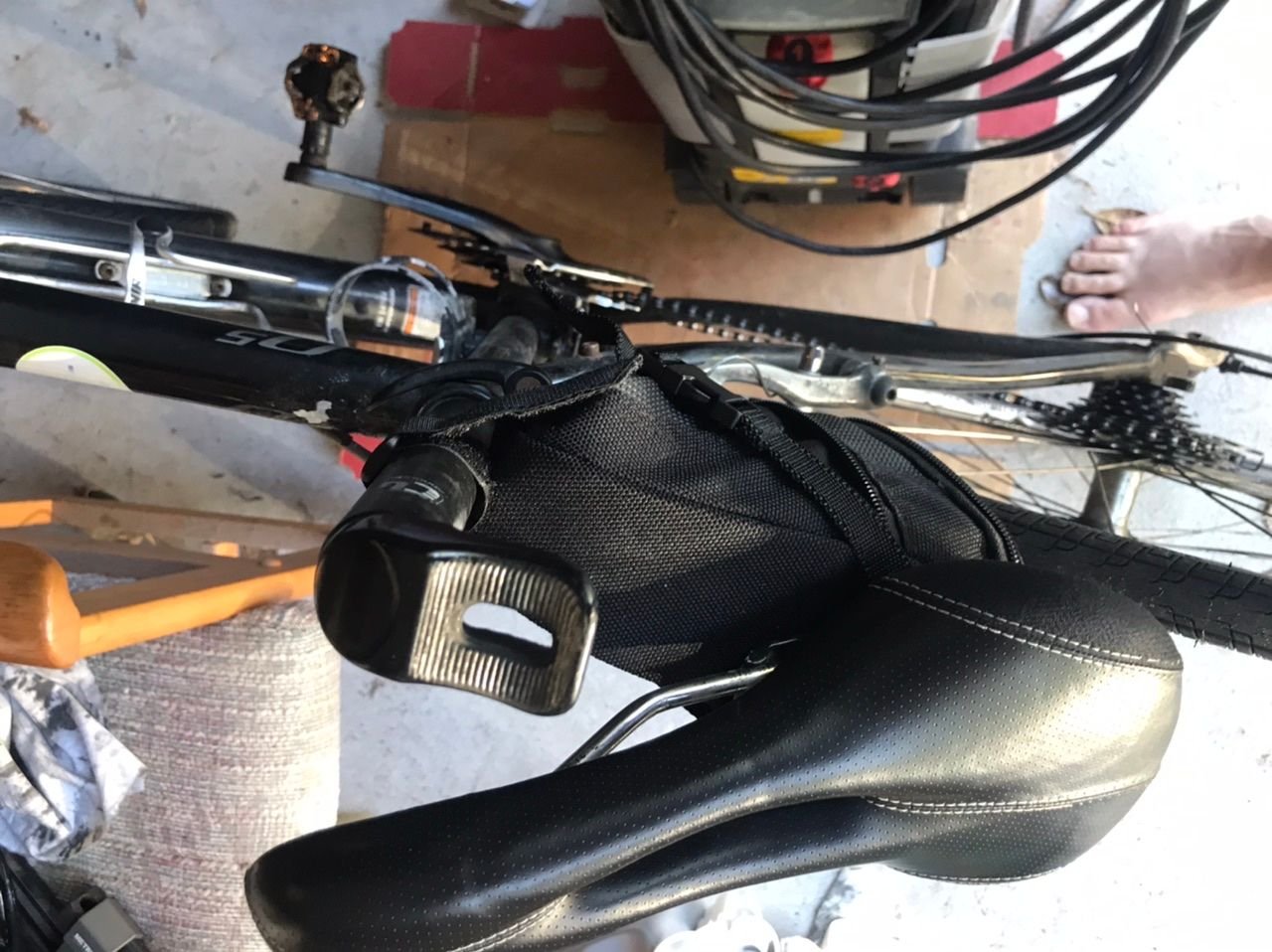

Hereís the seat post from above.

After my posts above, I realized there was a second metal piece wedged between the saddle and the rails. They fit together and form a clamp, so Iím clear on that part now.
njlonghorn is offline
Old 06-14-20, 03:06 PM
  #16
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 10,673

Bikes: '20 Tarmac Disc Comp '78 Raleigh Competition GS

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 4308 Post(s)
Liked 2,865 Times in 1,994 Posts
Probably just tightening them too much. Many people over-torque bolts falsely thinking more tight is better.
Iride01 is online now
Old 06-14-20, 03:06 PM
  #17
njlonghorn
Senior Member
Thread Starter

Join Date: Mar 2009
Posts: 277
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 11 Times in 7 Posts
I looked at the Inside of the bottom half of the clamp more closely, and there are some little lines there (see photos). They seem like surface scratches to me because you can barely feel the lines, and they donít go from one side to the other. But might these be signs of fatigue?

njlonghorn is offline
Old 06-14-20, 03:11 PM
  #18
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Posts: 9,530

Bikes: Klein, Merckx, Trek

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 3406 Post(s)
Liked 1,713 Times in 929 Posts
This is not a weight issue - although that doesn't help. Heavy riders will tend to break saddle rails, not seatpost bolts.
Did you just replace the bolt after the first break? (not a new post?) - if so that might point toward a seatpost defect if it happened again.

Possibilities:
Complete random quirk or bolt defect two times in a row: 30%
Installation error (over torque or improper saddle position eg): 30%
Saddle/seatpost mismatch: 10%
Seatpost defect: 5%
Something else: 25%

So I would advise a new seatpost, purchased and installed by your bike shop. Be sure to tell them the story - they like hearing stuff like this and might be able to find something interesting, and might be able to guarantee you a good result.
DiabloScott is offline
Old 06-14-20, 03:15 PM
  #19
njlonghorn
Senior Member
Thread Starter

Join Date: Mar 2009
Posts: 277
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 11 Times in 7 Posts
Originally Posted by Iride01 View Post
Probably. Depending on what post you have. Some are stamped steel plates that might bend a little under the bolt and make contact with the surface they are being bolted too before sufficient force is put on the saddle rails to hold it secure.
After looking at the parts, I think I understand what you are saying. The clamp consists of two metal plates, one of which goes above the seat rails and the other of which goes below. The bolt goes through the un-threaded hole in the seat post, then through the un-threaded hole in the bottom half of the clamp, then through the threaded hole in the top half of the clamp. When tightened, the two halves of the clamp shouldn't touch each other, but instead should be tightening against the rails from top and bottom. Correct?

If so, I'll have to get a new bolt to test this.

Last edited by njlonghorn; 06-14-20 at 03:33 PM.
njlonghorn is offline
Old 06-14-20, 03:18 PM
  #20
njlonghorn
Senior Member
Thread Starter

Join Date: Mar 2009
Posts: 277
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 11 Times in 7 Posts
Originally Posted by Iride01 View Post
Probably just tightening them too much. Many people over-torque bolts falsely thinking more tight is better.
This sounds like me.
njlonghorn is offline
Old 06-14-20, 03:31 PM
  #21
njlonghorn
Senior Member
Thread Starter

Join Date: Mar 2009
Posts: 277
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 11 Times in 7 Posts
Originally Posted by DiabloScott View Post
Did you just replace the bolt after the first break? (not a new post?) - if so that might point toward a seatpost defect if it happened again.
The first time, I was half way up Mt. Okemo in Vermont, and coasted down to the LBS / ski shop at the base. They found a matching bolt on a used saddle. I suppose it is possible that the bolt was compromised before I ever got it, but this seems unlikely given the rarity of the issue. It seems more likely that there is a common causal link arising from me or my bike.

Originally Posted by DiabloScott View Post
Possibilities:
Complete random quirk or bolt defect two times in a row: 30%
Installation error (over torque or improper saddle position eg): 30%
Saddle/seatpost mismatch: 10%
Seatpost defect: 5%
Something else: 25%
​​​​​​​
My statistics professor years ago taught me to be suspicious of data that comes out in unnaturally round numbers. Kidding aside, thanks for the breakdown. It may not be precise but it does give me a window into your thinking.

Originally Posted by DiabloScott View Post
So I would advise a new seatpost, purchased and installed by your bike shop. Be sure to tell them the story - they like hearing stuff like this and might be able to find something interesting, and might be able to guarantee you a good result.
​​​​​​​
I just may head in that direction -- but I'm trying to save up for a better bike and I hate putting money into this one. It wasn't an expensive bike to start with, and probably has a value pretty close to 0 after 15,000 miles or so of wear and tear.
njlonghorn is offline
Old 06-14-20, 03:32 PM
  #22
Steve B.
Senior Member

Join Date: Jul 2007
Location: South shore, L.I., NY
Posts: 5,584

Bikes: Flyxii FR322, Cannondale Topstone, Miyata City Liner, Specialized Chisel, Specialized Epic Evo

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 2302 Post(s)
Liked 1,072 Times in 625 Posts
Originally Posted by ridingfool View Post
try a Thomson seat post a little expensive but doubt you will break that one . I am about 230 on a good day and use them on 2 of my bikes never a problem yet with them.
The only seat post bolt I've ever broken was a titanium bolt on a Thompson. Fortunately it was a 2 bolt but I came to the anecdotal conclusion that these were no stronger that any steel version I had used prior or since.
Steve B. is offline
Old 06-14-20, 03:32 PM
  #23
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 3,200
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1169 Post(s)
Liked 1,062 Times in 620 Posts
The best seat clamp designs must be protected by patents, because there sure are a lot of iffy cheap OEM one-bolt seatposts out there, including the one in the pictures of the OP's bike.

As several people have suggested so far, junk that one. The most reliable seatposts I've come across all use a two-bolt design.
Trakhak is online now
Likes For Trakhak:
Old 06-15-20, 08:39 AM
  #24
smashndash
Senior Member

Join Date: Feb 2018
Posts: 1,401

Bikes: 2017 Specialized Allez Sprint Comp

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 845 Post(s)
Liked 336 Times in 241 Posts
That looks a lot like the bikesdirect seatpost my friend had. The bolt would keep coming loose so I had to keep absolutely wailing on it. Eventually I just replaced his seatpost with a $20 one I had lying around. Afaik he never had issues again. I say junk it and get something else. The one I used was this:https://www.citygrounds.com/products...MaAuH8EALw_wcB
smashndash is offline
Old 06-15-20, 09:02 AM
  #25
Leebo
Senior Member

Join Date: Aug 2009
Location: North of Boston
Posts: 5,721

Bikes: Kona Dawg, Surly 1x1, Karate Monkey, Rockhopper, Crosscheck , Burley Runabout,

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 854 Post(s)
Liked 110 Times in 65 Posts
Originally Posted by ridingfool View Post
try a Thomson seat post a little expensive but doubt you will break that one . I am about 230 on a good day and use them on 2 of my bikes never a problem yet with them.
^^^^^ This. Thomson. I'm a little over 230.
Leebo is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
