Are carbon components safe for the average person?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Are carbon components safe for the average person?

Old 06-18-20, 12:19 PM
  #1
AL7000
Senior Member
Thread Starter

Join Date: Sep 2016
Posts: 60
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Are carbon components safe for the average person?

Bought a road bike. The owner adjusted the saddle height for me to test ride and torqued really hard on the seatpost clamp. The seatpost is carbon. Ritchey Carbon Pro 27.2, steel bike frame. Made me cringe watching him crank down on it. Was able to talk the seller down on the price.

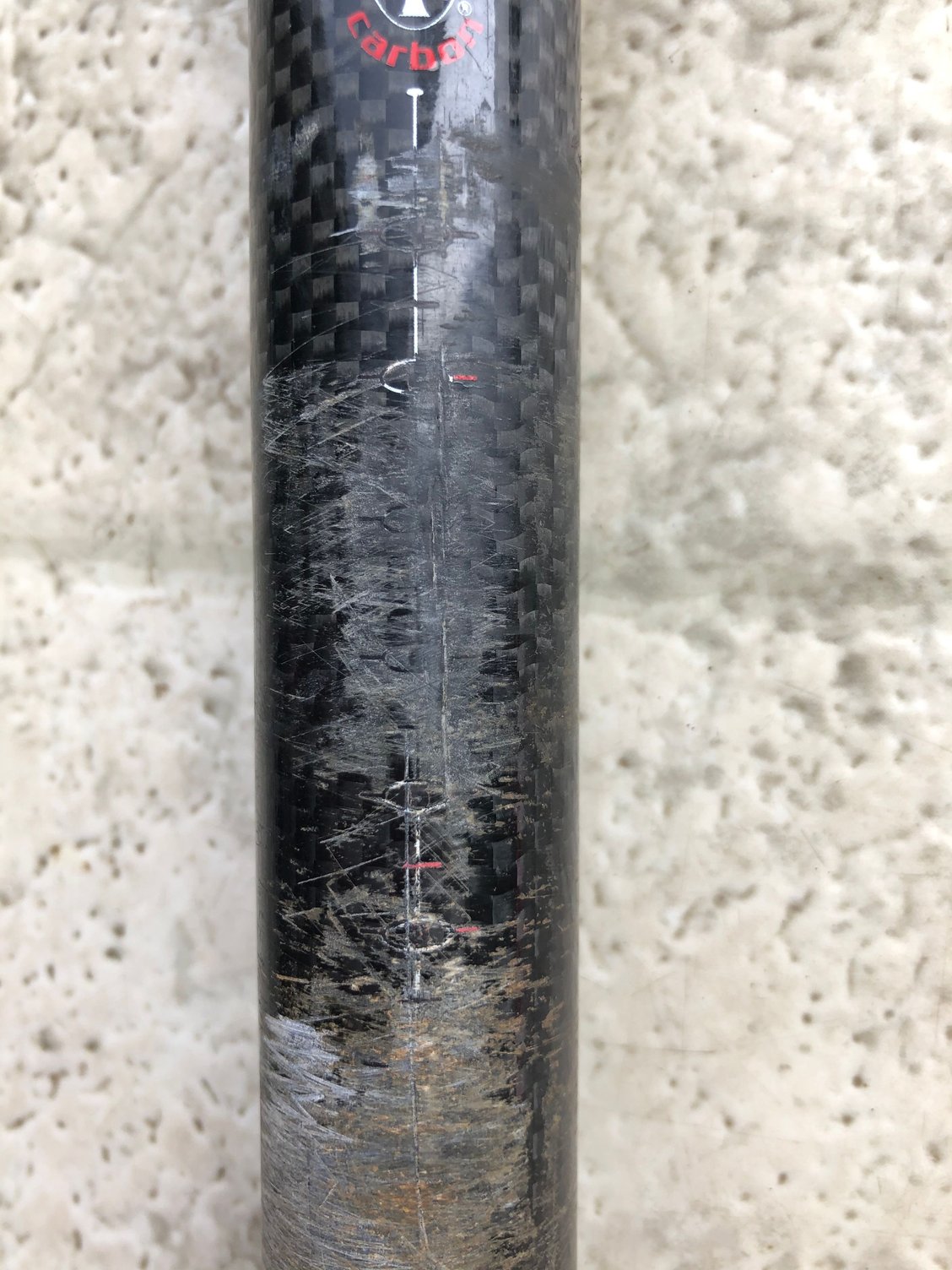

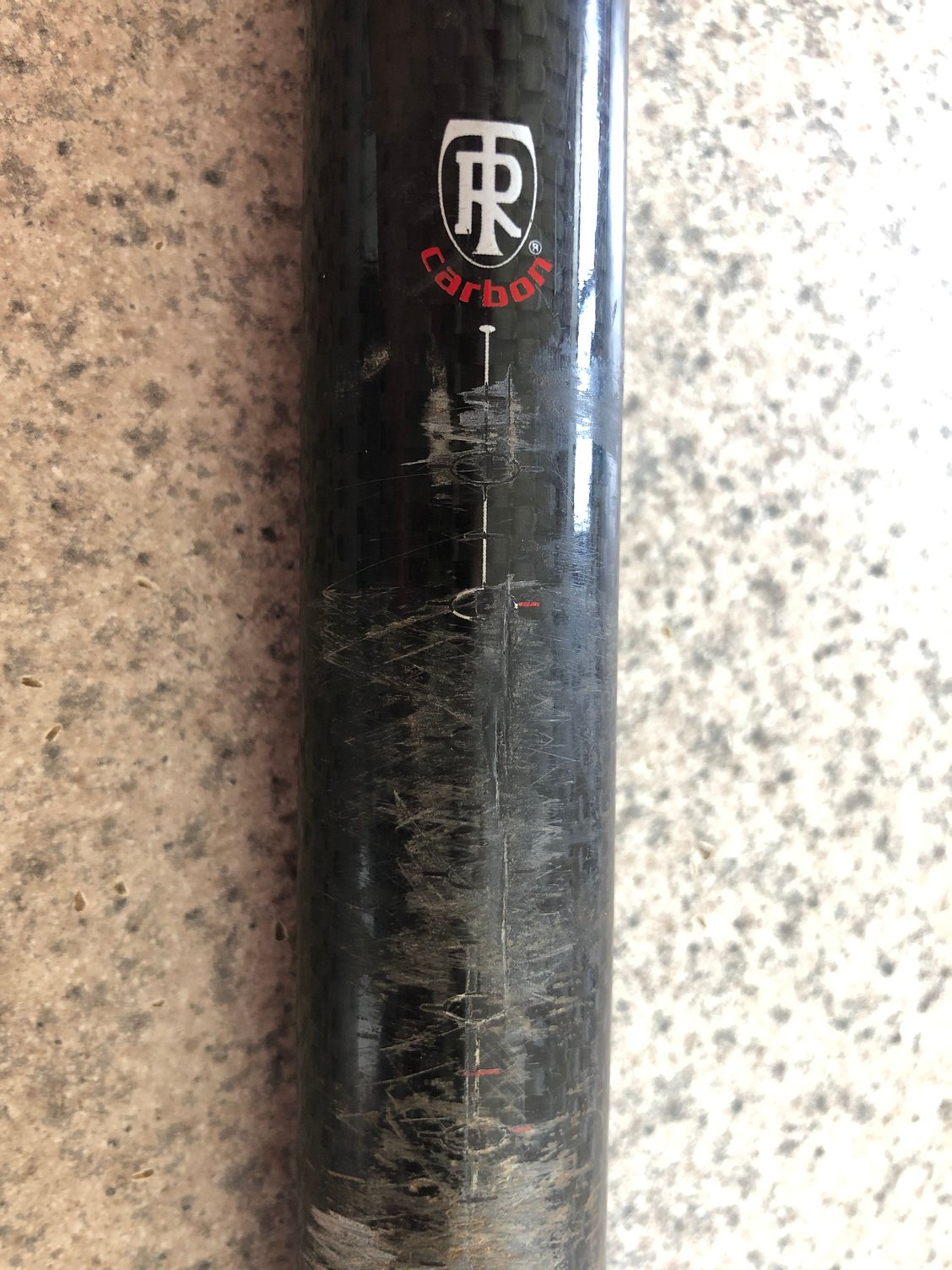

When I got home I examined the seatpost. Doesn't appear to have been used with any fiber grip paste. Lots of surface scratches. There is a spot right around where it was clamped that feels kind of flat. Also a slight groove running parallel to the seatpost in the middle of the flat area. Seams to be no deeper than the clear coat. But I could see a crack developing there. If I was to use the seatpost the flat spot/groove would be in the seat tube below the seat clamp a couple of centimeters. However, I just don't trust it.

The seller didn't seem to know or care about torque specifications. The experience made me wonder how safe carbon components are for the average person? Maybe the average person doesn't ever adjust anything on their own and always has the bike shop take care of it for them.















AL7000 is offline
Old 06-18-20, 12:33 PM
  #2
Iride01
Senior Member

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 4,394

Bikes: '20 Tarmac Disc Comp '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1649 Post(s)
Liked 534 Times in 410 Posts
Carbon bikes are very safe. Just that it cost a little more when you screw them up by doing things as if you were working on a steel bike.

Even steel bikes have people working on them that tighten things till they break.
Iride01 is offline
Old 06-18-20, 12:45 PM
  #3
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 1,724
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 288 Post(s)
Liked 94 Times in 77 Posts
For the average person they are safe especially Ritchey products. There are exceptions of course with some cheap, poorly made CF parts. Some people are not average and never bother to learn how to wrench properly and especially with CF parts they need to be torqued to the proper specs so as not the crush and crack them. Hard to tell from the photos if yours is cracked or just deep scratches. Since this person was so ham fisted I would recommend re-doing all of your fasteners just to make sure they aren't over or under torqued which could both lead to ruined parts. I've seen some bike shop mechanics not get it right either so best to learn to do it yourself.
Crankycrank is offline
Likes For Crankycrank:
Old 06-18-20, 01:09 PM
  #4
AL7000
Senior Member
Thread Starter

Join Date: Sep 2016
Posts: 60
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Crankycrank View Post
For the average person they are safe especially Ritchey products. There are exceptions of course with some cheap, poorly made CF parts. Some people are not average and never bother to learn how to wrench properly and especially with CF parts they need to be torqued to the proper specs so as not the crush and crack them. Hard to tell from the photos if yours is cracked or just deep scratches. Since this person was so ham fisted I would recommend re-doing all of your fasteners just to make sure they aren't over or under torqued which could both lead to ruined parts. I've seen some bike shop mechanics not get it right either so best to learn to do it yourself.
I have a couple of torque wrenches in varying sizes that I use constantly. I perform all of my own work on my road bikes. I will make sure that I check the fasteners.

It isn't a crack, just deep scratches. I'm guessing the scratches are from the seat tube gaps at the top of the tube digging in due to pressure exerted by the seatpost clamp. Given the reputation of Ritchey products, would this seatpost be safe? I just have a hard time trusting it after seeing the previous owner tighten it down so hard.
AL7000 is offline
Old 06-18-20, 01:19 PM
  #5
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 1,724
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 288 Post(s)
Liked 94 Times in 77 Posts
Originally Posted by AL7000 View Post
It isn't a crack, just deep scratches. I'm guessing the scratches are from the seat tube gaps at the top of the tube digging in due to pressure exerted by the seatpost clamp. Given the reputation of Ritchey products, would this seatpost be safe? I just have a hard time trusting it after seeing the previous owner tighten it down so hard.
I wouldn't even want to give you a recommendation on that not being able to see it in the flesh. I usually take chances that others wouldn't on things like this as I know what to look for with potential failures but can only speak for myself.
Crankycrank is offline
Old 06-18-20, 01:38 PM
  #6
Koyote
Senior Member

Join Date: Sep 2017
Posts: 1,988
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1086 Post(s)
Liked 1,140 Times in 543 Posts
Your carbon parts are not safe at all. You should send them to me for proper disposal.
Koyote is offline
Old 06-18-20, 01:44 PM
  #7
AlmostTrick
Tortoise Wins by a Hare!

AlmostTrick's Avatar

Join Date: Feb 2006
Location: Looney Tunes, IL
Posts: 7,045

Bikes: Wabi Special FG, Raleigh Roper, Nashbar AL-1, Miyata One Hundred, '70 Schwinn Lemonator and More!!

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1385 Post(s)
Liked 568 Times in 317 Posts
This is why I will never buy a used carbon bike or parts, excepting possibly if it is obviously like new, barely used, with no damage of any sort. I would replace that seatpost and also carefully check over the rest of the bike.
AlmostTrick is offline
Old 06-18-20, 01:52 PM
  #8
Iride01
Senior Member

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 4,394

Bikes: '20 Tarmac Disc Comp '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1649 Post(s)
Liked 534 Times in 410 Posts
AlmostTrick So you'd be okay with buying a used steel, aluminum or titanium bike with damage?

Like you I wouldn't buy a bike that didn't look
like new, barely used, with no damage of any sort.
but it wouldn't matter what it's made of.
Iride01 is offline
Old 06-18-20, 05:57 PM
  #9
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,286 Times in 803 Posts
In my average ordinary life carbon fiber is unnecessary ..
fietsbob is offline
Likes For fietsbob:
Old 06-18-20, 08:25 PM
  #10
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 6,300

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame, Ti 26 MTB

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1541 Post(s)
Liked 367 Times in 263 Posts
Originally Posted by Iride01 View Post
AlmostTrick So you'd be okay with buying a used steel, aluminum or titanium bike with damage?

Like you I wouldn't buy a bike that didn't look but it wouldn't matter what it's made of.
I wouldn't buy a used aluminum bike with damage and would have to carefully inspect a steel or ti frame. Carbon is a no go if damaged that is for sure unless it is a super valuable frame and Calfee can fix it and I can still make money on it because I have no interest in owning a carbon frame.

In terms of carbon for average people, it is fine if you follow the directions. You can get preset torque wrenches quite easily. If you are not smart enough to follow the simple directions you probably wouldn't be considered quite so average but below that.
veganbikes is offline
Old 06-18-20, 08:55 PM
  #11
AlmostTrick
Tortoise Wins by a Hare!

AlmostTrick's Avatar

Join Date: Feb 2006
Location: Looney Tunes, IL
Posts: 7,045

Bikes: Wabi Special FG, Raleigh Roper, Nashbar AL-1, Miyata One Hundred, '70 Schwinn Lemonator and More!!

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1385 Post(s)
Liked 568 Times in 317 Posts
Originally Posted by Iride01 View Post
AlmostTrick So you'd be okay with buying a used steel, aluminum or titanium bike with damage?
Maybe, it depends on the damage. Metal bikes and parts simply are not as fragile as CF.
AlmostTrick is offline
Likes For AlmostTrick:
Old 06-19-20, 03:26 AM
  #12
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 739

Bikes: Peugeot teamline

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Liked 44 Times in 38 Posts
Originally Posted by AlmostTrick View Post
Maybe, it depends on the damage. Metal bikes and parts simply are not as fragile as CF.
Carbon just isn't fragile. How could it be?
No one would use it if it was.
​​​​​​
blamester is offline
Old 06-19-20, 04:48 AM
  #13
AlmostTrick
Tortoise Wins by a Hare!

AlmostTrick's Avatar

Join Date: Feb 2006
Location: Looney Tunes, IL
Posts: 7,045

Bikes: Wabi Special FG, Raleigh Roper, Nashbar AL-1, Miyata One Hundred, '70 Schwinn Lemonator and More!!

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1385 Post(s)
Liked 568 Times in 317 Posts
Originally Posted by blamester View Post
Carbon just isn't fragile. How could it be?
No one would use it if it was.
​​​​​​
Ask all the folks who post "Is this scratch in my CF bike safe to ride, or is it just in the paint" threads. Like this one! OP wouldn't be concerned if this were an aluminum post.

Last edited by AlmostTrick; 06-19-20 at 04:51 AM.
AlmostTrick is offline
Old 06-19-20, 05:04 AM
  #14
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 739

Bikes: Peugeot teamline

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Liked 44 Times in 38 Posts
Originally Posted by AlmostTrick View Post
Ask all the folks who post "Is this scratch in my CF bike safe to ride, or is it just in the paint" threads. Like this one! OP wouldn't be concerned if this were an aluminum post.
Plenty of people ask about scratches on alloy bars or dents in steel frames or the fatigue life of alloy frames or is this tyre safe. It's not exclusive to carbon and doesn't mean the poster is an idiot.
blamester is offline
Old 06-19-20, 05:05 AM
  #15
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 739

Bikes: Peugeot teamline

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Liked 44 Times in 38 Posts
Originally Posted by AlmostTrick View Post
Ask all the folks who post "Is this scratch in my CF bike safe to ride, or is it just in the paint" threads. Like this one! OP wouldn't be concerned if this were an aluminum post.
Plenty of people ask about scratches on alloy bars or dents in steel frames or the fatigue life of alloy frames or is this tyre safe. It's not exclusive to carbon and doesn't mean the poster is an idiot. I don't mean the op in this case just in general.
Carbon is not dangerous.
blamester is offline
Old 06-19-20, 06:15 AM
  #16
Amt0571
Senior Member

Join Date: Dec 2014
Location: Catalonia
Posts: 571

Bikes: Canyon Grand Canyon AL SL 8.0, Btwin Ultra 520 AF GF, Dahon Mu P27, Triban Road 7

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 224 Post(s)
Liked 87 Times in 58 Posts
They are safe IMHO. But they need to be treated with care. I mostly tighten everything by feel on aluminium or steel components and never had an issue, but with carbon I think a torque wrench is a must, and I always use it when tightening seatpost clamps, brakes calipers, steems or any other part that involves carbon. I also always use carbon paste when necessary.

This things would put me off from buying a second hand carbon bike, as it's impossible to know what the previous owner has done with it.

When buying a new bike I prefer aluminium as I think it's more durable and reliable long term, and I usually keep my bikes for years.

My opinion is probably not popular, but I feel that the much touted "comfort" of carbon frames is placebo. Tires, wheels, seatposts, and saddles flex way more than a frame and I don't believe frame material can be noticable compared to that. Even a tire pressure change will make a more noticeable difference IMHO.

If I look at the bikes my buddys buy, they tend to prioritize carbon over component quality or total weight and I can't get my head around it. I can't understand why someone would buy a carbon bike with a Recon fork and MT200 brakes, for example, when you can buy an aluminium one with a Reba or Fox 32 / 34 and better brakes at the same price.

The same applies to road bikes. Why buy a carbon bike with low-end components and mechanical discs that ends up heavier than an aluminium one with decent components and hydro brakes? I know there's people who say that "you can always upgrade the components" but, TBH, most people (including myself) don't upgrade the bike except when something breaks or wears down.
Amt0571 is offline
Old 06-19-20, 08:16 AM
  #17
Sy Reene
Advocatus Diaboli

Sy Reene's Avatar

Join Date: Feb 2015
Location: Wherever I am
Posts: 6,168

Bikes: Merlin Cyrene, Nashbar steel CX

Mentioned: 11 Post(s)
Tagged: 1 Thread(s)
Quoted: 3131 Post(s)
Liked 477 Times in 353 Posts
Tightening clamps and fasteners to the correct value is important, but that said, knowing the correct value for the item that's being clamped is often difficult or impossible to know. Clamps have torque values listed on them, but the clamp maker has no idea what you're sticking in it. Those printed values are pretty much just safe values they're indicating the bolts and threads can withstand.

The correct torque value = the least you can get away so that whatever's been clamped doesn't move or loosen.
Sy Reene is offline
Old 06-19-20, 09:25 AM
  #18
AlmostTrick
Tortoise Wins by a Hare!

AlmostTrick's Avatar

Join Date: Feb 2006
Location: Looney Tunes, IL
Posts: 7,045

Bikes: Wabi Special FG, Raleigh Roper, Nashbar AL-1, Miyata One Hundred, '70 Schwinn Lemonator and More!!

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1385 Post(s)
Liked 568 Times in 317 Posts
Originally Posted by blamester View Post
Plenty of people ask about scratches on alloy bars or dents in steel frames or the fatigue life of alloy frames or is this tyre safe. It's not exclusive to carbon and doesn't mean the poster is an idiot.
Fair point. The main difference is the fact that carbon damage (or defects) are not always visible, and when it does fail it is more likely to be catastrophic.

Far from being an idiot, (your words) the OP was wise to notice the gorilla over tightening of a carbon part, and justified to be concerned about it. I certainly would be!
AlmostTrick is offline
Old 06-19-20, 09:44 AM
  #19
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 739

Bikes: Peugeot teamline

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Liked 44 Times in 38 Posts
Originally Posted by AlmostTrick View Post
Fair point. The main difference is the fact that carbon damage (or defects) are not always visible, and when it does fail it is more likely to be catastrophic.

Far from being an idiot, (your words) the OP was wise to notice the gorilla over tightening of a carbon part, and justified to be concerned about it. I certainly would be!
I edited that because I didn't mean the op. It was in response to veganbikes comment not yours.
blamester is offline
Old 06-19-20, 09:53 AM
  #20
Iride01
Senior Member

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 4,394

Bikes: '20 Tarmac Disc Comp '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1649 Post(s)
Liked 534 Times in 410 Posts
Neither are steel or aluminum defects always visible.

It's really just the ability to fix carbon frames that many can't conceive and then shy from them. Of course since fewer people understand how to repair them, the cost of repairing them may be more. And generally, pound for pound, carbon cloth and resin is many times more expensive than steel or aluminum.

Last edited by Iride01; 06-19-20 at 09:57 AM.
Iride01 is offline
Old 06-19-20, 10:03 AM
  #21
base2
Random Internet Person.

base2's Avatar

Join Date: Jun 2015
Location: Pacific Northwest
Posts: 1,348

Bikes: 5 good ones, and the occasional project.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 691 Post(s)
Liked 267 Times in 164 Posts
Not mentioned is it is good practice to turn the seat post clamp around (assuming round) so that the binding bolt is opposite the cut in the seat tube. This spreads the load better around the circumference of the binding area & helps prevent the clamp bolt from levering the unsupported top corners of the seat tube cut into the post & concentrating the load in a very small area.

Carbon does not like concentrated loads. If/when it breaks it will be where the sharp corners dug in to the post. Turning the clamp around helps prevent that.
__________________
My lights are obscenly bright because drivers are dim.

I shouldn't have to "make myself more visible;" Drivers should just stop running people over.
base2 is offline
Old 06-20-20, 12:16 AM
  #22
Bike Gremlin
Bike Gremlin

Bike Gremlin's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 4,108

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 958 Post(s)
Liked 19 Times in 15 Posts
My 2c:

Metal frames/parts usually show cracks on the outside, before completely failing.

With carbon fiber parts - it is not the case often enough. However - there are professionals who can properly inspect (and scan) carbon frames/parts to confirm it's all good. It costs, but can be done. With that precaution, perhaps even repeating the checkup in case of any accident, or larger scratches etc, suppose carbon parts are quite safe.

In my country, I don't know of anyone who offers the services of inspecting carbon parts, so for that reason (and the price of both frames, checkups and repairs), I still stay away from carbon components. I often ride without a helmet - but don't really like riding uninspected carbon forks, for example. Without an inspection - the risk is greater than any lower weight benefits, at least for the non-racing me. It seems that even high end manufacturers mess it up from time to time (educational Luescher Teknik videos).
Bike Gremlin is offline
Old 06-20-20, 08:53 AM
  #23
Fissile
Senior Member

Fissile's Avatar

Join Date: Nov 2007
Posts: 611
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 14 Times in 13 Posts
IMHO carbon is disposable. Not saying that I wouldn't buy carbon, I would...brand new carbon. Buying used carbon is insane, it's even more insane that people pay ridiculous prices for used carbon. The only way to properly inspect carbon is by imaging, like X-ray. Everyone selling used carbon will swear up and down that it was only ridden by a little old lady on Sundays in the park. Meanwhile they've got FG videos of themselves bombing down the Himalayas. Stay away from used carbon, unless you can get it dirt cheap and only expect to salvage some components.
Fissile is offline
Old 06-20-20, 05:56 PM
  #24
cpach
Senior Member

Join Date: Oct 2009
Location: Mt Shasta, CA, USA
Posts: 1,755

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 389 Post(s)
Liked 155 Times in 124 Posts
I haven't seen a slate of carbon failure resulting in injury as a mechanic, so I think the fears people have are misplaced. That said, that post sounds suspect and I'd replace it.
cpach is offline
Old 06-20-20, 09:14 PM
  #25
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,193

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1128 Post(s)
Liked 681 Times in 482 Posts
This is precisely why I'd never buy a used carbon fiber bike or component. You just don't know how ham fisted previous the owner(s) was (were) and what stresses the frame or components have been subjected to.

Cheers
Miele Man is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
