Wheel Lacing - finding the first hole

Old 06-20-20, 10:55 PM
  #1
paramountx
Senior Member
Thread Starter

Join Date: Aug 2011
Posts: 79
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 0 Times in 0 Posts
Wheel Lacing - finding the first hole

I am using DT SWISS TK-540 and I have no idea which hole do I use to start. The holes do not appear be offset. They all appear to be on the center line. The whole wheel is symmetrical
paramountx is offline
Old 06-21-20, 06:30 AM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,582

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2425 Post(s)
Liked 483 Times in 373 Posts
For any rim I start with the hole next to the valve hole and that is going to allow the spoke to radiate away (as in not cross) that valve hole. Depending on the rim spoke holes' arrangement this first spoke might go to the inside or outside of the flange. Rims with no hole by hole off sets are not uncommon and are dealt with just like any other but with no regard to which side the hole is offset to and which flange a spoke goes to. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 06-21-20, 08:11 AM
  #3
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,456

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 599 Post(s)
Liked 90 Times in 73 Posts
Roger Musson's wheelbuilding book has a good, clear explanation of this. WHEELBUILDING
sweeks is offline
Old 06-21-20, 09:36 AM
  #4
_ForceD_
Senior Member

_ForceD_'s Avatar

Join Date: Jul 2015
Location: Rhode Island
Posts: 1,346

Bikes: Several...from old junk to new all-carbon.

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 574 Post(s)
Liked 129 Times in 84 Posts
There is a good lacing guide on the Sheldon Brown website. I've used it for the few wheels I've laced and it seems pretty easy to understand. It will tell you which spoke to put in which hole counted from the valve hole, etc. I wouldn't say there is a hole that you put the first spoke in...but the general practice among wheel builders is that the brand on the hub should be lined up, or visible when looking through the valve hole on the rim. So...however you get to that point...I don't think it matters what order the spokes go in. But, there are some hubs that the spoke holes are driller for inner and outer spokes so that the spoke head seats better, and rims with offset holes for left and right.

Dan
_ForceD_ is offline
Old 06-21-20, 10:18 AM
  #5
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 22,700

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 111 Post(s)
Tagged: 1 Thread(s)
Quoted: 3345 Post(s)
Liked 796 Times in 503 Posts
Here's what I tell my students in my wheel building class

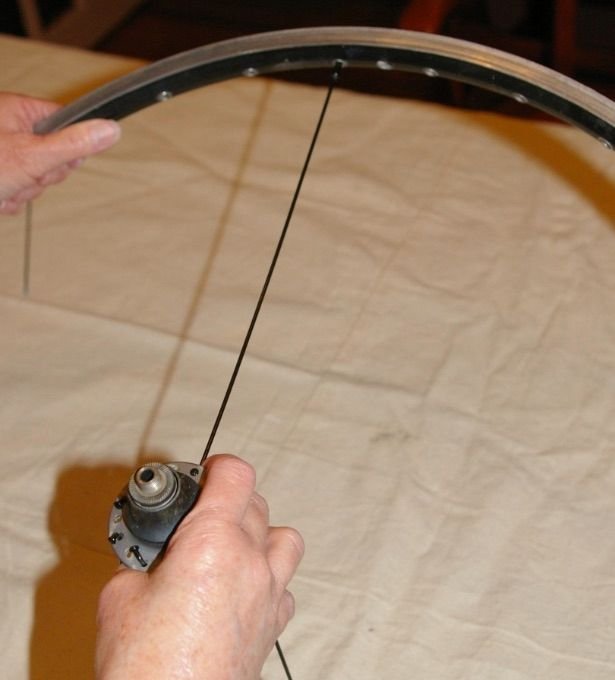

Lay the rim so it is horizontal. Position the valve hole opposite your stomach with the rim label upside down. The rim’s spoke holes are slightly offset with one hole is a little above the imaginary centerline, the next is a little below, and they alternate that way around the rim. The hole you have put the first spoke into should be offset toward the top of the rim. If the hub is offset to the bottom of the rim, see “How to handle a rare ‘right handed’ rim” in the appendix.







Hold the hub in the center of the rim with the spokes hanging down. If you are OCD or if you have bicycle mechanic friends and want to avoid ridicule, selection of the first spoke is (marginally) important. OCD mechanics want to have the label of the hub visible through the valve stem hole of the rim. To accomplish this, find the label on the hub before adding spokes. Place one spoke directly in front of the label and count 4 spokes holes (i.e. 2 spokes) to the right of the label (Note to Stuart: Yes, rightis correct. Quit changing it, you knob!) Select this spoke (which from now on will be referred to as the No.1 spoke) and put it through the first hole to the left of the valve hole. Attach its nipple a couple of turns.
The problem I find is picking the first spoke of the second round. To find which one is correct, I do the following"

Now comes the only tricky part of lacing a wheel. You must determine which hub flange hole gets the first spoke of the second group (spoke No. 10 overall). Since there are 2 possibilities, drop a spoke through each hole so they rest against the bottom flange vertically and on either side of the No. 1 spoke.


The spoke to the wheelbuilder’s right of Spoke No. 1 is the proper spoke. Put the spoke to the right Spoke No. 1 into the first rim hole to the right of the No. 1 spoke and attach a nipple.

__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is online now
Old 06-21-20, 11:31 PM
  #6
paramountx
Senior Member
Thread Starter

Join Date: Aug 2011
Posts: 79
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 0 Times in 0 Posts
The thing my rim the is no offset so right from the beginning I couldn't really follow what Uwrote.
I just don't know where my key spoke is going to go.
mgt

Originally Posted by cyccommute View Post
Here's what I tell my students in my wheel building class



The problem I find is picking the first spoke of the second round. To find which one is correct, I do the following"
paramountx is offline
Old 06-22-20, 03:13 AM
  #7
cpach
Senior Member

Join Date: Oct 2009
Location: Mt Shasta, CA, USA
Posts: 1,692

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Liked 137 Times in 114 Posts
If it's symmetrical pick one--it doesn't much matter.
cpach is offline
Old 06-22-20, 08:09 AM
  #8
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 22,700

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 111 Post(s)
Tagged: 1 Thread(s)
Quoted: 3345 Post(s)
Liked 796 Times in 503 Posts
Originally Posted by paramountx View Post
The thing my rim the is no offset so right from the beginning I couldn't really follow what Uwrote.
I just don't know where my key spoke is going to go.
mgt
It may be subtle but Iíll bet there is an offset of some kind. Iíve never run across a rim that doesnít have offset spoke holes. A right handed rim is so rare that youíll likely never run across one (Iíve seen only one in my wheel building career) so it likely wonít matter. Put the label at your stomach with it upside down and pick the first spoke hole to the left of the valve.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is online now
Old 06-22-20, 12:53 PM
  #9
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,227
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 430 Post(s)
Likes: 0
Liked 57 Times in 52 Posts
I think this is a very good way to spoke a wheel; https://pdf.zlibcdn.com/dtoken/3cb670...z-lib.org).pdf
davidad is offline
Old 06-22-20, 01:03 PM
  #10
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 10,876

Bikes: Schwinn Paramount, Salsa Timberjack, Diamondback Expert TG, Burley Samba

Mentioned: 64 Post(s)
Tagged: 0 Thread(s)
Quoted: 1956 Post(s)
Liked 521 Times in 361 Posts
Pay for the above linked Roger Musson book. Itís very good.
__________________
Genesis 49:16-17
Darth Lefty is offline
Old 06-22-20, 03:38 PM
  #11
rosefarts
Senior Member

Join Date: May 2015
Posts: 1,284
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 506 Post(s)
Liked 229 Times in 124 Posts
Originally Posted by cpach View Post
If it's symmetrical pick one--it doesn't much matter.
It probably won't affect the strength but I feel way too amateur when the parallels don't line up with the valve stem.

I've got rims I've ridden hard for years that don't line up, so yeah, it probably is fine.
rosefarts is offline
Old 06-22-20, 03:49 PM
  #12
cpach
Senior Member

Join Date: Oct 2009
Location: Mt Shasta, CA, USA
Posts: 1,692

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Liked 137 Times in 114 Posts
You'll get parallel spokes around the valve if you treat a symmetrically drilled rim as either Type A or B. I'd never suggest lacing with angled spokes around the valve.
cpach is offline
