C&V crankbolt washer options

Friends,
So, I seem to be short of crank bolt washers, and haven't found a source for them. In my search, I begin to wonder why the
crank bolts that I do have seem to be oddly under-sized for the task.

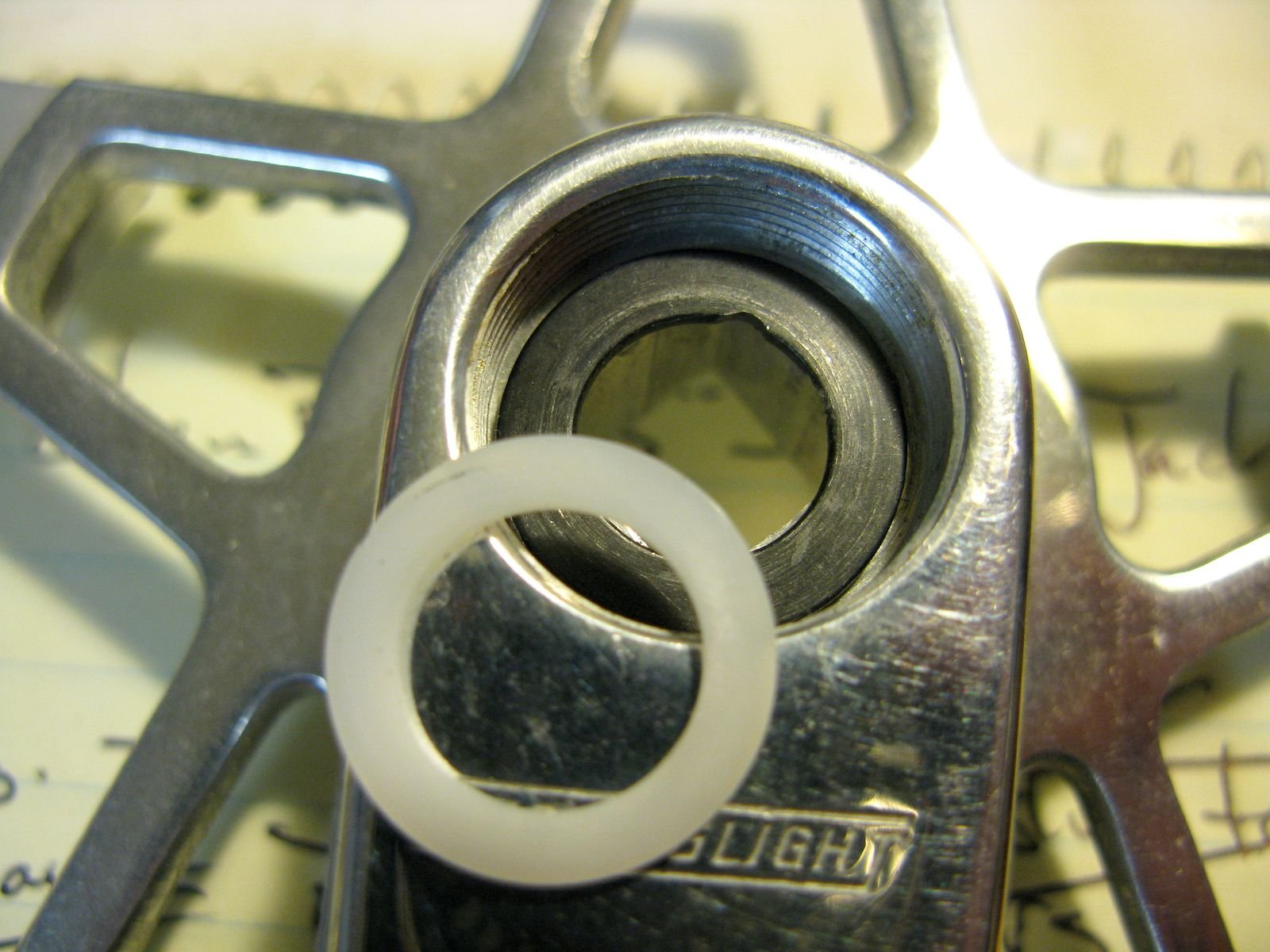

Photo #1 has a "proper" washer and a possible nylon substitute, although I find them both too small. The nylon one is slightly smaller of the two, as well.

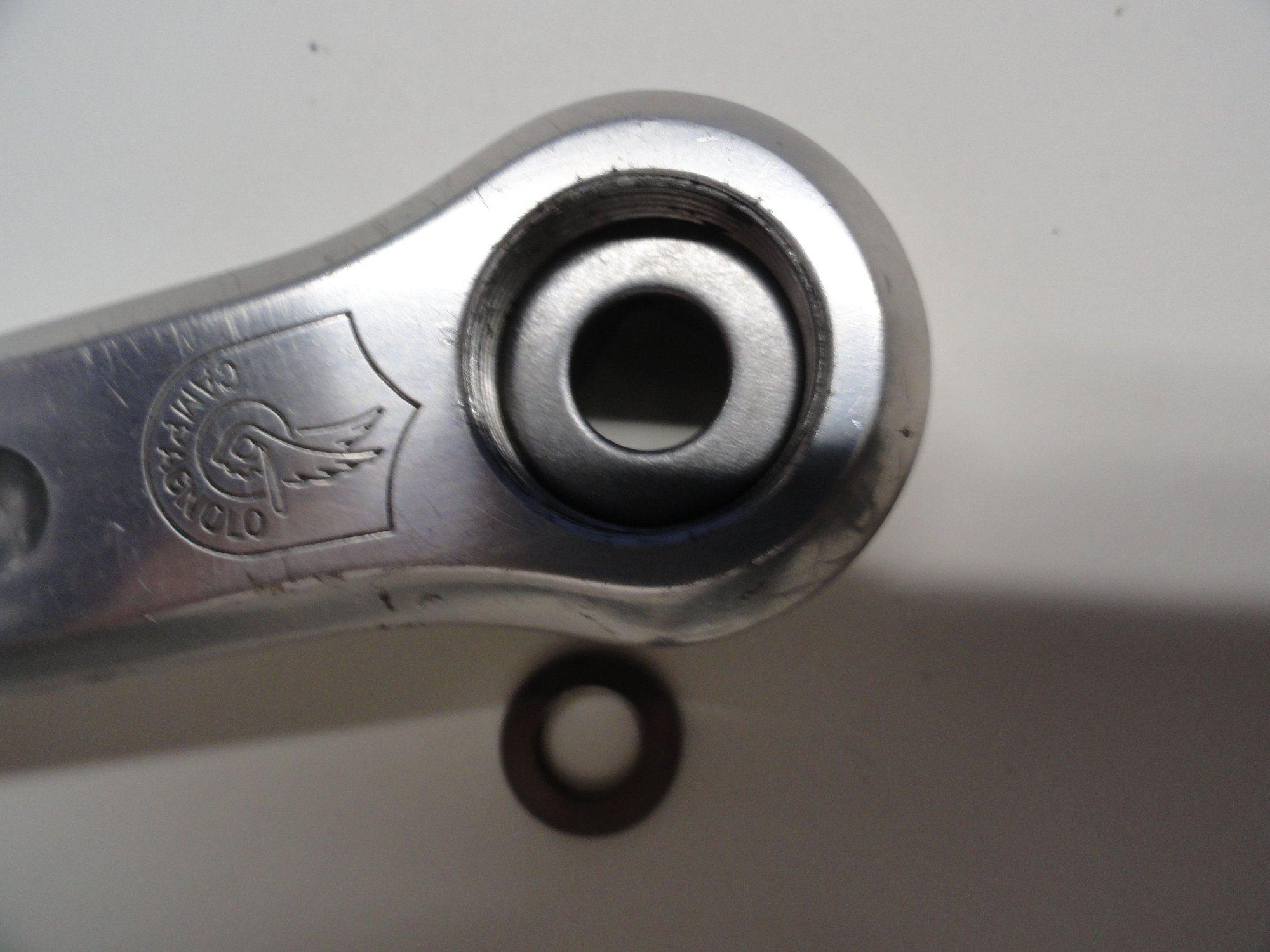

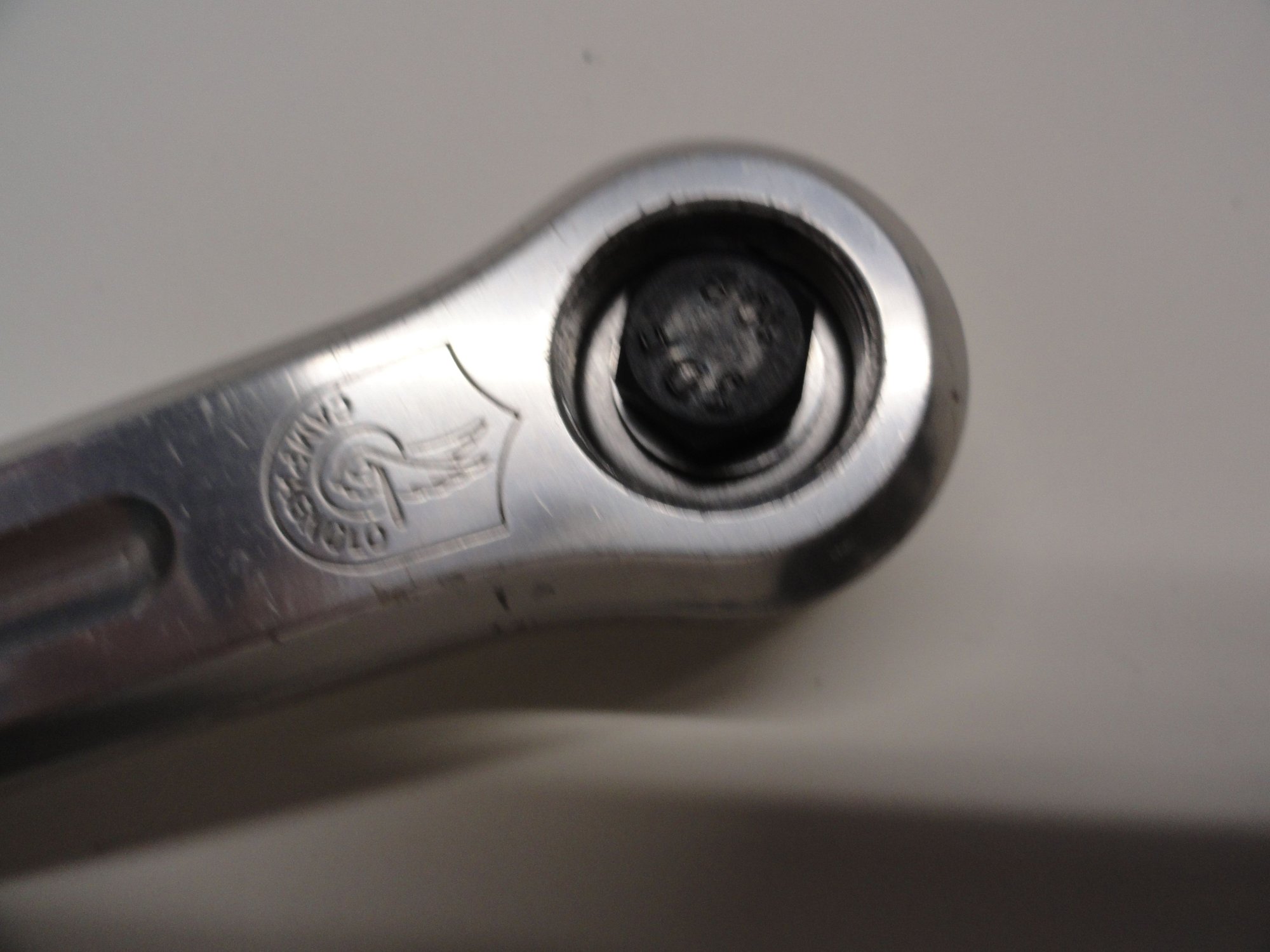

Photo #2 shows the fit. The standard bolt rattles around in that space, and the washer rattles around in the crank arm, too.

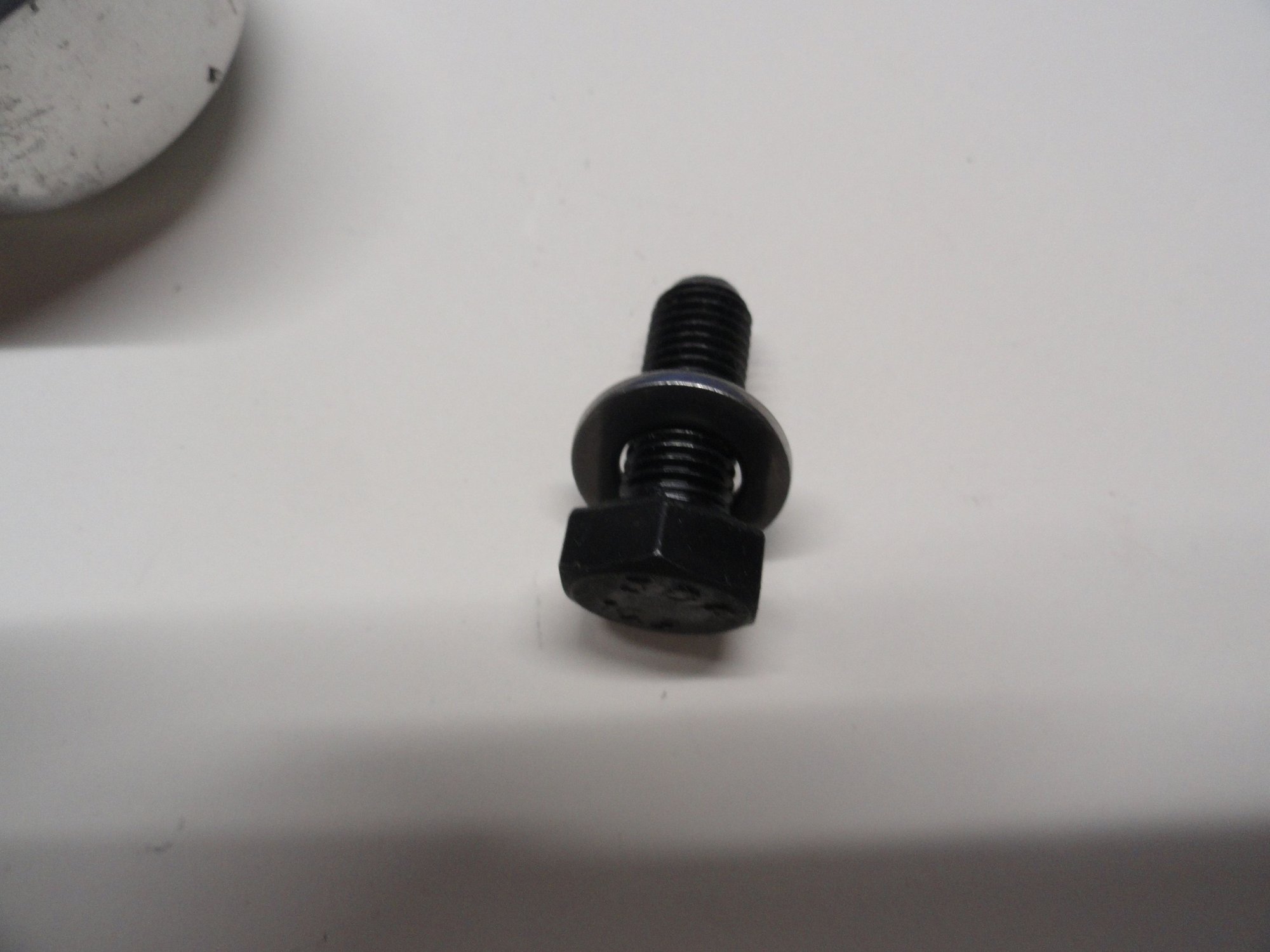

Photo #3 is a rubber washer that fits in quite snugly. Would there be reasons NOT to use something like this? I'm mostly just curious.

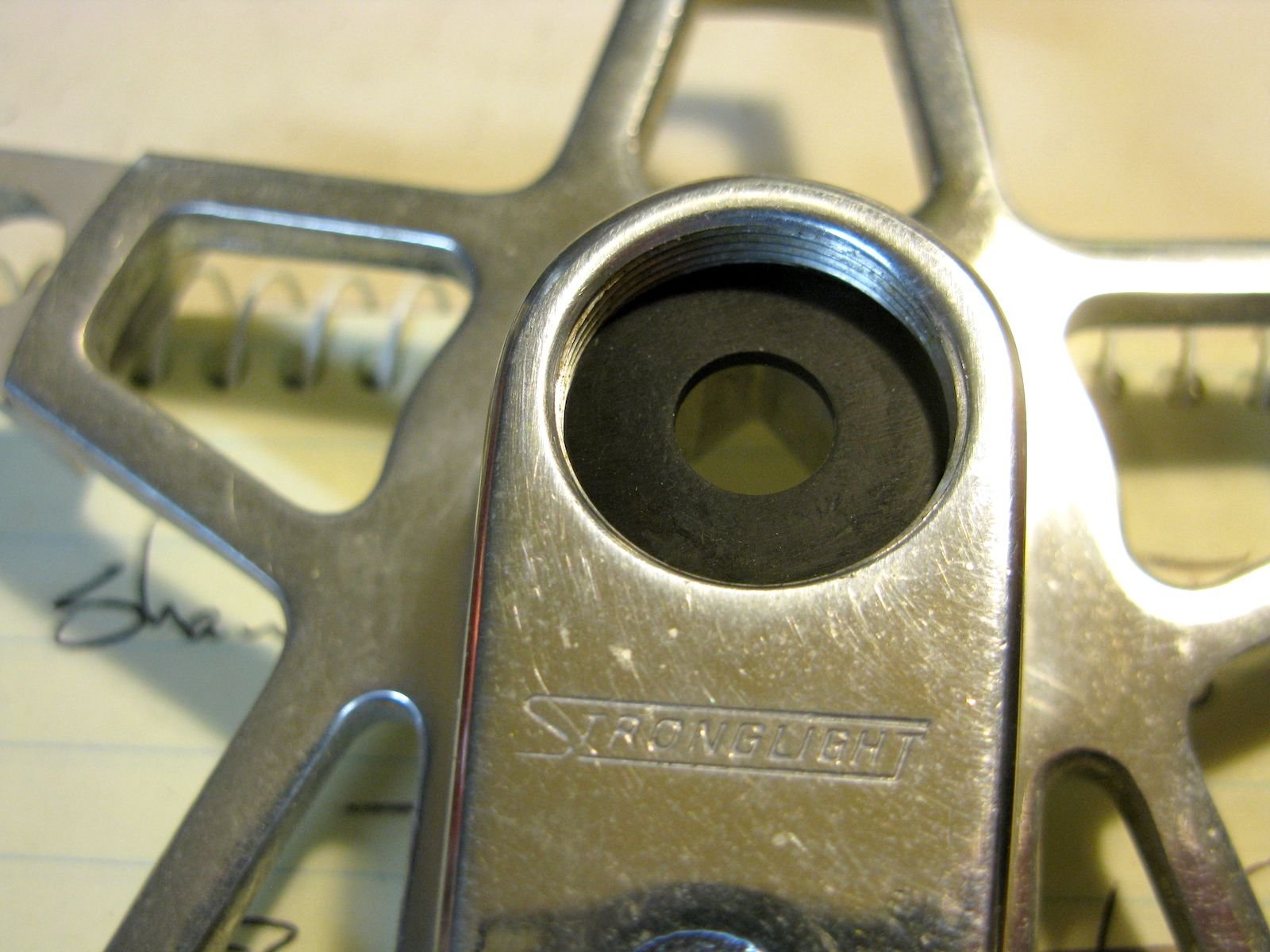

Photo #4 is the fit.

Thank you for the advice.

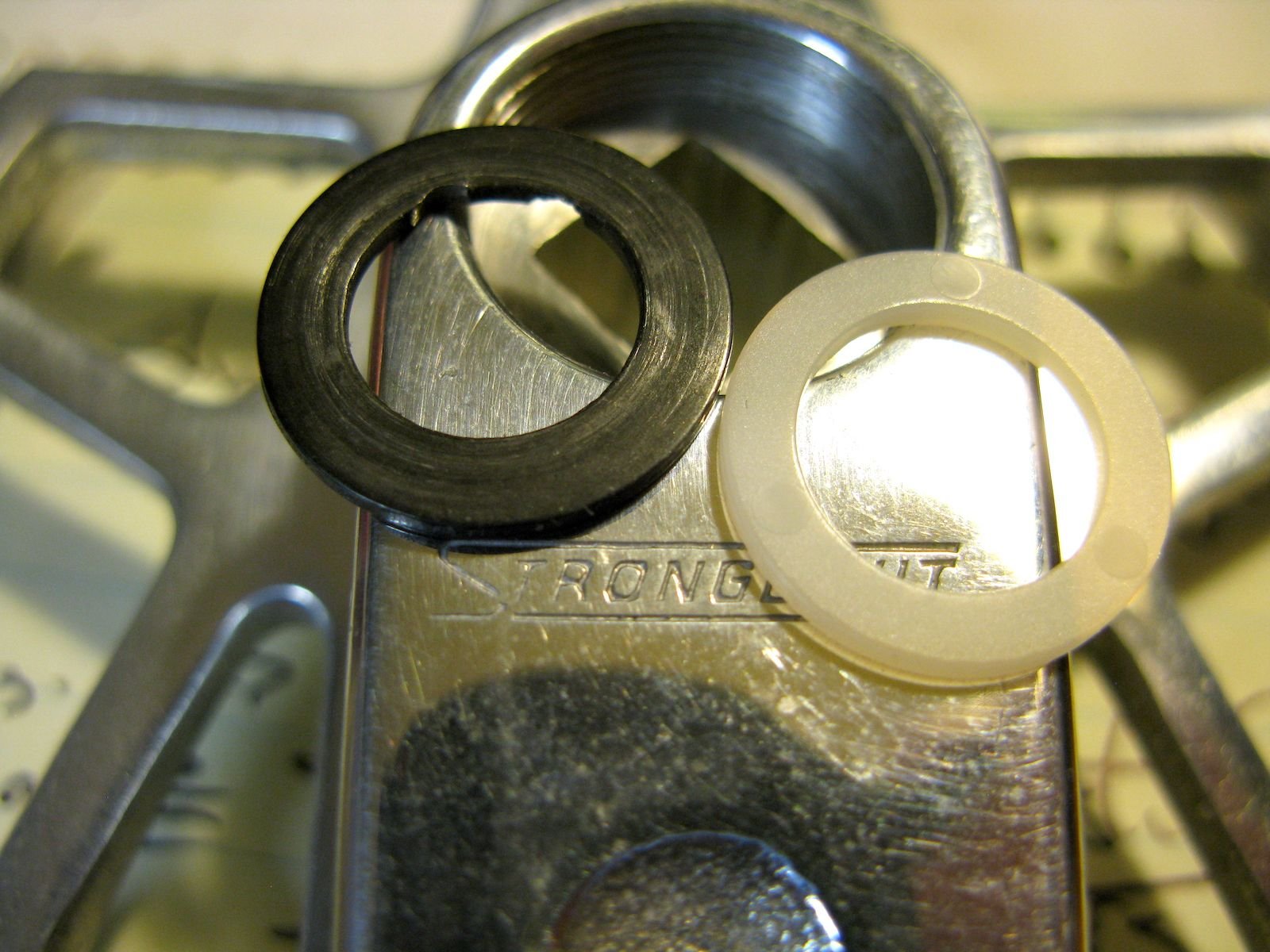

"official" crank bolt washer and nylon option

Loose fit of the "official" washer

A rubber washer

that fits very snugly
__________________
1959 Hilton Wrigley Connoisseur (my favorite!)
1963 Hetchins Mountain King
1971 Gitane Tour de France (original owner)
* 1971 Gitane Super Corsa (crashed)
* rebuilt as upright cruiser
1971 Gitane Super Corsa #2 (sweet replacement)
1980 Ritchey Road Touring (The Grail Bike)
1982 Tom Ritchey Everest
(replacing stolen 1981 TR Everest custom)
1982 Tom Ritchey McKinley (touring pickup truck)
1985 ALAN Record (Glued & Screwed. A gift.)
LeicaLad is offline
Old 06-30-20, 03:14 PM
  #2
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,145
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 676 Post(s)
Liked 680 Times in 514 Posts
You don't want to use anything other than metal for this. Nylon and rubber squish and can eventually cause the crank bolt to back out and ruin the crank.
Crankycrank is offline
Old 06-30-20, 03:28 PM
  #3
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,292

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1426 Post(s)
Liked 1,056 Times in 706 Posts
Use the correct steel washer, the fit of the OD is irrelevant and the washer will not move anyway when the bolt is torqued against it.
dsbrantjr is offline
Old 06-30-20, 05:00 PM
  #4
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 2,100

Bikes: Paramount, Faggin, Ochsner, Ciocc, Ugly Bill

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 869 Post(s)
Liked 975 Times in 653 Posts
LeicaLad,
I ran into similar issues with some of my cranks. I went to Fastenal and ordered the correct washers for fit but the bolts for the cranks were only 13 mm size and the fit was a bit sloppy. I added an additional 8 mm washer to the set and it works quite well. I can sell the kit for $4 plus postage for shipping (two bolts and four washers). Pics are here:




Let me know if you want a set of these. Best fix I have managed to come up with. Smiles, MH

Last edited by Mad Honk; 06-30-20 at 05:03 PM.
Mad Honk is offline
Old 06-30-20, 08:07 PM
  #5
LeicaLad
Senior Member
Thread Starter

Join Date: Jun 2010
Location: Work in Asia, now based in Vienna, VA
Posts: 1,758
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 35 Times in 22 Posts
Thanks for the suggestions. I do have a Fastenall shop quite close by. I don't really want to stack washers, as that reduces the thread bite into the axle more than I would prefer.

I'm also curious about the comment of nylon or rubber "squishing" and causing the crank bolts to back out. I'd think the rubber quite thin, and if the crank bolt is reasonably tight, all the possible squishing is already done. Plus it appears that it would provide a rather tight seal. I find crank bolts need re-tightening on a regular basis, anyway.

Still hoping for further explanations.

Thank you all.
__________________
1959 Hilton Wrigley Connoisseur (my favorite!)
1963 Hetchins Mountain King
1971 Gitane Tour de France (original owner)
* 1971 Gitane Super Corsa (crashed)
* rebuilt as upright cruiser
1971 Gitane Super Corsa #2 (sweet replacement)
1980 Ritchey Road Touring (The Grail Bike)
1982 Tom Ritchey Everest
(replacing stolen 1981 TR Everest custom)
1982 Tom Ritchey McKinley (touring pickup truck)
1985 ALAN Record (Glued & Screwed. A gift.)
LeicaLad is offline
Old 06-30-20, 08:51 PM
  #6
Barry2
LRP=HR

Join Date: Sep 2019
Location: SF Bay Area
Posts: 1,606

Bikes: Holdsworth 1979 Special, C-dale 1993 MT3000 Tandem & 1996 F700CAD3, Cervelo 2022 R5 & 2018 R3, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 623 Post(s)
Liked 796 Times in 462 Posts
If you use a nylon washer you will not pull the crank arm into the tapered BB shaft with the full force required.
This will cause the steel taper of the shaft to damage the tapered hole in the softer aluminum crank arm.


All the best

Barry
Barry2 is offline
Old 06-30-20, 10:00 PM
  #7
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 21,329

Bikes: old ones

Mentioned: 296 Post(s)
Tagged: 0 Thread(s)
Quoted: 24269 Post(s)
Liked 7,960 Times in 5,581 Posts
Originally Posted by LeicaLad View Post

Still hoping for further explanations.

Thank you all.
,,,if you look at some of the more modern crank bolt designs (the product of innovations in machining technology and metal fabrication), you'll notice a gradual evolution in these bolts.

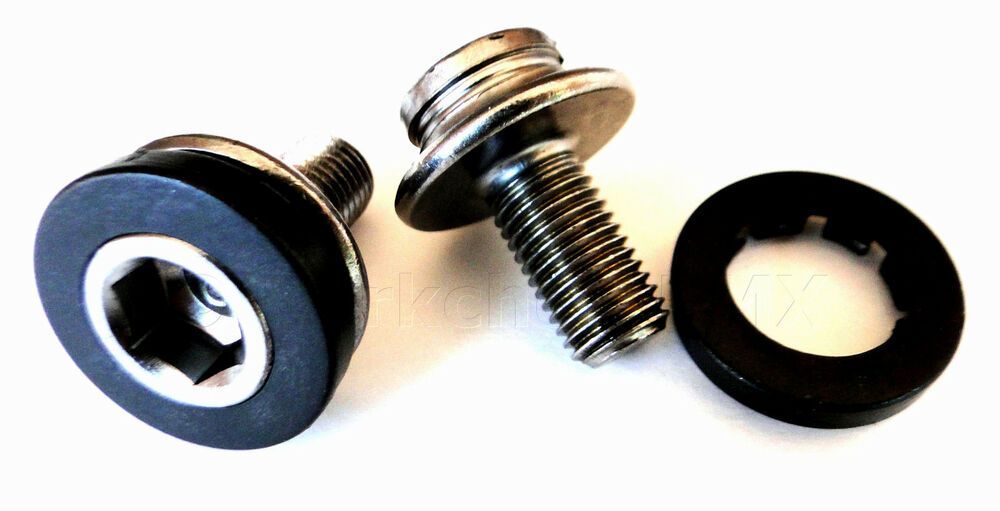

Thus were born the washerless designs:




Mostly, those washers are present in the older design to distribute the pressure forces of the bolt head over a larger surface in the softer aluminum alloy crank. They also help to prevent galling of the aluminum every time you tighten or loosen the bolts, and when lightly lubricated with a thin film of grease, help you to judge torque more accurately. Nylon/rubber are not really a good substitute for distribution of this load.

I've taken to using the socket head bolts lately, to keep from having to fiddle with the crank caps.
3alarmer is offline
Old 07-01-20, 03:50 AM
  #8
LeicaLad
Senior Member
Thread Starter

Join Date: Jun 2010
Location: Work in Asia, now based in Vienna, VA
Posts: 1,758
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 35 Times in 22 Posts
Thank you. This makes perfectly good sense.

Best to you all!
__________________
1959 Hilton Wrigley Connoisseur (my favorite!)
1963 Hetchins Mountain King
1971 Gitane Tour de France (original owner)
* 1971 Gitane Super Corsa (crashed)
* rebuilt as upright cruiser
1971 Gitane Super Corsa #2 (sweet replacement)
1980 Ritchey Road Touring (The Grail Bike)
1982 Tom Ritchey Everest
(replacing stolen 1981 TR Everest custom)
1982 Tom Ritchey McKinley (touring pickup truck)
1985 ALAN Record (Glued & Screwed. A gift.)
LeicaLad is offline
