Weinmann Vainqueur 999 adjustments

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Weinmann Vainqueur 999 adjustments

Old 07-06-20, 09:29 PM
  #1
Alexthe
Member
Thread Starter

Join Date: May 2020
Location: new york city
Posts: 35

Bikes: Motobecane Grand Jubilee 1978

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Weinmann Vainqueur 999 adjustments

These are my very reliable but probably never adjusted optimally brakes in my 78' Moto, grand jubilee. I am just now replacing the brake pads with new Mathauser's completely flat surface brake pads . I have in the past adjusted these breaks by squeezing them together and playing with the straddle cable? I used whatever I can find in the house and brute force. They work and I never damaged anything. But now I want to do it right. And I would like your advice on the tools ,I will need for a " nice " adjustment of these simple and efficient.. ( can be efficient ) brakes. I will work on upgrading of other components afterwards. My rear brake is smooth fair, stopping performance (with the wrong brake pads ) but the front brake is lumpy so perhaps the cable needs to be replaced. My levers...AH I will throw them out later, that's for another post, but for now this is my objective . oh and my wheels particularly the front need to be trued what tool do I need for that, Please in my old French bike .

Thank you
Alex
Alexthe is offline
Old 07-07-20, 09:51 AM
  #2
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,781

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1034 Post(s)
Liked 241 Times in 178 Posts
If the cable is bad and the cable lube has turned to greasy abrasive paste, best to replace the cables. Kind of ridiculous to tune brakes with almost-worn-out pads, too. And installing and tuning brakes is a lot easier if the wheels are true and properly dished.

Calvin Jones of Park Tools does a nice job, here:


Last edited by WizardOfBoz; 07-07-20 at 10:02 AM.
WizardOfBoz is offline
Likes For WizardOfBoz:
Old 07-07-20, 04:07 PM
  #3
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,556

Bikes: Several, mostly not name brands.

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 2180 Post(s)
Liked 547 Times in 375 Posts
A "third hand" brake tool will hold the pads against the rim while you secure the cable:



I'm not especially fond of that spring-type tool, but the shop quality locking tools can be pretty expensive.
Attached Images
File Type: jpg
JohnDThompson is offline
Old 07-07-20, 08:16 PM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,621

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2440 Post(s)
Liked 501 Times in 388 Posts
I'll add that the 999 calipers were really designed around rims with an outside width of 25mm or so. So when used with narrower rims the caliper arm swing and the resulting straddle cable angle WRT the pad get past the best leverage point. Add to that the flexible front cable hangers that were common back then and there can be a lot of mush and less "power" then the dual pivot might suggest.

SM pads will help. Placing an additional washer between the pad and the arm to better deal with the narrower rims will help. Of course using lined casing and redrawn inner cables will help. Stiffer hangers if possible will help.Back in the day straddle cables of various lengths were available but this option is pretty much long gone. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 07-07-20, 10:00 PM
  #5
Alexthe
Member
Thread Starter

Join Date: May 2020
Location: new york city
Posts: 35

Bikes: Motobecane Grand Jubilee 1978

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by WizardOfBoz View Post
If the cable is bad and the cable lube has turned to greasy abrasive paste, best to replace the cables. Kind of ridiculous to tune brakes with almost-worn-out pads, too. And installing and tuning brakes is a lot easier if the wheels are true and properly dished.

Calvin Jones of Park Tools does a nice job, here:

https://www.youtube.com/watch?v=iJeYSKUI-6A
O.K. I'm sure your rite , I' have new pads on the way . next to true the wheel while I replace my tires but how do I do this? I could post a new question on this topic thanks for the video
Alexthe is offline
Old 07-07-20, 10:25 PM
  #6
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,067

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 288 Times in 196 Posts
Alexthe , as suggested, new cables, pads, proper tools and true wheels will go a long way. But if you want to make your brakes work like new, you'll need to take them completely apart, thoroughly clean them, apply Phil Waterproof Grease to the pivots and reassemble. Also, pay close attention to the cable housing ends, make sure they are ground flat and have no burrs that the cable could rub against. If the cable ends are not flat and smooth, they will grind into the knurled adjusters when turning them, most of which are soft aluminum.







branko_76 is offline
Likes For branko_76:
Old 07-08-20, 07:17 AM
  #7
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,067

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Liked 288 Times in 196 Posts

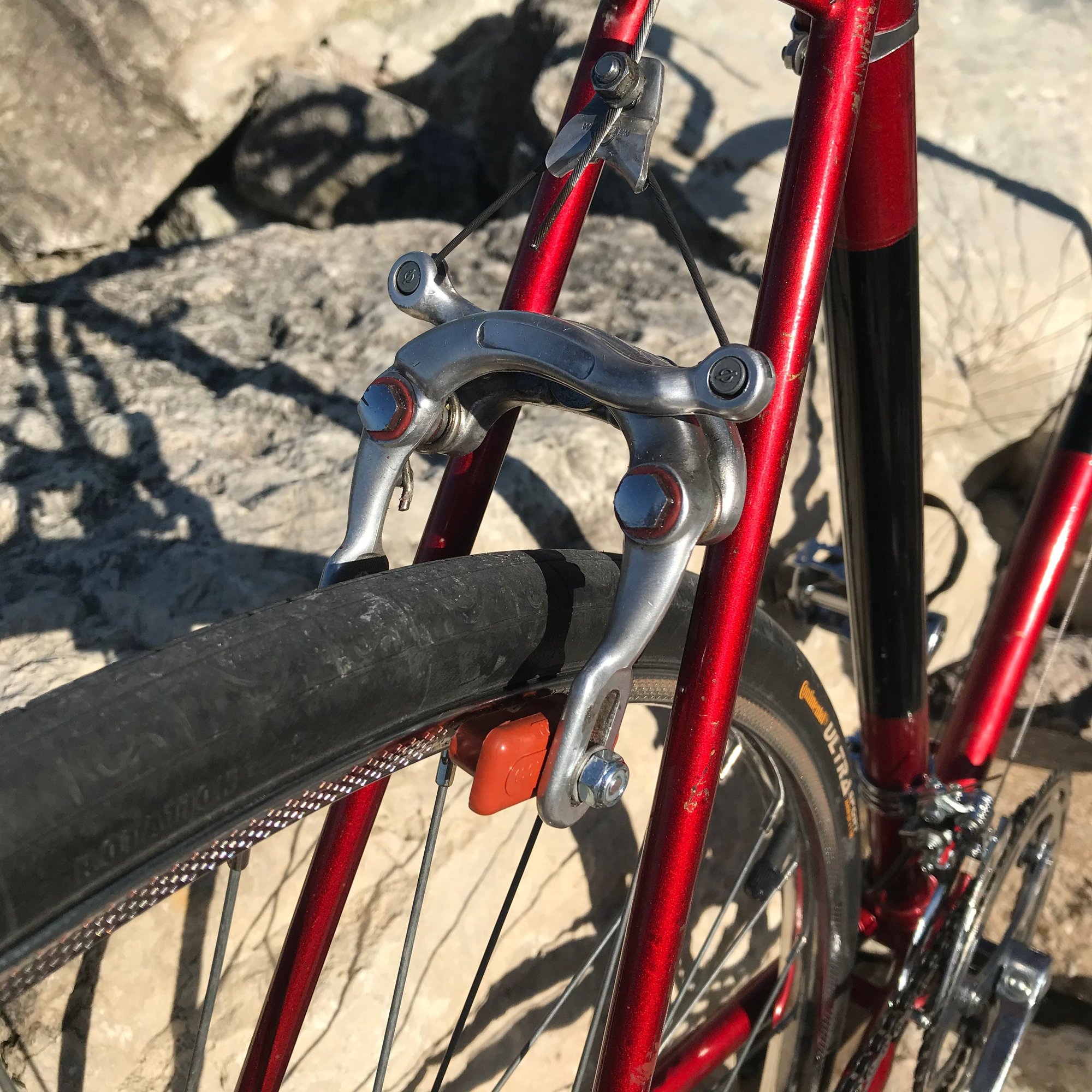

With KOOL-STOP Continentals

branko_76 is offline
