Question about Dura Ace BL-7403 brakes

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Question about Dura Ace BL-7403 brakes

Old 07-07-20, 04:08 PM
  #1
johnlink
Senior Member
Thread Starter

Join Date: May 2010
Location: New York, NY
Posts: 261

Bikes: 1989 Centurion Ironman

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Question about Dura Ace BL-7403 brakes

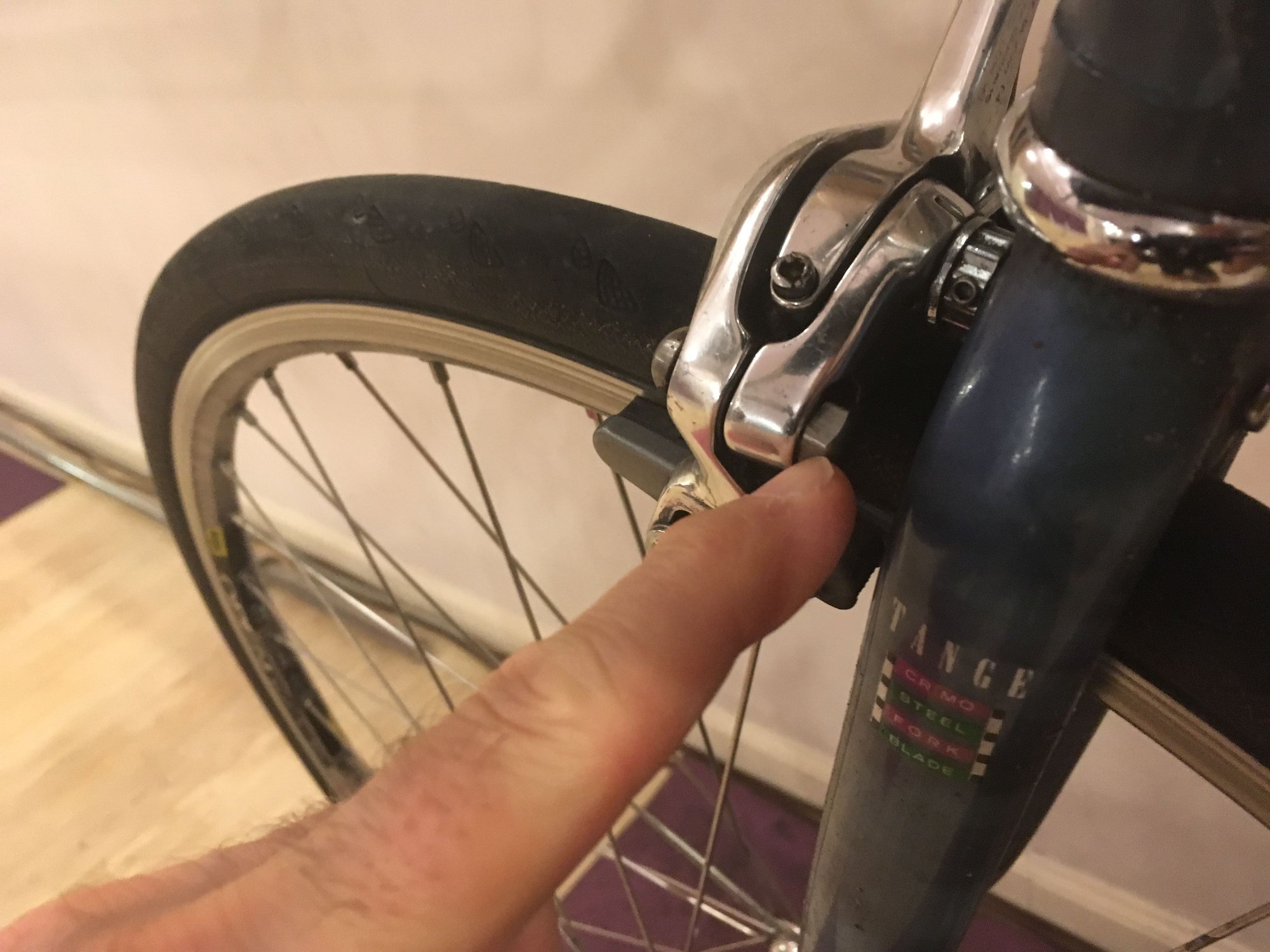

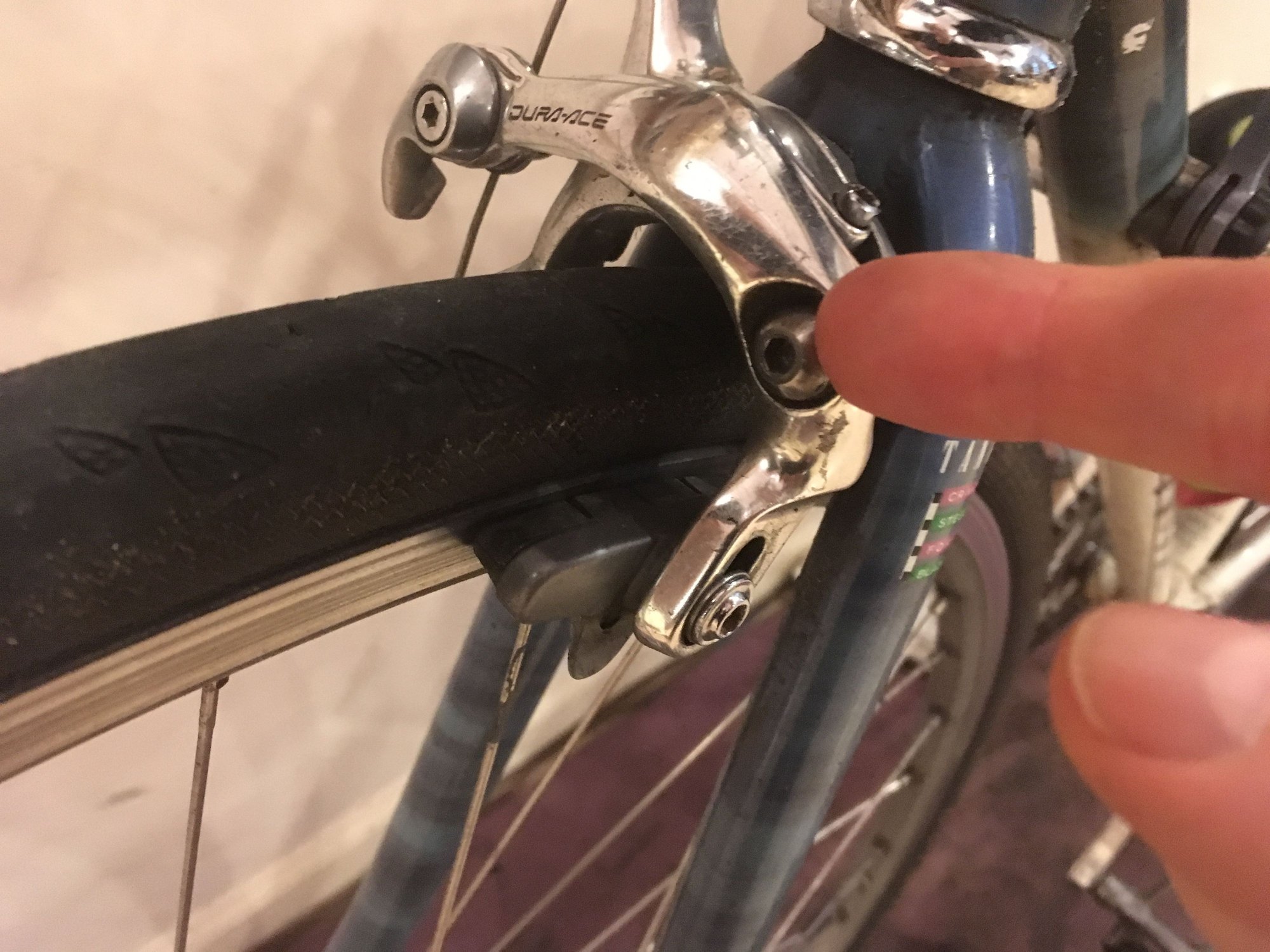

Unable to leave well enough alone, I recently loosened the arm bolt unit of my front brake (in the pictures Iím pointing at the ends of the arm bolt unit, which is part #1 in the attached diagram). My problem is that if I tighten it so that it isnít loosened by vibration, the springs are not strong enough to fully move the brake pads away from the rims. How was the brake originally assembled so that there wasnít such a problem? More importantly, what do I do to solve the problem?



Attached Files
File Type: pdf
BR-7403.pdf (109.7 KB, 5 views)
johnlink is offline
Old 07-07-20, 05:18 PM
  #2
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 1,677
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 275 Post(s)
Liked 82 Times in 66 Posts
Here's a good video on overhauling your brakes. Proper tightening of the #1 bolt starts at 5:00 mins.
Crankycrank is offline
Old 07-07-20, 05:59 PM
  #3
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,635

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1246 Post(s)
Liked 653 Times in 448 Posts
How are the cables?
dedhed is offline
Old 07-07-20, 07:43 PM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,621

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2440 Post(s)
Liked 500 Times in 388 Posts
This caliper pivot uses simple bushings and thus has a narrow window of best adjustment. A complete take apart, cleaning of surfaces and greasing can do wonders. BTW take care if the other arm's pivot is taken apart, at some point along the Shimano high end dual pivot caliper timeline a "spacer/washer" with REAL tiny balls was used as a bushing. Loosing these tiny bearings is very easy to do and near impossible to replace. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 07-07-20, 10:18 PM
  #5
Dave Mayer
Senior Member

Join Date: Dec 2006
Posts: 1,967
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 730 Post(s)
Likes: 0
Liked 96 Times in 62 Posts
These are the best road rim brakes ever made. Powerful with great modulation. First class hardware and finish. So cherish them and restore them to 100% working condition.

I have completely disassembled and reassembled the 7403's several times; with most road calipers this is not worthwhile, but these outstanding calipers deserve to be completely disassembled (down to the 2 rows of tiny tiny ball bearings in each of the 2 main pivots), lubed properly, and put back together.

Brace yourself: this is rocket science-level bike maintenance stuff, and your first time with these will take at least an hour of trial and error and terror - per caliper. Take you time, do not lose any of the tiny ball bearings, and carefully tune the tension on each of the pivots. 10 degrees of rotation in each of the 2 pivots will be the difference between the pivot being locked up, and being loose and floppy.
Dave Mayer is offline
Old 07-08-20, 07:43 AM
  #6
johnlink
Senior Member
Thread Starter

Join Date: May 2010
Location: New York, NY
Posts: 261

Bikes: 1989 Centurion Ironman

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by Crankycrank View Post
Here's a good video on overhauling your brakes. Proper tightening of the #1 bolt starts at 5:00 mins. https://www.youtube.com/watch?v=TqbCR83psAg
At 5:30, how does one tighten the nut without tightening the bolt? I don't see that the threads screw into anything other than the nut.
johnlink is offline
Old 07-08-20, 07:56 AM
  #7
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,621

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2440 Post(s)
Liked 500 Times in 388 Posts
The caliper back "plate" is threaded for each pivot. So the nuts are lock nuts, meant to trap the pivot bolt in place. I forget (having serviced many dozens of various dual pivot calipers I just look and see what each has) if these calipers have tiny set screws that press onto the pivot bolts. If they do, loosen then before doing and pivot bolt work. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 07-08-20, 08:08 AM
  #8
johnlink
Senior Member
Thread Starter

Join Date: May 2010
Location: New York, NY
Posts: 261

Bikes: 1989 Centurion Ironman

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by Andrew R Stewart View Post
The caliper back "plate" is threaded for each pivot. So the nuts are lock nuts, meant to trap the pivot bolt in place. I forget (having serviced many dozens of various dual pivot calipers I just look and see what each has) if these calipers have tiny set screws that press onto the pivot bolts. If they do, loosen then before doing and pivot bolt work. Andy
That solves the mystery, and my problem. There are no set screws pressing on the bolts.
