Linear Pull Brake Pad Length

Howdy
I知 going to run tires to fat to clear my open / released brake pads.
26in x 2.3in on an old 90s Rockhopper with Shimano LX or XT v-brakes.
My 2 inch tires don稚 clear inflated now- or not we値l, so things will get worse. I知 heading out for a bike camping trip in a forest with lots of sandy dirt roads, I知 hoping to float over some stuff that would otherwise be hiked.

What I cannot get the almighty google to tell me is it safe to run short (like old stubby canti pads) with linear pull.
i am guessing the linear pull pads are so long so as to distribute the load, improves toe in, and reduce squeeling and jutter.

can a pro mechanic confirm for me?
I would like to install shorter pads clear the frame, that allow the lever arms to open wider.
Eventually I might switch back to cantis. Maybe.

Last thing I want to do is get a face plant or worse in the woods 250 miles from home.

Thanks.
mrv is offline
Old 07-16-20, 04:44 PM
  #2
zacster
Senior Member

Join Date: Jul 2004
Location: Brooklyn NY
Posts: 6,956
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 210 Times in 168 Posts
Longer = more surface area. That should have nothing to do with how wide the brakes open to let your wheel in. I installed a pair of very long KoolStop salmon pads onto an old road bike to increase the surface area on the steel rim, which is notoriously bad for braking, just today. They work better but nothing near as well as the brakes I installed on another bike, levers, calipers, cables and cross levers too.
zacster is offline
Old 07-16-20, 06:12 PM
  #3
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,284 Times in 801 Posts
Kool Stop brake pads... I use this one on my linear pull brake on my 349 rim wheels ..

It takes the Dura Ace pad insert ... Kool Stop International - High Performance Bicycle Brake Pads Since 1977
They make a longer thinner pad too.. like this Kool Stop International - High Performance Bicycle Brake Pads Since 1977
fietsbob is offline
Old 07-16-20, 07:20 PM
  #4
mrv
BIKE RIDE
Thread Starter

Join Date: Jun 2014
Location: Michigan
Posts: 1,006

Bikes: my very own customized GUNNAR CrossHairs

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 217 Post(s)
Liked 30 Times in 23 Posts
Originally Posted by zacster View Post
Longer = more surface area. That should have nothing to do with how wide the brakes open to let your wheel in.
the brake pads hit the frame. Then open no further.

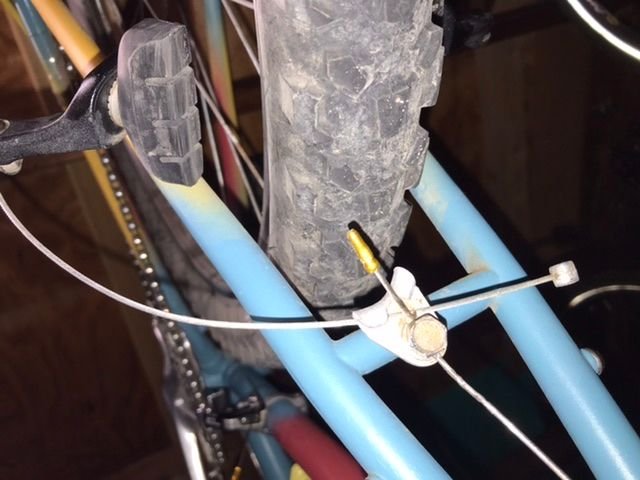

My cantis on another bike clear the frame. So open wide. Like saying ahhhhhhh.

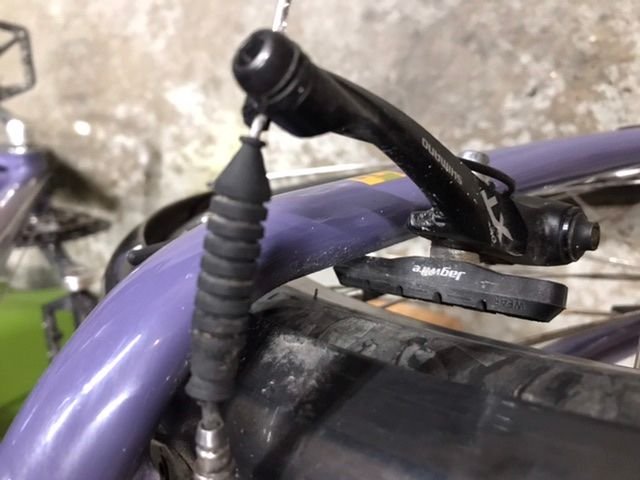

Long pad hits frame. Gotta deflate tire to assemble currently my touring that will clear 2.3 in tires

Swings wide & says ahhhhhhhh - currently my trail bike with chainstays that limit to 2 in tires.
mrv is offline
Old 07-16-20, 07:24 PM
  #5
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,829

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1305 Post(s)
Liked 714 Times in 491 Posts
You'll be fine unless you plan on 40 mph stops
dedhed is offline
Likes For dedhed:
Old 07-16-20, 07:41 PM
  #6
mrv
BIKE RIDE
Thread Starter

Join Date: Jun 2014
Location: Michigan
Posts: 1,006

Bikes: my very own customized GUNNAR CrossHairs

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 217 Post(s)
Liked 30 Times in 23 Posts
Originally Posted by dedhed View Post
You'll be fine unless you plan on 40 mph stops
ha! I wish!!
mrv is offline
Old 07-16-20, 07:50 PM
  #7
Trevtassie
Senior Member

Join Date: Jun 2015
Location: Down Under
Posts: 1,698

Bikes: A steel framed 26" off road tourer from a manufacturer who thinks they are cool. Giant Anthem. Trek 720 Multiroad pub bike. 10 kids bikes all under 20". Assorted waifs and unfinished projects.

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 567 Post(s)
Liked 359 Times in 192 Posts
Would you have enough clearance if you got pad holders and took the pads out? Pad holders are metal so a bit lower profile than all rubber anyway. I think canti pads will have the same problem as the mount is very close to the frame. The mount on old school Shimano cantisnis further out, so they clear.
BTW, those pads with bolts you have on that other bike are almost unobtainium, if you see any new ones buy them because any other pad is a cludge to fit. Canti pads look a little different now. More like a shorter version of MTB pads with a stud and nut rather than a bolt.
Trevtassie is offline
Likes For Trevtassie:
Old 07-17-20, 09:55 AM
  #8
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,284 Times in 801 Posts
The Cross pad is shorter so the tail does not go inside the fork blades..
fresh pads can work better than old dried out ones even if the new one is shorter..

KS City

fietsbob is offline
Likes For fietsbob:
Old 07-17-20, 12:32 PM
  #9
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,829

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1305 Post(s)
Liked 714 Times in 491 Posts
You could always just carry the wrench, loosen the pads, rotate out of the way, and reset when you put the wheel back
dedhed is offline
Old 07-17-20, 12:47 PM
  #10
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,284 Times in 801 Posts
If it's a flat tire. that solves that , or let the air out,

re inflate it once it's back in the frame. brake pads can stay as is,,
fietsbob is offline
Likes For fietsbob:
Old 07-17-20, 05:18 PM
  #11
mrv
BIKE RIDE
Thread Starter

Join Date: Jun 2014
Location: Michigan
Posts: 1,006

Bikes: my very own customized GUNNAR CrossHairs

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 217 Post(s)
Liked 30 Times in 23 Posts
Originally Posted by fietsbob View Post
If it's a flat tire. that solves that , or let the air out,

re inflate it once it's back in the frame. brake pads can stay as is,,
that痴 the plan now.
sometimes on the side of the road I forget to install wheel. Then Inflate.
so I have to bleed off air until I can squeeze past the brakes.

I値l check out the Kool Stops.
Thanks!
mrv is offline
Old 07-17-20, 05:24 PM
  #12
tyrion
Senior Member

tyrion's Avatar

Join Date: Oct 2015
Location: San Diego, California
Posts: 3,010

Bikes: Breezer Radar

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1619 Post(s)
Liked 722 Times in 352 Posts
Originally Posted by zacster View Post
Longer = more surface area. That should have nothing to do with how wide the brakes open to let your wheel in. I installed a pair of very long KoolStop salmon pads onto an old road bike to increase the surface area on the steel rim, which is notoriously bad for braking, just today. They work better but nothing near as well as the brakes I installed on another bike, levers, calipers, cables and cross levers too.
Those long brake pads can hit the fork blades when the brakes are opened, limiting how far you can open them.
