Shimano Front Derailleur Screwdriver ?

Old 07-17-20, 10:18 PM
  #1
frogman
frogman
Thread Starter

frogman's Avatar

Join Date: Sep 2006
Location: Napa Valley, CA
Posts: 407

Bikes: Trek 520, Trek Madone, Rivendell Romulus, Salsa titanium, Habanero Titanium Diamond Back Mtn bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 124 Post(s)
Liked 49 Times in 30 Posts
Shimano Front Derailleur Screwdriver ?

Does Park make a special screwdriver for adjusting Shimano front derailleur screws ? I have tried phillips and have ended up using a small flat blade screwdriver. Not very good but it works. It looks like a small flat screwdriver with a round pointed center would be the thing needed.
frogman is offline
Old 07-17-20, 10:50 PM
  #2
mr_scary
Junior Member

Join Date: Jul 2020
Posts: 21
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
I use a number 2 phillips head, it helps to back off some cable tension before adjusting the limiter
mr_scary is offline
Old 07-17-20, 11:00 PM
  #3
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 1,716
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 287 Post(s)
Liked 93 Times in 76 Posts
You need a JIS screwdriver. https://www.vesseltools.com/handtool...trial-standard Various mfrs and levels of quality available. Much harder to strip out "JIS-Philips" heads with these. Works on all Asian screws.
Crankycrank is offline
Likes For Crankycrank:
Old 07-17-20, 11:36 PM
  #4
frogman
frogman
Thread Starter

frogman's Avatar

Join Date: Sep 2006
Location: Napa Valley, CA
Posts: 407

Bikes: Trek 520, Trek Madone, Rivendell Romulus, Salsa titanium, Habanero Titanium Diamond Back Mtn bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 124 Post(s)
Liked 49 Times in 30 Posts
A JIS phillips. Makes sense for a Japanese derailleur
I have a set of JIS screwdrivers. Hadn't thought of using them. I use them for removing the cabinet screws on Yaesu ham radio cabinets so I don't round out the screw heads.
frogman is offline
Old 07-18-20, 03:06 AM
  #5
tomtomtom123
Senior Member

Join Date: Jan 2017
Posts: 964
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 316 Post(s)
Likes: 0
Liked 100 Times in 71 Posts
Would it help if you replaced the screws with DIN 912 or 913 with hex socket, like what SRAM uses?
tomtomtom123 is offline
Old 07-18-20, 04:23 AM
  #6
onyerleft
Senior Member

onyerleft's Avatar

Join Date: Jan 2018
Posts: 487

Bikes: Pedaling for the Lord!

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 300 Post(s)
Likes: 0
Liked 39 Times in 26 Posts
I believe that Park offers something like that -- why don't you check Park's webite and find out for yourself instead of asking strangers on the internet? PRO TIP: I've never tried this but many have said you can just grind down the tip of an ordinary Phillips, and it works well enough.
onyerleft is offline
Old 07-18-20, 05:26 AM
  #7
shelbyfv
Banned.

Join Date: Jun 2007
Posts: 7,172
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1810 Post(s)
Liked 1,182 Times in 672 Posts
Originally Posted by frogman View Post
I have a set of JIS screwdrivers.
Sounds as if you are good to go
shelbyfv is offline
Old 07-18-20, 05:27 AM
  #8
blakcloud
Senior Member

blakcloud's Avatar

Join Date: Aug 2007
Location: Toronto, Ontario
Posts: 2,265

Bikes: Custom Winter Cycles flat bar road bike, Trek Domane SL6, Rivendell Sam Hillborne, Brompton S/M3L (modified)

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 458 Post(s)
Liked 158 Times in 112 Posts
Originally Posted by onyerleft View Post
I believe that Park offers something like that -- why don't you check Park's webite and find out for yourself instead of asking strangers on the internet? PRO TIP: I've never tried this but many have said you can just grind down the tip of an ordinary Phillips, and it works well enough.
Maybe you forgot what the purpose of a bicycle forum is especially in the Bicycle Mechanics sub forum. To add insult to injury, you (the stranger) give advice on grinding down a screwdriver. You answered the question from the OP that you specifically told them not ask. This is mind boggling.

Back to regular programing.

JIS screwdrivers are the proper tool as reported above by the nice strangers. Though the Park Tool one is expensive.
blakcloud is online now
Likes For blakcloud:
Old 07-18-20, 05:41 AM
  #9
Bike Gremlin
Bike Gremlin

Bike Gremlin's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 4,107

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 958 Post(s)
Liked 18 Times in 15 Posts
Originally Posted by onyerleft View Post
PRO TIP: I've never tried this but many have said you can just grind down the tip of an ordinary Phillips, and it works well enough.
Hmm, close-ish, but not as good as JIS. At least with the ones I tried with.
Bike Gremlin is offline
Old 07-18-20, 06:01 AM
  #10
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,563

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1155 Post(s)
Liked 541 Times in 392 Posts
It also helps if you relieve the spring pressure on the screw by pushing/pulling the derailleur by hand while making the adjustment, instead of trying to use the screw to drive against the force of the spring. But the correct JIS screwdriver or or swapping the screws for socket head is the best in any case.
dsbrantjr is offline
Old 07-18-20, 08:01 AM
  #11
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 22,964

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 113 Post(s)
Tagged: 1 Thread(s)
Quoted: 3502 Post(s)
Liked 969 Times in 602 Posts
Originally Posted by blakcloud View Post

JIS screwdrivers are the proper tool as reported above by the nice strangers. Though the Park Tool one is expensive.
Yes, the Park JIS screw driver is expensive. But you can get JIS bits for magnetic screw drivers. I just recently went that direction and have to say the screwdriver works much better.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 07-18-20, 08:11 AM
  #12
frogman
frogman
Thread Starter

frogman's Avatar

Join Date: Sep 2006
Location: Napa Valley, CA
Posts: 407

Bikes: Trek 520, Trek Madone, Rivendell Romulus, Salsa titanium, Habanero Titanium Diamond Back Mtn bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 124 Post(s)
Liked 49 Times in 30 Posts
I tried using a JIS phillips screwdriver as suggested and it works perfectly. Thanks for all the reposnses every one.
frogman is offline
Old 07-18-20, 09:41 AM
  #13
HeHateMe2976
Junior Member

Join Date: Jul 2020
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked 0 Times in 0 Posts
Great information here. Never heard of this before.
HeHateMe2976 is offline
Old 07-18-20, 10:43 AM
  #14
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,563

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1155 Post(s)
Liked 541 Times in 392 Posts

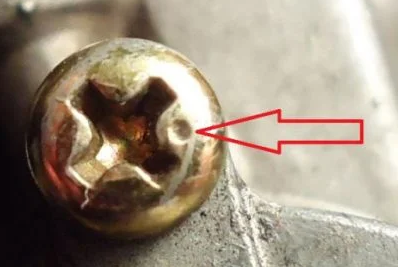

Not so much on derailleur screws, but on electronics items and many others, JIS screws can be recognized by a dot or dimple on the head next to the drive recess.

dsbrantjr is offline
Likes For dsbrantjr:
Old 07-18-20, 11:26 AM
  #15
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 6,264

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame, Ti 26 MTB

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1526 Post(s)
Liked 349 Times in 253 Posts
The Park Tool DSD-2 is probably the finest screwdriver I have used and I highly recommend it. It is supposed to "exceed JIS standards" I don't know if that is totally true but it certainly is excellent at its job.
veganbikes is offline
Old 09-14-20, 11:19 PM
  #16
Bike Gremlin
Bike Gremlin

Bike Gremlin's Avatar

Join Date: Nov 2010
Location: Novi Sad
Posts: 4,107

Bikes: Custom made on Scott Speedster frame, Custom made on a 1996. steel MTB frame (all but frame changed at least once in the past 20 years).

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 958 Post(s)
Liked 18 Times in 15 Posts
Originally Posted by dsbrantjr View Post
Not so much on derailleur screws, but on electronics items and many others, JIS screws can be recognized by a dot or dimple on the head next to the drive recess.

I made a short video demonstration, comparing three different brand Phillips screwdrivers on a Shimano RD limit screw, including one with a tip ground down a bit - which seems to help a little (at the end I talked a bit about Pozidriv as well, but that's not relevant for this topic):
