Indication of rim failure?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Indication of rim failure?

Old 07-18-20, 01:02 PM
  #1
IPassGas
Senior Member
Thread Starter

Join Date: Feb 2015
Location: Pittsburgh, PA
Posts: 120

Bikes: Schwinn, Nishiki, Santana, Trek, Rodriguez

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Likes: 0
Liked 15 Times in 11 Posts
Indication of rim failure?

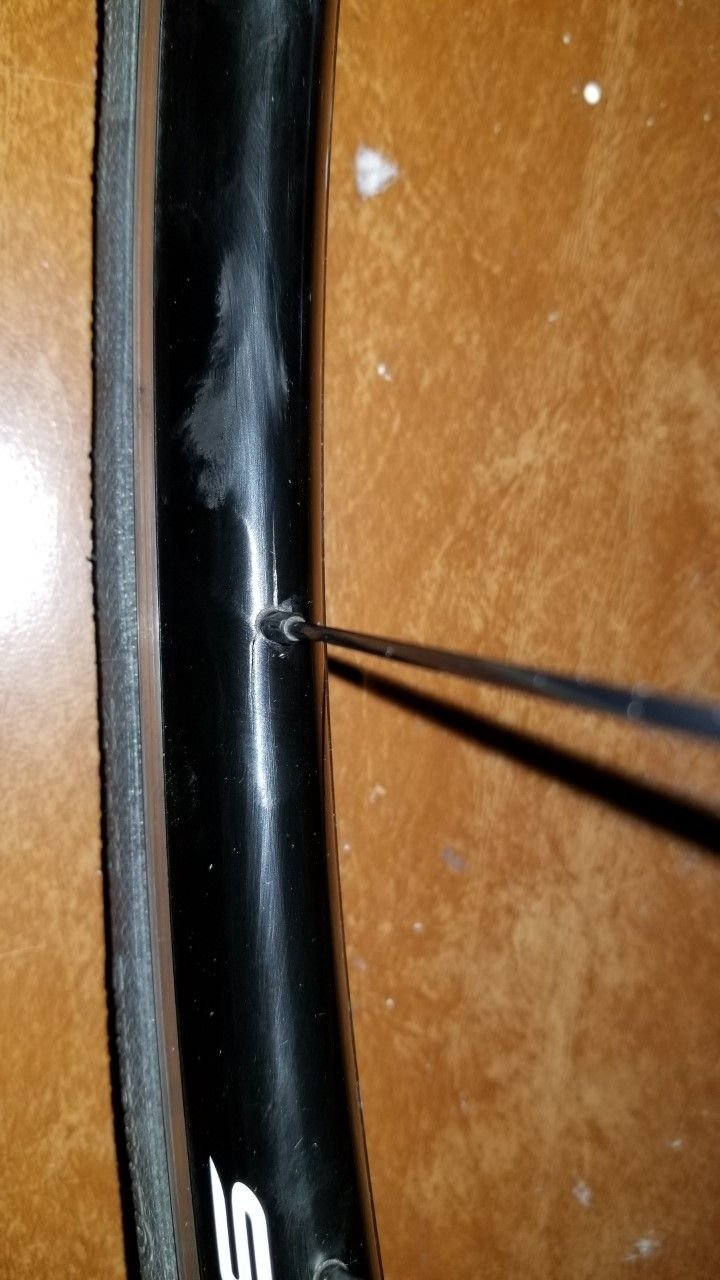

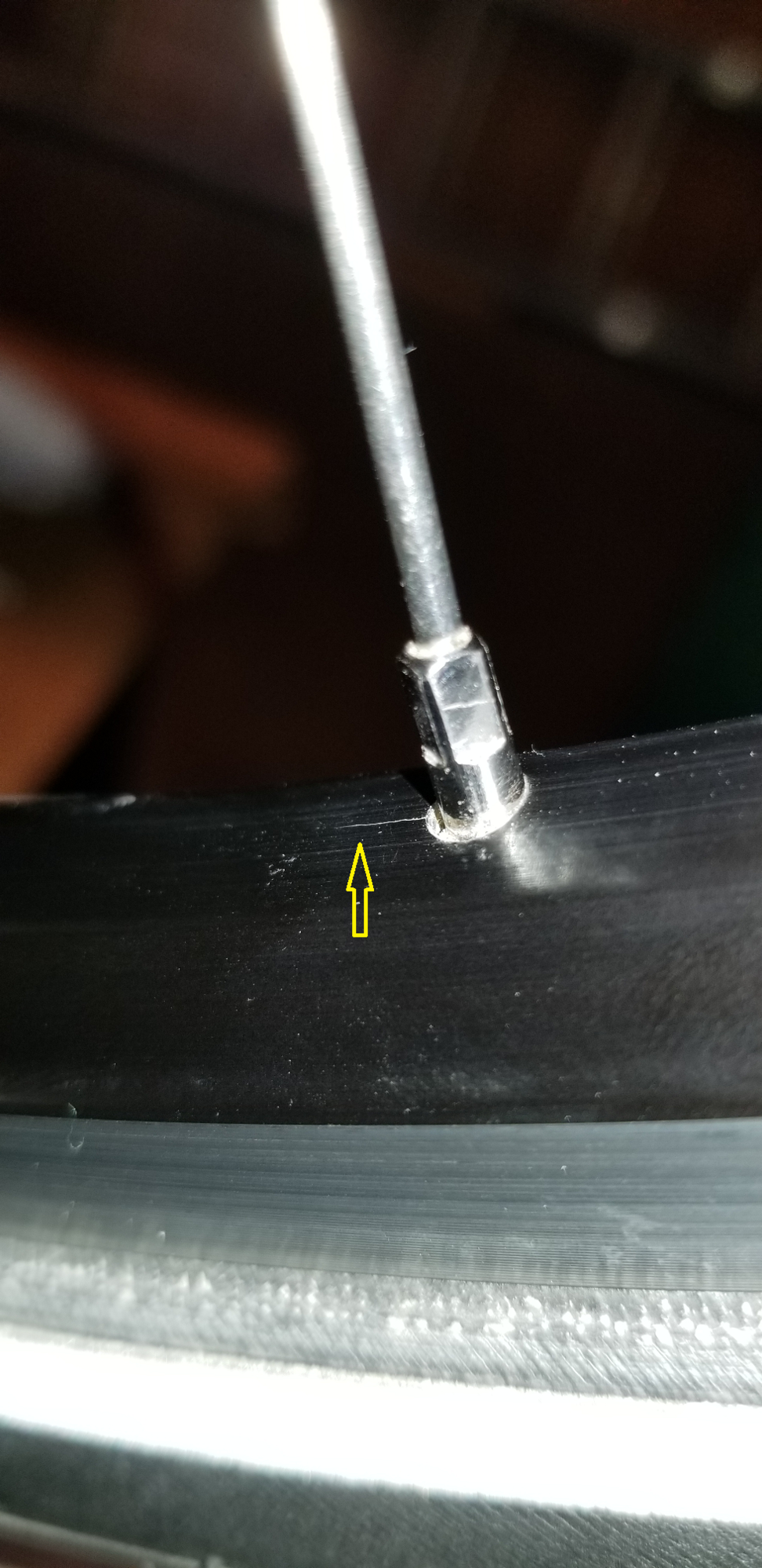

Is the line from the spoke hole (at yellow arrow) an indication that the the rim cannot sustain the spoke tension and is damaged?

IPassGas is offline
Old 07-18-20, 01:24 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,764

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2495 Post(s)
Liked 561 Times in 433 Posts
Sure looks to be the start of a crack to me. Rims crack not just from spoke tension alone but can also be weakened by corrosion. Is that white stuff I see dirt, wax or corrosion? Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 07-18-20, 01:44 PM
  #3
cpach
Senior Member

Join Date: Oct 2009
Location: Mt Shasta, CA, USA
Posts: 1,751

Bikes: Too many. Cannondale SuperSix, Trek Remedy 8, Trek Crossrip+ get the most ride time.

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 388 Post(s)
Liked 152 Times in 123 Posts
Rim is dead and requires replacement.
cpach is offline
Old 07-18-20, 02:37 PM
  #4
IPassGas
Senior Member
Thread Starter

Join Date: Feb 2015
Location: Pittsburgh, PA
Posts: 120

Bikes: Schwinn, Nishiki, Santana, Trek, Rodriguez

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Likes: 0
Liked 15 Times in 11 Posts
Originally Posted by Andrew R Stewart View Post
Sure looks to be the start of a crack to me. Rims crack not just from spoke tension alone but can also be weakened by corrosion. Is that white stuff I see dirt, wax or corrosion? Andy
It is dirt/dust, the rim is ~1 yr old. I found 2 such lines in the rim. It appears to be more visible (hard to tell) when I increase tension with hands on spokes. Thanks...new rim time.
IPassGas is offline
Old 07-18-20, 04:06 PM
  #5
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Posts: 8,954

Bikes: Klein, Merckx, Trek

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 2543 Post(s)
Liked 404 Times in 238 Posts
Originally Posted by IPassGas View Post
It is dirt/dust, the rim is ~1 yr old. I found 2 such lines in the rim. It appears to be more visible (hard to tell) when I increase tension with hands on spokes. Thanks...new rim time.
Yeaah, that's a crack. Sometimes that happens when the rim gets tweaked laterally from an impact and then you try to untweak it with spoke tension, otherwise a one year old rim shouldn't see this problem.
DiabloScott is offline
Old 07-18-20, 04:12 PM
  #6
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,797

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1297 Post(s)
Liked 703 Times in 484 Posts
1 year old I'd check if you had any warranty recourse depending on how you acquired the bike/rims
dedhed is offline
Old 07-18-20, 10:14 PM
  #7
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 11,627

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 184 Post(s)
Tagged: 0 Thread(s)
Quoted: 3690 Post(s)
Liked 1,271 Times in 835 Posts
Yup, I ignored that on a couple of 1980s hard anodized rims. Both cracked the past week. Fortunately not a catastrophic failure -- I noticed a ticking/clicking sound with every wheel rotation, and when I looked down I could see a new slight wheel wobble. That was a late 1980s Wolber Super Champion Alpine rim, rear wheel. Sure nuff, when I got home and checked my nearly identical Araya CTL-370 "SuperHard" rim, same thing.

Good while they lasted. I already knew that style rim was considered a bit fragile. I got more than 8,000 miles out of the Araya and 3,000 from the Wolber. No idea how much they were used before I bought them.

Might have been some operator error as well. Whenever a wheel developed a slight wobble I trued it just by tightening spokes. Never bothered to use a spoke tension gauge, and I'm too tone deaf to use the plucking trick. I'd just squeeze the spoke pairs to roughly guesstimate tension. Or maybe those rims were going to fail after 30 years regardless. Who knows. Just an odd coincidence that both failed the same week.
canklecat is offline
Old 07-19-20, 09:17 AM
  #8
IPassGas
Senior Member
Thread Starter

Join Date: Feb 2015
Location: Pittsburgh, PA
Posts: 120

Bikes: Schwinn, Nishiki, Santana, Trek, Rodriguez

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Likes: 0
Liked 15 Times in 11 Posts
Originally Posted by dedhed View Post
1 year old I'd check if you had any warranty recourse depending on how you acquired the bike/rims
The wheel was built by the bike maker. This is the 3rd wheel failure in 2 years. They have previously said they would take care of me, but I cannot trust them any longer. I should have walked away earlier. Time to move on.
IPassGas is offline
Old 07-19-20, 10:36 AM
  #9
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,277 Times in 798 Posts
Might get better durability with a heavier rim.. double wall ferruled spoke holes.. Hub & rim with more spokes.. not fewer..









...
fietsbob is offline
Old 07-19-20, 10:52 AM
  #10
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 1,707
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 283 Post(s)
Liked 91 Times in 75 Posts
What make, model and spoke number is the rim? Might give us a clue as to whether this is normally a crack prone rim.
Crankycrank is offline
Old 07-19-20, 11:48 AM
  #11
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,797

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1297 Post(s)
Liked 703 Times in 484 Posts
Originally Posted by IPassGas View Post
The wheel was built by the bike maker. This is the 3rd wheel failure in 2 years. They have previously said they would take care of me, but I cannot trust them any longer. I should have walked away earlier. Time to move on.
I would talk to the shop you're dealing with. Maybe propose warranty from mfg on this wheel, LBS keep replacement wheel having $X value, credit you that $X toward a wheel build you can trust.
dedhed is offline
Old 07-20-20, 10:50 AM
  #12
jaws7
Junior Member

Join Date: Jun 2017
Location: Pennsylvania
Posts: 16
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Replace the rim

My rear rim looked just like that about 500 miles ago. Last week it looked like this.

Your crack will only get worse.
jaws7 is offline
Old 07-20-20, 12:01 PM
  #13
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,275
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 439 Post(s)
Likes: 0
Liked 65 Times in 59 Posts
Heavy anodizing is a brittle fracture waiting to happen.
davidad is offline
Old 07-20-20, 12:37 PM
  #14
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,250

Bikes: Schwinn Varsity

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1576 Post(s)
Liked 293 Times in 186 Posts
I don't think wheels are made by the bike manufacture... could be they buy ready made, machine made wheels in bulk.
I have purchased machine made wheels at good prices, but the tension is all over the place, some spokes really high and some really low on the same side.
I always slack all the spokes, and redo the wheels. They last longer this way.
trailangel is offline
Old 07-21-20, 06:27 AM
  #15
IPassGas
Senior Member
Thread Starter

Join Date: Feb 2015
Location: Pittsburgh, PA
Posts: 120

Bikes: Schwinn, Nishiki, Santana, Trek, Rodriguez

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Likes: 0
Liked 15 Times in 11 Posts
Originally Posted by trailangel View Post
I don't think wheels are made by the bike manufacture... could be they buy ready made, machine made wheels in bulk.
I have purchased machine made wheels at good prices, but the tension is all over the place, some spokes really high and some really low on the same side.
I always slack all the spokes, and redo the wheels. They last longer this way.
They are likely to be made by bike builder on a custom bike as ours were. They have consistently chosen to use inferior rims which they claim have worked for them on 100/1000's of bikes, even after my concerns were explicitly stated. Sometimes long time bike experts just get things wrong and are slow to change.
IPassGas is offline
Old 07-21-20, 07:05 AM
  #16
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,250

Bikes: Schwinn Varsity

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1576 Post(s)
Liked 293 Times in 186 Posts
I don't buy into "consistently chosen to use inferior rims"..... it's the builder that is inferior.
trailangel is offline
Likes For trailangel:
Old 07-21-20, 07:37 AM
  #17
IPassGas
Senior Member
Thread Starter

Join Date: Feb 2015
Location: Pittsburgh, PA
Posts: 120

Bikes: Schwinn, Nishiki, Santana, Trek, Rodriguez

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Likes: 0
Liked 15 Times in 11 Posts
Originally Posted by trailangel View Post
I don't buy into "consistently chosen to use inferior rims"..... it's the builder that is inferior.
The wheel builder of the company has built 1000's of wheels. They have been, unfortunately, slow to accept that their rims of choice, which they are very familiar with, are simply not sufficient for the needs of the bike. It took 3 failed wheels to convince me, and I have deferred to their much greater experience in the past, but no longer. These little forum blurbs cannot capture the context of interactions over 2 years. The shop is otherwise outstanding at most other things, but needless to say, wheels are really important.
IPassGas is offline
Old 07-21-20, 07:43 AM
  #18
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,250

Bikes: Schwinn Varsity

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1576 Post(s)
Liked 293 Times in 186 Posts
One day, maybe you will tell us what rim this is and what custom bike you have.
trailangel is offline
