Velo Orange fenders: can't get 'em to fit!

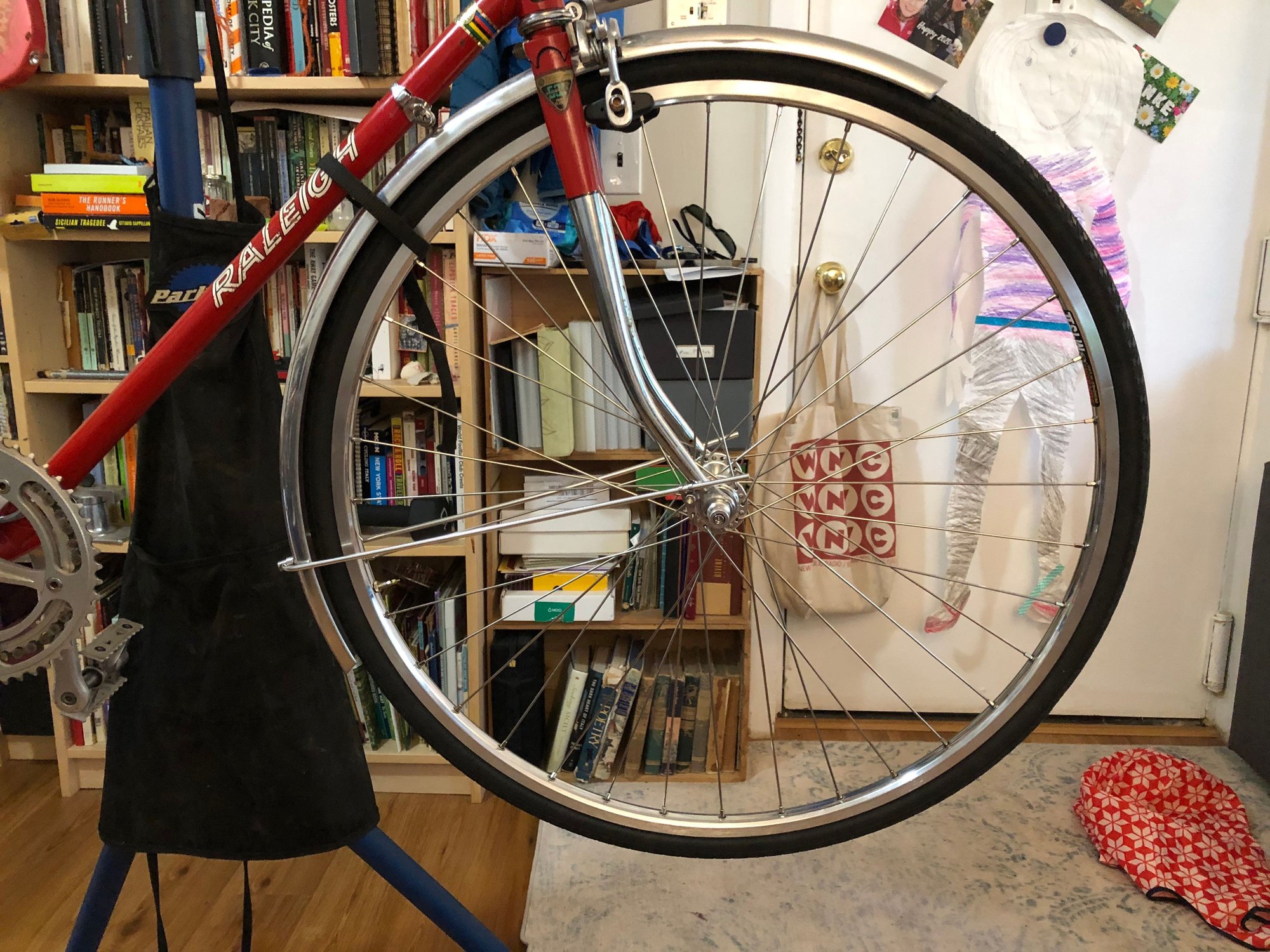

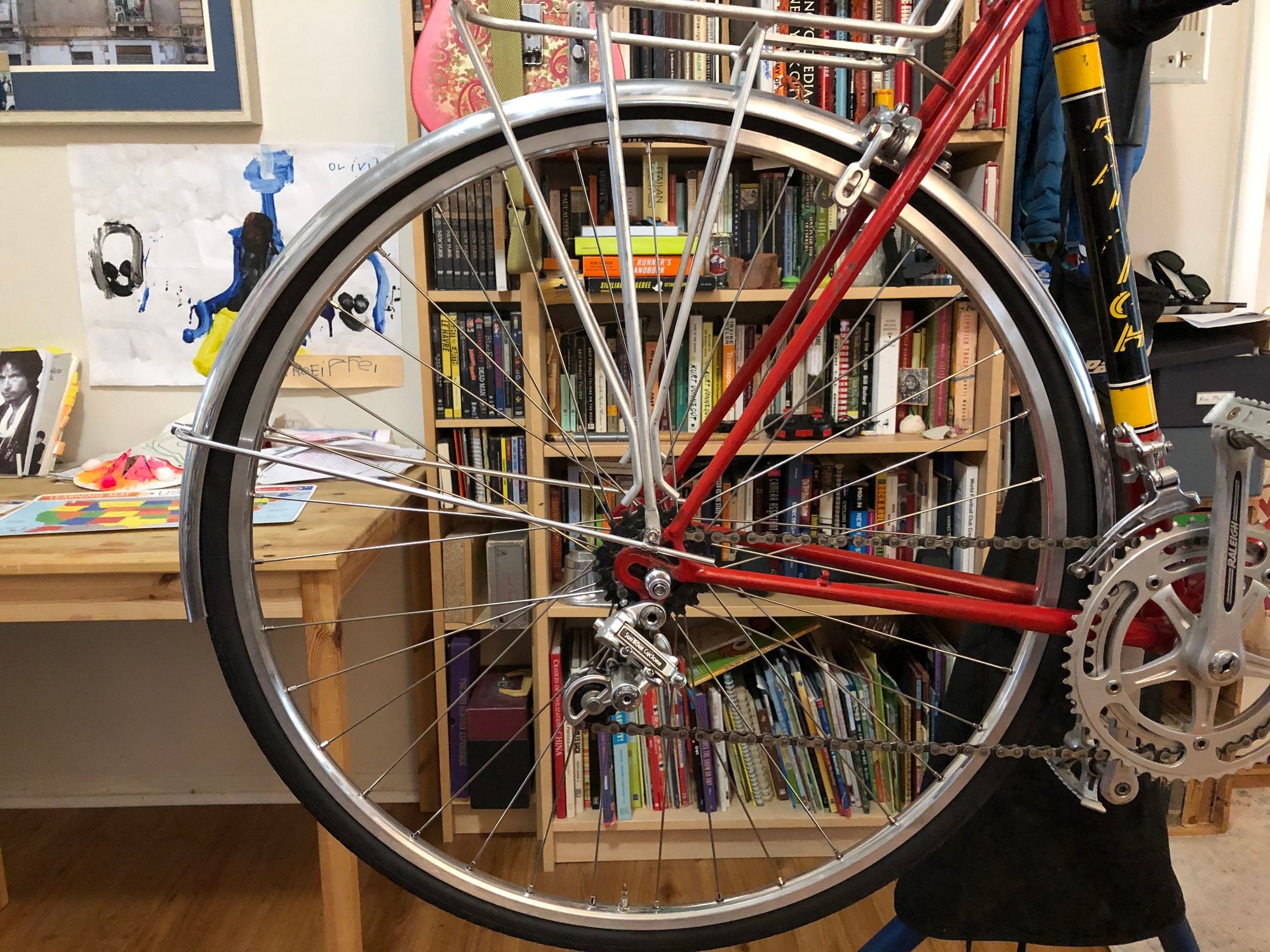

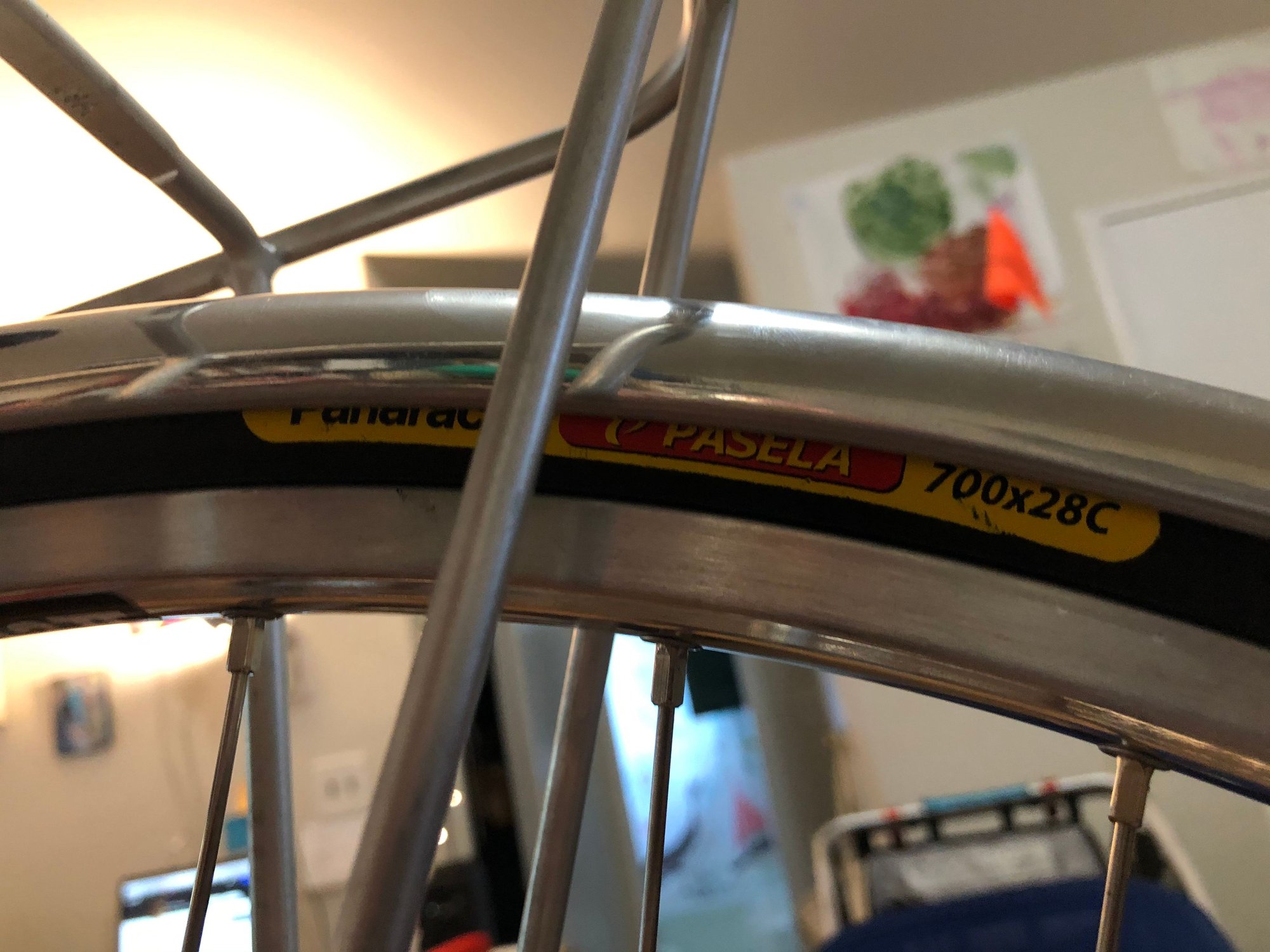

Been struggling all day to try and make these VO fenders work with this late 70s Raleigh Record that I found in the trash. I assumed there would easily be enough clearance for fenders, but apparently not. I'm running 28mm Panaracer Paselas on 700c rims and the fenders are VO polished alloy 36mm 700c. The front fender clears the wheel, though not by a lot, but it's the rear wheel that has been driving me crazy. No matter what I do I can't seem to get the fender high enough to clear the tire and the brake bridge seems to be the reason. It's a 53cm frame, not some unusually large or small size frame. As you can see in the pictures, I used the included L bracket at the top of the fender to attach it to the brake bolt, and it's as high as it can go. With the wheel installed, it won't spin, and just rubs the underside of the fender. Clearance at the chainstay bridge isn't an issue, nor is it at the back of the fender, where the fender stays attach. Is it possible that this frame just cannot accept these fenders or am I doing something wrong? I have installed many SKS Chromoplasts in my day, but only one other metal fender, a Honjo, and it too was on an old Raleigh Record, albeit a much earlier one than this. Appreciate any insight.










thehugoball is offline
Old 07-19-20, 07:14 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,768

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2495 Post(s)
Liked 565 Times in 436 Posts
Not every bike we ride will fit the tires and fenders we wish for. The amount of clearance between the top of the rear fender and the underside of the brake bridge is pretty small so w=even if you loose the leather(?) spacer under the L bracket the fender will still be real close to the tire. You could then file the L bracket's slot a bit longer rill the fender contacts the bridge undersides (or the caliper's) and that will be all the gain of tire clearance you will ever see. Unless you split the fender into two parts, one that mounts behind the caliper and the other from the caliper to the chainstay bridge. One issue with metal fenders is that when they get real close to the calipers/bridges they can rattle over road bumps. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 07-19-20, 07:31 PM
  #3
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,897

Bikes: old ones

Mentioned: 259 Post(s)
Tagged: 0 Thread(s)
Quoted: 18579 Post(s)
Liked 2,122 Times in 1,558 Posts
.
^^^what Andy said. It looks like the problem is that you want to use that L bracket according to the instructions and unmodified. Fender mounting is all about intuitive use of what you have to accomplish the goal.


If it were me looking at those pictures, I think I might abandon that L bracket altogether, and make up something different out of a more flexible metal like plumbers tape. You could easily form up some of that pre-drilled metal strapping, and tie the fender directly to the brake bridge. Pad with old innertube rubber or something else to silence any rattles. If you do decide to keep the L bracket and just file the slot longer, you might need to shorten the brake bolt end because of interference with that nut. Might be easier to drill the fender and pop rivet that bracket onto the fender, thus eliminating the interfering nut.
3alarmer is offline
Old 07-19-20, 08:01 PM
  #4
thehugoball
Senior Member
Thread Starter

thehugoball's Avatar

Join Date: Sep 2004
Location: Montclair, NJ
Posts: 113

Bikes: Fabiani Professional, Trek 700 Tri-Series, Nishiki Riviera GT, Nishiki Olympic 12, Trek 850, Panasonic DX-2000, Raleigh Record, Peugeot OU-8

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 1 Time in 1 Post
Originally Posted by 3alarmer View Post
.
Might be easier to drill the fender and pop rivet that bracket onto the fender, thus eliminating the interfering nut.
That's a pretty good idea, thanks!
thehugoball is offline
Old 07-19-20, 08:50 PM
  #5
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 3,938
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 971 Post(s)
Liked 318 Times in 211 Posts
I would use a bridge clip instead of the L bracket

​​​​​​https://www.sjscycles.co.uk/mudguard...d-bridge-each/
alcjphil is offline
Old 07-20-20, 04:45 AM
  #6
Pop N Wood
Senior Member

Join Date: Jun 2020
Location: Maryland
Posts: 467

Bikes: 1982 Bianchi Sport SX, Rayleigh Tamland 1, Rans V-Rex recumbent, Fuji MTB, 80's Cannondale MTB with BBSHD ebike motor, 70's vintage Schwinn Continental and Suburban

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 218 Post(s)
Liked 159 Times in 108 Posts
Looks like you have plenty of room. Modify that L bracket and the fenders will fit no problem.
Pop N Wood is offline
Old 07-20-20, 06:41 AM
  #7
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,712

Bikes: Several, mostly not name brands.

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 2241 Post(s)
Liked 635 Times in 427 Posts


Looks like you could get a couple more millimeters of clearance if you ditched the L-bracket and secured the mudguard directly to the brake bridge. Drill a small hole in the underside of the bridge, and a matching hole in the mudguard where the mudguard would meet the bridge, and use a sheet metal screw to anchor the mudguard.

Either that, or use a lower profile tire.
JohnDThompson is offline
Old 07-20-20, 07:08 AM
  #8
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,768

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2495 Post(s)
Liked 565 Times in 436 Posts
Unrelated to the fender's position is the common Raleigh brake bridge issue of it's reinforcing sleeve sticks out past the bridge OD on the back side. Note the gap between the curved brake washer and the bridge, you can see light there. I always felt this was one sign of less then ideal construction. Sure the sleeve helps reduce the bridge from being crushed but with it's end being proud of the tube the brake tends to not fit as well as it could. I've seen many of these sleeves not well brazed in place and thus rattle/move about. If one tries to file down the sleeve's end to better allow the curved washer to seat against the tube make sure the sleeve is well brazed. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 07-20-20, 04:45 PM
  #9
Wanderer
aka Phil Jungels

Wanderer's Avatar

Join Date: Apr 2005
Location: North Aurora, IL
Posts: 8,149

Bikes: 08 Specialized Crosstrail Sport, 05 Sirrus Comp

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked 47 Times in 37 Posts
I would drill a hole the same size as the slot, as low as I could and stay on the flat. Then, take a round file, and open that slot to the hole. Shorten the bolt, and bolt it up as high as it will go. Done, and solved,
