Can't get pedals off! Help!

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Can't get pedals off! Help!

Old 07-24-20, 05:44 PM
  #1
Toller
Newbie
Thread Starter

Join Date: Jul 2020
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Can't get pedals off! Help!

I bought a used Specialized Allez Elite. The pedals on it are for bike shoes, and I want plain pedals. I don't have a wrench thin enough to get in, so have been using a Allen's wrench. They won't budge. I tried penetrating oil; didn't help. I tried an hex drive with both an impact driver and a socket wrench. Won't budge.

The only things I can think of now are to buy a pedal wrench or take it to a bike shop. Are either of those going to work any better than my Allen's wrench?
Any other suggestions?

My father says he can take the bike shoe pedal apart and attach a flat piece of plastic impregnated plywood to it to work like a plain pedal; but even if that worked, it would look like garbage.

Thanks.
Toller is offline
Old 07-24-20, 06:17 PM
  #2
Papa Tom
Senior Member

Papa Tom's Avatar

Join Date: Aug 2008
Location: Long Island, New York
Posts: 4,159

Bikes: The same GT Outpost Mountain bike I've been riding since 1996, although I modify it throughout the year for commuting, touring, and recreational riding.

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 712 Post(s)
Liked 129 Times in 73 Posts
I'm not sure where or how you are applying an Allen wrench to this job, but you need either a pedal wrench or (most likely) a 15mm flat wrench.

VERY IMPORTANT: Turn both pedals to the REAR to REMOVE and to the FRONT to FASTEN!
Papa Tom is offline
Likes For Papa Tom:
Old 07-24-20, 06:23 PM
  #3
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,570

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1158 Post(s)
Liked 550 Times in 396 Posts
Are you turning them the right direction? Keep in mind that when working from the crank side of the pedal, the sense of the thread is reversed. You turn the right pedal clockwise to loosen when using the hex (Allen® is a trademark) drive, left pedal counterclockwise, the opposite of what you would do with a wrench on the flats..
dsbrantjr is offline
Old 07-24-20, 07:22 PM
  #4
Koyote
Senior Member

Join Date: Sep 2017
Posts: 1,983
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1084 Post(s)
Liked 1,120 Times in 537 Posts
Originally Posted by Papa Tom View Post
I'm not sure where or how you are applying an Allen wrench to this job, but you need either a pedal wrench or (most likely) a 15mm flat wrench.

VERY IMPORTANT: Turn both pedals to the REAR to REMOVE and to the FRONT to FASTEN!
Originally Posted by dsbrantjr View Post
Are you turning them the right direction? Keep in mind that when working from the crank side of the pedal, the sense of the thread is reversed. You turn the right pedal clockwise to loosen when using the hex (Allen® is a trademark) drive, left pedal counterclockwise, the opposite of what you would do with a wrench on the flats..
These two posts are crucial. Make sure you are applying force in the correct direction.

If that still doesn't work, just take the bike into a shop. A mechanic will likely have a longer wrench (for more leverage) and will know a trick or two if the pedals still won't budge.
Koyote is offline
Old 07-24-20, 08:00 PM
  #5
Toller
Newbie
Thread Starter

Join Date: Jul 2020
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I was confused at first. It was obvious which way a pedal wrench would turn, but I foolishly thought a hex wrench would turn like a wrench on a nut would turn. Looking at the new pedal I realized that was wrong.
I will try a bike store tomorrow.
Toller is offline
Old 07-24-20, 08:19 PM
  #6
gear64
Senior Member

gear64's Avatar

Join Date: Apr 2014
Location: STL Missouri
Posts: 424

Bikes: Univega Gran Premio, Lotus Classique, Terranaut Metro

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Liked 64 Times in 41 Posts
Originally Posted by Papa Tom View Post
I'm not sure where or how you are applying an Allen wrench to this job, but you need either a pedal wrench or (most likely) a 15mm flat wrench.

VERY IMPORTANT: Turn both pedals to the REAR to REMOVE and to the FRONT to FASTEN!
I've got bikes with hex opening on the bolt end, but seems it would be really tough. I can't recall if I've ever done it not.
gear64 is offline
Old 07-24-20, 08:38 PM
  #7
well biked
biked well

well biked's Avatar

Join Date: Jul 2005
Posts: 7,327
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Liked 28 Times in 23 Posts
For both right and left pedals: turn the spindle towards the front of the bike to tighten, turn to the rear of the bike to loosen. Doesn't matter if you're working on pedals with 15mm wrench flats or pedals that use Allen wrench engagement on the end of the pedals' spindles, this rule applies.
well biked is offline
Likes For well biked:
Old 07-24-20, 08:45 PM
  #8
well biked
biked well

well biked's Avatar

Join Date: Jul 2005
Posts: 7,327
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Liked 28 Times in 23 Posts
I'll add, when it comes to difficult pedal removal, leverage is often your best friend.
well biked is offline
Likes For well biked:
Old 07-24-20, 09:06 PM
  #9
scott967
Senior Member

Join Date: Oct 2013
Location: Oahu, HI
Posts: 1,227

Bikes: 89 Paramount OS 84 Fuji Touring Series III New! 2013 Focus Izalco Ergoride

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 232 Post(s)
Likes: 0
Liked 23 Times in 19 Posts
I've always used hex wrench on Keos. But often it's easier for me to remove the cranks and put them in a vice then remove the pedals. Need to be sensible about it if crabon cranks of course.

It's true that between remembering you are wrenching on the back side, and the ND side is left-hand thread you need to check and recheck which way you are working the wrench if they don't seem to be unscrewing.

scott s.
.

Last edited by scott967; 07-24-20 at 09:12 PM.
scott967 is offline
Old 07-24-20, 09:17 PM
  #10
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 32,266

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 1443 Post(s)
Likes: 0
Liked 262 Times in 211 Posts
Originally Posted by Papa Tom View Post
I'm not sure where or how you are applying an Allen wrench to this job, but you need either a pedal wrench or (most likely) a 15mm flat wrench.
There are several pedal models that have no open end wrench flats but only a hex wrench socket at the inboard side of the spindle. I have Shimano XT MTB pedals with only 8 mm hex sockets for removal.

Last edited by HillRider; 07-24-20 at 09:26 PM.
HillRider is offline
Likes For HillRider:
Old 07-24-20, 09:23 PM
  #11
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 3,953
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 980 Post(s)
Liked 322 Times in 213 Posts
Originally Posted by scott967 View Post
I've always used hex wrench on Keos.
.
Since Look Keo pedals have no wrench flats, there is no other way to remove or install them
alcjphil is offline
Old 07-25-20, 12:00 AM
  #12
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 11,697

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 184 Post(s)
Tagged: 0 Thread(s)
Quoted: 3714 Post(s)
Liked 1,321 Times in 869 Posts
Last time I had a jammed pedal I stripped it down to the spindle and took the crank arm with the jammed spindle to the LBS. They used their bench vise to remove it.

Now the replacement pedal is jammed. Reckon I'll do the same again. Kinda wondering if the threads were buggered, but I didn't before replacing the pedals a few years ago.

With my other bikes I grease the threads and don't over-tighten the pedals. They hold fine.
canklecat is offline
Old 07-25-20, 05:55 AM
  #13
Pop N Wood
Senior Member

Join Date: Jun 2020
Location: Maryland
Posts: 505

Bikes: 1982 Bianchi Sport SX, Rayleigh Tamland 1, Rans V-Rex recumbent, Fuji MTB, 80's Cannondale MTB with BBSHD ebike motor, 70's vintage Schwinn Continental and Suburban

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 238 Post(s)
Liked 172 Times in 114 Posts
Yeah I have pedals that are allen key only and ones that are flat wrench only.

The way I remember which way to turn is holding the pedal shaft so it doesn't spin and pedaling forward loosens the pedals. Completely counter intuitive, but I guess that is the way precession works.
Pop N Wood is offline
Old 07-25-20, 06:35 AM
  #14
primov8
V8s all day

primov8's Avatar

Join Date: Jun 2008
Location: NY.NY.
Posts: 863
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 17 Times in 12 Posts
Originally Posted by well biked View Post
I'll add, when it comes to difficult pedal removal, leverage is often your best friend.
+1. I've been using Look pedals on my builds ever since I began cycling almost 12 years ago. I always torque them to spec, 40nm but when it comes to removing them, a 3/8 or even a 1/2 breaker bar makes removing them much easier than a pedal wrench.
primov8 is offline
Old 07-25-20, 06:38 AM
  #15
zacster
Senior Member

Join Date: Jul 2004
Location: Brooklyn NY
Posts: 6,950
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 210 Times in 168 Posts
I use a piece of pipe to fit over my 15mm open end wrench to get more leverage and I've never had a problem with that working. For my pedals without flats I use an 8mm bit on a long breaker bar ratchet wrench that I bought at Harbor Freight really cheap. It also always works without problem. The difference may be though that I'm the only one that ever works on my bikes and they are always properly greased. But even when I don't torque them they still seem to get very tight after a ride or two. It's just the nature of it.

And yes, turning them the proper way helps immensely, When looking at the bike directly, not from behind the pedal but from the front, the drive side loosens normally. The non-drive side is reverse threaded and loosens the "wrong" way. When using a hex wrench from the back I still stay on the front side so as to not confuse myself. The way the guys above look at it is also helpful, always loosen towards the rear. But even after 45 years of working on my own bikes I still have to think about it before I start!
zacster is online now
Likes For zacster:
Old 07-25-20, 07:37 AM
  #16
u235
Senior Member

u235's Avatar

Join Date: Mar 2017
Posts: 1,171
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 427 Post(s)
Liked 118 Times in 75 Posts
Assuming you actually are turning in the right direction. Was the impact you used a real 1/2 inch square drive impact or or one of those 1/4 hex impacts for driving screws? Heat from a torch will work assuming you are turning the right direction. Great solution for what is probably galvanic corrosion between your steel pedal and aluminum crank. Might screw up your crank paint on the end of the cranks. Compare to other options if that means a lot to you.

An easy way to determine thread direction. The pedals come off in the opposite direction that you normally pedal the bike. This is to reduce the chances of a pedal working itself lose while riding. That is the understanding or why part, knowing that you can deduce the direction to turn them on and off without having to remember specific orientations either on or off the bike, bike sideways, upside down, looking from the other side etc...

That being said.. One of the easiest ways to remember in my opinion is drive side is normal, non drive side is reverse or use one or both of the following

A wrench facing towards the rear of the bike on a pedal would move down to loosen, up to tighten. "up-tight-rear"
A wrench facing towards the front of the bike on a pedal would move up to loosen, down to tighten.


This assumes your bike is upright and not upside down

Last edited by u235; 07-25-20 at 02:04 PM.
u235 is offline
Old 07-25-20, 01:06 PM
  #17
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,283
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 445 Post(s)
Likes: 0
Liked 66 Times in 60 Posts
Try wrapping the pedal in a plastic bag filled with crushed ice. I had a friend's crank arm with a stuck pedal and couldn't get it to move even with leverage and my trusty 4 pound maul. I found the idea about the ice online and was surprised that it worked.
davidad is offline
Old 07-25-20, 03:50 PM
  #18
woodcraft
Senior Member

woodcraft's Avatar

Join Date: Apr 2012
Location: Nor Cal
Posts: 5,283
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1484 Post(s)
Likes: 0
Liked 519 Times in 307 Posts
Take it the bike shop.

They know the drill. Your $10 will be well spent.
woodcraft is offline
Old 07-25-20, 03:57 PM
  #19
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,284 Times in 801 Posts
I tried an hex drive with both an impact driver and a socket wrench. Won't budge.

Turning it the wrong way (?), the Impact driver made it worse..
fietsbob is offline
Old 07-25-20, 05:46 PM
  #20
grayEZrider
Senior Member

Join Date: Dec 2016
Location: tennessee
Posts: 354

Bikes: '13 Specialized Elite, KHS 223, '94 Trek 2120, 92 Raleigh technium, '87 Centurion LeMans, '86 Centurion IronMan, 2019 Canyon Endurace Al

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 49 Times in 26 Posts
clarification to this great simple rule:

Originally Posted by Papa Tom View Post
I'm not sure where or how you are applying an Allen wrench to this job, but you need either a pedal wrench or (most likely) a 15mm flat wrench.

VERY IMPORTANT: Turn both pedals to the REAR to REMOVE and to the FRONT to FASTEN!
This R to R and F to F works providing you always apply the wrench ABOVE the pedal and not below!
grayEZrider is offline
Old 07-25-20, 06:26 PM
  #21
zacster
Senior Member

Join Date: Jul 2004
Location: Brooklyn NY
Posts: 6,950
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 210 Times in 168 Posts
One other thing to mention, when you are working on the drive side, a loss of skin on the knuckles is a requirement. When that pedal finally loosens with all that force, it'll drive that hand directly into the teeth of the chainring.

Just sayin...
zacster is online now
Old 07-25-20, 07:35 PM
  #22
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,193

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1128 Post(s)
Liked 680 Times in 481 Posts
Originally Posted by zacster View Post
One other thing to mention, when you are working on the drive side, a loss of skin on the knuckles is a requirement. When that pedal finally loosens with all that force, it'll drive that hand directly into the teeth of the chainring.

Just sayin...
Put the chain onto the big chainring BEFORE trying to loosen the pedal. Put a piece of split foam pipe insulation over that to further protect your knuckles.

Cheers
Miele Man is offline
Likes For Miele Man:
Old 07-26-20, 10:55 AM
  #23
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 21,556

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1010 Post(s)
Liked 335 Times in 247 Posts

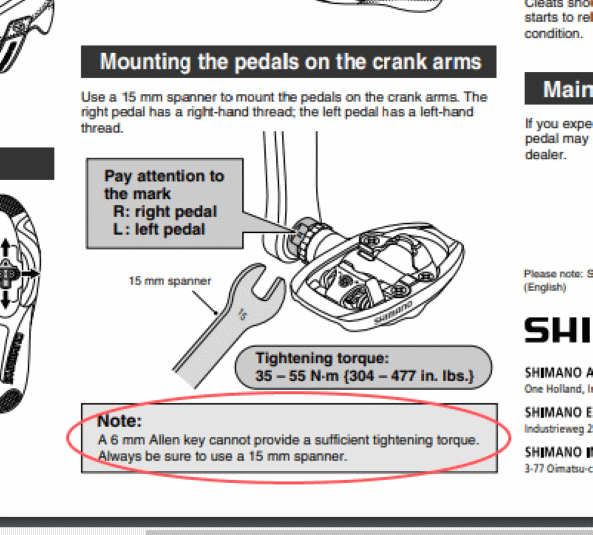

If using hex wrenches on the in the the axle, you may need a pipe or other additional leverage. I often use a big box end wrench on allen keys, or on socket wrences when working on my car.
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: https://www.bikeforums.net/forum-sugg...ad-please.html
Homebrew01 is offline
Old 07-26-20, 12:19 PM
  #24
Iride01
Senior Member

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 4,374

Bikes: '20 Tarmac Disc Comp '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1645 Post(s)
Liked 528 Times in 405 Posts
If if has flats for a wrench, get one that fits. Even the Shimano documents for some of their pedals say that you can't get enough torque on them without stripping the hex key.


https://si.shimano.com/pdfs/si/SI-45K0B-001-ENG.pdf


Worse thing about using a allen key is that sometimes if very high torque being used either tightening or loosening, you can make a crack in the corner of the hex socket. Then when you try to loosen or tighten, the sharp edge of the crack opens into the item it is threaded into and jams things up.
Iride01 is offline
Old 07-26-20, 01:27 PM
  #25
xiaoman1
Slightly Mental

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angels
Posts: 3,134

Bikes: A few too many

Mentioned: 27 Post(s)
Tagged: 1 Thread(s)
Quoted: 666 Post(s)
Liked 429 Times in 295 Posts
I use this method...I have found it the best/easiest way to remove pedals....start at 22 seconds.
Ben
xiaoman1 is offline
Likes For xiaoman1:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
