Rusty BB tale of woe

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Rusty BB tale of woe

Old 08-02-20, 10:32 AM
  #1
samkl
Senior Member
Thread Starter

Join Date: Feb 2017
Location: Chicago, IL
Posts: 350

Bikes: 2004 Trek 520, hot-rodded 1987 Cannondale SR400, rando-modded 1976 AD Vent Noir; 2019 Wabi Classic; 1989? Burley Duet

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Liked 27 Times in 12 Posts
Rusty BB tale of woe

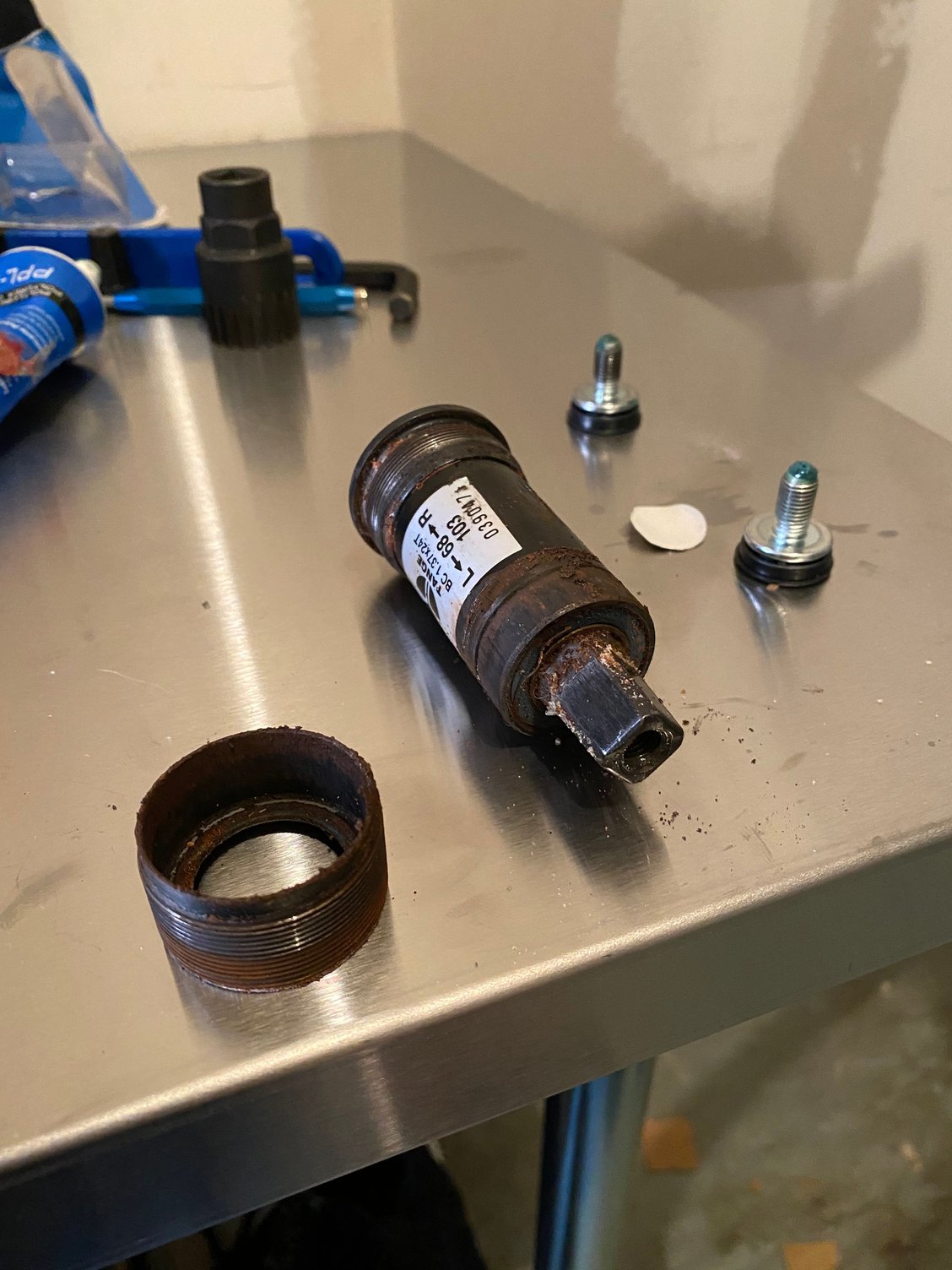

Noticed some rust on the BB of a fairly new bike, 7 months old with ~1200 miles on it. I took it apart and find it completely corroded! A little pile of rust flakes left in the frame (all from the BB- the frame has no rust at all). Bearings spin, but arenít so smooth.

I rode this bike in the rain only a couple times, and wiped it down afterwards. Bike is stored indoors too.

I have a Shimano UN-55 with 6000 miles on it and it looked brand new when I took it out of the frame. I donít want to besmirch Tange BBsí reputation, but jeez.


samkl is offline
Old 08-02-20, 10:40 AM
  #2
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 42,567

Bikes: 8

Mentioned: 194 Post(s)
Tagged: 0 Thread(s)
Quoted: 7319 Post(s)
Liked 928 Times in 586 Posts
crap happens

condensation happens,, blow out that stuff , "Framesaver" the inside of the tubes put in a new BB..

save the left mounting piece, after you clean it up, and use a cheaper UN 26 , and that piece if you don't like the plastic one.







Last edited by fietsbob; 08-02-20 at 10:45 AM.
fietsbob is offline
Old 08-02-20, 10:59 AM
  #3
samkl
Senior Member
Thread Starter

Join Date: Feb 2017
Location: Chicago, IL
Posts: 350

Bikes: 2004 Trek 520, hot-rodded 1987 Cannondale SR400, rando-modded 1976 AD Vent Noir; 2019 Wabi Classic; 1989? Burley Duet

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Liked 27 Times in 12 Posts
The adjustable cup is maybe the most rusted part of all. After I cleaned it up it was pitted and corroded like youíd expect on a maltreated 20-year-old bike.

Frame has no rust at all, in contrast to the BB.

Originally Posted by fietsbob View Post
condensation happens,, blow out that stuff , "Framesaver" the inside of the tubes put in a new BB..

save the left mounting piece, after you clean it up, and use a cheaper UN 26 , and that piece if you don't like the plastic one.






samkl is offline
Old 08-02-20, 11:04 AM
  #4
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 42,567

Bikes: 8

Mentioned: 194 Post(s)
Tagged: 0 Thread(s)
Quoted: 7319 Post(s)
Liked 928 Times in 586 Posts
Condensation rusted the inside un painted surfaces of the steel tubing..
fietsbob is offline
Old 08-02-20, 11:07 AM
  #5
samkl
Senior Member
Thread Starter

Join Date: Feb 2017
Location: Chicago, IL
Posts: 350

Bikes: 2004 Trek 520, hot-rodded 1987 Cannondale SR400, rando-modded 1976 AD Vent Noir; 2019 Wabi Classic; 1989? Burley Duet

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Liked 27 Times in 12 Posts
I already put the thing back together so I canít take a picture, but no, the frame had no rust at all. I just wiped away the rust flakes and the frame was pristine inside.

It came from the factory with an anti-rust coating, which mightíve helped.

Point is the BB is pretty low quality.

Originally Posted by fietsbob View Post
Condensation rusted the inside un painted surfaces of the steel tubing..
samkl is offline
Old 08-02-20, 11:20 AM
  #6
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 42,567

Bikes: 8

Mentioned: 194 Post(s)
Tagged: 0 Thread(s)
Quoted: 7319 Post(s)
Liked 928 Times in 586 Posts
Spend more to get better https://www.renehersecycles.com/prod...ttom-brackets/
fietsbob is offline
Old 08-02-20, 11:24 AM
  #7
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,146

Bikes: Schwinn Varsity

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1530 Post(s)
Liked 226 Times in 153 Posts
Tange is higher quality than the Shimano BBs. You have something going on in there. Water got into your frame. You say 7 months old bike, but I have never seen a bike come with a Tange BB. Who put it together when it was new? BB looks like an older version to me.
trailangel is offline
Old 08-02-20, 11:51 AM
  #8
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,746

Bikes: old ones

Mentioned: 258 Post(s)
Tagged: 0 Thread(s)
Quoted: 17955 Post(s)
Liked 1,639 Times in 1,197 Posts
.
...this is also my experience (better quality) with Tange sealed units. There's something else going on, but I have no idea what it is.
If it were me, I'd switch to using a nylon plastic adjustable side retainer, and drill some weep holes in the BB shell while it is empty.

At the very least, I'd probably install the new BB unit with some kind of anti-seize on the threads, if I didn't use a plastic ring.
3alarmer is online now
Old 08-02-20, 12:15 PM
  #9
samkl
Senior Member
Thread Starter

Join Date: Feb 2017
Location: Chicago, IL
Posts: 350

Bikes: 2004 Trek 520, hot-rodded 1987 Cannondale SR400, rando-modded 1976 AD Vent Noir; 2019 Wabi Classic; 1989? Burley Duet

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Liked 27 Times in 12 Posts
Bike is a Wabi Classic. The BB appears to be a lower end model, with a steel retaining ring and a solid axle.

Also - this is probably relevant - I donít think it was installed properly. The BB was barely torqued down when I unscrewed it.

Originally Posted by trailangel View Post
Tange is higher quality than the Shimano BBs. You have something going on in there. Water got into your frame. You say 7 months old bike, but I have never seen a bike come with a Tange BB. Who put it together when it was new? BB looks like an older version to me.

Last edited by samkl; 08-02-20 at 12:20 PM.
samkl is offline
Old 08-02-20, 12:34 PM
  #10
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,146

Bikes: Schwinn Varsity

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1530 Post(s)
Liked 226 Times in 153 Posts
Hmm. When I search for this BB number it comes up with a TH industries or FSA bottom bracket, not Tange.


Did somebody switch?
trailangel is offline
Old 08-02-20, 12:36 PM
  #11
samkl
Senior Member
Thread Starter

Join Date: Feb 2017
Location: Chicago, IL
Posts: 350

Bikes: 2004 Trek 520, hot-rodded 1987 Cannondale SR400, rando-modded 1976 AD Vent Noir; 2019 Wabi Classic; 1989? Burley Duet

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Liked 27 Times in 12 Posts
Nope, I bought it from Wabi.

Originally Posted by trailangel View Post
Hmm. When I search for this BB number it comes up with a TH industries or FSA bottom bracket, not Tange.


Did somebody switch?
samkl is offline
Old 08-02-20, 02:12 PM
  #12
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,528

Bikes: Several, mostly not name brands.

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 2168 Post(s)
Liked 534 Times in 368 Posts
IIRC, Tange made the Shimano-branded cartridges.
