Litespeed Ghisallo frame -- DT dents/dings safe or unsafe?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Litespeed Ghisallo frame -- DT dents/dings safe or unsafe?

Old 08-03-20, 09:43 AM
  #1
SpeedofLite
Senior Member
Thread Starter

SpeedofLite's Avatar

Join Date: Aug 2010
Location: Henderson, NV, USA
Posts: 918

Bikes: Litespeed (9); Slingshot (6); Specialized (2); Kestrel (2); Softride (2); Cervelo (1); FELT (1); Cannondale (1); Fuji (1); Centurion (1); Schwinn (1)

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 230 Post(s)
Liked 365 Times in 187 Posts
Litespeed Ghisallo frame -- DT dents/dings safe or unsafe?

This Litespeed Ghisallo frame was billed as the lightest production frame made in 2002 .
This specific ML-size frame weighs 855g (1.88 lbs).

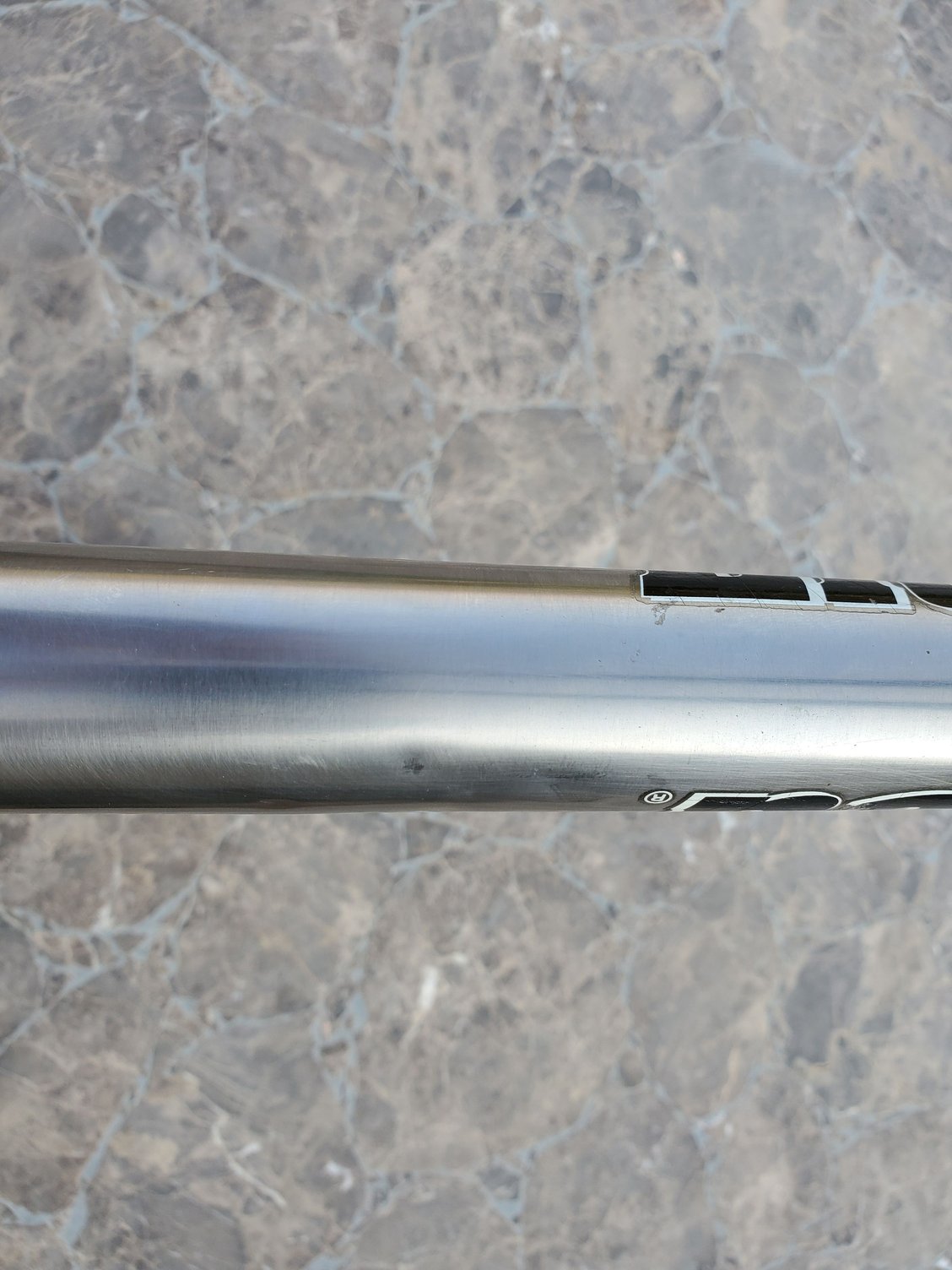

Here are photos of multiple small dents/dings on the left side of the middle of the DT on this frame.
Additional photos of top, bottom, and right "sides" show no damage though the marks do come around to the bottom left somewhat.

Based on your experience, is this frame safe or unsafe to build and ride?

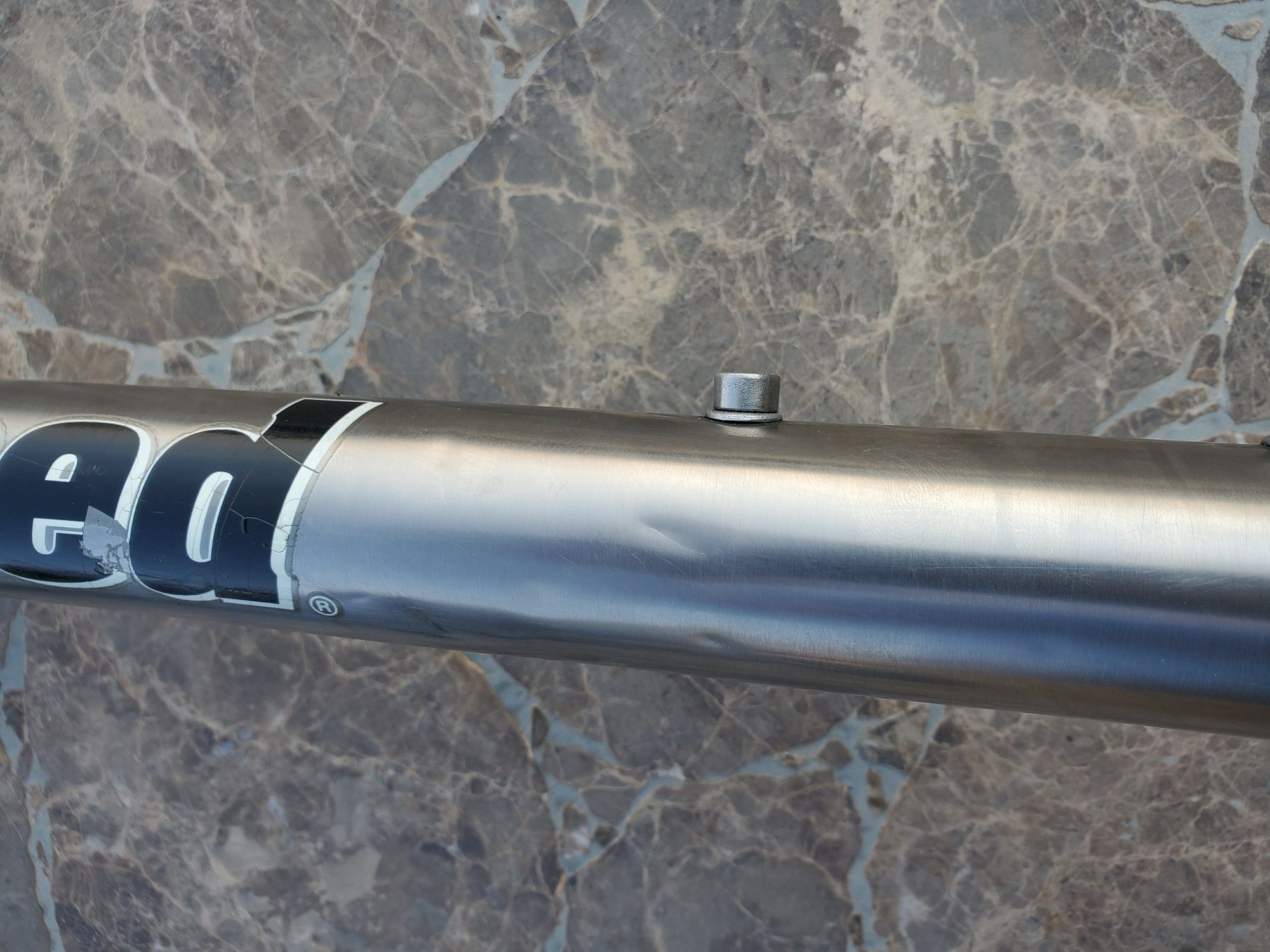

Right View DT

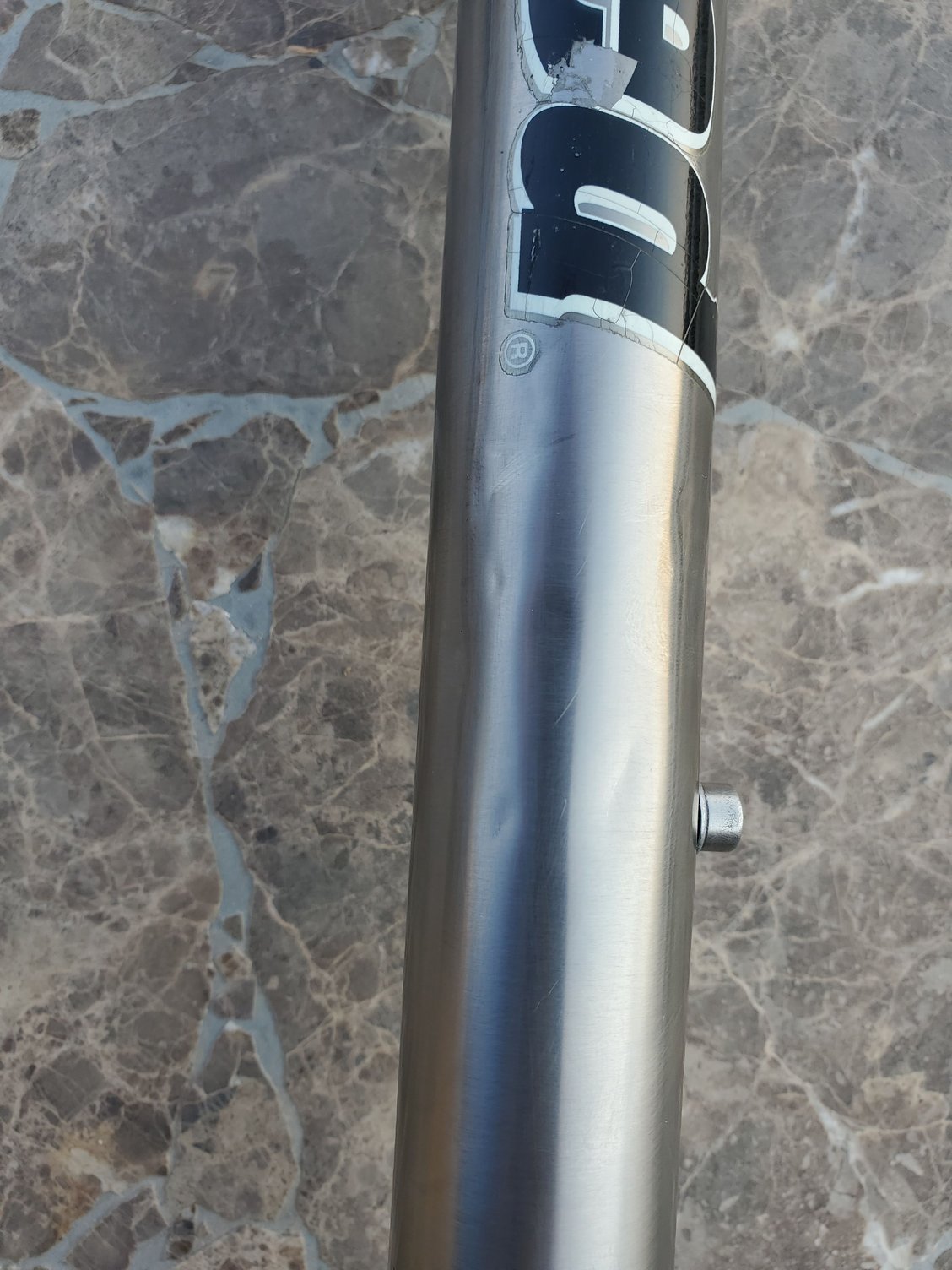

Bottom View DT

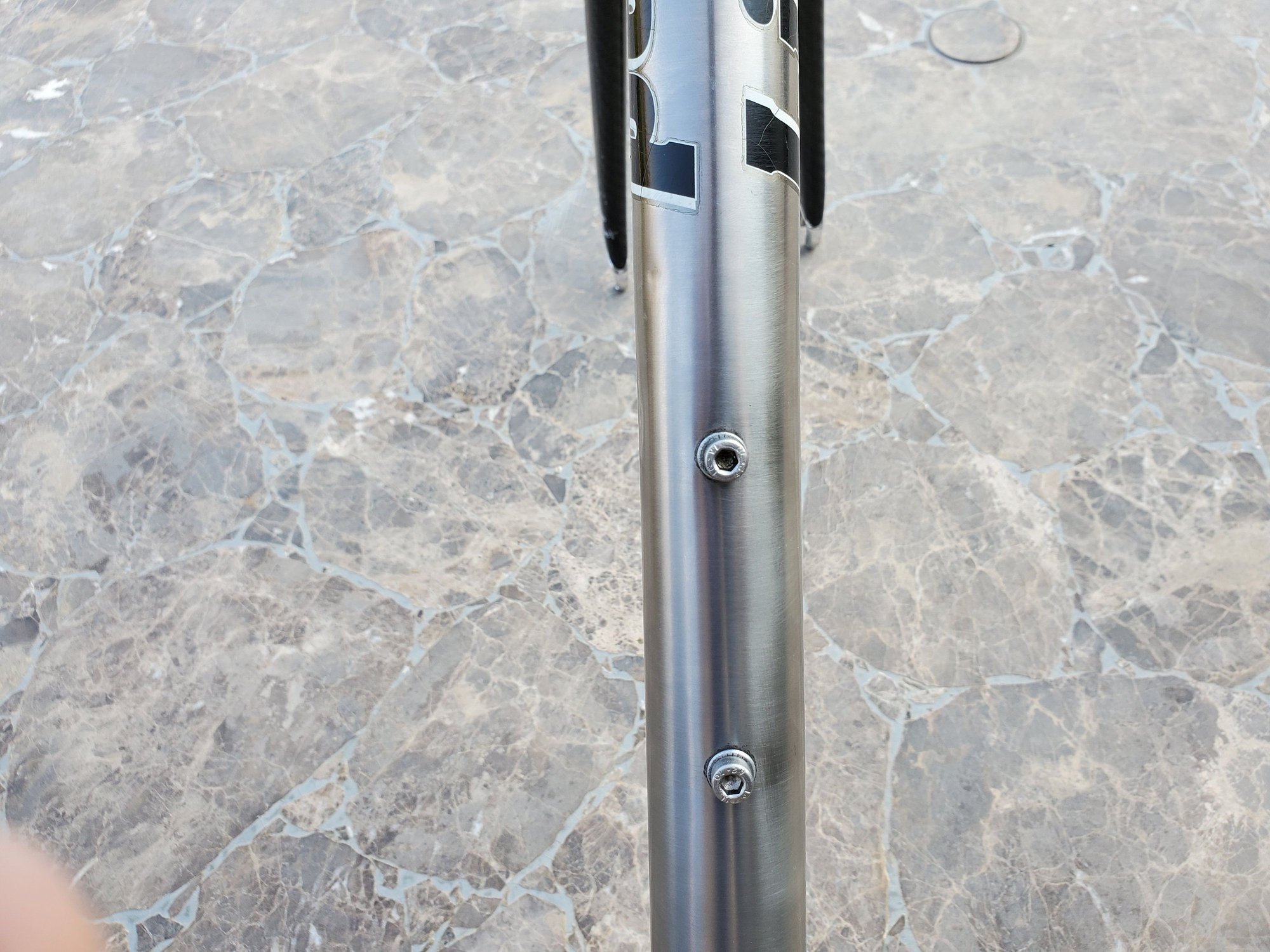

Top View DT
__________________
WTB: Slingshot road model (1990s era; 18" L or 20" XL frame size)
WTB: Slingshot promotional documents (catalog, pamphlets, etc).
WTB: Bicycling! issue Oct 1969
WTB: Bike World Issues Feb - Nov 1972; Jun 1974; Mar-Apr 1978.
WTB: ZIPP 500 front wheel (650c clincher)



SpeedofLite is offline
Old 08-03-20, 10:10 AM
  #2
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,277 Times in 798 Posts
I See Nothing more than aesthetics issues there..
fietsbob is offline
Old 08-03-20, 10:56 AM
  #3
davidad
Senior Member

Join Date: Feb 2009
Posts: 6,274
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 438 Post(s)
Likes: 0
Liked 65 Times in 59 Posts
Just ride it and keep an eye on the suspect areas. Nothing looks like a serious stress riser.
davidad is offline
Old 08-03-20, 11:47 AM
  #4
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,790

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1039 Post(s)
Liked 241 Times in 178 Posts
I think you're ok. Keep an eye on things to ensure you see no fatigue cracks.

Keep in mind, the DT is mostly loaded in tension. Some torsion and bending. If this was the top tube (loaded in compression) I'd be worrying about the buckling failure mode. I still think it'd be ok, but if you have bumps like this in a tube I'd think that the DT is the tube you want them in.
WizardOfBoz is offline
Old 08-04-20, 08:16 AM
  #5
SpeedofLite
Senior Member
Thread Starter

SpeedofLite's Avatar

Join Date: Aug 2010
Location: Henderson, NV, USA
Posts: 918

Bikes: Litespeed (9); Slingshot (6); Specialized (2); Kestrel (2); Softride (2); Cervelo (1); FELT (1); Cannondale (1); Fuji (1); Centurion (1); Schwinn (1)

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 230 Post(s)
Liked 365 Times in 187 Posts
Originally Posted by fietsbob View Post
I See Nothing more than aesthetics issues there..
Originally Posted by davidad View Post
Just ride it and keep an eye on the suspect areas. Nothing looks like a serious stress riser.
Originally Posted by WizardOfBoz View Post
I think you're ok. Keep an eye on things to ensure you see no fatigue cracks. Keep in mind, the DT is mostly loaded in tension. Some torsion and bending. If this was the top tube (loaded in compression) I'd be worrying about the buckling failure mode. I still think it'd be ok, but if you have bumps like this in a tube I'd think that the DT is the tube you want them in.
Thanks all for your time and insight! It "feels" sturdy enough, but I think I'm in the "I don't know what I don't know" zone concerning this frame.
That you all generally agree makes me feel a bit easier now about this frame.
