Stupid Me! I lost this part last month on my back patio.

I'm making this 30 year old bicycle ready to ride. Finally got the new tires and correct sized tubes. But, I took one brake pad off back in June so I could find a replacement. The current pads had no stopping power, well, even 15 years ago they had no stopping power, so I cleaned the rims and found replacements. But when I took off the pad, I didn't realize I lost this washer-type part. It's hard to see, but it's conical - 5/8 inch on the larger side and 1/2 inch on the shorter side. Any suggestions what I should do besides buy new brakes?

Tomorrow I guess I will make the trip to the large local bike shop. I'm not up on the best bike shops in this area. (I wish I was in Seattle!) If the bike shop can't help, I guess I will try to MacGyver something from Home Depot.

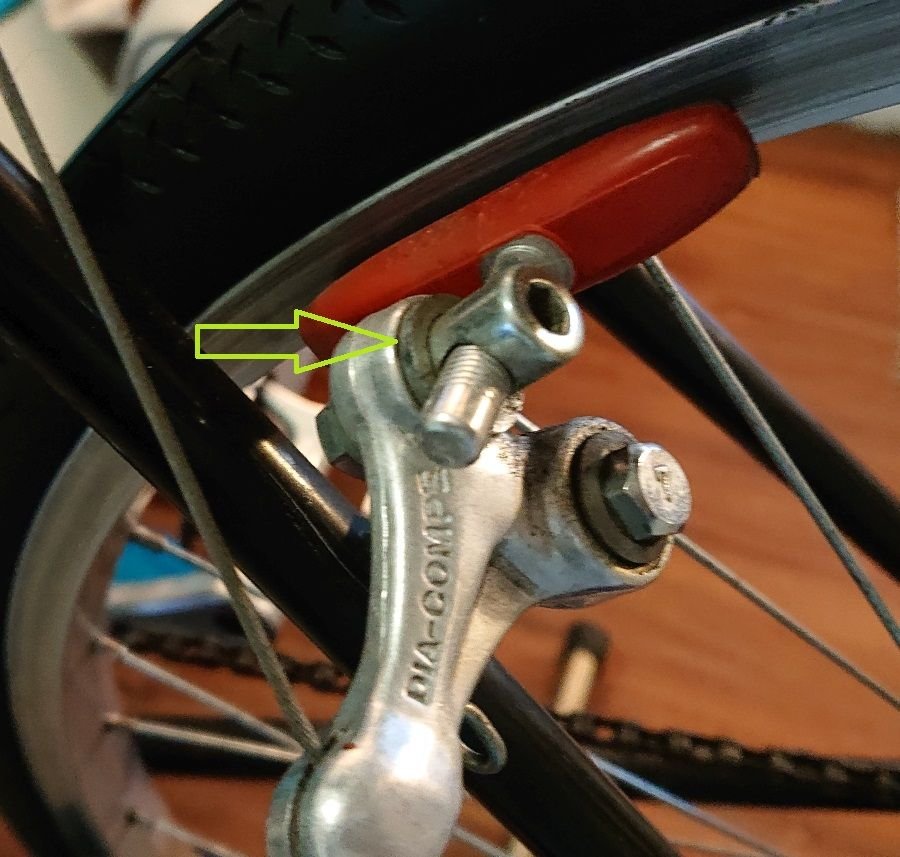

Former location

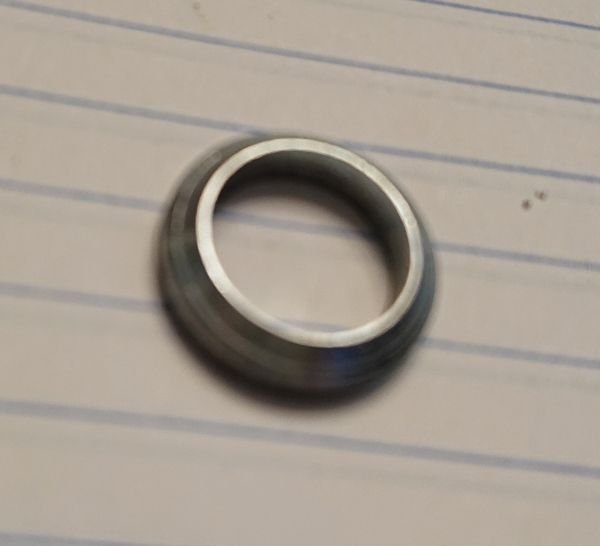

Missing part
oldlady62 is offline
Old 08-05-20, 06:54 PM
  #2
dwmckee
Senior Member

dwmckee's Avatar

Join Date: Jun 2008
Location: Pittsburgh, PA
Posts: 1,936

Bikes: Co-Motion Cappuccino Tandem,'88 Bob Jackson Touring, Co-Motion Cascadia Touring, Open U.P., Ritchie Titanium Breakaway, Frances Cycles SmallHaul cargo bike. Those are the permanent ones; others wander in and out of the stable occasionally as well.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 212 Post(s)
Likes: 0
Liked 94 Times in 61 Posts
If your LBS does not have it, maybe buy a used similar brake set in ebay to cannibalize the part from...
dwmckee is offline
Old 08-05-20, 08:02 PM
  #3
oldlady62
Senior Member
Thread Starter

Join Date: May 2020
Posts: 53
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked 16 Times in 10 Posts
Yeah. I think for the price of a used set it would be worth it rather than spending the time and hassle of trying to track this thing down.
oldlady62 is offline
Old 08-06-20, 04:37 PM
  #4
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 1,072

Bikes: Trek 770, Trek 760, Schwinn Paramount, Patelli Professional, Othon Ochsner

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 452 Post(s)
Liked 342 Times in 260 Posts
Find a co-op in town or ask for it in the C&V in search of forum. This place has tons of folks willing to help out. Smiles MH
Mad Honk is offline
Old 08-06-20, 06:37 PM
  #5
Dsprok
Senior Member

Join Date: Jul 2013
Location: Ontario Canada
Posts: 246

Bikes: Hybrid and Folding

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 0 Times in 0 Posts
Is it metal? Use a metal detector.
Dsprok is offline
Old 08-06-20, 07:54 PM
  #6
blakcloud
Senior Member

blakcloud's Avatar

Join Date: Aug 2007
Location: Toronto, Ontario
Posts: 2,265

Bikes: Custom Winter Cycles flat bar road bike, Trek Domane SL6, Rivendell Sam Hillborne, Brompton S/M3L (modified)

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 458 Post(s)
Liked 158 Times in 112 Posts
Originally Posted by Dsprok View Post
Is it metal? Use a metal detector.
Sure, everyone has one of these in their garage don't they?
blakcloud is offline
Old 08-07-20, 12:03 AM
  #7
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,192

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1128 Post(s)
Liked 680 Times in 481 Posts
I'm pretty sure I have one of those parts in my spares box. I'm in South-Central Ontario, Canada.

If you're in the USA it'd take about ten days for it to reach you. If you can wait that long, let me know and I'll look for it. If I do have it I'll get you to PM me your address so I can mail it to you at no charge.

Cheers
Miele Man is offline
Likes For Miele Man:
Old 08-07-20, 09:34 AM
  #8
pdlamb
Senior Member

Join Date: Dec 2010
Location: northern Deep South
Posts: 6,089

Bikes: Fuji Touring, Novara Randonee

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1262 Post(s)
Liked 350 Times in 245 Posts
Bike mechanic work spaces should be covered in short white carpet to catch things like that. Unfortunately, mine's concrete -- little buggers like that spherical washer can roll a looong way. (Fortunately, when mine went walk-about, I found it after half an hour!)
pdlamb is offline
Old 08-07-20, 10:12 AM
  #9
_ForceD_
Senior Member

_ForceD_'s Avatar

Join Date: Jul 2015
Location: Rhode Island
Posts: 1,389

Bikes: Several...from old junk to new all-carbon.

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 600 Post(s)
Liked 144 Times in 95 Posts
Here's a weird suggestion. If you know where you dropped it...get a similar-size washer, drop it from the same place, and see where it bounces to. Look for your missing washer in that area. Doesn't work every time...but I've found missing things this way.

Dan
_ForceD_ is offline
Old 08-07-20, 10:13 AM
  #10
rydabent
Senior Member

Join Date: Apr 2010
Location: Lincoln Ne
Posts: 8,194

Bikes: RANS Stratus TerraTrike Tour II

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1805 Post(s)
Liked 307 Times in 193 Posts
Check with a couple of bike stores. They may have one in their junk drawers.
rydabent is offline
Old 08-07-20, 10:31 AM
  #11
joeruge
Senior Member

Join Date: Jan 2006
Posts: 121
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Liked 11 Times in 10 Posts
Spherical Washers

These things are very similar to Spherical Washers. You might have some luck at an Ace if you ask for that. You can likely find a suitable substitute looking through McMaster-Carr. https://www.mcmaster.com/91944A430.

You may not have a metal detector in the garage, but you likely have a strong magnet on your frig. Put it in a zip-lock bag and sweep around the area. You maybe lucky and pick it up. That's assuming this washer isn't aluminum or stainless. Most likely it is steel and would jump onto a strong magnet.

Going to your local bike co-open or practically any bike shop is a probably the best idea. They probably have a can or draw filled with this kind of odd hardware. A great opportunity to strike up a conversation and start a relationship. Bike people are good people.
​​​​​​
​​​​
joeruge is offline
Old 08-09-20, 07:59 AM
  #12
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 29,930

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1446 Post(s)
Liked 356 Times in 218 Posts
Originally Posted by pdlamb View Post
Bike mechanic work spaces should be covered in short white carpet to catch things like that. Unfortunately, mine's concrete -- little buggers like that spherical washer can roll a looong way. (Fortunately, when mine went walk-about, I found it after half an hour!)
Years ago I took my 12 year old grandson with me to do tech support on a big cross state ride. I think the first thing that I taught him was to spread out a tarp to catch any dropped parts before setting up our work stand.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Old 08-09-20, 08:22 AM
  #13
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 21,547

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1008 Post(s)
Liked 331 Times in 244 Posts
If it's steel, Drag some rare-earth magnets around the area.
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: https://www.bikeforums.net/forum-sugg...ad-please.html
Homebrew01 is offline
Old 08-12-20, 10:38 AM
  #14
Thomas15
Senior Member

Join Date: Aug 2004
Location: NE PA
Posts: 343
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 149 Times in 100 Posts
That washer looks like the ones used on brake shoe assy for V-Brakes. If so when you replace the shoes on v-brakes you get new ones so anyone that does this kind of work should have quite a few of these laying around.
Thomas15 is offline
Old 08-12-20, 02:26 PM
  #15
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,046
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1611 Post(s)
Liked 667 Times in 510 Posts
Originally Posted by Thomas15 View Post
That washer looks like the ones used on brake shoe assy for V-Brakes. If so when you replace the shoes on v-brakes you get new ones so anyone that does this kind of work should have quite a few of these laying around.
I thought about that, too, but I think it's larger diameter than the ones for V-brake shoes/posts.
