A wheel with rim brake surface and a disc brake hub

Old 08-12-20, 01:10 AM
  #1
alxsmlv
Newbie
Thread Starter

Join Date: Aug 2020
Posts: 1
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
A wheel with rim brake surface and a disc brake hub

I found a disc wheel which was accidentally built with rim brake surface and a disc brake hub. Can the wheel then be used both in rim brake setup as well as disc brake? Or are there implications or limitations in construction that would restrict using the wheel in both cases? Like maybe disc brake hub wouldn't fit in my road bike fork or something like that.

Since I am not experienced in wheels and braking systems, i thought to check with you what I should be aware of.

Thanks.
alxsmlv is offline
Old 08-12-20, 01:32 AM
  #2
cobba
Senior Member

Join Date: Aug 2006
Posts: 1,867
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 166 Post(s)
Likes: 0
Liked 52 Times in 41 Posts
Originally Posted by alxsmlv View Post
I found a disc wheel which was accidentally built with rim brake surface and a disc brake hub.
It probably would of been built like that on purpose, I don't know if they're still making them but you could buy factory built wheels that were rim and disc brake compatible.

Can the wheel then be used both in rim brake setup as well as disc brake? Or are there implications or limitations in construction that would restrict using the wheel in both cases? Like maybe disc brake hub wouldn't fit in my road bike fork or something like that.
Yes as long as the frame/fork is built for the hubs that the wheels have. hubs can come in different sizes and axle types.
cobba is offline
Likes For cobba:
Old 08-12-20, 07:23 AM
  #3
ClydeClydeson
Senior Member

Join Date: Mar 2019
Posts: 1,432
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 490 Post(s)
Liked 758 Times in 440 Posts
I have several sets of rim/disc compatible wheels. This allows me to use the wheels on multiple bikes. There is no downside to this strategy, except maybe a slight dishing of the front wheel that would not be present on a rim-brake-only wheel.
ClydeClydeson is offline
Old 08-12-20, 10:01 AM
  #4
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,185

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1519 Post(s)
Liked 806 Times in 589 Posts
As long as you don't try to use a disc rim on a rim brake bike there isn't a problem.
Just aesthetics for those that care about such things.
Bill Kapaun is offline
Old 08-12-20, 10:09 AM
  #5
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 5,168
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1460 Post(s)
Liked 1,109 Times in 665 Posts
This is very common, especially for 26" mountain bike wheels. Both wheels of my 26" wheel mountain bike have disc hubs with rims that could be used for rim brakes. Disc specific rims have the advantage that they can be made lighter not having to have a brake track.
alcjphil is offline
Old 08-12-20, 10:18 AM
  #6
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 5,701

Bikes: Soma Fog Cutter, Surly Wednesday, Turner 5-Spot, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2543 Post(s)
Liked 2,212 Times in 1,243 Posts
Yep. No problem. I have 2 older sets of wheels like this.
Kapusta is offline
Old 08-12-20, 10:31 AM
  #7
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,336 Times in 844 Posts
Ocd?

It was not an accident, just a choice made.... don't worry so much..

My 2 _ 26" wheel bikes have brake pad track rims , only 1 uses them..

My disc brake bike uses 20" wheels it has Sun CR18 rims, factory may have bout thousands of them.


Quite fit for purpose,,





..

Last edited by fietsbob; 08-12-20 at 10:38 AM.
fietsbob is offline
Old 08-12-20, 10:41 AM
  #8
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,336 Times in 844 Posts
Or, just don't try using rim brakes on a bike with rims not suited for them,
... because they lack the parallel faces for the pads to grip.
fietsbob is offline
Old 04-24-22, 10:07 PM
  #9
Charliekeet
Senior Member

Join Date: Sep 2015
Location: Massachusetts
Posts: 763

Bikes: S-Works Stumpjumper HT Disc, Fuji Absolute, Kona Jake the Snake, '85 Cannondale SR900

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 218 Post(s)
Liked 217 Times in 142 Posts
Hi- since theres no pics in this thread, I thought Id bring up this question, but with a specific example.

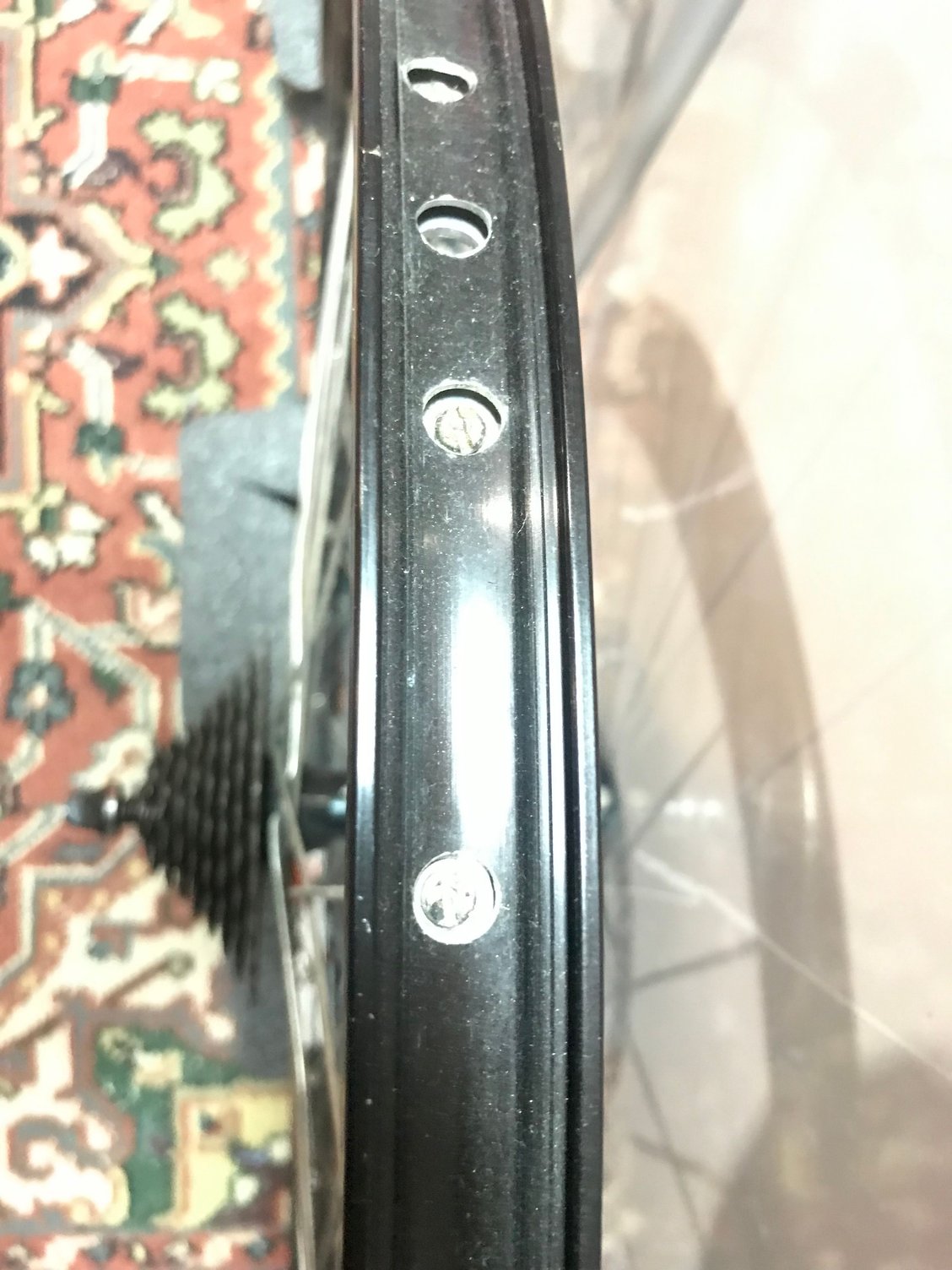

Just picked up a nice Gary Fisher Wahoo for my kid. It came with pretty old Weinmann 519 single wall wheels, and I thought Id spruce things up, but the spare 26 wheel set I have has discs. Is this rear wheel usable with rim brakes?





Though its black painted, it looks to me like it has a wear track (as opposed to the front wheel- pics below) and the wall height is the same as the Weinmann at about 12mm.

Wishful thinking? Id like to use it cause it looks fresher, is double-walled, and has a better hub and spokes I think.
Charliekeet is offline
Old 04-24-22, 10:13 PM
  #10
Charliekeet
Senior Member

Join Date: Sep 2015
Location: Massachusetts
Posts: 763

Bikes: S-Works Stumpjumper HT Disc, Fuji Absolute, Kona Jake the Snake, '85 Cannondale SR900

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 218 Post(s)
Liked 217 Times in 142 Posts

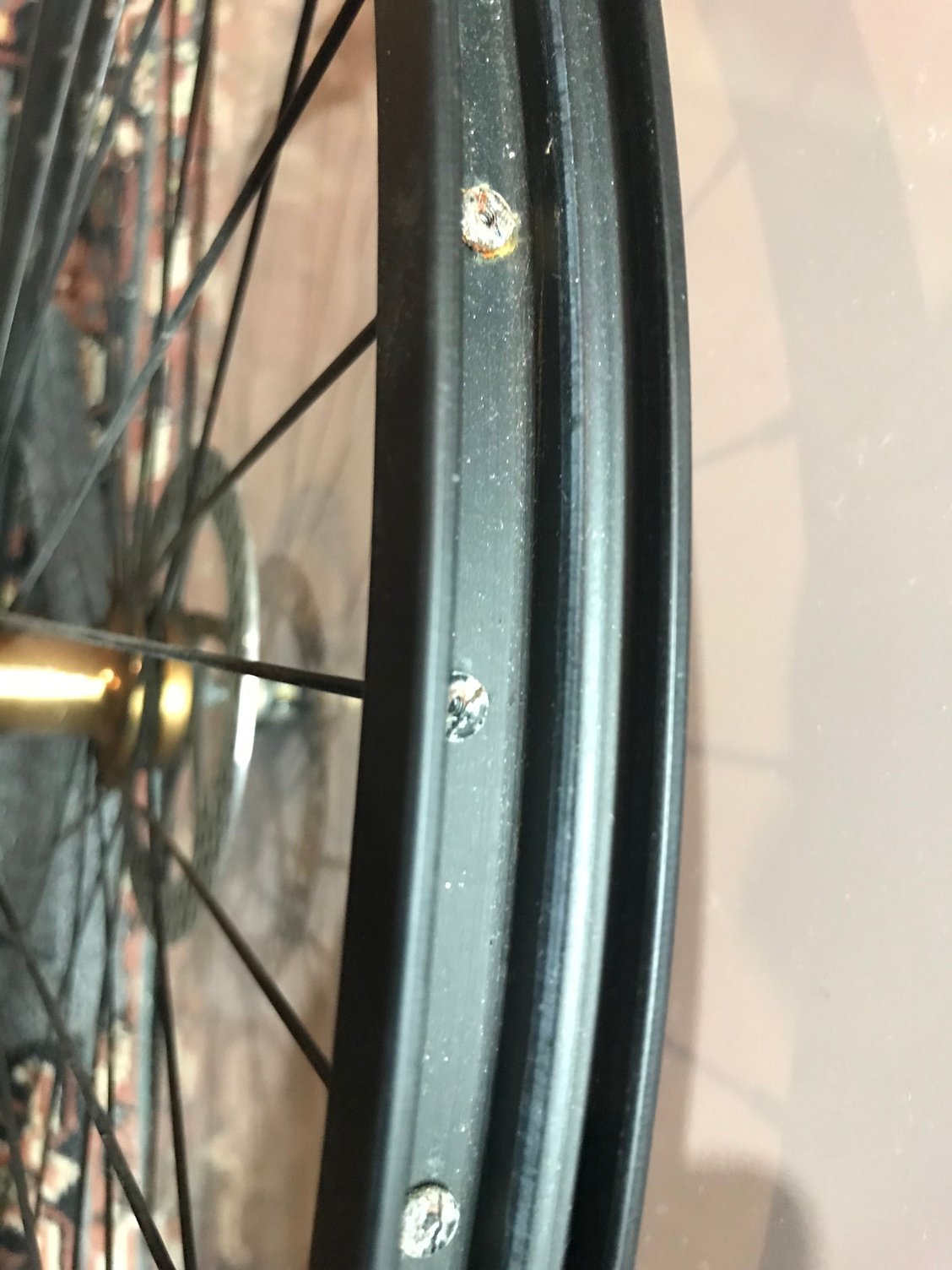

For comparison, heres a disc front wheel I have which I has different geometry than the rear one, and seems clear to me cannot be used with rim brakes?


Charliekeet is offline
Old 04-25-22, 07:45 AM
  #11
hokiefyd
Senior Member

hokiefyd's Avatar

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 3,909

Bikes: '18 Redline Zander, '14 Surly Pugsley, '97 GT Vantara, '97 Trek MultiTrack 750, '70 Peugeot UO-18 Mixte

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1342 Post(s)
Liked 630 Times in 475 Posts
Not only is this okay (building a wheel with both a disc brake hub and a rim brake rim), some say the increased profile height now common with disc brake rims reduces ride compliance of the wheel assembly. I understand some folks who build disc brake wheels continue to use the shorter "box" profile rims that used to dominate the scene when machined brake tracks where used.
hokiefyd is offline
Old 04-25-22, 08:36 AM
  #12
Charliekeet
Senior Member

Join Date: Sep 2015
Location: Massachusetts
Posts: 763

Bikes: S-Works Stumpjumper HT Disc, Fuji Absolute, Kona Jake the Snake, '85 Cannondale SR900

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 218 Post(s)
Liked 217 Times in 142 Posts
Thanks, hokie - just to be clear though, the wheel pictured in my 1st post above IS legit OK to use with a rim brake (and I just remove the disc from the hub)?
Whereas the other wheel pictured in my 2nd post would not be OK for a rim brake?
Charliekeet is offline
Old 04-25-22, 09:57 AM
  #13
hokiefyd
Senior Member

hokiefyd's Avatar

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 3,909

Bikes: '18 Redline Zander, '14 Surly Pugsley, '97 GT Vantara, '97 Trek MultiTrack 750, '70 Peugeot UO-18 Mixte

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1342 Post(s)
Liked 630 Times in 475 Posts
Originally Posted by Charliekeet View Post
Thanks, hokie - just to be clear though, the wheel pictured in my 1st post above IS legit OK to use with a rim brake (and I just remove the disc from the hub)?
Whereas the other wheel pictured in my 2nd post would not be OK for a rim brake?
I don't think I'd use either with a rim brake. To be clear, that looks like a rim designed for rim brakes, but it looks to me like the final machining step was left out, knowing that particular lot was going to be built into disc wheels. If you tried to use that with rim brakes, it'd just be the brake pads against the painted rim surface, which probably isn't ideal.

I suspect in some of these cases, they start with the same basic rim brake box section rim...and the ones that will get built into rim brake wheels have that track machined as a final step. Those that will get built into disc brake wheels don't have that brake track machined. That probably makes procurement and inventory easier, and probably saves some cost as well.

(I apologize -- I didn't see earlier that this was an older thread that you added pictures to.)
hokiefyd is offline
Old 04-25-22, 10:15 AM
  #14
Charliekeet
Senior Member

Join Date: Sep 2015
Location: Massachusetts
Posts: 763

Bikes: S-Works Stumpjumper HT Disc, Fuji Absolute, Kona Jake the Snake, '85 Cannondale SR900

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 218 Post(s)
Liked 217 Times in 142 Posts
Originally Posted by hokiefyd View Post
I don't think I'd use either with a rim brake. To be clear, that looks like a rim designed for rim brakes, but it looks to me like the final machining step was left out, knowing that particular lot was going to be built into disc wheels. If you tried to use that with rim brakes, it'd just be the brake pads against the painted rim surface, which probably isn't ideal.

I suspect in some of these cases, they start with the same basic rim brake box section rim...and the ones that will get built into rim brake wheels have that track machined as a final step. Those that will get built into disc brake wheels don't have that brake track machined. That probably makes procurement and inventory easier, and probably saves some cost as well.

(I apologize -- I didn't see earlier that this was an older thread that you added pictures to.)
OK, gotcha. Thanks for the clarification!
These will just continue to be a backup to our disc mtb, and I'll focus on other upgrades to the rim-braker.
