Shimano SIS Derailleur Spacer Bolt?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Shimano SIS Derailleur Spacer Bolt?

Old 08-23-20, 03:45 PM
  #1
FREEBIRD1
Senior Member
Thread Starter

Join Date: May 2020
Posts: 97
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Likes: 0
Liked 21 Times in 17 Posts
Shimano SIS Derailleur Spacer Bolt?

What is the secret to get the rear spacer and bolt that holds a shimano SIS rear derailleur to the frame of the bike? I have one that when installed, keeps the axle from going far enough into the drop-outs of the frame. It looks straight forward enough, but when I installed the tire after a flat repair I noticed one side was barely in the drop-out, don't want to ride it like that. Much appreciated.
FREEBIRD1 is offline
Old 08-24-20, 07:15 AM
  #2
rhenning
Senior Member

Join Date: Apr 2006
Posts: 3,481
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 323 Post(s)
Likes: 0
Liked 50 Times in 35 Posts
A picture would help. My brain is not picturing your problem. Roger
rhenning is offline
Old 08-24-20, 10:51 AM
  #3
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 2,394

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 552 Post(s)
Liked 277 Times in 196 Posts
Sounds like a claw type hanger. I believe that the axle will move forward in the dropouts when a claw type hanger is used.

John

Edit added: I’ll let the real mechanics offer the workarounds.

Last edited by 70sSanO; 08-24-20 at 10:57 AM.
70sSanO is offline
Old 08-24-20, 02:37 PM
  #4
FREEBIRD1
Senior Member
Thread Starter

Join Date: May 2020
Posts: 97
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Likes: 0
Liked 21 Times in 17 Posts
Originally Posted by rhenning View Post
A picture would help. My brain is not picturing your problem. Roger
The derailleur is installed with the spacer as shown, it seems it does not leave enough room on the other side of the axle for it to drop in properly, I can't think of any other way that spacer goes in. The wheel is true and not dished as well.


FREEBIRD1 is offline
Old 08-24-20, 06:37 PM
  #5
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,891

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 1329 Post(s)
Liked 742 Times in 508 Posts
Sometimes there is a tapped hole behind the DO slot that the screw on the claw threads into. YOu could drill & tap the DO farther back for the screw or even eliminate it, but if eliminated the RD comes off every time you remove the wheel. Basically the screw is just there to hold it in until the wheel is tightened.
dedhed is offline
Old 08-24-20, 08:17 PM
  #6
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,892

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2531 Post(s)
Liked 612 Times in 464 Posts
The first photo shows the mounting plate (claw as others poorly term it) not fully slid into the drop out by enough. Note the sliver moon shaped gap at the plate's back edge where the securing bolt is located. remove the wheel. Loosen and slide back fully into the drop out slot the plate, tighten the plate's bolt (and specially shaped nut) so the plate and der don't slide forwards and reinstall the wheel. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 08-25-20, 04:29 AM
  #7
FREEBIRD1
Senior Member
Thread Starter

Join Date: May 2020
Posts: 97
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Likes: 0
Liked 21 Times in 17 Posts
Originally Posted by Andrew R Stewart View Post
The first photo shows the mounting plate (claw as others poorly term it) not fully slid into the drop out by enough. Note the sliver moon shaped gap at the plate's back edge where the securing bolt is located. remove the wheel. Loosen and slide back fully into the drop out slot the plate, tighten the plate's bolt (and specially shaped nut) so the plate and der don't slide forwards and reinstall the wheel. Andy
That's the rub with this set-up, the spacer is all the way back preventing the DR hangar from being moved back. I put the wheel in without that spacer and everything is fine, and the wheel fits in the drop-out. I suspect there is something about the orientation of that spacer (I have the flat toward the front of the bike). I'm sure there is an orientation or installation trick to these, I'm just not seeing it. Thanks for the replies.
FREEBIRD1 is offline
Old 08-25-20, 06:28 AM
  #8
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,892

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2531 Post(s)
Liked 612 Times in 464 Posts
Can you provide photos of the plate (claw) face that contacts the drop out? Also the mounting bolt with it's special nut? Also the drop out slot? If the sliver of drop out slot I think I see is real then somehow the plate and nut are not being slid all the way up into the slot. We see this often enough hence my thinking about what's happening. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 08-25-20, 08:36 AM
  #9
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,848

Bikes: Several, mostly not name brands.

Mentioned: 127 Post(s)
Tagged: 0 Thread(s)
Quoted: 2302 Post(s)
Liked 720 Times in 476 Posts

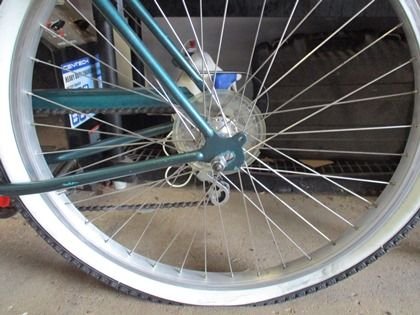

Make sure the fixing bolt for the claw is as far back in the dropout slot as possible. If it worked before, it should be able to work again.
Attached Images
File Type: jpg
JohnDThompson is offline
Old 08-25-20, 09:28 AM
  #10
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 6,422

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 857 Post(s)
Liked 338 Times in 244 Posts
I see a gap. Pull the wheel off, loosen that spacer and move the crescent side all the way back and then tighten it down. You can also get spacers for the other side.
https://northwestbicycle.com/product...gaAnJyEALw_wcB
curbtender is offline
Old 08-25-20, 04:45 PM
  #11
FREEBIRD1
Senior Member
Thread Starter

Join Date: May 2020
Posts: 97
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Likes: 0
Liked 21 Times in 17 Posts
Originally Posted by curbtender View Post
I see a gap. Pull the wheel off, loosen that spacer and move the crescent side all the way back and then tighten it down. You can also get spacers for the other side.
https://northwestbicycle.com/product...gaAnJyEALw_wcB
Thanks, thought I had this one figured out with the help of the pics, but no luck. Even with the spacer in its home position, it moves the rim too much forward in the DO. I'm sure someone has been stumped on these before, with these type set-ups. The only thing left to do to make this thing safe to ride is remove that hangar bolt, but I hate to cobble stuff like that.


FREEBIRD1 is offline
Old 08-25-20, 07:28 PM
  #12
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,892

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2531 Post(s)
Liked 612 Times in 464 Posts
So I have to ask, was this frame equipped with a rear der OEM? Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 08-26-20, 04:21 AM
  #13
FREEBIRD1
Senior Member
Thread Starter

Join Date: May 2020
Posts: 97
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Likes: 0
Liked 21 Times in 17 Posts
Originally Posted by Andrew R Stewart View Post
So I have to ask, was this frame equipped with a rear der OEM? Andy
All stock parts, I bought the bike new. I also checked the axle, it's straight. Very perplexing?
FREEBIRD1 is offline
