Wheel out of balance? I need some expert advice!

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Wheel out of balance? I need some expert advice!

Old 08-26-20, 08:20 AM
Senior Member
Thread Starter
Jashue's Avatar
Join Date: Jan 2005
Location: Syracuse
Posts: 150

Bikes: '18 Madone 9.5, '20 Domane SL5

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 3 Times in 3 Posts
Wheel out of balance? I need some expert advice!

This is a problem that has been bothering me all summer and I can't take it anymore.
When my bike is up on a stand or otherwise suspended the freewheel of my rear wheel makes a peculiar oscillating noise. Rather than the expected "rrrrrrrrrrrrrr" it sounds like "rrrrrRRRRRrrrrrRRRRRrrrrrRRRRR" (please forgive the strange means of expressing that sound). The freewheel is loud and the difference between that and every other bike I've had is unbelievably dramatic. This simply cannot be right.

Furthermore— when breaking at lower speeds the brake force oscillates at a period consistant with wheel RPM. I'm sure it happens at higher speeds as well, but it is more perceptible when going slowly. That does not in anyway inspire confidence.

The last time I was at my LBS (without my bike on that occasion) I mentioned the sound and the mechanic to whom I spoke told me that every freewheel had its own particular sound that that I probably shouldn't worry. I'm thinking about bringing it is soon-- and I hate to be a PITA-- but I feel I have to.

I thought that the wheel might have been out of balance but I made sure that the magnet was directly opposite of the valve stem, so there's not much more I can do.

I'm posting this inquiry so that I might better able to speak intelligently regarding the matter when I drop it off. Does anyone have any wisdom they could share? Please???? And thanks!

Wheels: Bontrager Aeolus 5 TLR clinchers. Shimano Ultegra CS-8000
Rim brakes, not disc.

Last edited by Jashue; 08-26-20 at 08:29 AM.
Jashue is offline
Old 08-26-20, 09:07 AM
Senior Member
cxwrench's Avatar
Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,767

Bikes: lots

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1956 Post(s)
Liked 2,929 Times in 1,488 Posts
Bring it in to the shop. I'm (pretty) sure there's nothing at all wrong with it, but having a shop mechanic check it out will give you some piece of mind. I've heard hundreds if not thousands of hubs do this over the last 25 years and it's never a problem.
cxwrench is offline
Old 08-26-20, 09:31 AM
Senior Member
Join Date: Feb 2009
Posts: 6,644
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 572 Post(s)
Liked 167 Times in 135 Posts
Wheel balance is irrelevant on a bicycle wheel. Does it make noise when you are riding it?
davidad is offline
Old 08-26-20, 09:34 AM
I'm good to go!
Iride01's Avatar
Join Date: Jul 2017
Location: Mississippi
Posts: 12,957

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 5301 Post(s)
Liked 3,824 Times in 2,660 Posts
What rear hub do you have? Whether you have a freewheel or free hub, some make different sounds both in volume of sound and seemingly the oscillation of the sound. What you describe sounds like what I percieve as a normal DT Swiss free hub sound.

As for brakes pulsing, a wheel needing truing, a seam in the rim, a bend in the rim. That needs some decent eyes on it. My son had a rim taco on him at speed around a curve simply because he thought dad's advice to check his wheels every so often was silly.

If you don't know what to look for, then let someone else with experience look. Take it to an LBS for a checkup and tune up. Don't let them just do it and then give it back to you. Ask them questions so you can get some experience from them just like you can get some here.
Iride01 is offline
Old 08-26-20, 10:24 AM
Bill Kapaun
Really Old Senior Member
Bill Kapaun's Avatar
Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,469

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1635 Post(s)
Liked 992 Times in 703 Posts
I wouldn't worry about the hub noise.
Note where the wheel "offends you". Look at that spot on the rim that is touching the brake shoes at that time.
It's not rocket surgery. It's paying a little bit of attention.
You are there. We aren't.
Bill Kapaun is offline
Old 08-26-20, 11:40 AM
Senior Member
Join Date: Oct 2017
Location: Chapel Hill NC
Posts: 1,683

Bikes: 2000 Litespeed Vortex Chorus 10, 1995 DeBernardi Cromor S/S

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 645 Post(s)
Liked 794 Times in 445 Posts
The undulating sound pattern is not universal, but certainly not unusual - I've had freehubs and freewheels do it, others not. For wheel balance, remove the magnet, put the bike in a stand and give the wheel a spin. Note where it settles. Repeat a couple of times to ensure that it settles at the same point, then reattach the magnet to a spoke opposite the low point . The magnet may not perfectly balance the wheel, but it'll mitigate the imbalance as much as is achievable. If you want to get really weird, rotate the tire by maybe 90 degrees and repeat the spinning expt (with the magnet in place) - there might be a spot where any imbalance in the tire cancels out any imbalance in the wheel (at this point, the wheel won't coast to a stop at a single consistent point, or will oscillate widely and slowly around a single point). Of course, this finding will only apply to that tire, and your tire logo will likely not align with your valve - an offense far worse than any free hub noise or wheel imbalance . Ride unaligned at your own risk.
Litespud is offline
Old 08-26-20, 11:58 AM
Senior Member
Join Date: Jun 2020
Location: Alberta, Canada
Posts: 156

Bikes: Bianchi Alfana, Specialized Hardrock, Specialized Sirrus Pro SS Conversion

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 50 Times in 33 Posts
Also, threaded freewheel hubs will have a degree of wobble due to the fact they are threaded, and it could also be that your wheel is not perfectly round, but has a high or low spot vs being true to the brake pad. This will create a degree of imbalance. I believe cassettes don't suffer the same imbalance/wobble as they are not threaded on.
natloz is offline
Old 08-27-20, 04:48 AM
Senior Member
Join Date: Dec 2009
Posts: 552
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked 123 Times in 89 Posts
If your road bikes wheels have reflectors they will likely be the source of imbalance. With reflectors on a light road wheel set this can be felt by lifting the rear wheel off the ground and giving the wheel a brisk spin by pushing down on the pedal. Remove the reflectors and try again and you will feel the imbalance is gone.
ARider2 is offline
Old 08-27-20, 05:10 AM
Junior Member
fujidon's Avatar
Join Date: Aug 2020
Location: central NJ
Posts: 149

Bikes: Fuji Pro, Raleigh Team, touring bike, hybrid

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Liked 76 Times in 44 Posts
Originally Posted by ARider2
If your road bikes wheels have reflectors they will likely be the source of imbalance. With reflectors on a light road wheel set this can be felt by lifting the rear wheel off the ground and giving the wheel a brisk spin by pushing down on the pedal. Remove the reflectors and try again and you will feel the imbalance is gone.
I had a road bike with reflectors that created a very noticeable and unnerving out of balance at higher speeds, such as rolling down a hill. I added a second reflector on the opposite side to balance it. Later on, I bought some decent lights and removed the reflectors.
fujidon is offline
Old 08-27-20, 08:00 AM
Join Date: Aug 2017
Posts: 37

Bikes: '59 Rory O'Brien, 49/72 Holdsworth Trike, '66 Bates BAR, '74 Bob Jackson

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 14 Times in 8 Posts
I'd be more worried about the brake pulsing and its worth having your LBS check that out as a potential safety issue. They can look at your noise while they've got it. If the noise is driving you nuts ask what they would charge you to replace the freewheel.
oldukbkr is offline
Likes For oldukbkr:
Old 08-27-20, 08:07 AM
Retro Grouch
Senior Member
Retro Grouch's Avatar
Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 30,225

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1571 Post(s)
Liked 640 Times in 361 Posts
Put your bike on a bike stand. Watch the valve stem as the front wheel comes to rest. If you have a wheel magnet on your front wheel, take it off. Knowing nothing about your bike, my bet is that your valve stem will stop near the top making that the lightest part of the wheel.
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Old 08-27-20, 08:54 AM
Senior Member
sweeks's Avatar
Join Date: Sep 2004
Location: Chicago area
Posts: 2,354

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 912 Post(s)
Liked 437 Times in 319 Posts
Originally Posted by oldukbkr
I'd be more worried about the brake pulsing and its worth having your LBS check that out as a potential safety issue.
Brake "pulsing" can be a sign that the rim is wearing thin on a localized part of the braking surface. Eventually the rim's wall can break off causing anything from a minor nuisance to a major catastrophe. This process can progress pretty quickly because every time the wide spot passes through the brakes, the rim is flexed as it is compressed against the tire's air pressure. On the rim below, when I noticed the bulge (before riding home from work), I lowered the tire pressure by about 50% and didn't use the rear brake.

Locate the area where the brake is binding and inspect both sides of the rim very carefully for cracks running along the circumference of the rim. If you see them, you're on borrowed time... replace the rim.

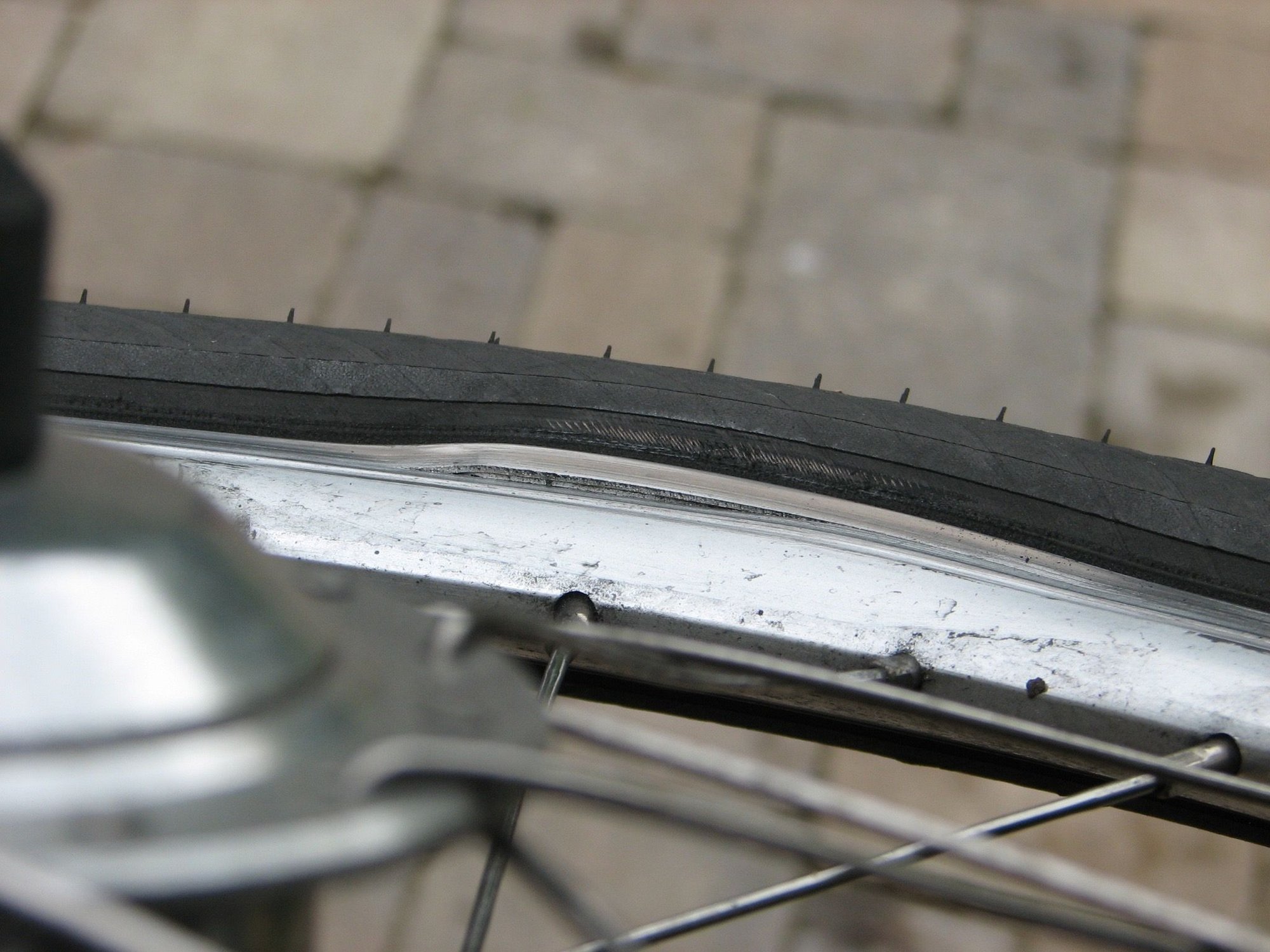

Brake track wear approaching failure.

Radial view of cracked rim displaced by tire pressure. This rim was thumping during braking.
sweeks is offline
Old 08-27-20, 09:40 AM
Senior Member
Join Date: Mar 2019
Posts: 1,597
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 574 Post(s)
Liked 903 Times in 513 Posts
Freehub and freewheel noises vary from hub to hub. Generally, the more expensive aftermarket wheelsets will have a louder ratchet sound. Shimano, which are the highest quality hubs in my opinion, often have very quiet or almost silent freehubs, probably due to the thick grease they use during assembly.

When a freehub starts to fail, you might notice a difference in the ratcheting sound. It will go from 'ZZZZZZZZZZZZZZZ...' to 'ZZZcrunchZZZZZZcrunchZZZ...', usually with the crunch occurring once per revolution. Some aftermarket hubs allow maintenance of the gubbins inside the freehub, while others, like Shimano, are designed for freehub replacement rather than repair.
ClydeClydeson is offline
