Do older derailleurs care how many speeds

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Do older derailleurs care how many speeds

Old 09-04-20, 05:57 PM
  #1
rosefarts
With a mighty wind
Thread Starter

Join Date: May 2015
Posts: 1,786
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 699 Post(s)
Liked 402 Times in 240 Posts
Do older derailleurs care how many speeds

I am hoping to put a 6 speed 105 derailleur on an 8 speed Shimano drivetrain. Sora 8 speed STI and 8 speed cassette.

I know that with higher number of gears, this probably won't work. I think maybe on the older ones, derailleurs were pretty much the same, just the shifters and cassettes changed.

What say ye?
rosefarts is offline
Old 09-04-20, 06:03 PM
  #2
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 898

Bikes: Peugeot teamline

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 208 Post(s)
Liked 74 Times in 61 Posts
Originally Posted by rosefarts View Post
I am hoping to put a 6 speed 105 derailleur on an 8 speed Shimano drivetrain. Sora 8 speed STI and 8 speed cassette.

I know that with higher number of gears, this probably won't work. I think maybe on the older ones, derailleurs were pretty much the same, just the shifters and cassettes changed.

What say ye?
If you have put it on and see does it work
blamester is offline
Old 09-04-20, 06:08 PM
  #3
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,699

Bikes: Several, mostly not name brands.

Mentioned: 133 Post(s)
Tagged: 0 Thread(s)
Quoted: 2638 Post(s)
Liked 1,301 Times in 813 Posts
In friction shifting, it doesn't matter much, as long as the derailleur can sweep the full width of the cluster. With indexed shifting, you have to be sure that the amount of cable pull each shift requires matches the travel of the derailleur, or you'll never get proper indexing.

Shimano has changed the cable pull specs between models and over the years. I'm not sure that a 6-speed 105 derailleur uses the same cable pull as an 8-speed STI lever.
JohnDThompson is offline
Old 09-04-20, 06:22 PM
  #4
rosefarts
With a mighty wind
Thread Starter

Join Date: May 2015
Posts: 1,786
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 699 Post(s)
Liked 402 Times in 240 Posts
Originally Posted by blamester View Post
If you have put it on and see does it work
I have an older downtube shifting bike in 105 as a gift for my wife. Once I hand it over, I assume she'll want STI.

So I'm just thinking ahead about what that may take.

Cassette, new wheel with cassette body hub, respace rear triangle, and shifters. Not sure if I'd need a new derailleur.

Maybe she'll love 6 speed downtube shifting. I do.

Last edited by rosefarts; 09-04-20 at 06:26 PM.
rosefarts is offline
Old 09-04-20, 06:28 PM
  #5
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,103

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1346 Post(s)
Liked 855 Times in 598 Posts
Shimano 6 through 9 speed derailleurs, and 10 speed road derailleurs, all have the same 1.7:1 actuation ratio, so if you match the shifter and the cassette speeds you should be OK. Science Behind the Magic | Drivetrain Compatibility ? Art's SLO Cyclery https://bike.bikegremlin.com/1278/bi...compatibility/
dsbrantjr is offline
Likes For dsbrantjr:
Old 09-04-20, 07:11 PM
  #6
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,051

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2973 Post(s)
Liked 1,261 Times in 883 Posts
Shimano has never, to my knowledge, stated that their past ders are forward compatible. This is much of what i have found when working with indexed systems. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 09-04-20, 07:30 PM
  #7
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,796

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1656 Post(s)
Liked 1,288 Times in 839 Posts
If it's a 105 RD-1050 which was an index derailleur it should be fine. Note that there is a difference between a "6 speed derailleur" and a "derailleur from a 6 speed" .

VeloBase.com - Component: Shimano RD-1050, 105
dedhed is offline
Old 09-04-20, 08:16 PM
  #8
icemilkcoffee
Senior Member

Join Date: Aug 2009
Posts: 672
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 398 Post(s)
Liked 283 Times in 177 Posts
The rear derailleur probably doesnít matter, but the front derailleur can be tricky. This is a 600 FD6401 I happen to have right in front of me:

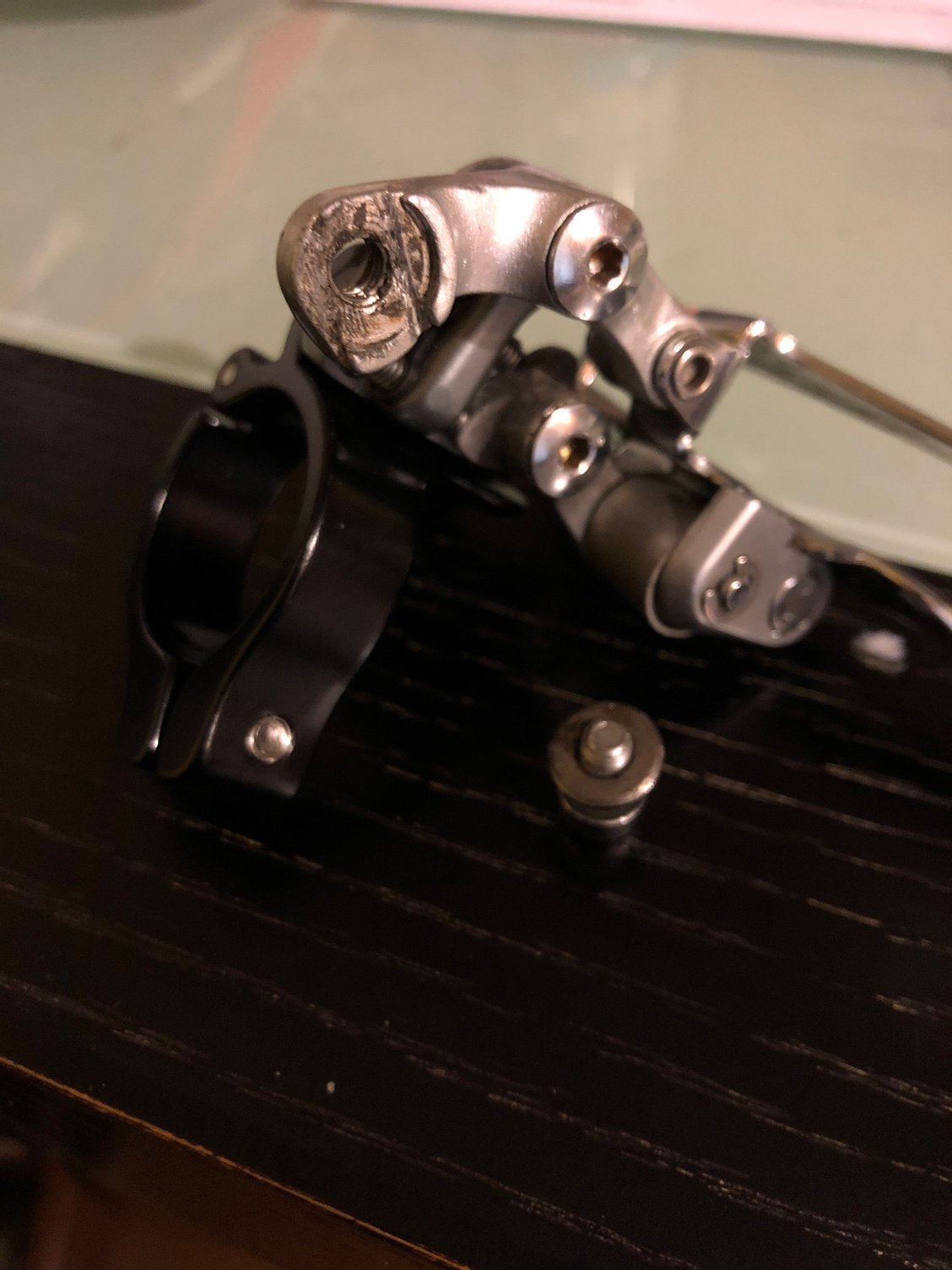

I unscrewed the cable clamp-down screw so you can see that there are two grooves you can set your shift cable in. The one closer to the pivot is for STI , and the one further away for down tube shifters. So clearly Shimano had changed the pull ratio right around this time. Your 1050 predates STIís so I donít know what pull ratio it has.
The 6400 series also predates STI. When they introduced STIs to the 6400 group, Shimano has to make a new FD6401 front derailleur. The cage , if I understand correctly, is narrower and has different contours.
TLDR: get the correct FD to go along with whatever STI you are running.
icemilkcoffee is offline
Old 09-04-20, 10:43 PM
  #9
mitchmellow62
Senior Member

Join Date: Aug 2014
Posts: 193
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 23 Times in 20 Posts
Nothing ventured nothing gained. Especially if you already have all the components. My bet is that it will work.
mitchmellow62 is offline
Likes For mitchmellow62:
Old 09-05-20, 04:27 AM
  #10
zacster
Senior Member

Join Date: Jul 2004
Location: Brooklyn NY
Posts: 7,165

Bikes: Kuota Kredo/Chorus, Trek 7000 commuter, Trek 8000 MTB and a few others

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 248 Times in 199 Posts
My guess is that it will shift and seem to be working on the stand, but on the road it'll be finicky and frustrating. There will always be at least one gear that is noisy.

Is your wife going to ride it if she's always having problems with the gears? Or will she just give up? I know what's happened when I've tried this.
zacster is offline
Old 09-05-20, 09:12 AM
  #11
philbob57
Senior Member

Join Date: Jul 2013
Location: Chicago North Shore
Posts: 1,773

Bikes: frankenbike based on MKM frame

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 501 Post(s)
Liked 276 Times in 170 Posts
My guess is that it will shift and seem to be working on the stand, but on the road it'll be finicky and frustrating. There will always be at least one gear that is noisy.
That was sort of my experience. I used a Suntour V-GT for about a year for indexed 7-speed shifting. It would miss a shift every so often, but the missed shift was unpredictable. Sometimes the miss would be an upshift, sometimes a downshift. I missed shifts on every cog, but most shifts worked essentially perfectly. The one consistent dysfunction was that the 2nd and 3rd smallest cogs were noisy on the road.
philbob57 is offline
Old 09-05-20, 09:30 AM
  #12
rosefarts
With a mighty wind
Thread Starter

Join Date: May 2015
Posts: 1,786
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 699 Post(s)
Liked 402 Times in 240 Posts
All great ideas.

She's not much of a cyclist but a pretty serious runner. She's got a 650c Motobecane that works but that size is getting rarer and for some reason, is always a pita to fix flats.

Anyway, I set her up with the bike trailer while the car was in the shop and I was at work. Since then, I've found her bike in the driveway nearly every day after work. So she's getting to like it, or kids napping, or something.

This corresponded with me stumbling over a Centurion Ironman in her size. The full 6 speed restore will be done this afternoon. It's prettier, cooler, probably smoother, somehow lighter, and has the ubiquitous 700c tires. I think it's a keeper.

Maybe she'll love the bike as it is, I do. I'm just think aloud.

I'd probably buy her new parts if she wanted to convert, not pillage the Moto, as that would render it un-sellable. So it's not as simple as putting it together and seeing if it works.

I'll include a new front and rear derailleur in my mental budget if she wants to go this route.
rosefarts is offline
Old 09-05-20, 10:37 AM
  #13
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 3,597

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1040 Post(s)
Liked 846 Times in 565 Posts
I didn’t follow exactly what front and rear derailleur you now have. However since you are going to swap out both derailleurs, now is the time to figure out what cassette would be best for your wife.

If she needs a wider range of gearing for hills, then get a derailleur that will support a larger max cog. I set my wife up with a 12-34 cassette so she would have enough range.

My wife used downtube index shifters on an 80’s Univega for years but that doesn’t translate into rider strength. STI brifters just made it easier, and safer, for her as the years have gone on.

John
70sSanO is offline
Old 09-05-20, 01:23 PM
  #14
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 1,689

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 286 Post(s)
Liked 156 Times in 115 Posts
I have an old custom running ST-7400 Sti brake/shifters with a FD-7400, RD-7401, 11-28 Shimano cassette and it is quite. You should have no worries.
easyupbug is offline
Old 09-05-20, 02:16 PM
  #15
Iride01
Hits [ENTER] b4 thinking

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 7,670

Bikes: '20 Tarmac Disc Comp '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 3007 Post(s)
Liked 1,599 Times in 1,165 Posts
If you already have it then put it on and find out. Shouldn't take that long to get the only answer that matters and then put it back the way is was if it doesn't work.
Iride01 is offline
Old 09-05-20, 02:26 PM
  #16
rosefarts
With a mighty wind
Thread Starter

Join Date: May 2015
Posts: 1,786
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 699 Post(s)
Liked 402 Times in 240 Posts
Originally Posted by Iride01 View Post
If you already have it then put it on and find out. Shouldn't take that long to get the only answer that matters and then put it back the way is was if it doesn't work.
This thread is essentially closed at this point. I think I've got my answer.

I was clear in my follow-up posts that I do not have the parts. I'm making a list of what I might need if my wife wants STI.

I've got it running now and working so nicely with 6 speed downtube shifting that I hope we're good, at least until she catches the bug.
rosefarts is offline
Old 09-05-20, 02:57 PM
  #17
ShannonM
Senior Member

Join Date: Jul 2020
Location: Humboldt County, CA
Posts: 442
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 196 Post(s)
Likes: 0
Liked 182 Times in 127 Posts
8 speed STI will work perfectly, so long as the shifters aren't Dura-Ace, since 6-8 speed Dura-Ace rear derailleurs had a unique actuation ratio that only DA levers work with. That caveat aside, the 6-speed 105 will index just as well with an 8 or 9 speed STI shifter as it did with the 6 speed downtube levers it came with.

Front derailleurs can be trickier, so just get one that came from an STI group. The 9-speed 105 is a great choice here... dirt cheap, pretty, shifts great, and about as reliable as a shovel. Actually, that's true of 105 parts in general, and has been since 105 made the "group bike" a thing back in 1987.

--Shannon
ShannonM is online now
Old 09-05-20, 04:29 PM
  #18
Koyote
Senior Member

Join Date: Sep 2017
Posts: 3,861
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 3330 Post(s)
Liked 4,386 Times in 1,937 Posts
Originally Posted by rosefarts View Post
This thread is essentially closed at this point. I think I've got my answer.

I was clear in my follow-up posts that I do not have the parts. I'm making a list of what I might need if my wife wants STI.

I've got it running now and working so nicely with 6 speed downtube shifting that I hope we're good, at least until she catches the bug.
If it's reasonably flat where you live, and you've chosen the optimal set of gears, six speeds may be fine.
Koyote is offline
Old 09-05-20, 05:02 PM
  #19
rosefarts
With a mighty wind
Thread Starter

Join Date: May 2015
Posts: 1,786
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 699 Post(s)
Liked 402 Times in 240 Posts
Originally Posted by Koyote View Post
If it's reasonably flat where you live, and you've chosen the optimal set of gears, six speeds may be fine.
Its not about the speeds, never was.

If you switch to STI, 8 speeds is your minimum. Sure you could set your stops to use only 6 (5) of the clicks but what fun is that?

I never asked about gearing or climbing or how to maintain a cadence up a friggin hill. I find it very difficult not to get angry at responses to things I didn't ask. Probably why I quit teaching 15 years ago.
rosefarts is offline
Old 09-05-20, 05:50 PM
  #20
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,796

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1656 Post(s)
Liked 1,288 Times in 839 Posts
Originally Posted by rosefarts View Post
If you switch to STI, 8 speeds is your minimum. Sure you could set your stops to use only 6 (5) of the clicks but what fun is that?
Brand new 7 speed sti
https://bike.shimano.com/en-EU/produ...rney-a070.html
dedhed is offline
Likes For dedhed:
Old 09-05-20, 07:47 PM
  #21
Koyote
Senior Member

Join Date: Sep 2017
Posts: 3,861
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 3330 Post(s)
Liked 4,386 Times in 1,937 Posts
Originally Posted by rosefarts View Post
Its not about the speeds, never was.

If you switch to STI, 8 speeds is your minimum. Sure you could set your stops to use only 6 (5) of the clicks but what fun is that?

I never asked about gearing or climbing or how to maintain a cadence up a friggin hill. I find it very difficult not to get angry at responses to things I didn't ask. Probably why I quit teaching 15 years ago.
I'll bet your students were pretty happy when you quit, too.

By the way, this is your statement to which I was responding:
"'I've got it running now and working so nicely with 6 speed downtube shifting that I hope we're good, at least until she catches the bug."
My response:
"If it's reasonably flat where you live, and you've chosen the optimal set of gears, six speeds may be fine."

I think your anger is misplaced, albeit still a bit sad.

Last edited by Koyote; 09-05-20 at 07:51 PM.
Koyote is offline
Old 09-05-20, 10:15 PM
  #22
frogman
frogman

frogman's Avatar

Join Date: Sep 2006
Location: Napa Valley, CA
Posts: 617

Bikes: Wife says I have too many :-)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 209 Post(s)
Liked 120 Times in 74 Posts
Originally Posted by Koyote View Post
I'll bet your students were pretty happy when you quit, too.

By the way, this is your statement to which I was responding:
"'I've got it running now and working so nicely with 6 speed downtube shifting that I hope we're good, at least until she catches the bug."
My response:
"If it's reasonably flat where you live, and you've chosen the optimal set of gears, six speeds may be fine."

I think your anger is misplaced, albeit still a bit sad.


Agree. Rosefarts you owe him an apology
frogman is offline
Old 09-05-20, 10:17 PM
  #23
SurferRosa
SeŮor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,375

Bikes: Old school lightweights

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1798 Post(s)
Liked 1,947 Times in 1,101 Posts
Do older derailleurs care how many speeds?
None of my old Campagnolo ones do, as long as it's 5-7 and the big rear cog doesn't exceed 28t. They have more of a problem with wide (14-28) gearing when the difference of the double up front exceeds 10t.
SurferRosa is online now

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
