Ruined rear derailleur due to cutting chain too short: how do I fix this?

Old 09-08-20, 06:23 PM
  #1
lizardcobra
Junior Member
Thread Starter

Join Date: Jun 2017
Posts: 7
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 0 Times in 0 Posts
Ruined rear derailleur due to cutting chain too short: how do I fix this?

I screwed up yesterday; I measured the new chain against the old chain, but I forgot that the Master Link required two male ends, and I had cut it leaving two open ends. Second dumb mistake was that I decided to cut two additional links off and ride it. After a few miles of riding I shifted, and wrecked my rear derailleur.

I'm trying to figure out now if any of the derailleur is salvageable. Can I replace just part of it, or will I need to replace the entire thing? If I do need to replace it, what should I look for to make sure that I buy something that is compatible? I'd like to stick with Campy, if possible.

I have an 8 speed cassette. The derailleur is Campagnolo 9 Speed "Mirage." I'm not sure if it is the original. This is on a 1997 Bianchi Volpe. The piece that has the make make/model on it has snapped clean in half. It doesn't look like any other part has been snapped or sheared, but I'm not sure.

Does it matter if I get an 8 speed? Should I look for a replacement 9 speed, since that seems to be what was on it now? I don't know if this was the original rear derailleur, so I'm wondering if I would actually be better off replacing with one spec'd as 8 speed. I can't find any info on what would originally come with this bike. Should I look specifically for another vintage "Mirage," or would other models also be compatible? I'm seeing a few for sale that *look* similar, but I don't really know what I'm looking for.

I tried to attach pictures showing this, but apparently I'm not allowed since I haven't made 10 posts yet.

Last edited by lizardcobra; 09-08-20 at 07:50 PM.
lizardcobra is offline
Old 09-08-20, 06:32 PM
  #2
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 8,758

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 2441 Post(s)
Likes: 0
Liked 879 Times in 598 Posts
Ouch! I have a Mirage on my best bike. Sweet shifting derailleur!

I wonder if there is an exploded view of those derailleurs. That might tell you what is possible to replace. Now, finding that part might be a tougher challenge, I don't see a lot of those derailleurs

And now you know - you always check big-big before the bike hits the road. Doesn't work? Screw in the low gear limit screw until you cannot reach that cog (or cogs)..
79pmooney is offline
Old 09-08-20, 07:20 PM
  #3
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 559

Bikes: lots

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 180 Post(s)
Liked 100 Times in 68 Posts
Sounds like you need to start shopping for a new derailleur.
cxwrench is offline
Likes For cxwrench:
Old 09-08-20, 08:02 PM
  #4
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,993

Bikes: old ones

Mentioned: 260 Post(s)
Tagged: 0 Thread(s)
Quoted: 18946 Post(s)
Liked 2,402 Times in 1,763 Posts
....all of this is "generally speaking" info, so take it like that. I've never had a Mirage derailleur.
But in general, as long as you stay within a manufacturer's products within a given age range, the shifters are what determine the indexing pull rate (in combination with the rear derailleur).

So IME 8 and 9 rear derailleurs, if designed for indexing, and designed for that maker's rear cog spacing, are more or less interchangeable. I hope I used enough qualifiers.

Sometimes you can find someone else's broke down rear de and use the parts of it to fix yours, or yours to fix that one.. But you need to be in an environment that allows scrounging, like a co-op. There's a C+V sales section here and there's also an ISO thread you can try a post in...it doesn't hurt to try there.
3alarmer is offline
Likes For 3alarmer:
Old 09-08-20, 08:12 PM
  #5
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,879

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2529 Post(s)
Liked 601 Times in 458 Posts
So I read two mistakes. The first is the chain cutting one. The second was shifting into the big/big combo.

I agree with finding a new rear der and also checking the hanger's alignment. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 09-08-20, 08:52 PM
  #6
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 2,359

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 536 Post(s)
Liked 271 Times in 191 Posts
At one time I was thinking of using Campagnolo Ergo levers with a Shimano rear derailleur. None of that will help you, but in 2000 Campagnolo changed their shift ratio from 1.4 to 1.5 for their 10 speed systems, and 9 speed systems a year later. I'm only bringing this up in case you are able go to a Campagnolo 9 speed rear derailleur with your 8 speed system, you will need the old Campagnolo ratio. Someone with some real Campagnolo background can give you better advice.

John
70sSanO is offline
Old 09-08-20, 08:53 PM
  #7
billridesbikes
Senior Member

Join Date: Nov 2019
Posts: 251
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Liked 152 Times in 89 Posts
Originally Posted by Andrew R Stewart View Post
So I read two mistakes. The first is the chain cutting one. The second was shifting into the big/big combo.

I agree with finding a new rear der and also checking the hanger's alignment. Andy
For a Campagnolo drivetrain you always use the longest chain possible and determine the chain length needed in the big-big combo. This reduces the spring tension in the RD for optimized shifting.
billridesbikes is offline
Likes For billridesbikes:
Old 09-08-20, 09:15 PM
  #8
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 559

Bikes: lots

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 180 Post(s)
Liked 100 Times in 68 Posts
Originally Posted by Andrew R Stewart View Post
So I read two mistakes. The first is the chain cutting one. The second was shifting into the big/big combo.

I agree with finding a new rear der and also checking the hanger's alignment. Andy
In general or in this instance in particular?
cxwrench is offline
Old 09-08-20, 09:53 PM
  #9
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,879

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2529 Post(s)
Liked 601 Times in 458 Posts
Three replies-

I run a few bikes with Campy ders, Ergo 9 speed levers and Shimano cassettes with Shiftmate adaptors. All work well. I also have one with Shimano rear der/Ergo levered again Shiftmated. Again works well. Yes which generation of Campy rear der needs to be heeded.

Generally I have tried to use the longest chain possible. Between the options of being able to remove a link if something bad happens and the dislike of running a system at it's limits as the default... Today's connecting links make this exploration far easier then when replacement pins were the only way to connect chains. Often it's a trade off between lowest gear pulley knock and too little chain length for the big/big combo. This is where paint by numbers only can bite one.

Today's indexed rear ders are far more insensitive to hanger misalignment. But My focus was more about when a too short chain is shifted onto the big/big the der sees serious stress. The chain wants to have the least lengthy wrap about the system and the rear der adds a bit of chain length need even when played out fully. Thus the der gets broken off in the extreme. Or the hanger gets bent many times. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 09-08-20, 10:07 PM
  #10
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 559

Bikes: lots

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 180 Post(s)
Liked 100 Times in 68 Posts
I agree 100% with running the longest chain possible.
cxwrench is offline
Old 09-09-20, 01:41 AM
  #11
AndreyT
Senior Member

AndreyT's Avatar

Join Date: Nov 2011
Location: CA
Posts: 393
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Liked 32 Times in 14 Posts
Originally Posted by cxwrench View Post
In general or in this instance in particular?
For this drivetrain in particular of course.

Shifting into the big-big combo stopped being a mistake and instead became a critical skill about 15-20 years ago. The ability to shift into bib-big has always been the Holy Grail of bicycle drivetrain design. The whole derailleur R&D of the recent era has been wholeheartedly devoted to that single purpose alone. This is actually the primary rationale behind electronic drivetrain systems.
AndreyT is offline
Old 09-09-20, 07:08 AM
  #12
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,879

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2529 Post(s)
Liked 601 Times in 458 Posts
Originally Posted by AndreyT View Post
For this drivetrain in particular of course.

Shifting into the big-big combo stopped being a mistake and instead became a critical skill about 15-20 years ago. The ability to shift into bib-big has always been the Holy Grail of bicycle drivetrain design. The whole derailleur R&D of the recent era has been wholeheartedly devoted to that single purpose alone. This is actually the primary rationale behind electronic drivetrain systems.
What??? This is not at all what I and many others who do this stuff daily have learned about both drivetrain development and e shifting. But it's your belief so it's not my problem. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 09-09-20, 08:21 AM
  #13
Litespud
Senior Member

Join Date: Oct 2017
Location: Chapel Hill NC
Posts: 958

Bikes: 2000 Litespeed Vortex Chorus 10, 1995 DeBernardi Cromor S/S, Nashbar 3sp commuter

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 369 Post(s)
Liked 329 Times in 186 Posts
Originally Posted by AndreyT View Post
For this drivetrain in particular of course.

Shifting into the big-big combo stopped being a mistake and instead became a critical skill about 15-20 years ago. The ability to shift into bib-big has always been the Holy Grail of bicycle drivetrain design. The whole derailleur R&D of the recent era has been wholeheartedly devoted to that single purpose alone. This is actually the primary rationale behind electronic drivetrain systems.
seems a little over dramatic to say that that big-big was some sort of previously unattainable ďholy grailĒ. AFAIK, thereís never been any issue getting ones drivetrain into big-big, it was simply frowned upon as cross-chaining, which was considered bad for the drivetrain. Seems like Iíve always had this critical skill and the Holy Grail in my pocket this whole time....who knew?🤔
Litespud is offline
Old 09-09-20, 08:51 AM
  #14
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 23,085

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 113 Post(s)
Tagged: 1 Thread(s)
Quoted: 3588 Post(s)
Liked 1,030 Times in 635 Posts
Originally Posted by AndreyT View Post
For this drivetrain in particular of course.

Shifting into the big-big combo stopped being a mistake and instead became a critical skill about 15-20 years ago. The ability to shift into bib-big has always been the Holy Grail of bicycle drivetrain design. The whole derailleur R&D of the recent era has been wholeheartedly devoted to that single purpose alone. This is actually the primary rationale behind electronic drivetrain systems.
Less a Holy Grail than a Lazy Grail or a “Don’t Understand Gearing” Grail. What possible reason is there for shifting into big-big combination? The big-big gear is a duplicate of some other gear and a shift should have been made to a lower range long before getting to that combination. It is also at the severe range of the system. There’s almost nowhere to go if you need lower gears. If you shift to the inner range you are at the limit of that range and would need to upshift to get some wiggle room.

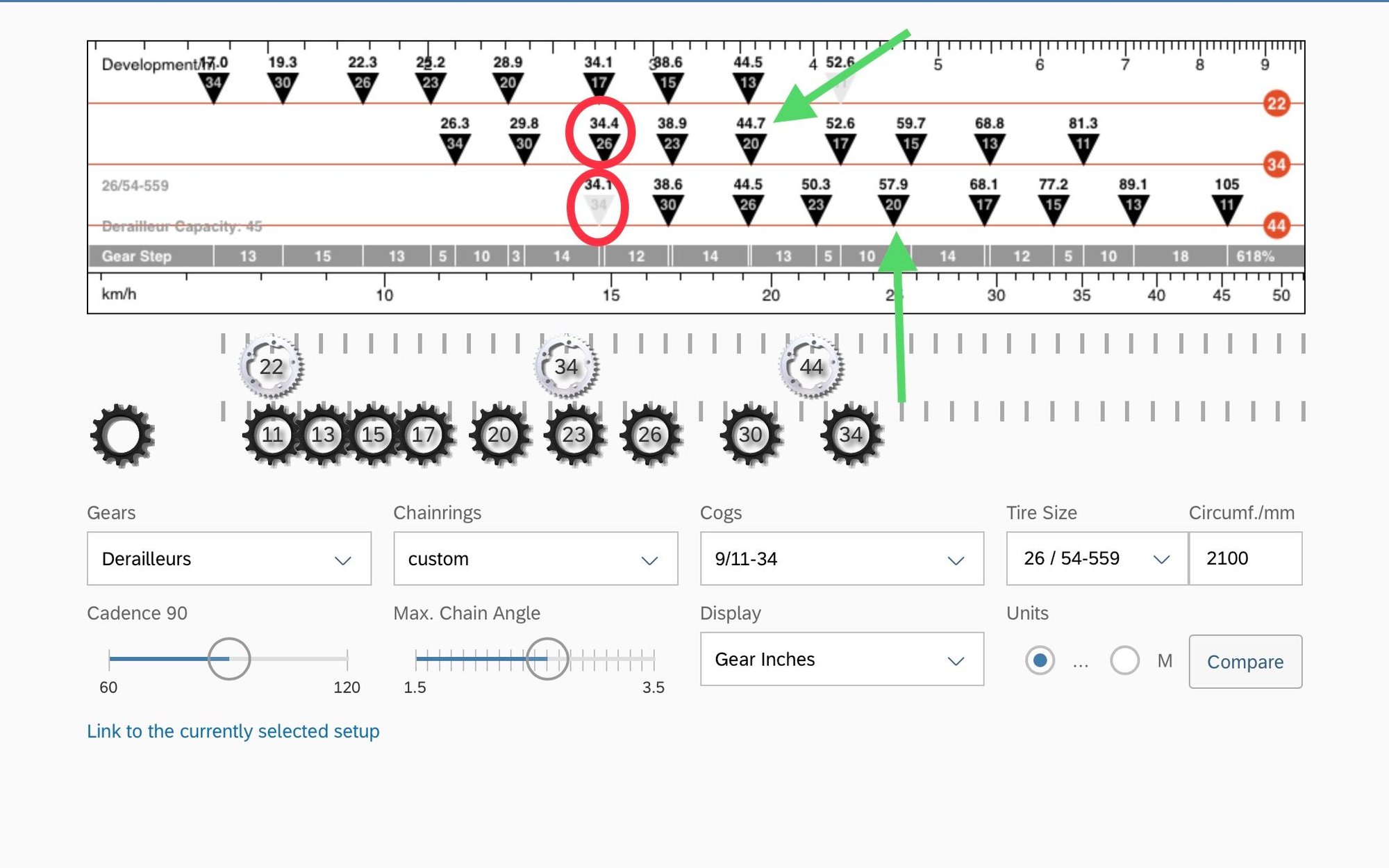

Here’s a visual example.




The red circles show the duplicate gear. The green arrows show a good shift point to get the most out of both ranges. The shift point could be the 17, 20, 23, or even 26 but anyone of them would result in having more usable gears than downshifting to the big-big combination. If the rider shifts at the 20 tooth cog, there are 5 more usable gear combinations and 2 of them are lower than the bib-big combination.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 09-09-20, 09:13 AM
  #15
Litespud
Senior Member

Join Date: Oct 2017
Location: Chapel Hill NC
Posts: 958

Bikes: 2000 Litespeed Vortex Chorus 10, 1995 DeBernardi Cromor S/S, Nashbar 3sp commuter

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 369 Post(s)
Liked 329 Times in 186 Posts
I also find a psychological advantage in an earlier shift to the "low range" during a climb. I feel a lot better knowing that I have 3-4 "low range" sprockets yet available to me, as opposed to being at the low limit of the "high range" - even if I end up not using those extra gears, it's good to know that they're right there.
Litespud is offline
Old 09-09-20, 09:19 AM
  #16
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 559

Bikes: lots

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 180 Post(s)
Liked 100 Times in 68 Posts
Sorry guys, but big/big is very useful for many riders. Shimano Di2 allows big/big standard...it blocks small/small. Sure you can duplicate the ratio in the small ring but many times it's easier to stay in the big ring. The best example is racers needing a slightly easier gear to get over a small bump and not wanting to risk shifting a bunch of cogs and shifting at the front. Like it or not this has been a prime concern of drivetrain designers. You may think it's bad, not needed, whatever...the truth is you just haven't been in some situations where it helps so you don't have that experience.
cxwrench is offline
Likes For cxwrench:
Old 09-09-20, 09:33 AM
  #17
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Posts: 11,598
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 2236 Post(s)
Liked 804 Times in 471 Posts
Do you know what part of your derailleur broke? I have a 9 speed mirage (I think) triple derailleur that had a bad return spring (I think that was all that was wrong with it - it may have also had a crack above the hanger bolt as those were common, but that may have been a different one in my parts bin), that I took apart because I wanted to transfer the cage to a short cage 10 speed centaur derailleur before I looked at it and reallized that they didn't have the same shapes and then never bothered to put back together. I wonder if it would be possible for you to cobble one functional derailleur together with the parts both of us have.
himespau is offline
Old 09-09-20, 10:06 AM
  #18
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 23,085

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 113 Post(s)
Tagged: 1 Thread(s)
Quoted: 3588 Post(s)
Liked 1,030 Times in 635 Posts
Originally Posted by cxwrench View Post
Sorry guys, but big/big is very useful for many riders. Shimano Di2 allows big/big standard...it blocks small/small. Sure you can duplicate the ratio in the small ring but many times it's easier to stay in the big ring. The best example is racers needing a slightly easier gear to get over a small bump and not wanting to risk shifting a bunch of cogs and shifting at the front. Like it or not this has been a prime concern of drivetrain designers. You may think it's bad, not needed, whatever...the truth is you just haven't been in some situations where it helps so you don't have that experience.
Frankly, I donít care what Di2 does or doesnít allow. Di2 isnít the be all/end all of bicycle shifting. I also donít care what racers do or donít do. They donít usually buy their own stuff so it doesnít matter if they screw something up or destroy something. The sponsor will pay for the new parts. And Iím not particularly impressed by drivetrain designers because they design drivetrains for racing, which is only a very small percentage of the bicycle market. Drivetrain designers, in my opinion, donít understand the drivetrains they are designing when it comes to the bulk of the market. They certainly donít understand low gearing and how low that gearing should be for mere mortals.

I havenít been in a situation where big-big is needed because it is never really needed for the vast majority of cyclists. I donít need ďthat experienceĒ because itís unnecessary. Racing...and racing techniques...is only a very small part of bicycle riding and for those of us who have to pay for our own parts, using racing techniques can get very costly, very quickly.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 09-09-20, 10:08 AM
  #19
phughes
Senior Member

phughes's Avatar

Join Date: Mar 2011
Posts: 1,758
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 468 Post(s)
Liked 258 Times in 165 Posts
Originally Posted by AndreyT View Post
For this drivetrain in particular of course.

Shifting into the big-big combo stopped being a mistake and instead became a critical skill about 15-20 years ago. The ability to shift into bib-big has always been the Holy Grail of bicycle drivetrain design. The whole derailleur R&D of the recent era has been wholeheartedly devoted to that single purpose alone. This is actually the primary rationale behind electronic drivetrain systems.
phughes is offline
Old 09-09-20, 10:13 AM
  #20
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 559

Bikes: lots

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 180 Post(s)
Liked 100 Times in 68 Posts
Originally Posted by cyccommute View Post
Frankly, I donít care what Di2 does or doesnít allow. Di2 isnít the be all/end all of bicycle shifting. I also donít care what racers do or donít do. They donít usually buy their own stuff so it doesnít matter if they screw something up or destroy something. The sponsor will pay for the new parts. And Iím not particularly impressed by drivetrain designers because they design drivetrains for racing, which is only a very small percentage of the bicycle market. Drivetrain designers, in my opinion, donít understand the drivetrains they are designing when it comes to the bulk of the market. They certainly donít understand low gearing and how low that gearing should be for mere mortals.

I havenít been in a situation where big-big is needed because it is never really needed for the vast majority of cyclists. I donít need ďthat experienceĒ because itís unnecessary. Racing...and racing techniques...is only a very small part of bicycle riding and for those of us who have to pay for our own parts, using racing techniques can get very costly, very quickly.
You must have missed the last 10 years where low gearing has gotten lower and lower...and lower. And shifting performance has improved for all riders, not just racers. People like you and your stuck-in-the-mud opinions don't help things.
cxwrench is offline
Old 09-09-20, 10:35 AM
  #21
velopig
Senior Member

Join Date: Mar 2010
Posts: 290
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 167 Times in 91 Posts
Originally Posted by cyccommute View Post
Frankly, I donít care what Di2 does or doesnít allow. Di2 isnít the be all/end all of bicycle shifting. I also donít care what racers do or donít do. They donít usually buy their own stuff so it doesnít matter if they screw something up or destroy something. The sponsor will pay for the new parts. And Iím not particularly impressed by drivetrain designers because they design drivetrains for racing, which is only a very small percentage of the bicycle market. Drivetrain designers, in my opinion, donít understand the drivetrains they are designing when it comes to the bulk of the market. They certainly donít understand low gearing and how low that gearing should be for mere mortals.

I havenít been in a situation where big-big is needed because it is never really needed for the vast majority of cyclists. I donít need ďthat experienceĒ because itís unnecessary. Racing...and racing techniques...is only a very small part of bicycle riding and for those of us who have to pay for our own parts, using racing techniques can get very costly, very quickly.
WTF? You can purchase a Campagnolo Super Record EPS in a 50-34 Crankset and match it with a 11-32 cassette and you mention they don't make gearing for the average cyclists? This is lower gearing of triples from back in the day.
velopig is offline
Old 09-09-20, 10:48 AM
  #22
AndreyT
Senior Member

AndreyT's Avatar

Join Date: Nov 2011
Location: CA
Posts: 393
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Liked 32 Times in 14 Posts
Originally Posted by Litespud View Post
AFAIK, there’s never been any issue getting ones drivetrain into big-big, it was simply frowned upon as cross-chaining, which was considered bad for the drivetrain.
The matter of "cross-chaining" has stopped being perceived as an issue a long time ago. (With the exception, perhaps, of a bunch of armchair cyclists on the Internet.) "Cross-chaining" is simply a matter of increased wear and tear and nobody cares about that anymore, especially considering that in modern drivetrains the increase in wear is negligible and probability of immediate failure is zero.

The problem with big-big is not "cross-chaining", but rather mechanical interference between the chain and the FD cage, especially in extreme racing frames with short chainstays. The shorter is the chainstay - the bigger is the chain skew in big-big. Which is why the past decades were defined by a frantic race to implementing a usable "trim" feature for indexed drivetrains. Yes, they made it. And, obviously, the whole purpose of "trim" feature is to facilitate the divine big-big.

Of course, electronic shifters finally provided the ultimate solution to the problem.

Last edited by AndreyT; 09-10-20 at 11:02 AM.
AndreyT is offline
Old 09-09-20, 10:59 AM
  #23
Litespud
Senior Member

Join Date: Oct 2017
Location: Chapel Hill NC
Posts: 958

Bikes: 2000 Litespeed Vortex Chorus 10, 1995 DeBernardi Cromor S/S, Nashbar 3sp commuter

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 369 Post(s)
Liked 329 Times in 186 Posts
Originally Posted by AndreyT View Post
The matter of "cross-chaining" has stopped being perceived as an issue a long time ago. (With the exception of, perhaps, a bunch armchair cyclists on the Internet.) "Cross-chaining" is simply a matter of increased wear and tear and nobody cares about that anymore, especially considering that in modern drivetrains the increase in wear is negligible and probability of immediate failure is zero.

The problem with big-big is not "cross-chaining", but rather mechanical interference between the chain and the FD cage, especially in extreme racing frames with short chainstays. The shorter is the chainstay - the bigger is the chain skew in big-big. Which is why the past decades were defined by a frantic race to implementing a usable "trim" feature for indexed drivetrains. Yes, they made it. And, obviously, the whole purpose of "trim" is to facilitate the divine big-big.

Of course, electronic shifters finally provided the ultimate solution to the problem.
Or Campagnolo - where trimming the FD was never a problem
Litespud is offline
Likes For Litespud:
Old 09-09-20, 11:09 AM
  #24
Litespud
Senior Member

Join Date: Oct 2017
Location: Chapel Hill NC
Posts: 958

Bikes: 2000 Litespeed Vortex Chorus 10, 1995 DeBernardi Cromor S/S, Nashbar 3sp commuter

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 369 Post(s)
Liked 329 Times in 186 Posts
Originally Posted by cxwrench View Post
Sorry guys, but big/big is very useful for many riders. Shimano Di2 allows big/big standard...it blocks small/small. Sure you can duplicate the ratio in the small ring but many times it's easier to stay in the big ring. The best example is racers needing a slightly easier gear to get over a small bump and not wanting to risk shifting a bunch of cogs and shifting at the front. Like it or not this has been a prime concern of drivetrain designers. You may think it's bad, not needed, whatever...the truth is you just haven't been in some situations where it helps so you don't have that experience.
I agree - there have been times where i've gone big-big because I had no choice - I remember one time where I signed up for a 60-mile fast rotating pace-line ride where I was pretty much hanging on by the skin of my teeth (not quite out my depth, but the water was right at nostril level ) - I wasn't about to start screwing about with simultaneous front/rear shifts to find the next gear in such close quarters and under those conditions (one of those "you're going to get yelled-at" rides), so I went big-big because I had to.
I guess I don't see that big-big is such "a prime concern of drivetrain designers" - is it really some sort of technological challenge? Whenever I run through the gears on the stand after an overhaul or service, I run through all the gears - even the ones I don't ordinarily use on the road - getting a "clean" big-big or small-small has never been an issue. Granted, I'm running relatively low-tech mechanical 10sp - this might be more an issue with more crowded drivetrains.

Last edited by Litespud; 09-09-20 at 11:14 AM.
Litespud is offline
Old 09-09-20, 11:33 AM
  #25
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 2,359

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 536 Post(s)
Liked 271 Times in 191 Posts
OP, from what I have read, a pre-2001 9 speed should work with your setup.

You should probably research, by pictures or model number what late 90’s models look like and go on eBay and get another derailleur.

As already mentioned you can ask in the Classic & Vintage subforum about replacement rear derailleurs or about rebuilding yours. Unfortunately you need 10 posts to be able to post pictures.

If you are able to rebuild, you might want to still pickup a used derailleur and then wait for suitable parts only one to pop up.

Good luck.

John
70sSanO is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
