Remove bike wheel - 5 side Allen Bolt

I bought a city bike in a garage sale last month.
Last week I got a flat tire and I would like to remove the wheel to change the tire, but it seems that I need a special tool or something to do that.
I attached a couple of pictures of both sides below.
  • Do you know how can I "unscrew" it?
  • Can I buy any quick release skewer as a replacement so I won't have the same problem in the future?
Thanks a lot in advance for your assistance and for sharing your experience with me


Edit: Hmmm... apparently the forum does not allow me to upload pics

Edit2: I uploaded them as an album in my profile

Last edited by astone42; 09-13-20 at 03:49 AM.
astone42 is offline
Old 09-13-20, 04:21 AM
  #2
nomadmax
Senior Member

Join Date: Jun 2018
Location: SW Ohio
Posts: 2,119
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 965 Post(s)
Liked 1,431 Times in 691 Posts
BMW used to use penta fasteners on their radios; they required a specific tool to remove them. The fasteners on your bike may be there for "security" reasons so I'd start with looking at who made the part(s) first, it could be proprietary.
nomadmax is offline
Old 09-13-20, 04:34 AM
  #3
cobba
Senior Member

Join Date: Aug 2006
Posts: 1,867
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 166 Post(s)
Likes: 0
Liked 52 Times in 41 Posts
Previous thread: 5 Side Allen Bolt?? Anti-Theft Skewer? Help!!!
cobba is offline
Likes For cobba:
Old 09-13-20, 04:36 AM
  #4
Trevtassie
Senior Member

Join Date: Jun 2015
Location: Down Under
Posts: 1,936

Bikes: A steel framed 26" off road tourer from a manufacturer who thinks they are cool. Giant Anthem. Trek 720 Multiroad pub bike. 10 kids bikes all under 20". Assorted waifs and unfinished projects.

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1188 Post(s)
Liked 1,148 Times in 635 Posts
Looks like some variety of Pitlock. You're probably gonna have to drill the end out, or slot it to use a screwdriver and get a new skewer.
Trevtassie is offline
Old 09-13-20, 07:08 AM
  #5
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: North Carolina
Posts: 2,679

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 895 Post(s)
Liked 688 Times in 416 Posts

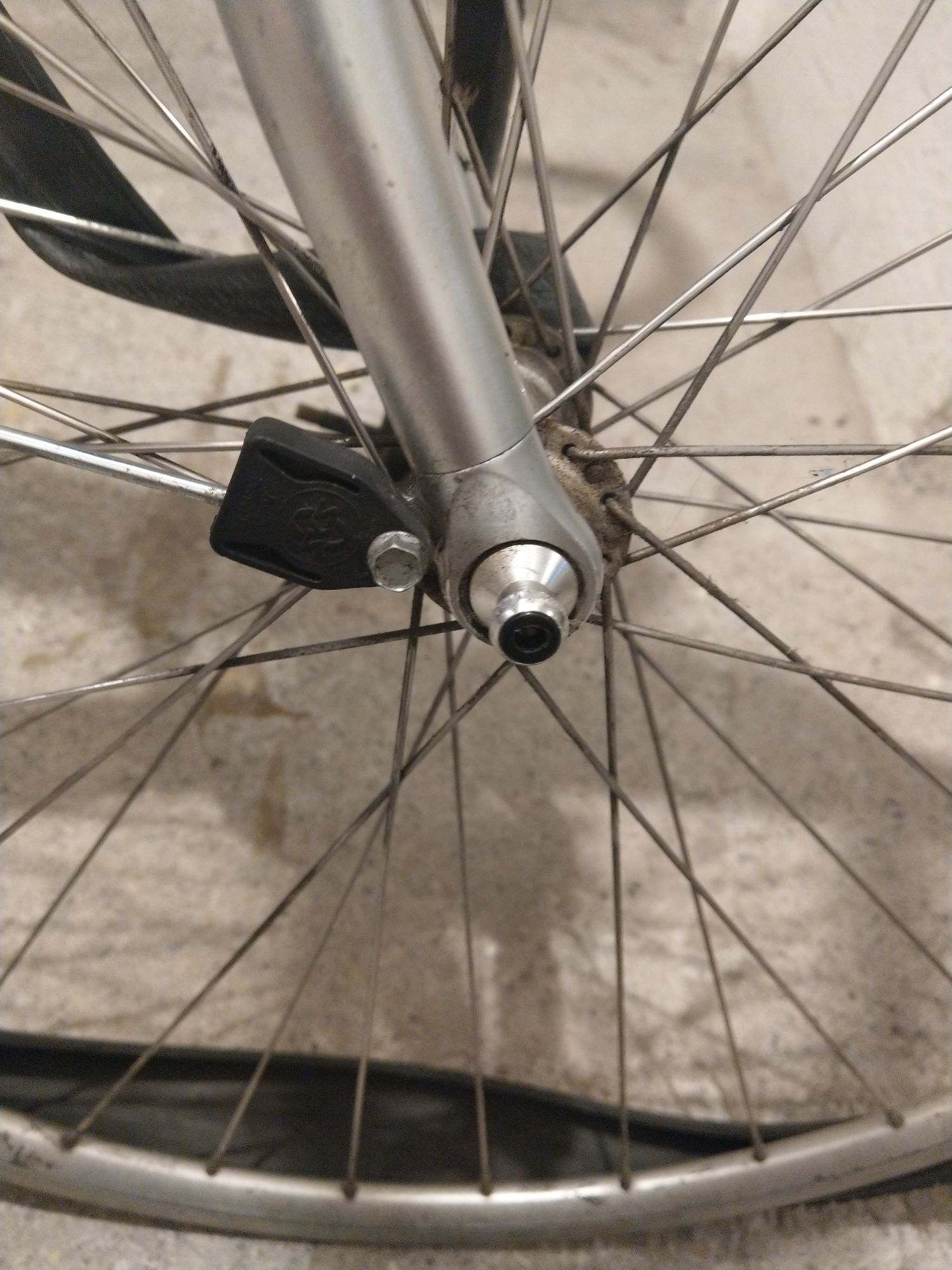

Picture from OP's album. Most of the bikes manufactured for bike share use had, as anti-theft measures, fasteners that required a proprietary tool. I reckon that you could be lucky in finding the right tool, or perhaps you could make one. There are pentastar security bits available so perhaps they would work.

This looks like a through axle configuration so I guess a last resort would be to destructively remove the axle nut so the axle slides out and then and replace with a standard one. Make sure you understand how this configuration works, though. For instance, 1) which nut is the one that you remove? 2) is the through axle a standard diameter?

Welcome to bike forums and good luck to you. Let us know how you resolve this.


Moe Zhoost is offline
Old 09-13-20, 08:11 AM
  #6
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,280

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1420 Post(s)
Liked 1,038 Times in 695 Posts
Some Girling brakes use a 10mm 5-point driver: https://www.amazon.com/Laser-2948-Pe.../dp/B0039UJKUE Could work, yours looks close to the same size.
dsbrantjr is offline
Old 04-26-21, 12:03 PM
  #7
astone42
Newbie
Thread Starter

Join Date: Sep 2020
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
In the end I bought some cheap "anti-theft" skewers from aliexpress that were including a 5-side Allen key and it worked perfectly
(just for reference in case anyone stumbles into this topic)
