Missing downshifters/cable stops

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Missing downshifters/cable stops

Old 09-13-20, 11:32 AM
  #1
grizzly907la
Grouchy Old man
Thread Starter

grizzly907la's Avatar

Join Date: Feb 2013
Location: Western NC.
Posts: 277

Bikes: Diamond Back Insight 2, Gravity Basecamp mountain bike, GMC Denali Road Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 49 Times in 36 Posts
Missing downshifters/cable stops

I got my hands on a 1985 Cannondale ST 400 road bike frame. It's either a large or extra large frame. I'm going to build it up or I might just repaint the frame. The issue I'm having is with the missing downtube shifters. That's not problem in and of itself. The problem is that I have two threaded holes. I know they sell cable stops that screw into the frame, however I don't which ones I should get. I know it's a stupid question, but I am just getting into this the first time. Any assistance would be appreciated.

Thank you.

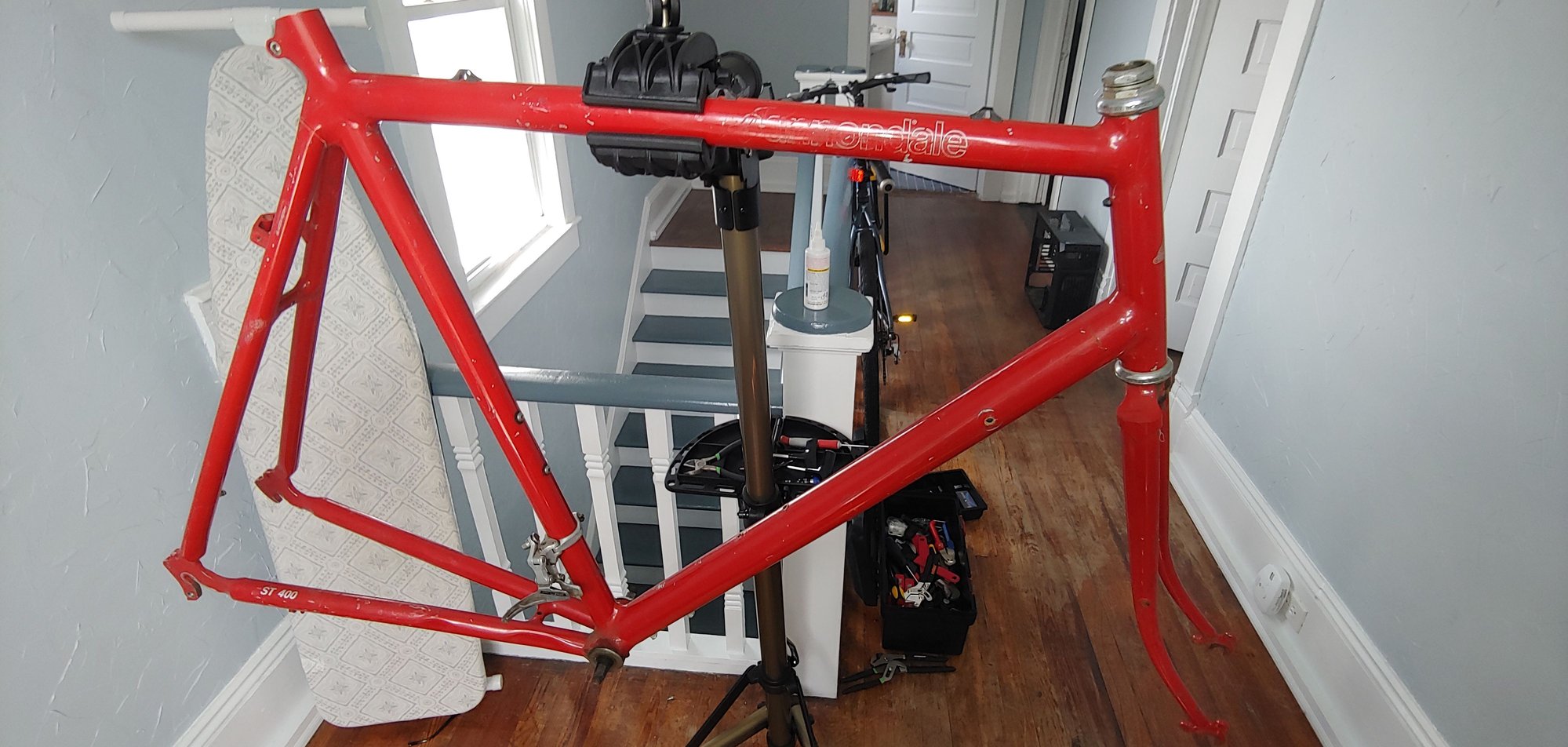

The frame itself.

Where the downtube shifters used to be.
grizzly907la is offline
Old 09-13-20, 12:28 PM
  #2
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,320 Times in 830 Posts
Was a shift lever there .. someone stripped it off a creative frame builder may be able to make something to go on there ..

arch stop on the seat stays suggests they took off rear brake posts too .. a Fixie hack Victim?






...

Last edited by fietsbob; 09-13-20 at 12:32 PM.
fietsbob is offline
Old 09-13-20, 12:51 PM
  #3
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,328

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1180 Post(s)
Liked 746 Times in 518 Posts
Are the headset cups parallel to each other? The top one looks to be a quite and angle.

Cheers
Miele Man is offline
Old 09-13-20, 01:54 PM
  #4
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,483

Bikes: Lots. Just...lots.

Mentioned: 178 Post(s)
Tagged: 0 Thread(s)
Quoted: 1528 Post(s)
Liked 903 Times in 439 Posts
Not an 85; plastic top tube cable guides mean at least an 86. Check the serial number stamped into the chainstay for manufacture date.
Bracket on seat stays is meant for a rear rack and/or cable stop depending on which model. This is a caliper model, so for a rear rack.
You need a special through-the-frame downtube mount. Hard to find, but you may be able to locate something suitable through a co-op or frame parts supplier.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 09-13-20, 02:29 PM
  #5
Ronno6
Senior Member

Ronno6's Avatar

Join Date: Nov 2010
Location: Deep South
Posts: 1,347

Bikes: Cannondale SR's and ST's from the '80's

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 339 Post(s)
Likes: 0
Liked 40 Times in 18 Posts
Your ST500 is at least an '86 but could be as late as 89.
Could be a 27" (68.5cm) frame.
The s/n will tell.....first 2 or 3 digits will be size in inches for the ST frames.
What you are missing are the shifter mounting bosses which were held onto the frame by a threaded fos theu the down tube.

Downtube Shifter Boss / cable stop mounts | Vintage Cannondale Community

Used to be available, but may be hard to find these days,
You can probably get a set of the cable stops which would have attached with screws to the original mounts

Or....just go Dl2 and not worry about cables......
and attach with a long screw and nut or threaded rod w/nuts.

Last edited by Ronno6; 09-13-20 at 03:14 PM.
Ronno6 is offline
Old 09-13-20, 04:01 PM
  #6
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 32,861

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 1671 Post(s)
Likes: 0
Liked 530 Times in 397 Posts
Originally Posted by Ronno6 View Post
Your ST500 is at least an '86 but could be as late as 89.
Could be a 27" (68.5cm) frame.
The s/n will tell.....first 2 or 3 digits will be size in inches for the ST frames.
What you are missing are the shifter mounting bosses which were held onto the frame by a threaded fos theu the down tube.

Downtube Shifter Boss / cable stop mounts | Vintage Cannondale Community

......and attach with a long screw and nut or threaded rod w/nuts.
That is correct, the downtube shifter mounting bosses were removed or just fell off when the threaded rod failed or unscrewed. You can fasten a pair of Shimano downtube cable stops through the existing holes using a long #10x32 or M5 bolt and nut after drilling out the holes in the cable stops. You will not be able to use downtube shifters after this repair but barend shifters or brifters will work fine.

I made the same repair to a late '80's Klein frame that used the same downtube boss mounting method.
HillRider is offline
Old 09-13-20, 06:58 PM
  #7
grizzly907la
Grouchy Old man
Thread Starter

grizzly907la's Avatar

Join Date: Feb 2013
Location: Western NC.
Posts: 277

Bikes: Diamond Back Insight 2, Gravity Basecamp mountain bike, GMC Denali Road Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 49 Times in 36 Posts
Thank you for all of the replies! I got an idea of what to do. I don't plan on using downtube shifters. As I said I might repaint the frame and sell, if I don't build it up. The existing holes are threaded and I might use some of these Housing stops to improvise, adapt and overcome. If push comes to shove I can drill out and tap the holes again. At least I have a better idea on how to proceed now. Thanks again!
grizzly907la is offline
Old 09-13-20, 07:56 PM
  #8
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,483

Bikes: Lots. Just...lots.

Mentioned: 178 Post(s)
Tagged: 0 Thread(s)
Quoted: 1528 Post(s)
Liked 903 Times in 439 Posts
That simply won’t work. Even if the holes are threaded, the downtube is thin aluminum and won’t securely hold anything.
You might want to try using a piece of threaded rod between two downtube cable stops, but A) I can’t figure out how to properly tighten them, and 2) concave Shimano stops won’t work, you need to use flatties.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Likes For rccardr:
Old 09-13-20, 08:51 PM
  #9
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 32,861

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 1671 Post(s)
Likes: 0
Liked 530 Times in 397 Posts
Originally Posted by rccardr View Post
That simply wonít work. Even if the holes are threaded, the downtube is thin aluminum and wonít securely hold anything.
You might want to try using a piece of threaded rod between two downtube cable stops, but A) I canít figure out how to properly tighten them, and 2) concave Shimano stops wonít work, you need to use flatties.
A) You enlarge the holes in the cable stops to clear a long #10 or M5 bolt and secure the other end with a nut. B) Concave cable stops can become flat cable stops by judicious application of a file or sanding disk.
HillRider is offline
Old 09-20-20, 02:07 PM
  #10
grizzly907la
Grouchy Old man
Thread Starter

grizzly907la's Avatar

Join Date: Feb 2013
Location: Western NC.
Posts: 277

Bikes: Diamond Back Insight 2, Gravity Basecamp mountain bike, GMC Denali Road Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 49 Times in 36 Posts
Just an update. I'm going to use JBweld and bond some steel braze on cable bosses to the frame. I know its ugly as sin, but I am going to strip the frame, paint and prime it. I'll smooth down the compound before painting and priming it. I might even post pics. Thanks again!
grizzly907la is offline
Old 09-20-20, 05:03 PM
  #11
mitchmellow62
Senior Member

Join Date: Aug 2014
Posts: 193
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 23 Times in 20 Posts

This is what I've done in the past. Works fine with the friction thumbies I use. One might need a little more creativity for a cable adjustor if using index shifters.
mitchmellow62 is offline
Likes For mitchmellow62:
Old 09-20-20, 07:06 PM
  #12
grizzly907la
Grouchy Old man
Thread Starter

grizzly907la's Avatar

Join Date: Feb 2013
Location: Western NC.
Posts: 277

Bikes: Diamond Back Insight 2, Gravity Basecamp mountain bike, GMC Denali Road Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 49 Times in 36 Posts
Originally Posted by mitchmellow62 View Post

This is what I've done in the past. Works fine with the friction thumbies I use. One might need a little more creativity for a cable adjustor if using index shifters.
I am thinking about using something like this https://www.ebay.com/itm/153750156762 with JBWeld and cover the holes up, so water doesn't seep inside of the frame if I should be riding out in the rain.
grizzly907la is offline
Old 09-21-20, 04:01 PM
  #13
Ronno6
Senior Member

Ronno6's Avatar

Join Date: Nov 2010
Location: Deep South
Posts: 1,347

Bikes: Cannondale SR's and ST's from the '80's

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 339 Post(s)
Likes: 0
Liked 40 Times in 18 Posts
Originally Posted by mitchmellow62 View Post

This is what I've done in the past. Works fine with the friction thumbies I use. One might need a little more creativity for a cable adjustor if using index shifters.
This would be perfect if they only made one to fit a tube as large ad a Cannondale downtube.
31.8 ian even close..............
Ronno6 is offline
Old 09-21-20, 04:53 PM
  #14
mitchmellow62
Senior Member

Join Date: Aug 2014
Posts: 193
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 23 Times in 20 Posts
Originally Posted by Ronno6 View Post
This would be perfect if they only made one to fit a tube as large ad a Cannondale downtube.
31.8 ian even close..............
You're right. Even though I had a 3.0 back in the 90's I had forgotten how large they are. I doubt there's any clamp ons large enough. My bad.
mitchmellow62 is offline
Old 09-21-20, 07:17 PM
  #15
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 2,309
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 438 Post(s)
Liked 308 Times in 240 Posts
Originally Posted by grizzly907la View Post
I am thinking about using something like this https://www.ebay.com/itm/153750156762 with JBWeld and cover the holes up, so water doesn't seep inside of the frame if I should be riding out in the rain.
No, JB weld isn't strong enough to hold those bosses to the frame for shifter stresses. As mentioned in post #5 from the linked forum thread you'll need this. https://www.cycle-frames.com/NOVA-LE...tegory_id=1068 Instructions are provided on the web page on the correct epoxy and fitting tips. The cable stops in your link will screw into this setup and be plenty strong but may need some sanding to get the inner, concave mounting surface to match the Cannondale sized tubing or go with flat mount cable stops like these. https://www.ebay.com/p/1303432996?ii...kcid=28&chn=ps
Crankycrank is offline
Old 09-21-20, 08:14 PM
  #16
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,483

Bikes: Lots. Just...lots.

Mentioned: 178 Post(s)
Tagged: 0 Thread(s)
Quoted: 1528 Post(s)
Liked 903 Times in 439 Posts
Sadly, the item mentioned in the link above to NOVA is out of stock.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 09-21-20, 08:34 PM
  #17
grizzly907la
Grouchy Old man
Thread Starter

grizzly907la's Avatar

Join Date: Feb 2013
Location: Western NC.
Posts: 277

Bikes: Diamond Back Insight 2, Gravity Basecamp mountain bike, GMC Denali Road Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 49 Times in 36 Posts
Re:

Originally Posted by Crankycrank View Post
No, JB weld isn't strong enough to hold those bosses to the frame for shifter stresses. As mentioned in post #5 from the linked forum thread you'll need this. https://www.cycle-frames.com/NOVA-LE...tegory_id=1068 Instructions are provided on the web page on the correct epoxy and fitting tips. The cable stops in your link will screw into this setup and be plenty strong but may need some sanding to get the inner, concave mounting surface to match the Cannondale sized tubing or go with flat mount cable stops like these. https://www.ebay.com/p/1303432996?ii...kcid=28&chn=ps
I am not using downtube shifters. I want put the bosses to place cable stops on them. I plan on using either brifters if I go with banana bar or flat bar shifters If I make it into a hybrid bicycle.

It's a shame that nova is out of those boss fittings, because I would rather get those instead.
grizzly907la is offline
Old 09-22-20, 06:28 AM
  #18
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,483

Bikes: Lots. Just...lots.

Mentioned: 178 Post(s)
Tagged: 0 Thread(s)
Quoted: 1528 Post(s)
Liked 903 Times in 439 Posts
If you can wait until I get home next week, may be able to cobble something together with actual Cannondale bits that would work with cable stops.
If so, shoot me an e-mail at rccardr@cox.net.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 09-22-20, 08:44 AM
  #19
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,796

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1656 Post(s)
Liked 1,288 Times in 839 Posts
Some 8-32 or 6-32 threaded rod, shimano cable stops and, and acorn nuts on the ends.

https://www.homedepot.com/p/Hillman-...0997/202242413
https://www.universalcycles.com/shop...s.php?id=16733
https://www.homedepot.com/p/Everbilt...0251/204274070
dedhed is offline
Old 09-27-20, 06:43 PM
  #20
grizzly907la
Grouchy Old man
Thread Starter

grizzly907la's Avatar

Join Date: Feb 2013
Location: Western NC.
Posts: 277

Bikes: Diamond Back Insight 2, Gravity Basecamp mountain bike, GMC Denali Road Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 49 Times in 36 Posts
Re:

Originally Posted by rccardr View Post
If you can wait until I get home next week, may be able to cobble something together with actual Cannondale bits that would work with cable stops.
If so, shoot me an e-mail at rccardr@cox.net.
Thanks. I'll check it out!
grizzly907la is offline
Old 09-27-20, 06:44 PM
  #21
grizzly907la
Grouchy Old man
Thread Starter

grizzly907la's Avatar

Join Date: Feb 2013
Location: Western NC.
Posts: 277

Bikes: Diamond Back Insight 2, Gravity Basecamp mountain bike, GMC Denali Road Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 49 Times in 36 Posts
I'll check that out

Originally Posted by dedhed View Post
I'll check that out! My other issue is that I want to make sure that those holes are properly protected, so water doesn't get inside of them. Call me paranoid, however I want to make sure that the frame is protected, as best as possible.
grizzly907la is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
