Cut a quill stem?

Hi everybody
I want to lower my handlebars. The quill stem I have is very long and is for raising the bars. Is there any reason I cant cut a couple inches off? I know the cut needs to be precise for the expander/pinch bolt to work. I know the bolt itself will need cut or replaced. I realize the minimum insertion mark will not be correct. I'm just being cheap and impatient. I dont want to order/wait for a new one. Your thoughts or experiences?
bike is a 91' trek 1100
Stem is Nitto technomic

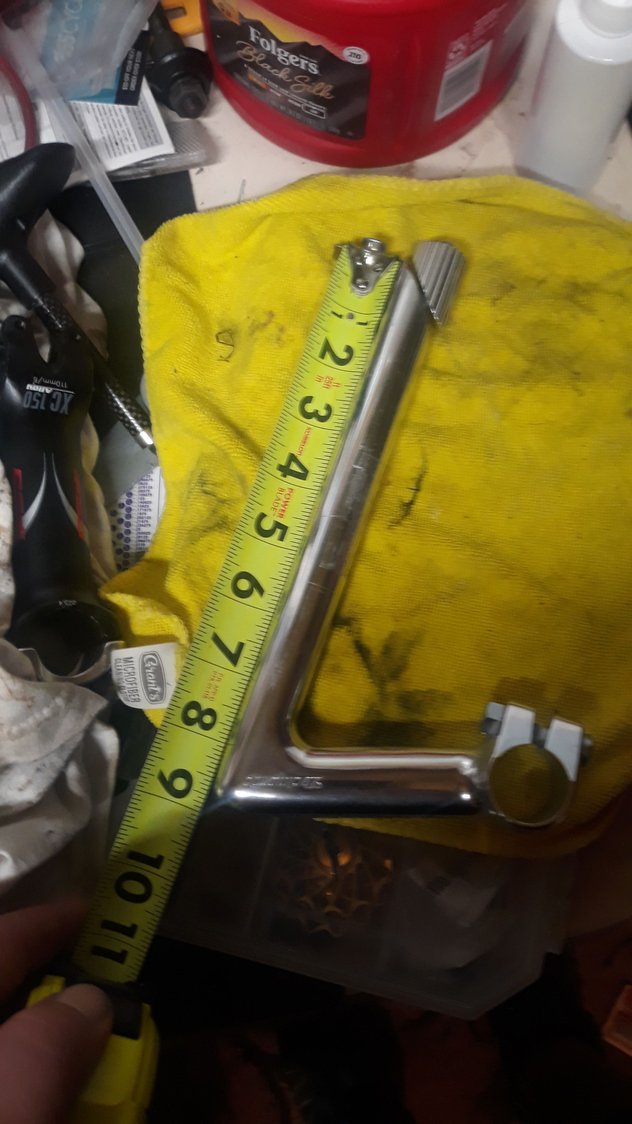

heres a few pics

Thruhiker is offline
Old 09-17-20, 08:54 AM
  #2
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 21,001

Bikes: old ones

Mentioned: 293 Post(s)
Tagged: 0 Thread(s)
Quoted: 23801 Post(s)
Liked 7,500 Times in 5,296 Posts
.
...my thoughts are you can probably do this with that stem and get away with it. My experience suggests that to do it properly is a PIA , and that waiting for a new one is what I would do.
3alarmer is offline
Old 09-17-20, 08:57 AM
  #3
cyclist2000
Senior Member

cyclist2000's Avatar

Join Date: Sep 2009
Location: Up
Posts: 4,640

Bikes: Masi, Giant TCR, Eisentraut (retired), Jamis Aurora Elite, Zullo, Cannondale, 84 & 93 Stumpjumpers, Waterford, Tern D8, Bianchi, Gunner Roadie, Serotta, and looking for a Brompton M6R or T-line

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 297 Post(s)
Liked 1,899 Times in 557 Posts
I would wait for a new one and sell the old one.
cyclist2000 is offline
Likes For cyclist2000:
Old 09-17-20, 09:09 AM
  #4
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,433

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4643 Post(s)
Liked 3,144 Times in 2,190 Posts
Go for it. It might convince you to buy another stem sooner. Which is what you should have done in the first place.
Iride01 is offline
Old 09-17-20, 09:17 AM
  #5
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 5,206

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1710 Post(s)
Liked 1,791 Times in 1,110 Posts
If the wall thickness is consistent and you have a shorter threaded bolt to fit the new length, then it should work. If not, you’ll end up with an usable stem and as already noted will be buying a newer one sooner.

I‘m thinking you might end up having to buy a shorter stem just to get the shorter bolt.

John
70sSanO is offline
Likes For 70sSanO:
Old 09-17-20, 09:19 AM
  #6
joeruge
Full Member

Join Date: Jan 2006
Posts: 210
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked 72 Times in 40 Posts
Yeah, I would wait for a replacement rather than cut it. Don't forget, if you're thinking of making it significantly shorter you will likely have to get a replacement expander bolt, or cut additional threads, which is a PIA no matter how you look at it.

I've done stupid and impetuous things with a hacksaw on some classic steel frames when I was younger. And that's a nice looking stem. Somebody out there will be very happy get it. Besides, unless you're determined to keep the 'classic' look, you could put on a quill adapter and then have access to easily changed out modern stems.
joeruge is offline
Old 09-17-20, 09:22 AM
  #7
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,062

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3636 Post(s)
Liked 2,070 Times in 1,314 Posts
Originally Posted by 70sSanO View Post
If the wall thickness is consistent and you have a shorter threaded bolt to fit the new length, then it should work. If not, you’ll end up with an usable stem and as already noted will be buying a newer one sooner.

I‘m thinking you might end up having to buy a shorter stem just to get the shorter bolt.

John
+1. I would just trade it for a shorter stem. Plenty of people like those Technomic stems.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 09-17-20, 09:32 AM
  #8
grizzly59
Senior Member

Join Date: Aug 2016
Posts: 712
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 283 Post(s)
Liked 262 Times in 164 Posts
I'm usually a DIY type, but a trip to the ER due to a header from a failed stem would buy an armful of new stems. Co-op or old time bike shop might have a stem in a parts box that would work. 20mph impact with flesh, bones, concrete, trees, cars etc. is a priority of things to avoid.
grizzly59 is offline
Old 09-17-20, 09:38 AM
  #9
pdlamb
Senior Member

Join Date: Dec 2010
Location: northern Deep South
Posts: 7,749

Bikes: Fuji Touring, Novara Randonee

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1992 Post(s)
Liked 1,249 Times in 794 Posts
Originally Posted by cyclist2000 View Post
I would wait for a new one and sell the old one.
Ditto. You can probably come out ahead on the exchange if you buy an inexpensive new stem.
pdlamb is offline
Old 09-17-20, 09:48 AM
  #10
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,280

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1420 Post(s)
Liked 1,038 Times in 695 Posts
Originally Posted by joeruge View Post
Yeah, I would wait for a replacement rather than cut it. Don't forget, if you're thinking of making it significantly shorter you will likely have to get a replacement expander bolt, or cut additional threads, which is a PIA no matter how you look at it.
If the bolt threads are rolled, which is very likely, there will not be enough material to cut full threads. Unless you have a way to roll threads you will be stuck.
dsbrantjr is offline
Likes For dsbrantjr:
Old 09-17-20, 09:55 AM
  #11
Litespud
Senior Member

Join Date: Oct 2017
Location: Chapel Hill NC
Posts: 1,683

Bikes: 2000 Litespeed Vortex Chorus 10, 1995 DeBernardi Cromor S/S

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 644 Post(s)
Liked 790 Times in 443 Posts
You're going to have to source a shorter stem bolt, 'cos I don't think you'll be able to bodge the one you have. Where are you going to get said bolt of the appropriate length? Riding with the bars too high for a few days won't kill you. Order the shorter stem and do it right.
Litespud is offline
Old 09-17-20, 10:15 AM
  #12
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 10,736

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 3548 Post(s)
Liked 2,346 Times in 1,536 Posts
I see no real issue with cutting it down. You need an accurate angled cut but you can get there simply by trying on the wedge and filing until it sits nicely. I"m guessing one of the fastener outfits make a suitable long bolt with a head that will work. No rocket science here. There are also thousands of old stems you can lift a shorter bolt from. Any bike coop.

That said, Nitto (and others) make lots of short quill stems of any quality level you want. There are tons of used ones out there. So why bother? (And who knows, you might age and want higher bars some day.)

Ben
79pmooney is offline
Old 09-17-20, 10:26 AM
  #13
ClydeClydeson
Senior Member

Join Date: Mar 2019
Posts: 1,428
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 488 Post(s)
Liked 752 Times in 436 Posts
Makes no sense. You'll have to go shopping for a shorter bolt anyways, why not just shop for a shorter stem?
ClydeClydeson is offline
Old 09-17-20, 10:38 AM
  #14
Thruhiker
Senior Member
Thread Starter

Thruhiker's Avatar

Join Date: May 2020
Location: Greencastle Pa
Posts: 128

Bikes: Fuji touring, jeep hybrid Trek 1100

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 28 Times in 20 Posts
Originally Posted by 70sSanO View Post
If the wall thickness is consistent and you have a shorter threaded bolt to fit the new length, then it should work. If not, you’ll end up with an usable stem and as already noted will be buying a newer one sooner.

I‘m thinking you might end up having to buy a shorter stem just to get the shorter bolt.

John
thanks everyone for the answers. I didnt think of it not being the same wall thickness. That is a good reason to just get a new one. I had a shorter nitto bolt from another stem but it doesnt have the reach I want.
Thruhiker is offline
Old 09-17-20, 01:35 PM
  #15
BoraxKid
Senior Member

Join Date: Jul 2020
Location: Parts Unknown
Posts: 356
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 325 Post(s)
Likes: 0
Liked 107 Times in 70 Posts
Originally Posted by Thruhiker View Post
thanks everyone for the answers. I didnt think of it not being the same wall thickness. That is a good reason to just get a new one. I had a shorter nitto bolt from another stem but it doesnt have the reach I want.
Before you commit to a new purchase, you should compare the change in handlebar position here:

Stem Comparison Tool | yojimg.net

I just upgraded my wife's vintage road bike and that tool was very helpful in deciding on what length & reach quill stem she needed.
BoraxKid is offline
Old 09-17-20, 02:54 PM
  #16
Thruhiker
Senior Member
Thread Starter

Thruhiker's Avatar

Join Date: May 2020
Location: Greencastle Pa
Posts: 128

Bikes: Fuji touring, jeep hybrid Trek 1100

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 28 Times in 20 Posts
Thanks for the link. Thsts pretty neat.useing the comparison tool on my phone I dont have the minus button so i have to put the value in at 343 degree stem angle. Fun to play around with though. There was one similiar to that for handlebars I used a while ago. Whatbars.com I think it was. Sorry I dont know how to include links.
Thruhiker is offline
Old 09-17-20, 05:42 PM
  #17
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 9,456

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1473 Post(s)
Liked 688 Times in 486 Posts
Ah, quill stems with ye olde single-bolt bar clamp are a pretty good reason not to be into vintage... swapping a stem can take more than 45 minutes instead of less than five.

I reckon if you're gonna use old steel (as opposed to hanging it on a wall), go the hotrod route; modernise everything but the frameset. Quill adapters suck, but there's a bloke on here (joejack?) who's made an awesome refinement to the concept by including the headset.
Kimmo is offline
Old 09-17-20, 07:37 PM
  #18
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 6,092

Bikes: Old school lightweights

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 2555 Post(s)
Liked 3,525 Times in 1,875 Posts
Originally Posted by Kimmo View Post
Ah, quill stems with ye olde single-bolt bar clamp ... swapping a stem can take more than 45 minutes instead of less than five.
And it takes 30 seconds to raise or lower the stem, given non-aero levers.

Not to mention, they actually look good.
SurferRosa is offline
Likes For SurferRosa:
Old 09-17-20, 07:52 PM
  #19
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 9,456

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1473 Post(s)
Liked 688 Times in 486 Posts
Originally Posted by SurferRosa View Post
Not to mention, they actually look good.
If you consider 'obviously undercooked' a desirable aesthetic, sure.

This system was conceived in steel, remember. Ally quill stems are all flexy, unless you're talking 1.125 MTB, and 1" bars are flat out being securely clamped enough not to rotate when you jump a gutter with your hands on the hoods.

I reckon you'll enjoy life more if you decide to include a rule in your aesthetic criteria that if it works better, that means it looks better.
Kimmo is offline
Old 09-17-20, 08:01 PM
  #20
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 6,092

Bikes: Old school lightweights

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 2555 Post(s)
Liked 3,525 Times in 1,875 Posts
Originally Posted by Kimmo View Post
I reckon you'll enjoy life more if you decide to include a rule in your aesthetic criteria that if it works better, that means it looks better.
I reckon I'll continue to love riding my sexy as **** vintage lightweights if I follow my heart.
SurferRosa is offline
Old 09-18-20, 04:41 AM
  #21
nomadmax
Senior Member

Join Date: Jun 2018
Location: SW Ohio
Posts: 2,119
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 965 Post(s)
Liked 1,431 Times in 691 Posts
I'm lucky that my best friend is a machinist. He has milled down the length of several stems and quill adapters for me. That said they were all high quality, Nitto, Cinelli etc. You just have to make sure the milled angle is the same as the original and that new marks are made for minimum insertion based on the previous ones. Cutting the bolt and cleaning up the end is no big deal. On every one we did the wall thickness was measured and there was never a deviation.
nomadmax is offline
