handlebar accessory spacers

I want to put a display panel directly in the middle, of the flat bars on my 700c hybrid, it has two clamps are on either side of the stem. this particular display has a larger ~32mm clamp and came with adapters for 22.5mm bars, which mine are except in the middle, where they are 25.4mm (1"). So I want to buy a couple spacers from 25.4 to 31.8

I know in the past I've done funky stuff like cut rings from inner tubes, and I used to have a junk box full of spares of those sorts of adapters from various headlights, bells, speedos, etc, but I purged that along time ago.

normally, I'd just go down to my friendly neighborhood bike shop and get something from the service guy. but covid. ;-/

Last edited by pierce; 10-02-20 at 01:10 AM.
pierce is offline
Old 10-02-20, 01:23 AM
  #2
JoeTBM
Droid on a mission

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 845

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 266 Post(s)
Liked 193 Times in 137 Posts
Try this link to ebay

Handlebar shims
__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com




JoeTBM is offline
Old 10-02-20, 01:46 AM
  #3
pierce
S'Cruzer
Thread Starter

pierce's Avatar

Join Date: Jun 2010
Location: 122W 37N
Posts: 2,445

Bikes: too many

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 19 Times in 17 Posts
Originally Posted by JoeTBM View Post
Try this link to ebay

Handlebar shims
yeah, those are most all for shimming bars on a larger stem. not finding the right search phrase to find the shims for putting accessories on bars. and what I am finding on ebay is all slow boat from China. no thanks. I don't need 20 in november, I need 2 next week.
pierce is offline
Old 10-02-20, 02:37 AM
  #4
JoeTBM
Droid on a mission

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 845

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 266 Post(s)
Liked 193 Times in 137 Posts
Originally Posted by pierce View Post
yeah, those are most all for shimming bars on a larger stem. not finding the right search phrase to find the shims for putting accessories on bars. and what I am finding on ebay is all slow boat from China. no thanks. I don't need 20 in november, I need 2 next week.
Maybe I 'm not understanding your OP correctly but you said the rings for the accessory were 31.8 and needed to fit on the 25.4 part of the bars, they should work in that situation and some of the sellers are in Florida.

But if you are in a real rush just buy a rubber strip/pad in about 1/8 to 1/4 thickness and cut a strip to use between the rings and the bars, like shims they sell for handlebar/seatpost reflectors. You should be able to find it in almost any hardware store
__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com




JoeTBM is offline
Old 10-02-20, 03:17 AM
  #5
pierce
S'Cruzer
Thread Starter

pierce's Avatar

Join Date: Jun 2010
Location: 122W 37N
Posts: 2,445

Bikes: too many

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 19 Times in 17 Posts
most of those handlebar to stem shims are aluminum. this displaly has the typical handlebar clamps (two of them), and O diont think they'd put enough pressure on the metal sleeves to keep them from slipping. I need plastic/rubber spacers. yeah, cutting the right thickness rubber strips, now where do I find that? meh.

k, i calculate it needs to be 1/8" (3.2mm) thick.
pierce is offline
Old 10-02-20, 04:50 AM
  #6
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,292

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1426 Post(s)
Liked 1,056 Times in 706 Posts
Originally Posted by pierce View Post
most of those handlebar to stem shims are aluminum. this displaly has the typical handlebar clamps (two of them), and O diont think they'd put enough pressure on the metal sleeves to keep them from slipping. I need plastic/rubber spacers. yeah, cutting the right thickness rubber strips, now where do I find that? meh.

k, i calculate it needs to be 1/8" (3.2mm) thick.
Try building up the thickness you need with a few wraps of self-fusing silicone tape.
dsbrantjr is offline
Likes For dsbrantjr:
Old 10-02-20, 07:20 AM
  #7
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,463

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1927 Post(s)
Likes: 0
Liked 905 Times in 634 Posts
Originally Posted by dsbrantjr View Post
Try building up the thickness you need with a few wraps of self-fusing silicone tape.
That's a good suggestion. Self-fusing silicone tape is available in a wide variety of colors, including clear, at any Home Depot, Lowes, etc. It won't bleed adhesive or gum up your bars the way electrical tape can.
HillRider is offline
Old 10-02-20, 07:35 AM
  #8
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,292

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1426 Post(s)
Liked 1,056 Times in 706 Posts
Originally Posted by HillRider View Post
That's a good suggestion. Self-fusing silicone tape is available in a wide variety of colors, including clear, at any Home Depot, Lowes, etc. It won't bleed adhesive or gum up your bars the way electrical tape can.
It also only adheres to itself, so it comes off clean by cutting with a sharp blade. I like it for terminating bar tape wraps, too. I got an assortment of 10 colors cheap from an EBay seller.
dsbrantjr is offline
Old 10-02-20, 07:56 AM
  #9
mack_turtle
n00b

Join Date: Jan 2008
Location: Austin, TX
Posts: 1,398

Bikes: Surly Karate Monkey, Twin Six Standard Rando

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 427 Post(s)
Liked 466 Times in 273 Posts
I've always fitted accessories to handlebars using soft plastic or rubber strips. accessories like computer mounts, lights, reflectors, and bells usually come with such a strip. it should not be hard to find such a thing but you might need to be a little creative and improvise.
mack_turtle is offline
Old 10-02-20, 10:13 AM
  #10
Pop N Wood
Senior Member

Join Date: Jun 2020
Location: Maryland
Posts: 1,163

Bikes: 1982 Bianchi Sport SX, Rayleigh Tamland 1, Rans V-Rex recumbent, Fuji MTB, 80's Cannondale MTB with BBSHD ebike motor

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 552 Post(s)
Liked 439 Times in 290 Posts
Every on line retailer sells shims like that. I have a jar full
Pop N Wood is offline
Old 10-03-20, 03:11 AM
  #11
JoeTBM
Droid on a mission

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 845

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 266 Post(s)
Liked 193 Times in 137 Posts

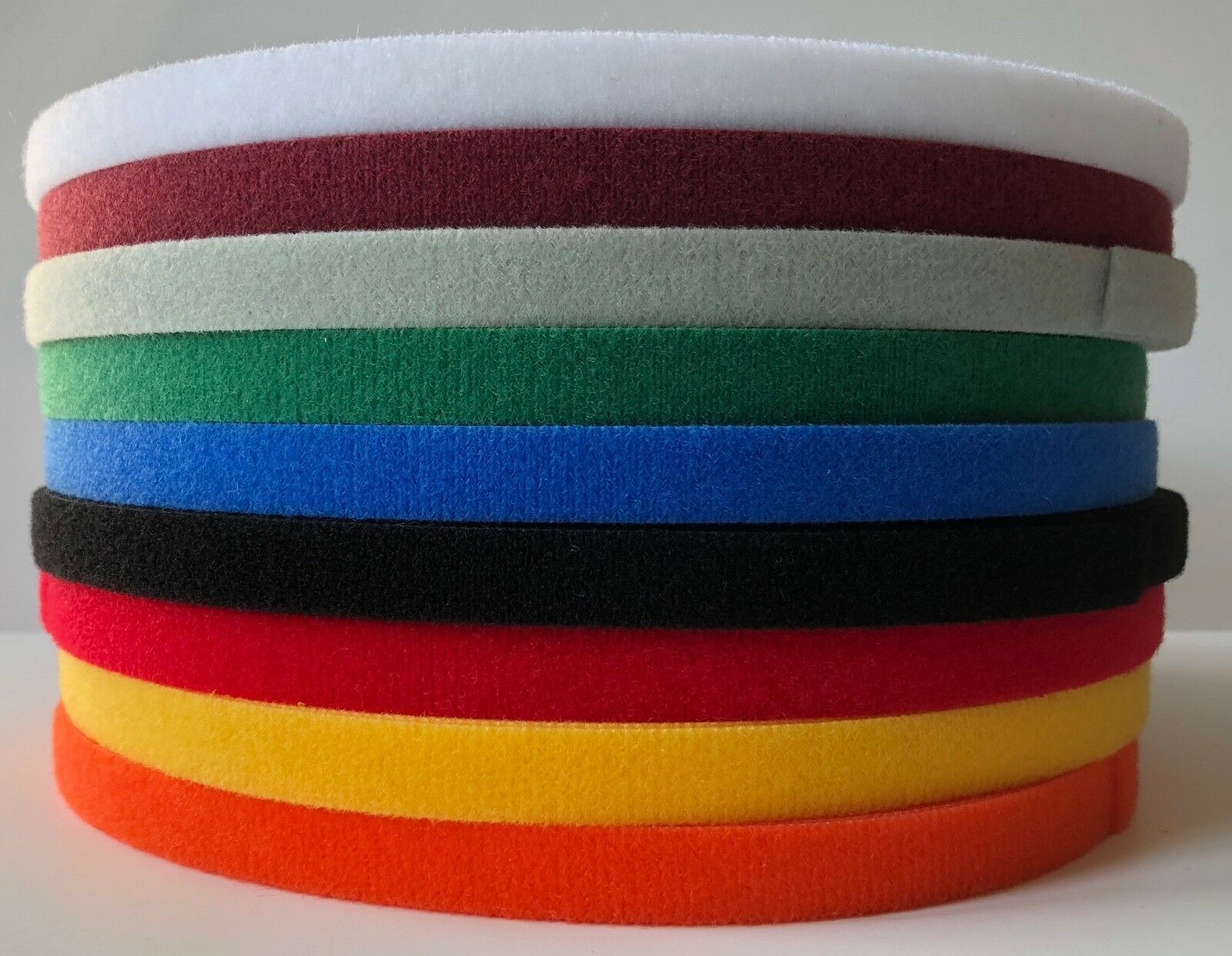

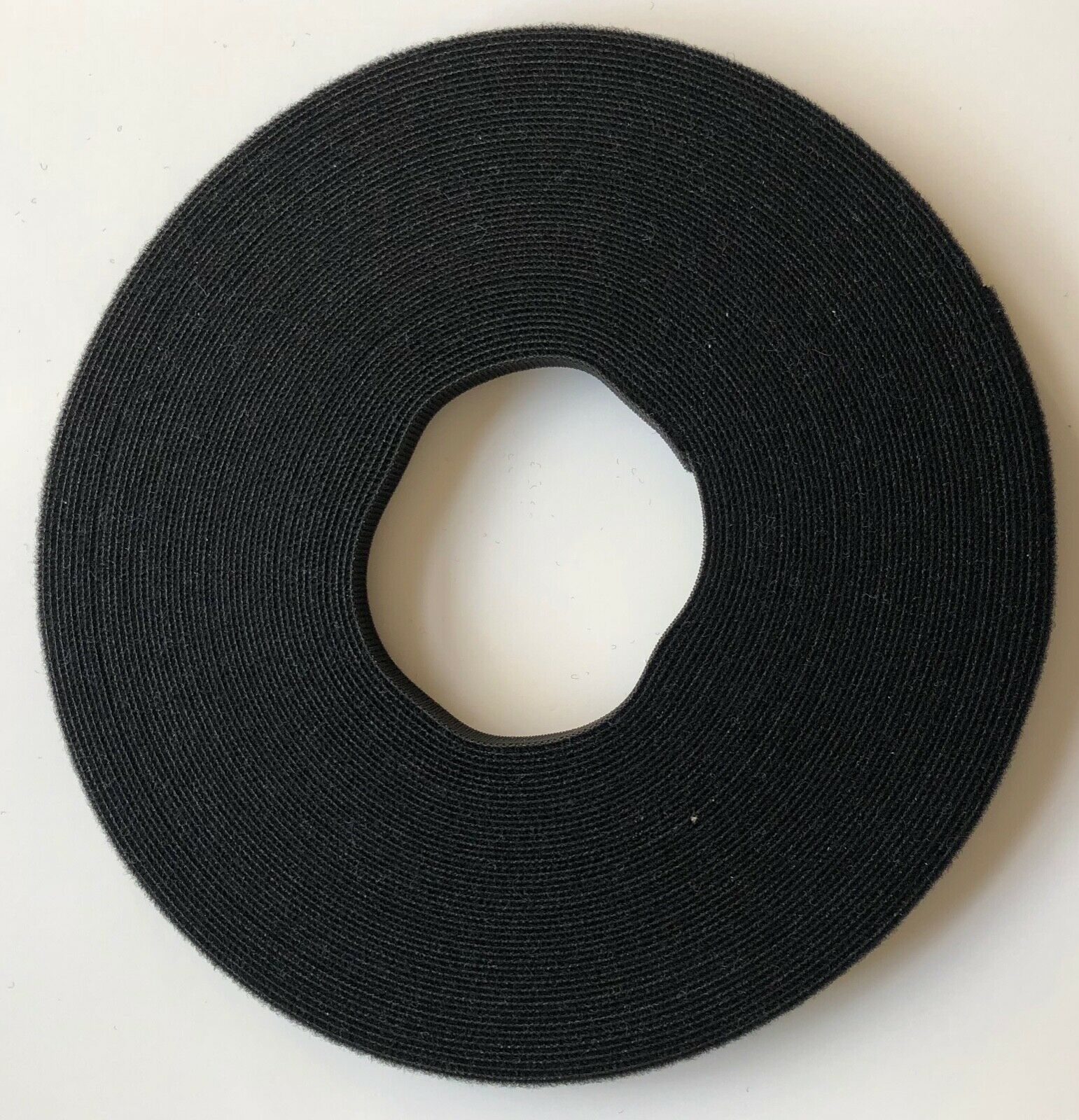

I actually keep a roll of 1/2" wide black velcro ONE-WRAP handy, it sticks to itself as you wind layers to get to the thickness you need. Soft and will not mar handlebars or equipment. It will allow for compression for mounting rings to fit snugly.

We buy it in 75' rolls but 1'm sure you can get a smaller quantity or similar in Lowes or Home Depot




https://www.ebay.com/itm/VELCRO-BRAN...MAAOSwxONfRVzU

Also comes in other colors, great around the shop for many uses.

__________________
JoeTBM (The Bike Man) - I'm a black & white type of guy, the only gray in my life is the hair on my head
www.TheBikeMenOfFlaglerCounty.com





Last edited by JoeTBM; 10-03-20 at 03:25 AM.
JoeTBM is offline
Old 11-13-20, 06:19 PM
  #12
pierce
S'Cruzer
Thread Starter

pierce's Avatar

Join Date: Jun 2010
Location: 122W 37N
Posts: 2,445

Bikes: too many

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 19 Times in 17 Posts
well, i finally gave up and got a set of the split aluminum shims meant for a bar clamp, and it worked perfectly. I was afraid the clamping force of the plastic bracket wouldn't hold them tight enough but it works quite nicely
pierce is offline
Likes For pierce:
Old 11-14-20, 04:05 AM
  #13
JoeTBM
Droid on a mission

JoeTBM's Avatar

Join Date: May 2018
Location: Palm Coast, FL
Posts: 845

Bikes: Diamondback Wildwood Classic

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 266 Post(s)
Liked 193 Times in 137 Posts
Originally Posted by pierce View Post
well, i finally gave up and got a set of the split aluminum shims meant for a bar clamp, and it worked perfectly. I was afraid the clamping force of the plastic bracket wouldn't hold them tight enough but it works quite nicely
Glad to hear you got it solved
